Description

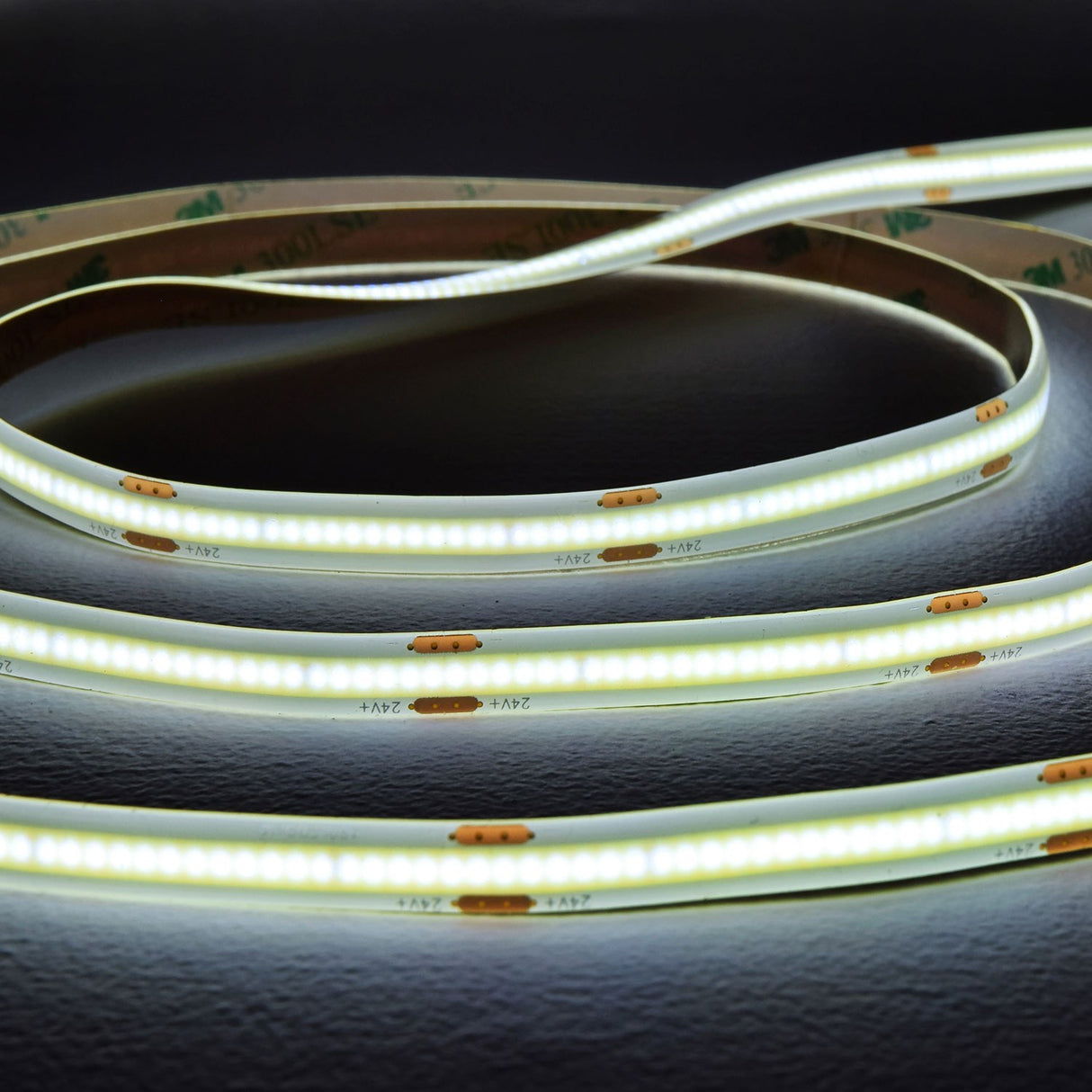

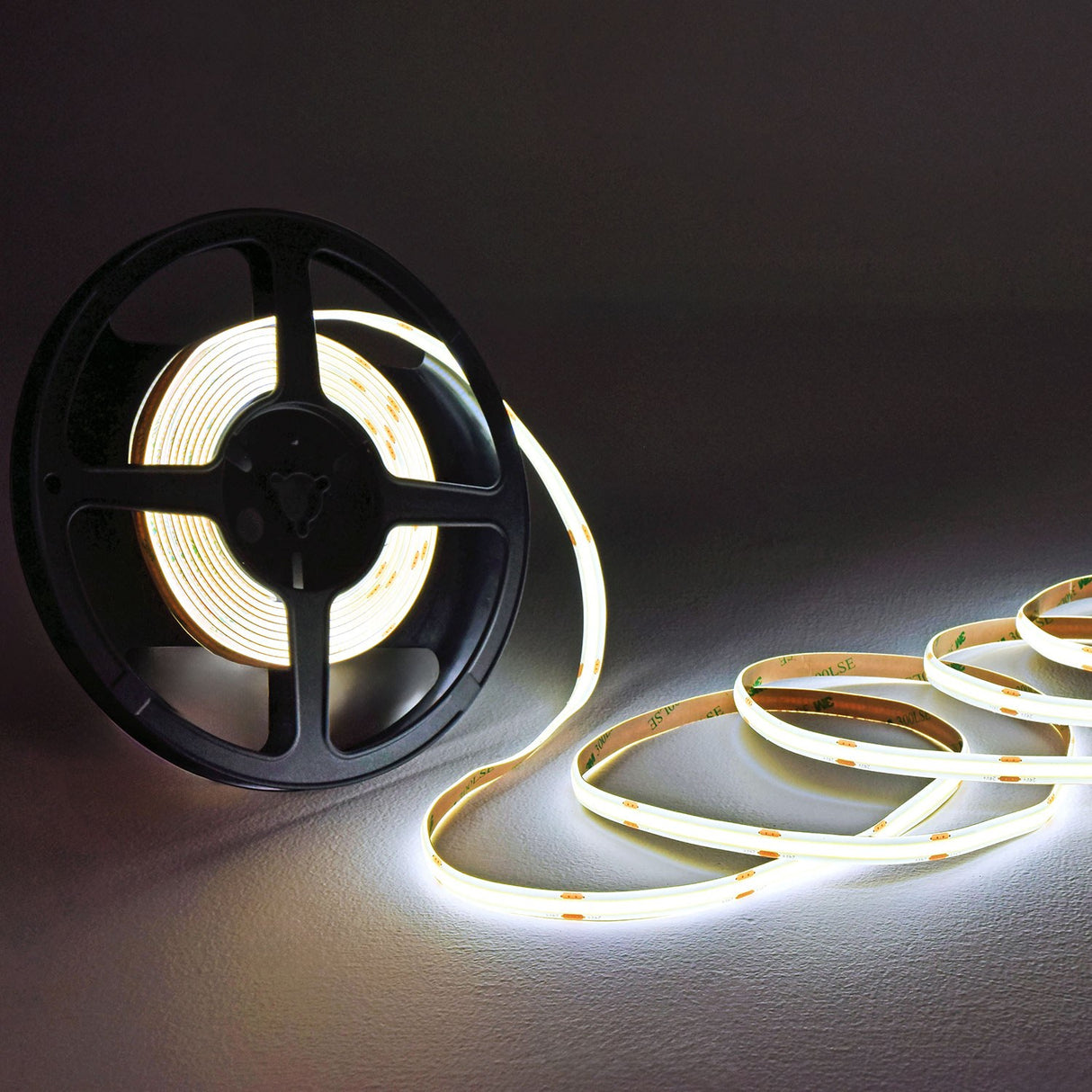

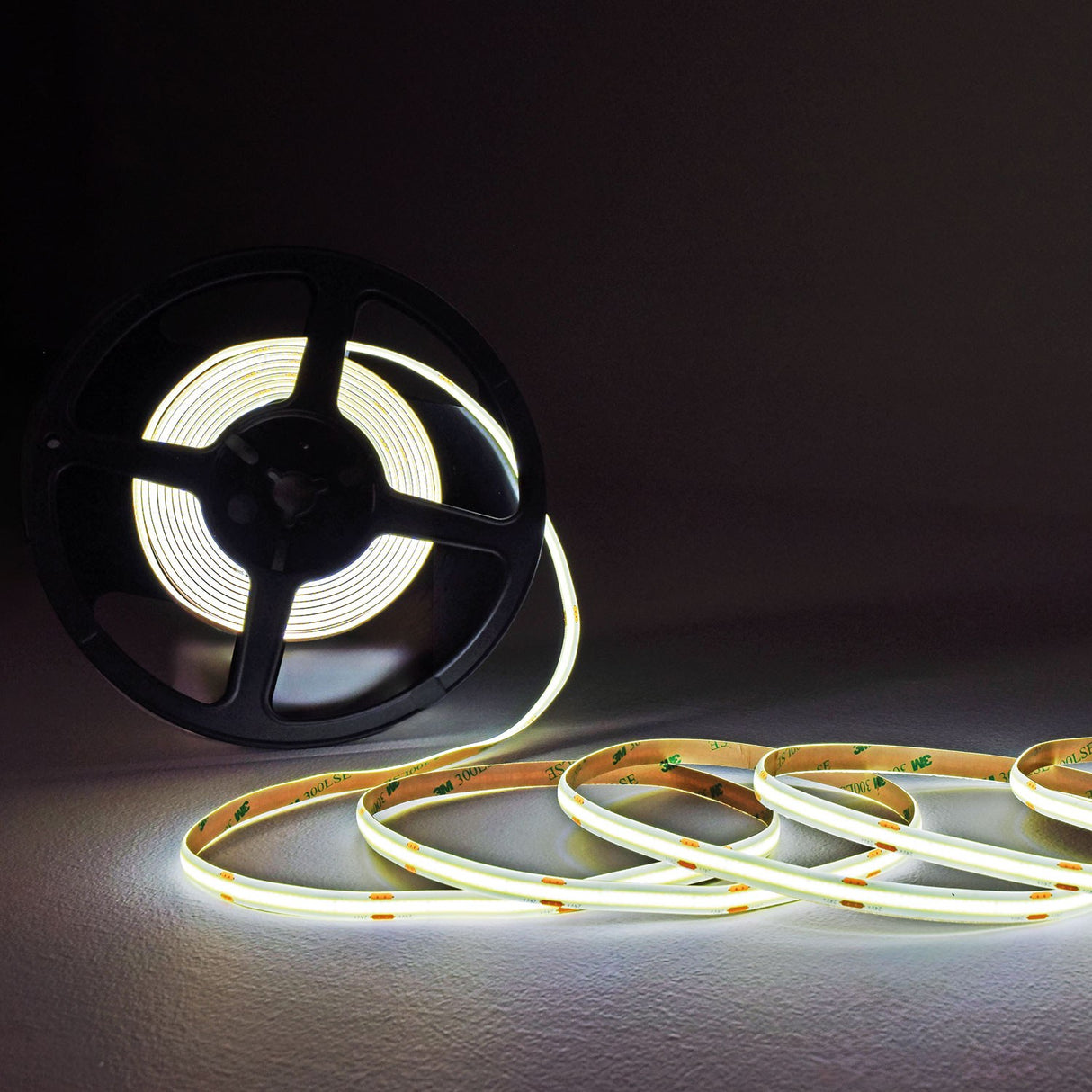

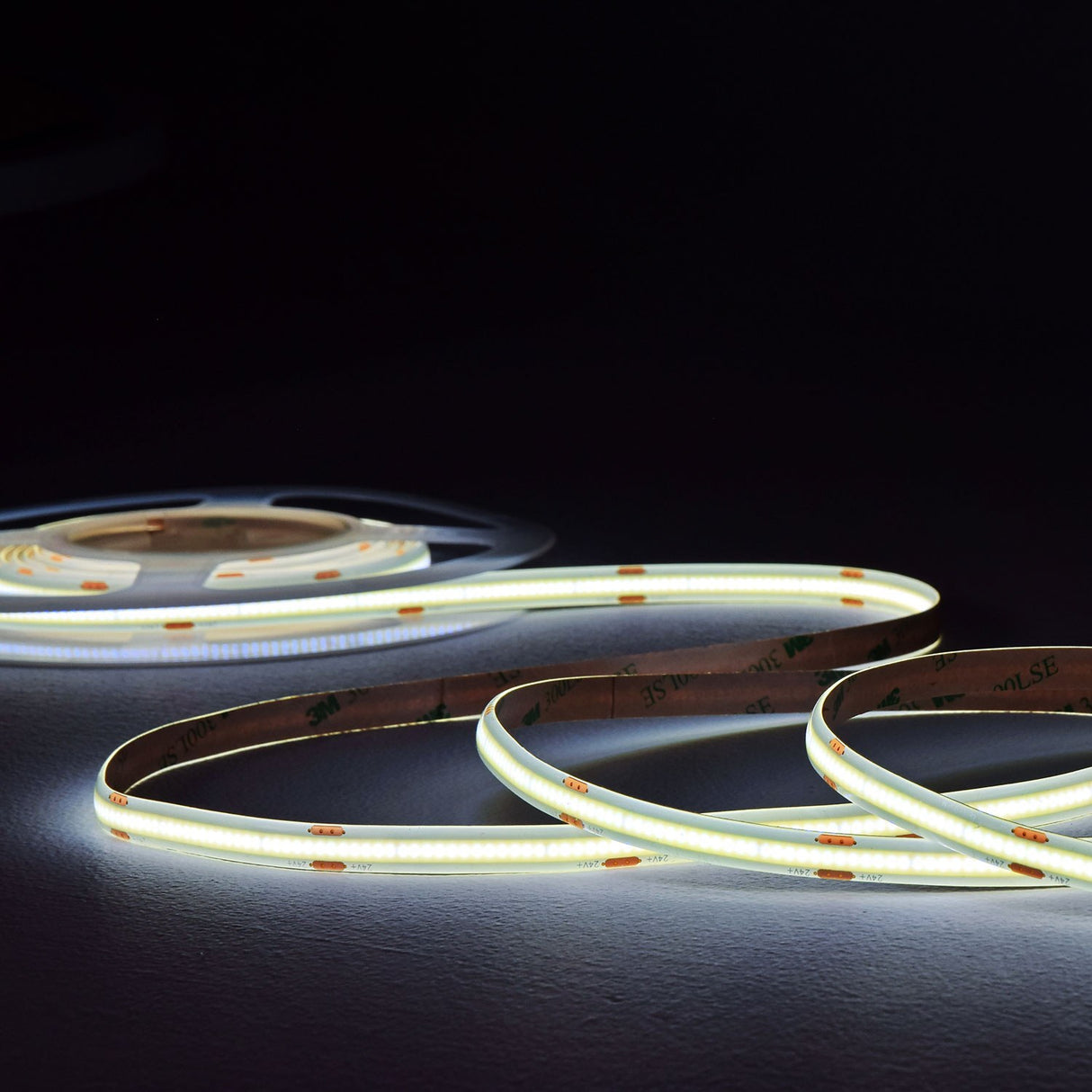

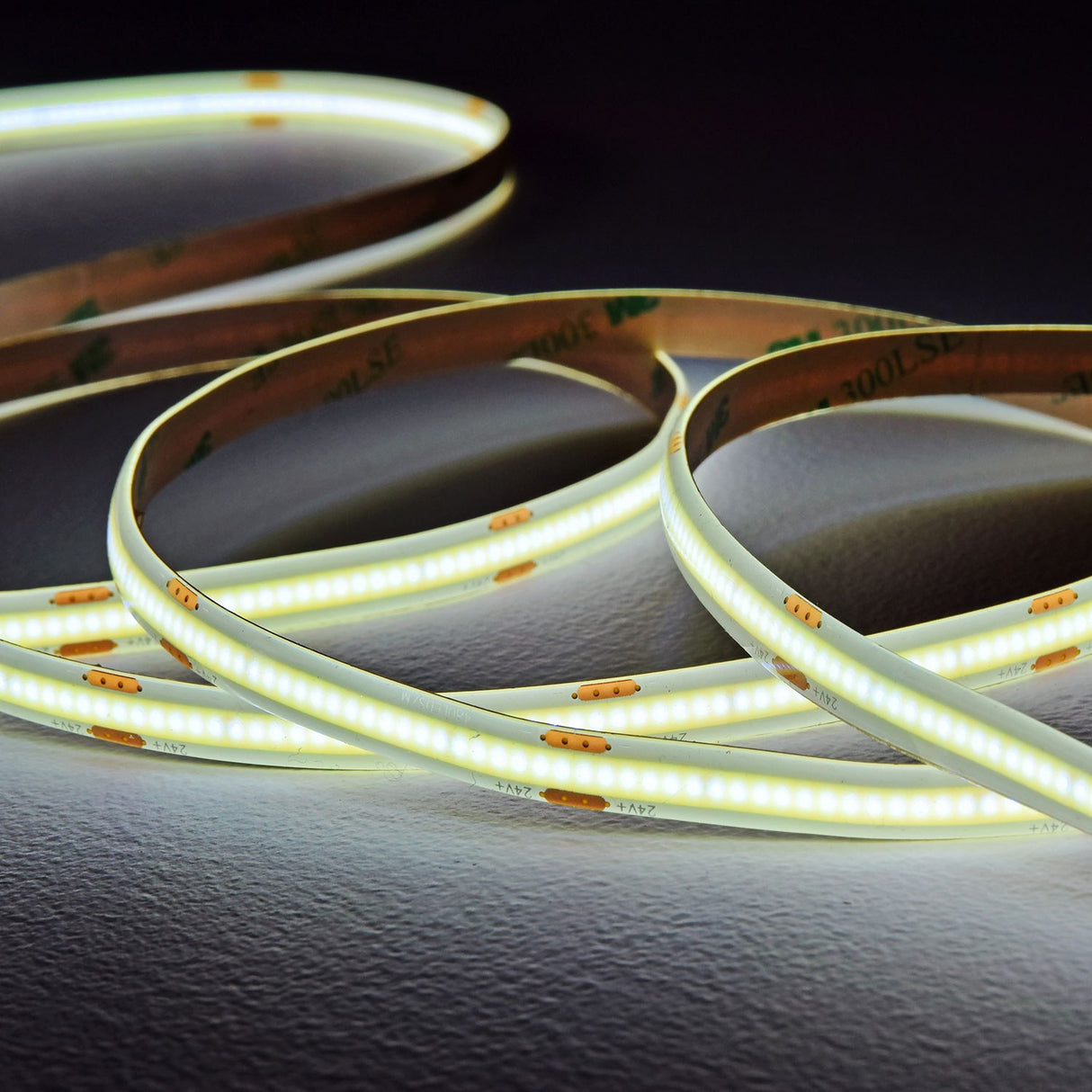

This LYYT COBKITCW kit gives you 5 metres of COB LED tape (LED strip) in cool white, along with everything you need to get it running. COB stands for chip-on-board, which packs 480 LEDs into every metre. The result is an even line of light with none of the visible dots or 'spots' you often get from older LED strips. It runs at a low 24V DC, and a UK power adaptor is included in the box.
Fitting the tape is straightforward. It has an easy-peel self-adhesive backing, so you can position it and press it into place without extra clips or fixings. When you need a shorter run, the tape can be cut to size at 5cm (50mm) intervals along the marked cut points. The slim cross-section measures 8mm wide by 2.5mm deep, which helps it sit neatly into channels, under cabinets or along shelving.
The supplied power supply takes a standard 100-240V AC mains input and outputs 24V DC at 60W (2.5A), which suits the 10.5W per metre draw of the full 5m reel. The tape is rated IP20, so it is intended for indoor, dry locations rather than bathrooms or outdoor use. It is a practical choice for accent lighting, kitchen plinths, coving and display areas where you want a clean, continuous glow.
Specification
| Number of LEDs |
480 per metre |
| Power supply |
Output - 24Vdc 60W 2.5A |
| Cut intervals |
50mm |
| Reel length |
5m |
| IP rating |
IP20 |
| Power consumption |
10.5W/m |
| Cross-section |
8mm x 2.5mm |
| Power supply |
Input: 100-240Vac 50/60Hz |
Downloads
Product Manual
Frequently Asked
What does COB mean on this LED tape?
COB stands for chip-on-board. It places the LEDs very close together, 480 per metre here, so the light looks like a continuous line rather than a row of separate dots.
Can I cut the tape shorter?
Yes. The tape can be cut to size at 5cm (50mm) intervals along the marked cut points, so you can match it to your run.
Is a power supply included?
Yes. The kit comes with a 24V DC power supply rated at 60W (2.5A) and a UK adaptor, so you have everything needed to run the full 5m reel.
Can I use this tape in a bathroom or outdoors?
No. It is rated IP20, which means it is for indoor, dry locations only. It has no protection against water or moisture.
How much power does the tape use?
It draws 10.5W per metre, so a full 5m run uses around 52.5W. The included 60W supply covers this with headroom to spare.
What are the dimensions of the tape?
The cross-section is 8mm wide by 2.5mm deep, and the reel is 5m long.
