Citronic Orbis 100 100W LED Beam Moving Head

£19999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

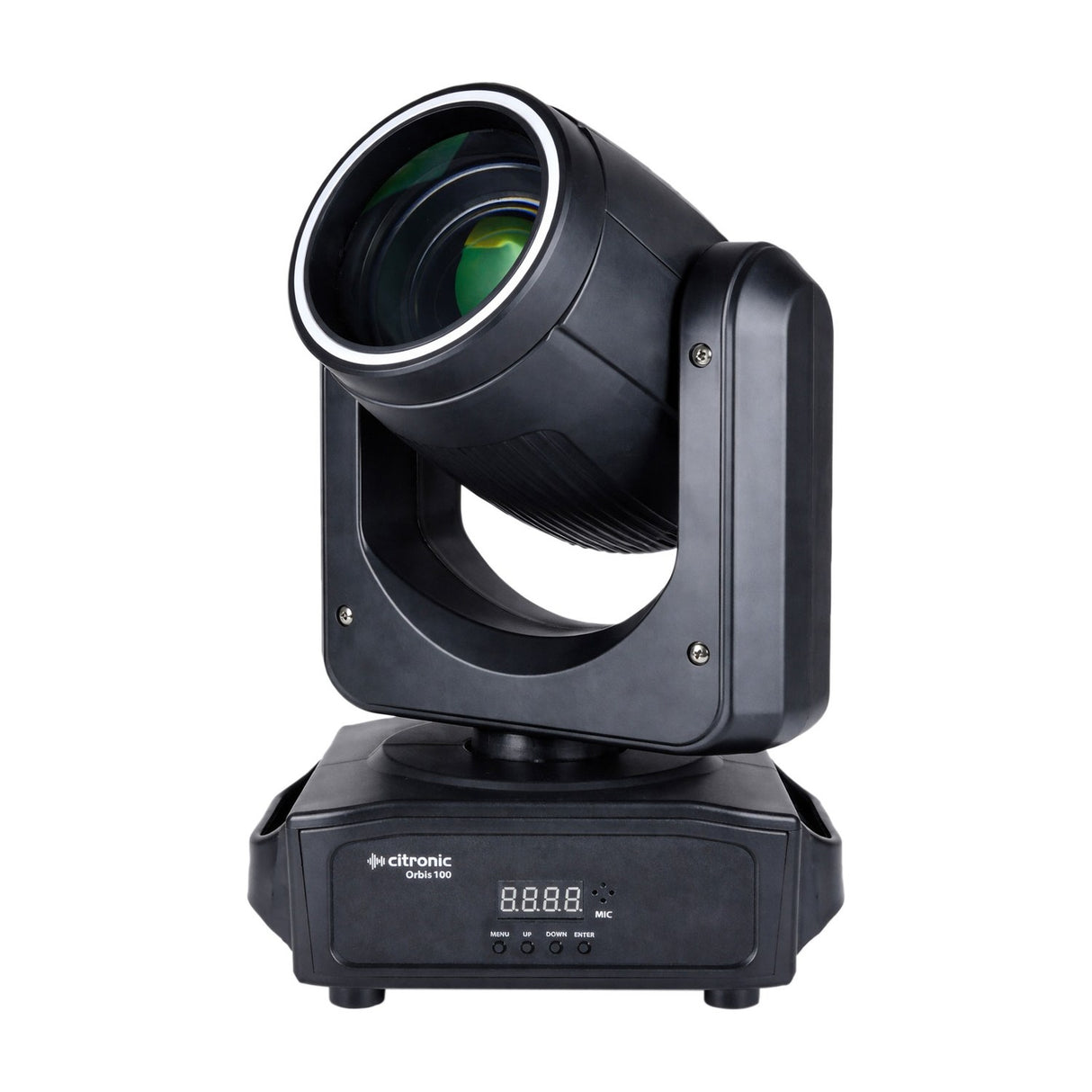

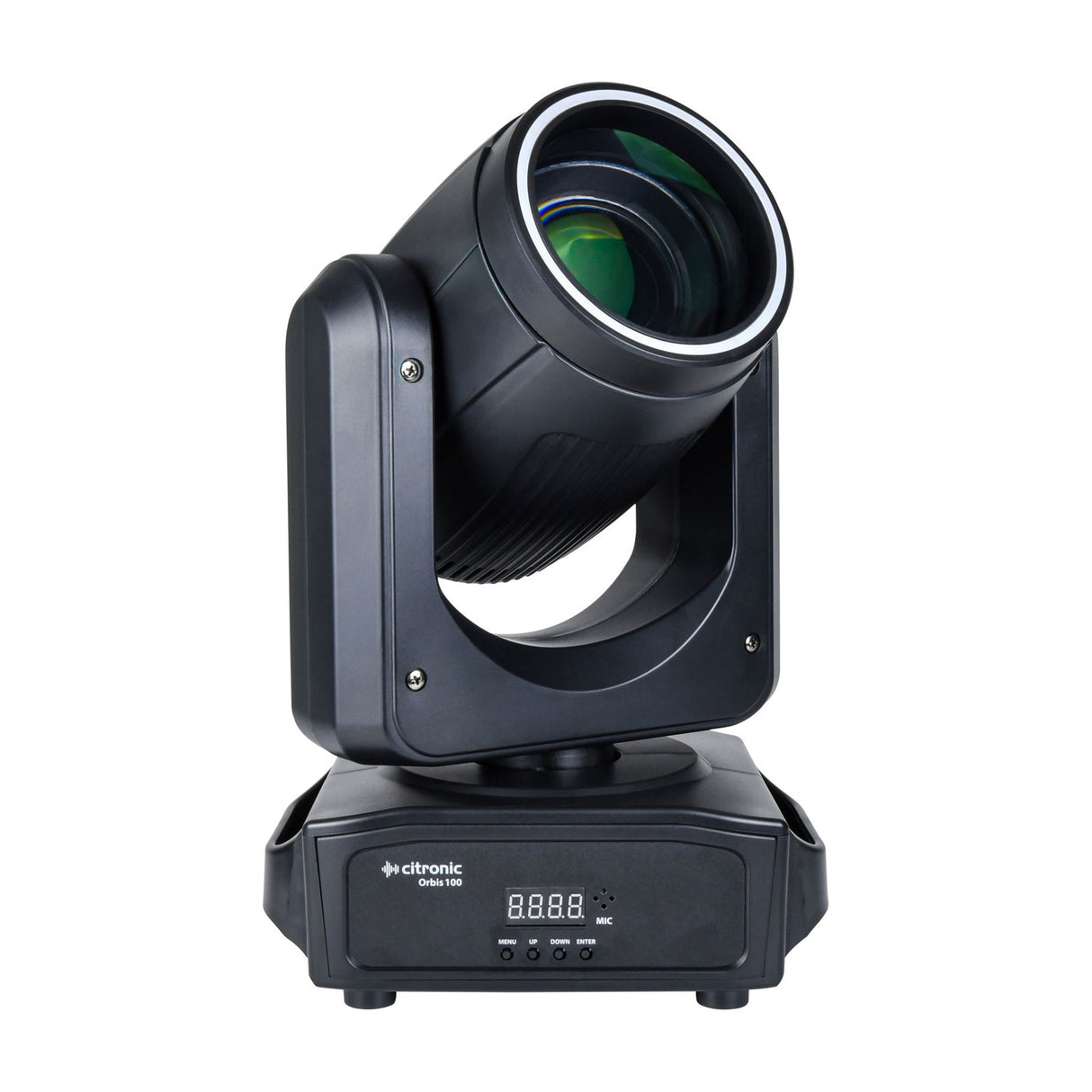

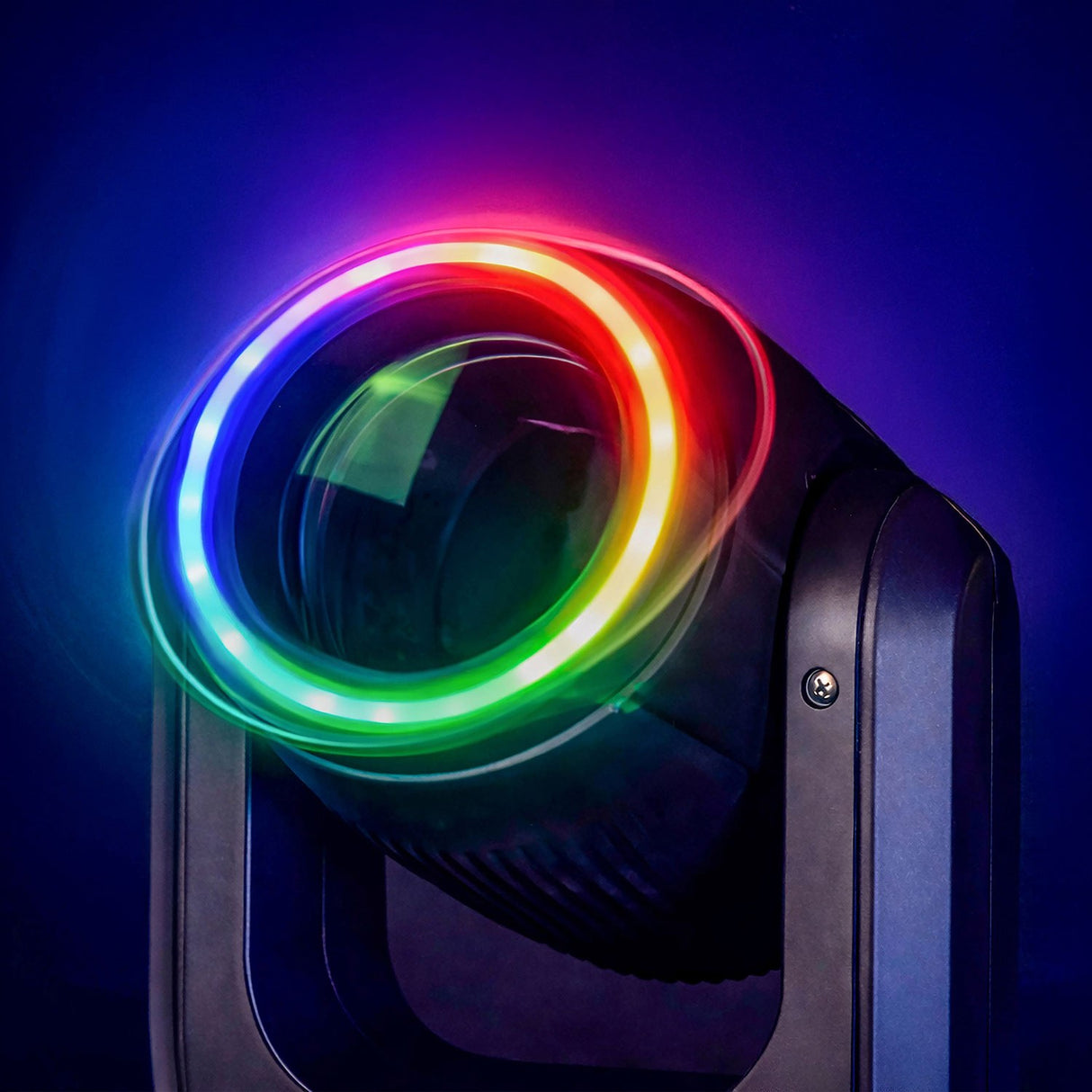

The Citronic Orbis 100 is a moving head that pairs a 100W white LED beam with an RGB outer ring made from 21 5050 strobe LEDs. The main beam runs at 12000K with a tight 2.8° angle, giving you a sharp shaft of light that reads clearly across a room. At 5 metres it delivers around 25185 lux, so it holds up well on stages, in bars, in nightclubs and for mobile DJs.

You get 11 or 14 channel DMX control, plus auto, sound-to-light and master/slave modes, so it works whether you're running a full DMX rig or just want the fixture to react to music on its own. The pan range covers 540° and the tilt range 200°, and both are adjustable. An 18 facet prism, along with a colour wheel and gobo wheel offering seven plus open positions each, lets you shape the output for a range of looks.

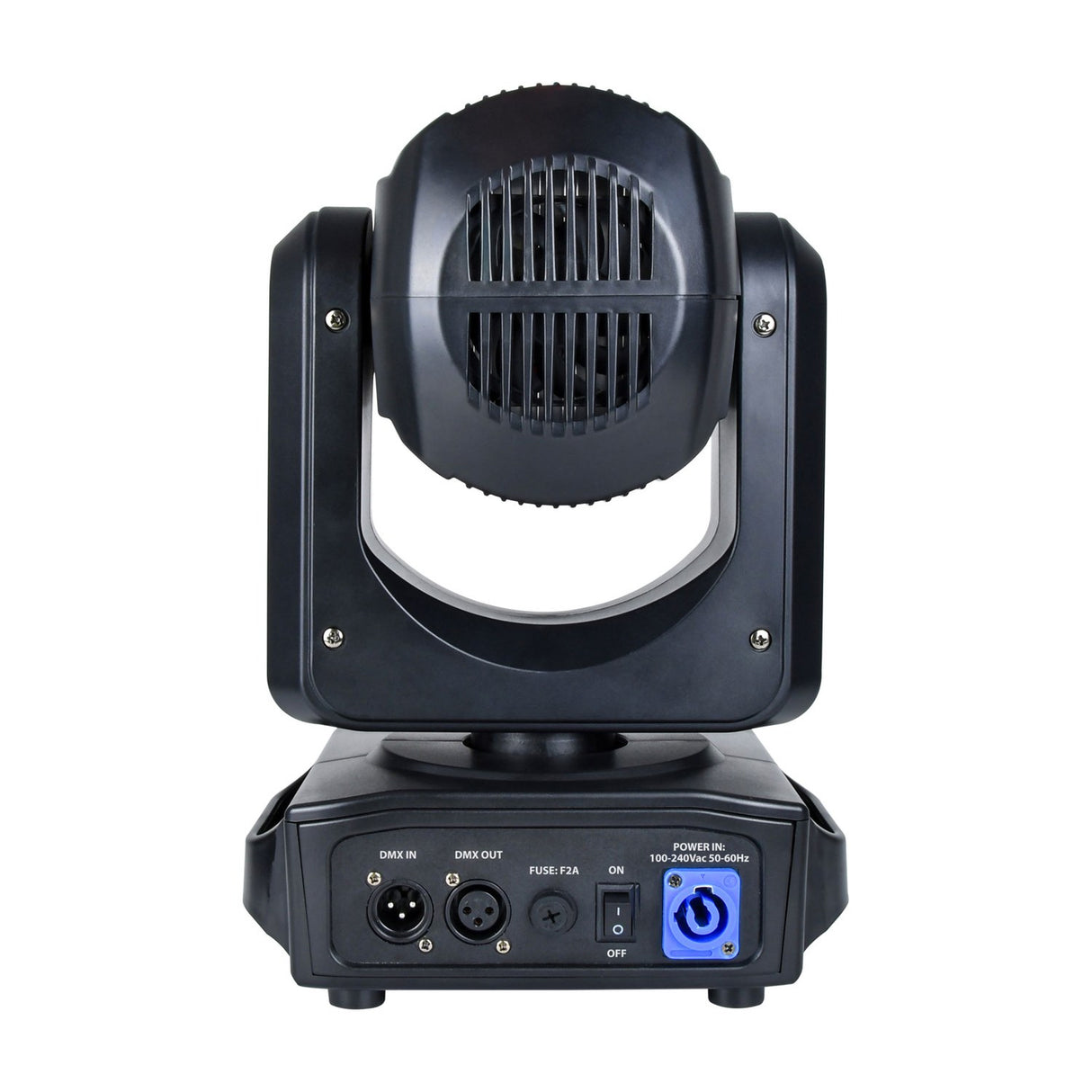

The unit measures 165mm x 200mm x 300mm and weighs 3.8kg, so it's easy to rig or move between gigs. A mounting bracket is included for freestanding or truss-mounted use. DMX runs over 3-pin in and out connectors (also called XLR in some setups), and power uses a twist and lock inlet. It takes 110-240Vac at 50/60Hz with a consumption of 120W and an F2A fuse.

Specification
LED : power 100W White Led 12000k + Outer Ring 21pcs 5050 strobe leds
DMX channels 11 or 14CH
Modes Auto, Sound, Master/Slave and DMX512
Pan range 540°
Tilt range 200°
Beam angle 2.8°
Lux @5m - 25185lux
DMX connection 3 Pin DMX (In/Out)
Power connection Power in (twist and lock)
Dimensions 165mm x 200mm x 300mm
Weight 3.80KG
Power supply 110-240Vac, 50/60Hz
Power consumption 120W
Fuse F2A
Frequently Asked

How many DMX channels does the Orbis 100 use?

It runs in either 11 or 14 channel mode over 3-pin DMX, with separate in and out connectors for daisy-chaining.

Can it work without a DMX controller?

Yes. Alongside DMX512 it offers auto, sound-to-light and master/slave modes, so it can react to music or follow another unit.

What are the pan and tilt ranges?

Pan covers 540° and tilt covers 200°, both adjustable to position the beam where you need it.

Is a mounting bracket included?

Yes. A bracket is supplied for freestanding or truss-mounted use, so it suits stages, bars and mobile setups.

What colour and gobo options does it have?

It has a colour wheel and a gobo wheel, each with seven positions plus open, along with an 18 facet prism.

What power does it need?

It accepts 110-240Vac at 50/60Hz, draws 120W and uses a twist and lock power inlet with an F2A fuse.
