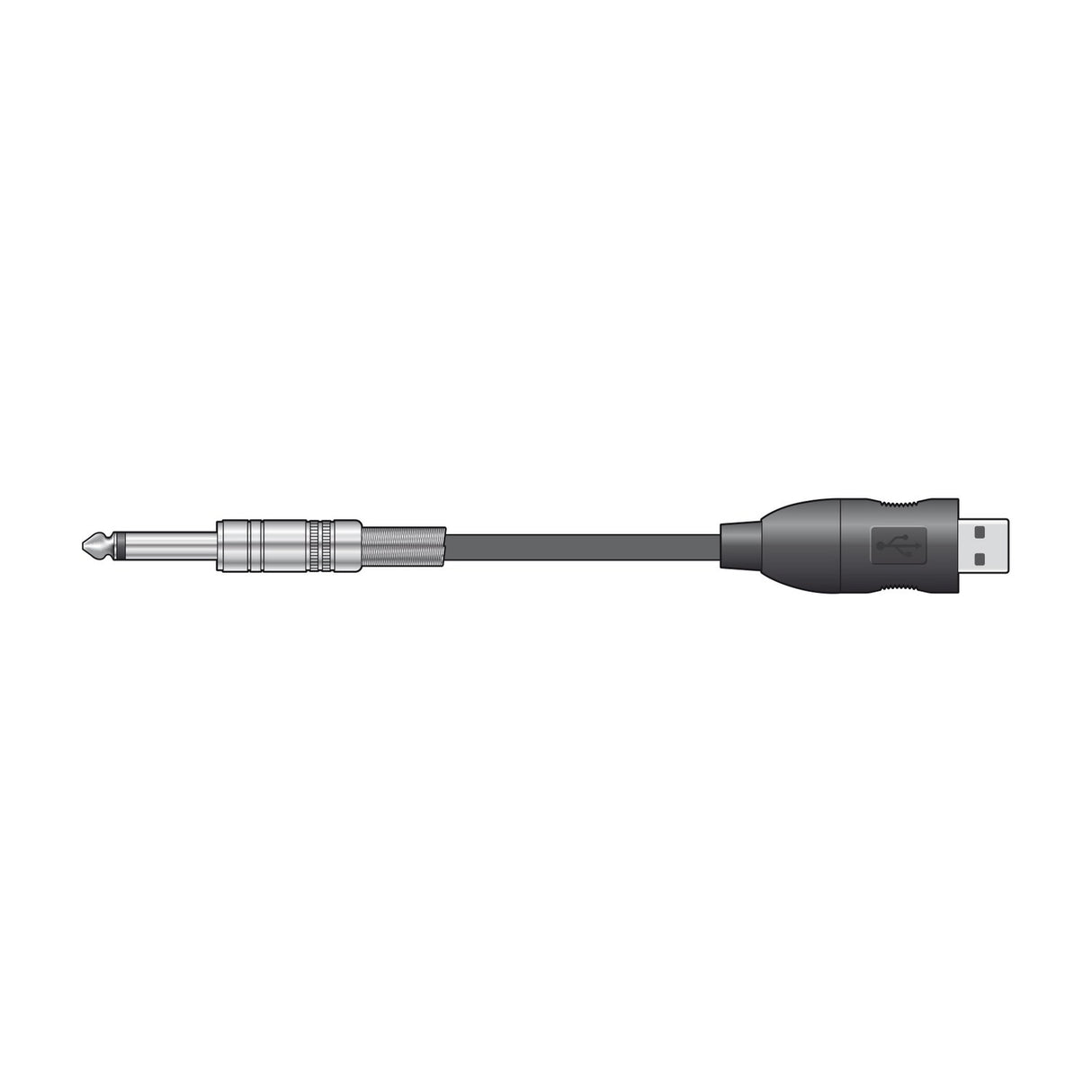

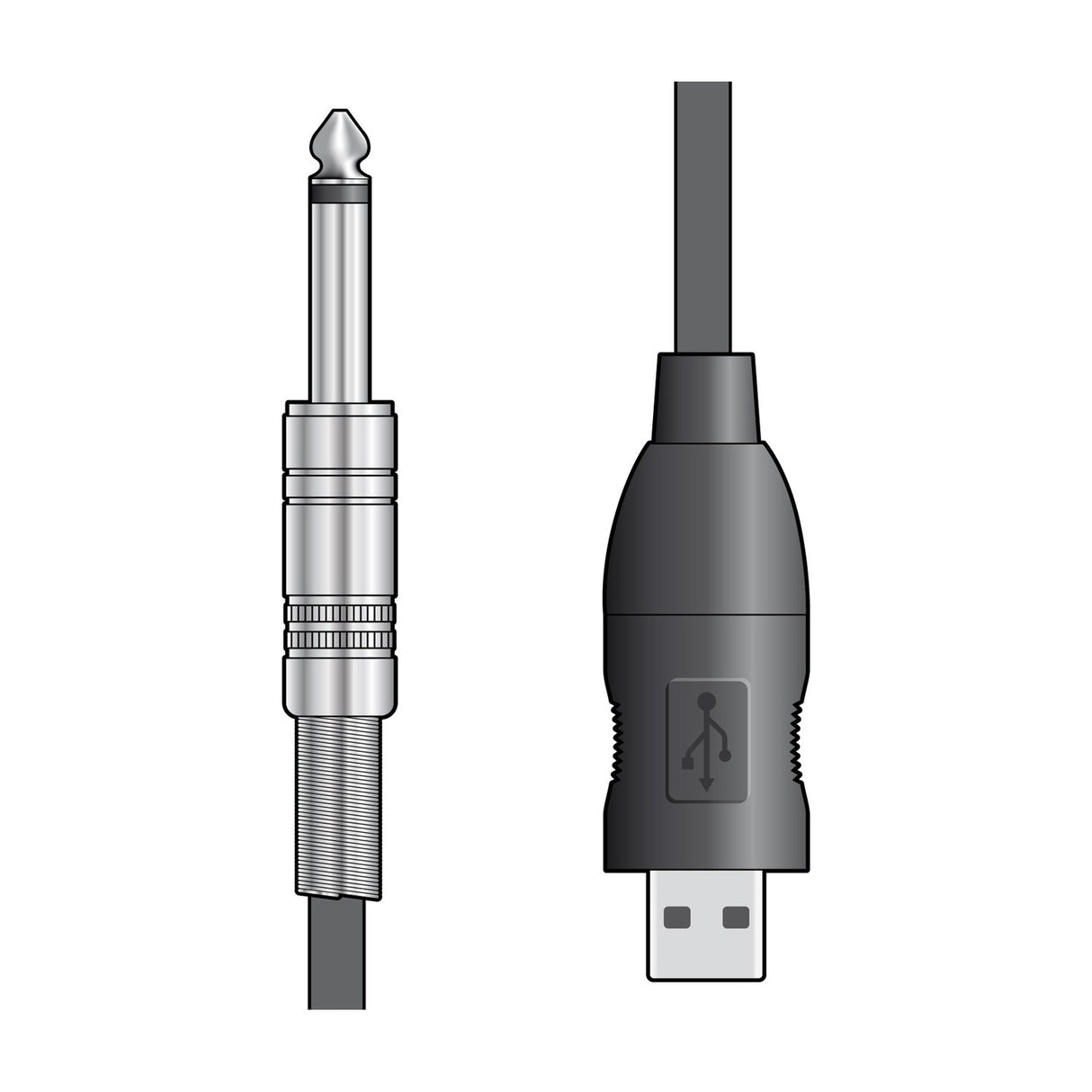

Citronic JACK-USB2 6.3mm Mono Jack to USB Converter Lead

£1499
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The Citronic JACK-USB2 is a converter lead that takes a 6.3mm mono jack at one end and connects to a USB type A port at the other. It lets you plug a line input, instrument or dynamic microphone straight into a PC or Mac, handling the analogue to digital conversion inside the lead itself. There's no external interface or extra software to set up, so you can start recording quickly once it's connected.

Audio quality holds up well for a lead of this type. It supports up to 48kHz A/D conversion at 16bit, with a signal to noise ratio of 83dB, a dynamic range of 80dB and a frequency response of 20Hz to 19kHz at 48kHz. THD+N sits at -76dB (-3dBr), input impedance is 1M Ohm and the built-in gain adds +20dB, which helps bring up quieter sources like a dynamic mic (US: dynamic microphone). Input level handling runs from 0 to 2.8Vpp.

The lead is 3.0m long and weighs 153g, so it gives you room to work without needing a mains supply, as it draws power over USB bus. It works with Windows 2000, XP, 7 and 8, along with Mac OS X 10.1 and above. This makes it a practical pick for recording vocals, instrument parts and podcasts direct to a computer, whether you're capturing a quick idea or putting together a full session. Plug it in, select it as your input and you're ready to record.

Specification
Connectors 6.3mm mono jack - USB type A
Lead length 3.0m
Input impedance 1M Ohm
Sampling format 16bit @ 48/44.1kHz
Input level 0-2.8Vpp
THD +N -76dB (-3dBr)
S/N ratio 83dB
Dynamic range 80dB
Frequency response 20Hz-19kHz (@48kHz)
Gain +20dB
Weight 0.15KG
Frequently Asked

What does the JACK-USB2 connect to?

It has a 6.3mm mono jack at one end and a USB type A connector at the other, letting you plug a line input, instrument or dynamic microphone into a PC or Mac.

Do I need a separate power supply?

No. The lead is USB bus powered, so it takes what it needs from the computer's USB port with no mains adapter required.

What operating systems does it work with?

It's compatible with Windows 2000, XP, 7 and 8, as well as Mac OS X 10.1 and above.

What sample rate does it support?

It handles up to 48kHz A/D conversion at 16bit, with support for both 48kHz and 44.1kHz sampling.

How long is the lead?

The lead measures 3.0m, giving you enough reach to position your source away from the computer.

Can I record a dynamic microphone with it?

Yes. It suits dynamic mics, instruments and line inputs, and the built-in +20dB gain helps lift quieter sources.
