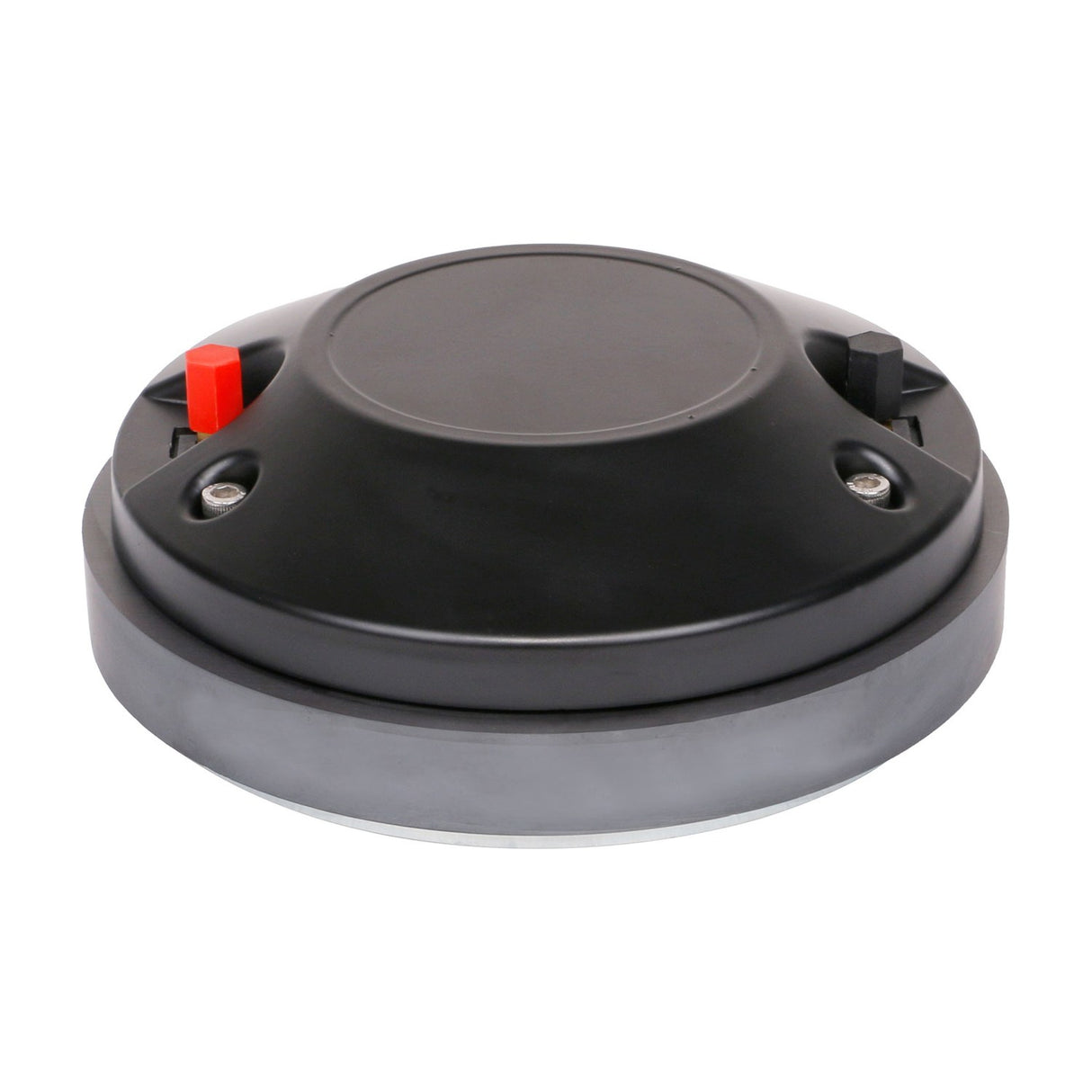

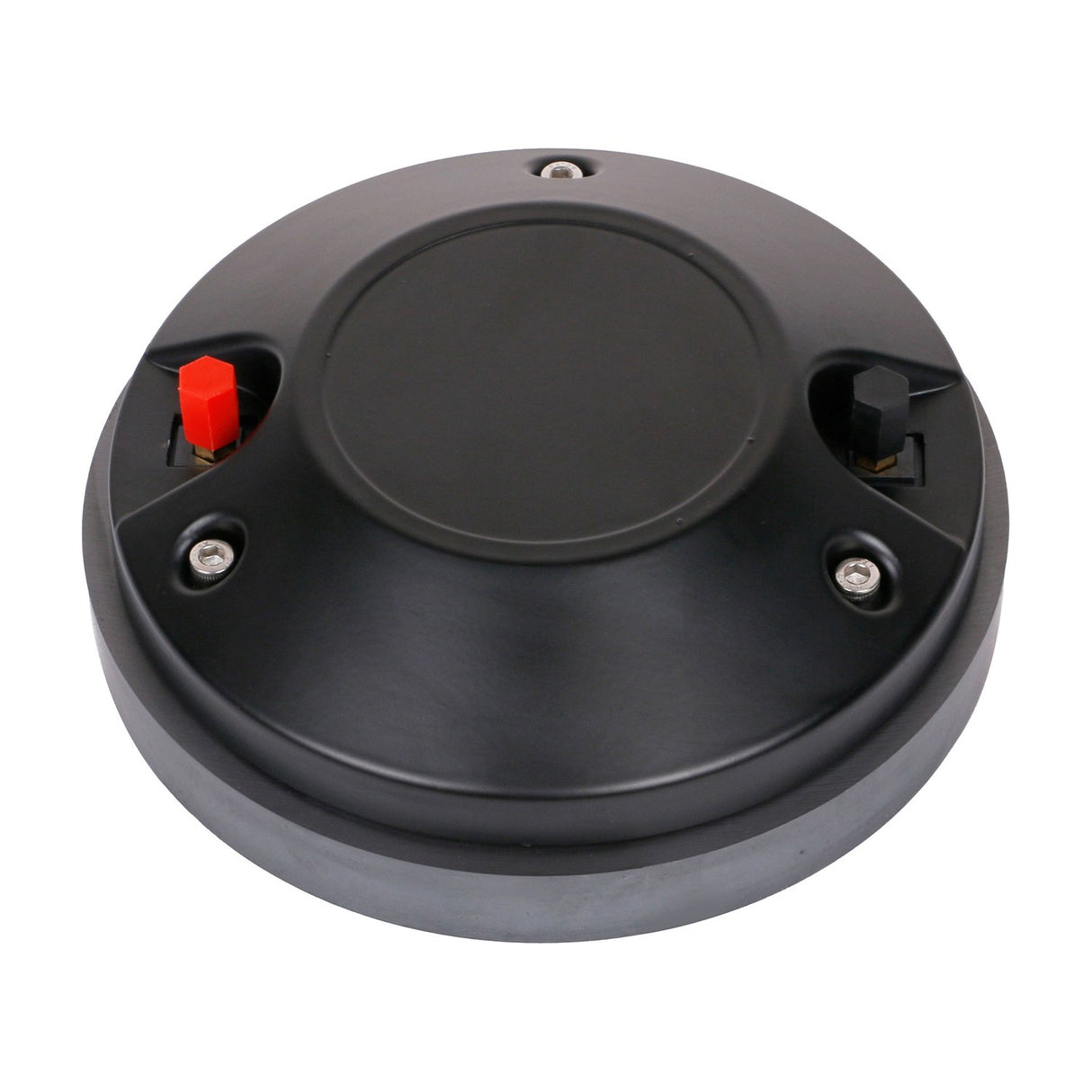

Citronic HFCORVA-1215 150Wrms HF Compression Driver

£8999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

This is the high frequency compression driver from the Citronic CORVA series, built to drive the horn flare in high power PA cabinets. It uses a 50mm (2") titanium diaphragm mated to a 75mm (3") Kapton voice coil, handling up to 150Wrms and 300W maximum. Titanium keeps the moving mass low, at just over 40g, which helps the driver stay accurate and efficient across the top end.

With an 8 ohm impedance and a frequency response of 800Hz to 20kHz, this unit covers the upper frequencies that commercial sound reinforcement enclosures rely on. Sensitivity sits at 105dB/mW, so it produces the high SPLs needed without demanding excessive power. The ceramic magnet weighs 1.75kg (62oz), and the throat measures 50mm (2") to match standard horn flares.

We supply this as a direct replacement for the Citronic CORVA-12 and CORVA-15 cabinets, in both active and passive versions. If a driver has failed or lost output in one of those enclosures, this is the correct part to fit. Overall dimensions are 125 x 225mm with a total weight of 4.5kg, and the diaphragm assembly measures 140 x 110 x 30mm. Fitting is straightforward for anyone comfortable working inside a PA cabinet, and it restores the original high frequency performance the cabinet was designed around.

Specification
Impedance 8 Ohm
Power handling : rms 150W
Power handling : max. 300W
Frequency response 800Hz - 20kHz
Diaphragm Titanium - 140 x 110 x 30mm, 40.3g
Sensitivity 105dB/mW
Voice coil 75mmØ (3") Kapton
Magnet Ceramic 1.75kg (62oz)
Throat 50mmØ (2")
Dimensions 125mm x 225mmØ
Weight 4.50KG
Frequently Asked

Which cabinets does this driver fit?

It is a direct replacement for the Citronic CORVA-12 and CORVA-15 cabinets, in both active and passive versions.

What power can it handle?

It handles up to 150Wrms continuous and 300W maximum.

What is the impedance?

The driver is rated at 8 ohms.

What frequency range does it cover?

It covers 800Hz to 20kHz, the upper frequencies used in sound reinforcement.

What is the diaphragm made from?

The diaphragm is titanium, with a mass of 40.3g, mated to a 75mm (3") Kapton voice coil.

What size is the throat?

The throat measures 50mm (2"), matching standard horn flares.
