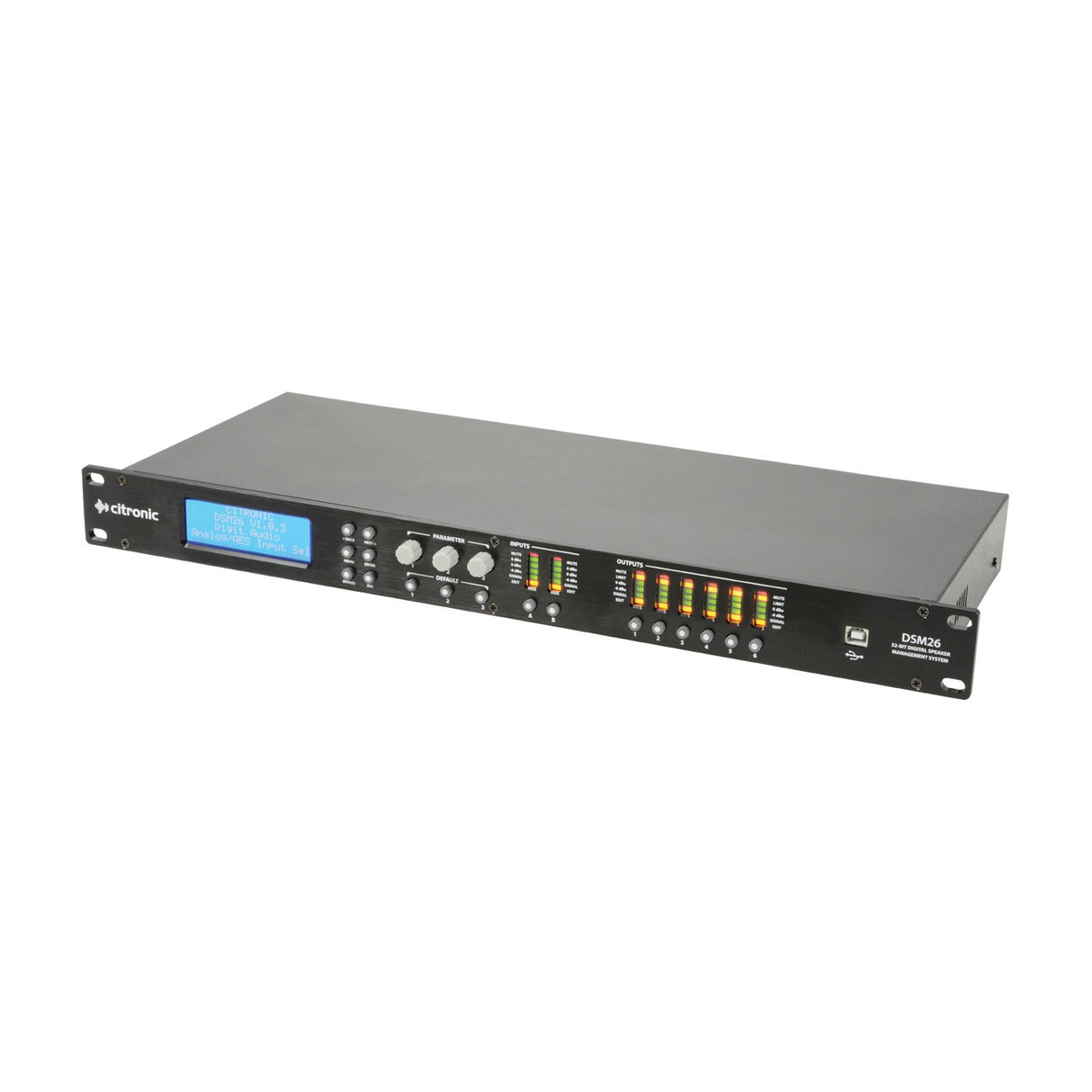

Citronic DSM26 2-in 6-out Speaker Management Processor

£49999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The Citronic DSM26 is a digital speaker management system that brings together crossovers, EQ and limiters for multi-amplifier and speaker setups. It lets the sound system designer control the inputs to each power amplifier accurately, giving a matched output suited to each speaker enclosure and its surroundings. With two inputs and six outputs, it sits at the heart of a PA rig, handling everything from a basic setup to a demanding sound reinforcement job.

Processing runs on a 96kHz, 32-bit floating point DSP for professional quality resolution. Each input offers 8-band shelving or parametric EQ along with phase and gain correction, while each output has an 8-band parametric EQ, an adjustable limiter, delay up to 650ms and fully programmable high-pass and low-pass filters. Crossover types include Linkwitz-Riley, Bessel and Butterworth. Every input and output is controlled independently, so you can tailor each amplifier channel to its speaker.

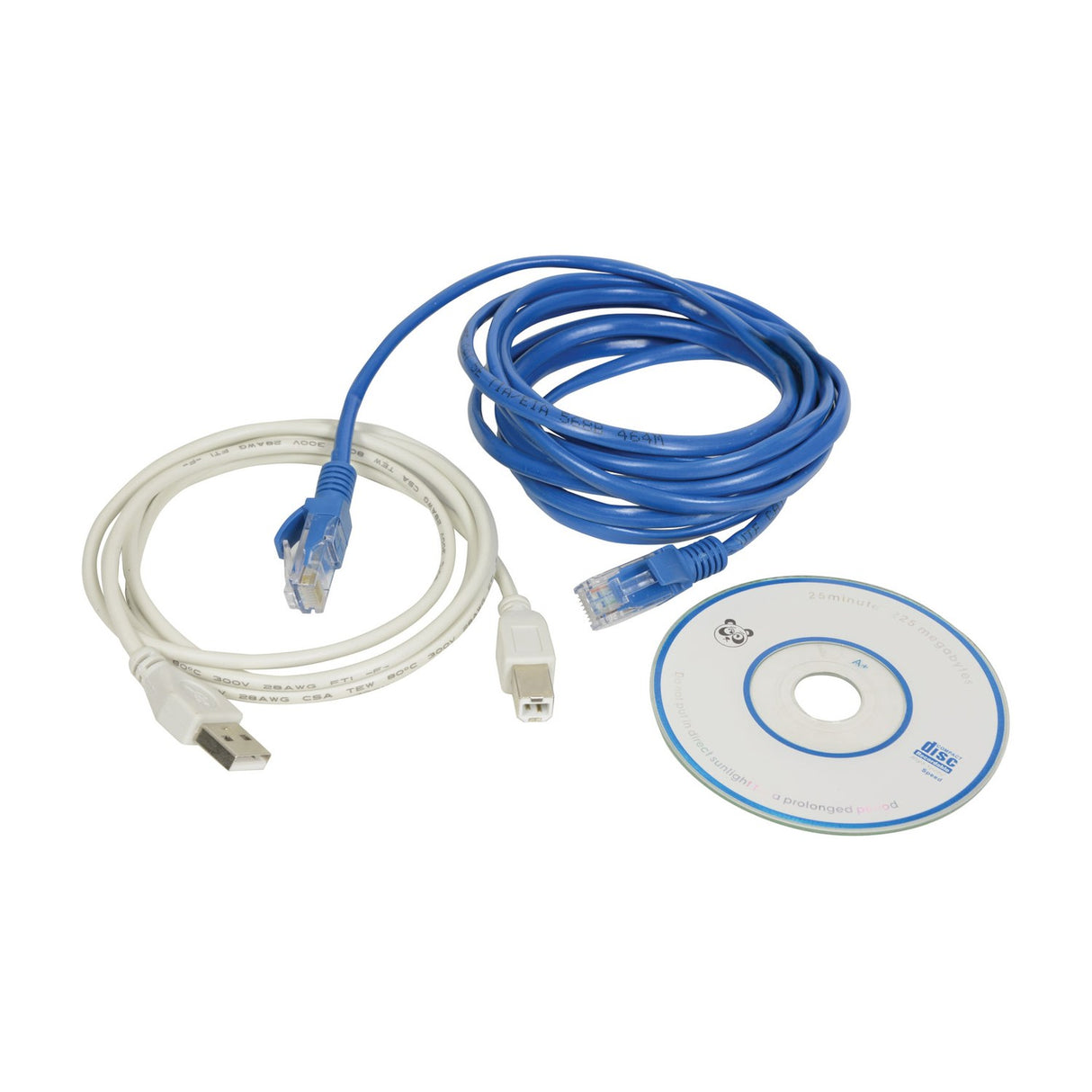

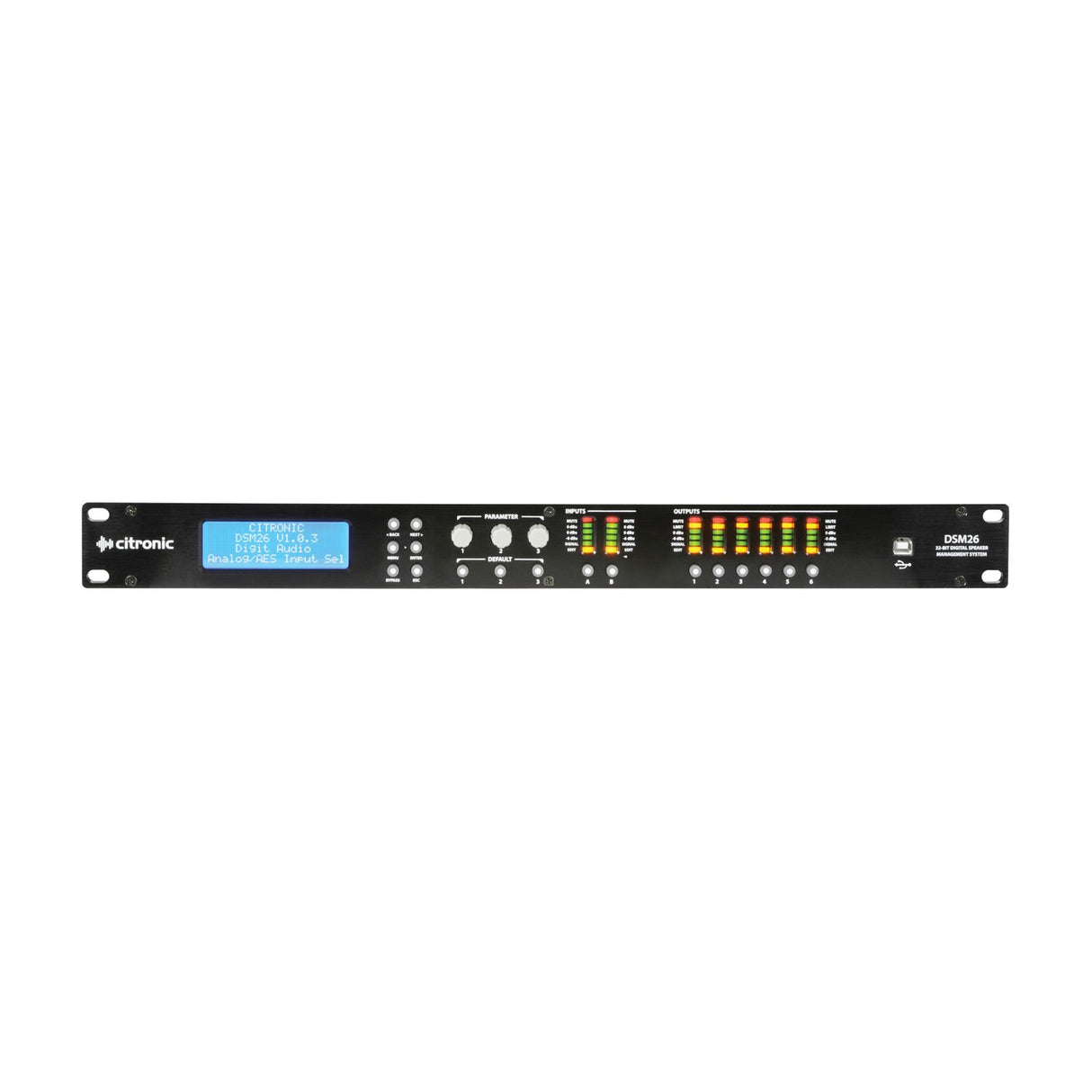

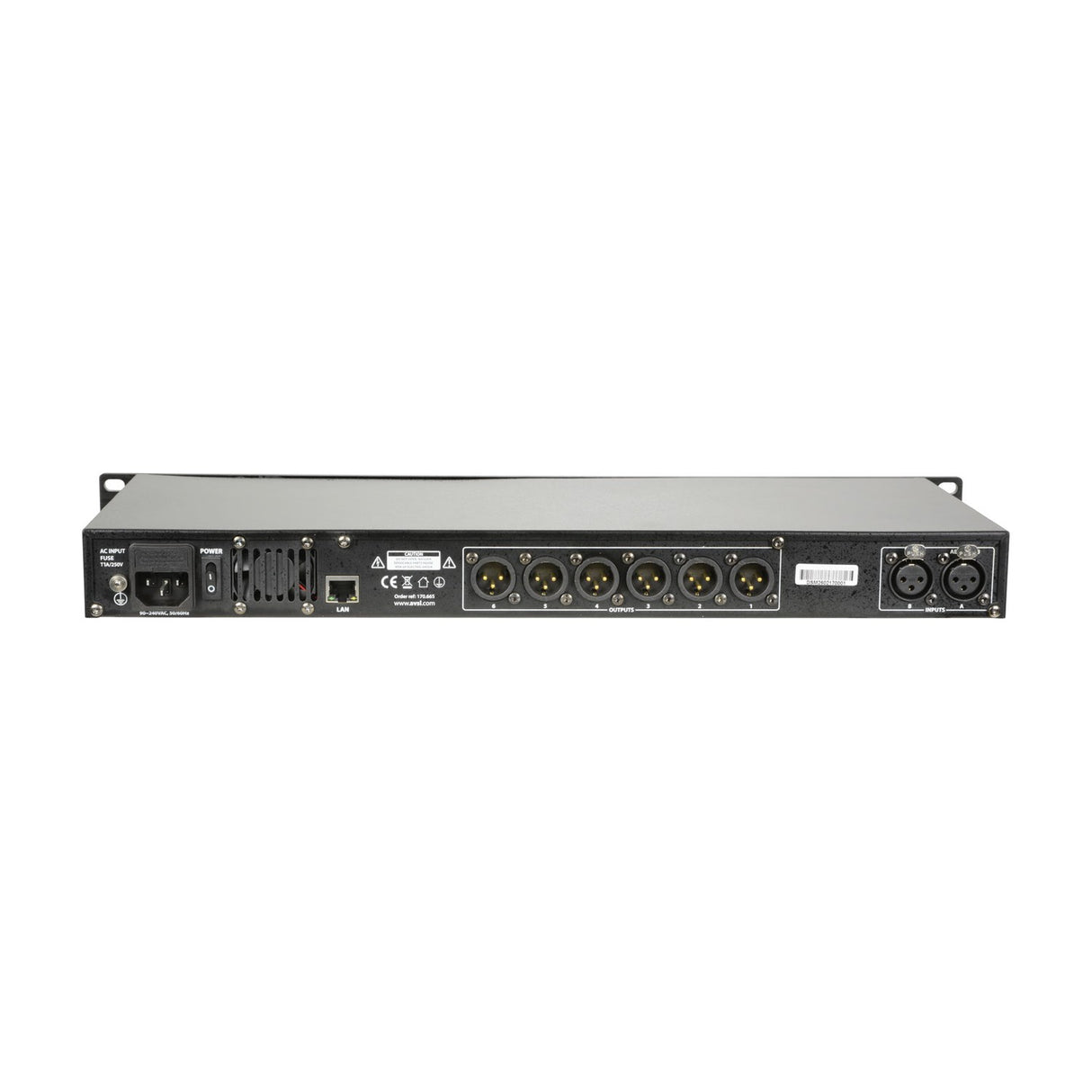

You can work from the front panel directly, or connect over USB using the software supplied for Windows XP (PIII 500, 128MB RAM) or higher. Control can also be shared across a LAN through the rear panel RJ45 connector, which suits remote speaker setups spread through a building. Frequency response runs 20Hz to 20kHz, power consumption stays under 25W, and the 1U rack unit measures 482 x 44 x 220mm and weighs 3.19kg. It runs on 115/230Vac mains via an IEC inlet.

Specification
Outputs 6 balanced XLR
Inputs 2 balanced XLR or AES digital
Power supply 115/230Vac, 50/60Hz (IEC)
Power consumption <25W
Fuse T315mA
Crossover HPF + LPF fully programmable per output
Filter type Linkwitz-Riley; Bessel; Butterworth.
PC Com port USB and LAN (RJ45)
CMRR 65dB (50Hz-10kHz)
Input/output polarity In phase (+) or reverse (-)
Input EQ 8-band parametric EQ
Input Noise Gate -120dBu to +10dBu
Processor 96kHz, 32-bit floating point DSP
Mute Any input or output channel
Limiter 1 per output (adjustable)
Output EQ 8-band: Hi/Lo-shelf or Para
Delay 0-650ms per output
Frequency response 20Hz-20kHz
Input impedance : balanced >10k Ohm
Output impedance : balanced <60 Ohm
Dimensions 482mm x 44mm x 220mm
Weight 3.19KG
Downloads

Product Manual

Frequently Asked

How many inputs and outputs does the DSM26 have?

It is a 2-input, 6-output speaker management processor. Every input and output is controlled independently, so each amplifier channel can be set up for its own speaker.

What crossover types are available?

The DSM26 offers Linkwitz-Riley, Bessel and Butterworth filters, with fully programmable high-pass and low-pass filters per output.

Can I control it from a computer?

Yes. It connects via USB using the included PC software, or over a network using the rear panel RJ45 (LAN) connector for remote control.

What software is supplied and what does it need?

PC software is included and runs on Windows XP (Pentium III 500, 128MB RAM) or higher.

What EQ and limiting does it provide?

Inputs have 8-band shelving or parametric EQ with phase and gain correction. Outputs have 8-band parametric EQ, an adjustable limiter, and delay up to 650ms.

What are the dimensions and power supply?

It is a 1U unit measuring 482 x 44 x 220mm and weighing 3.19kg. It runs on 115/230Vac, 50/60Hz via an IEC inlet, drawing under 25W.
