Description

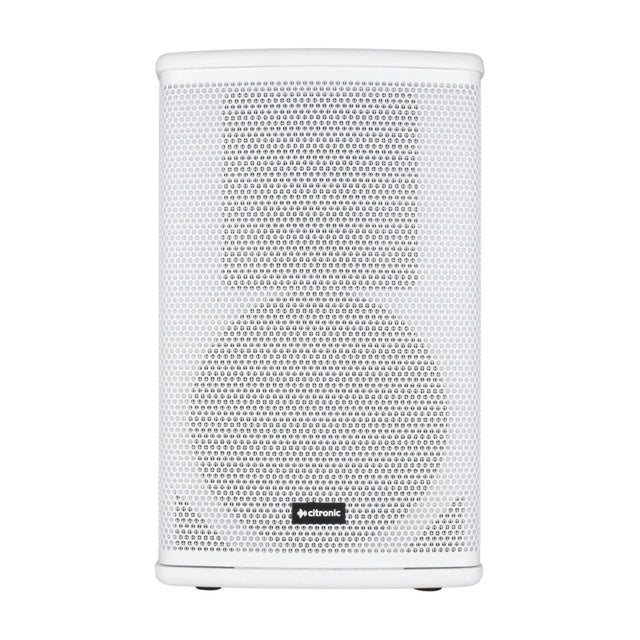

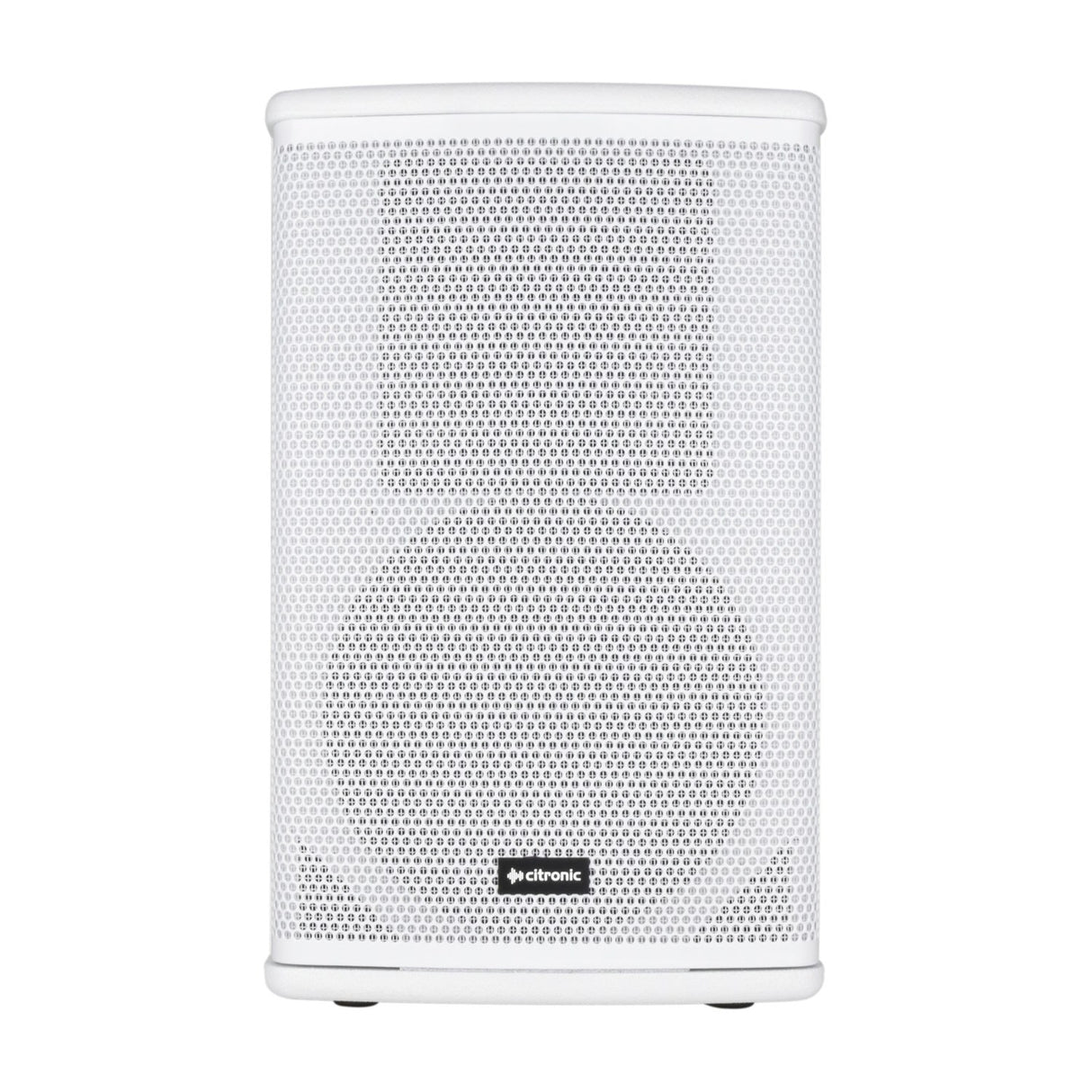

The Citronic CUBA-8AW is a full-range active PA speaker (or powered loudspeaker) built for sound reinforcement work of all kinds. It pairs a lightweight class-D bi-amplifier section with a 5-preset DSP that handles EQ and dynamics, so you can shape the output to suit the room and the job. The DSP can extend the response down to low resonant frequencies, giving you full-range coverage without needing to add a separate sub for many applications. It's rated at 250W and finished in white.

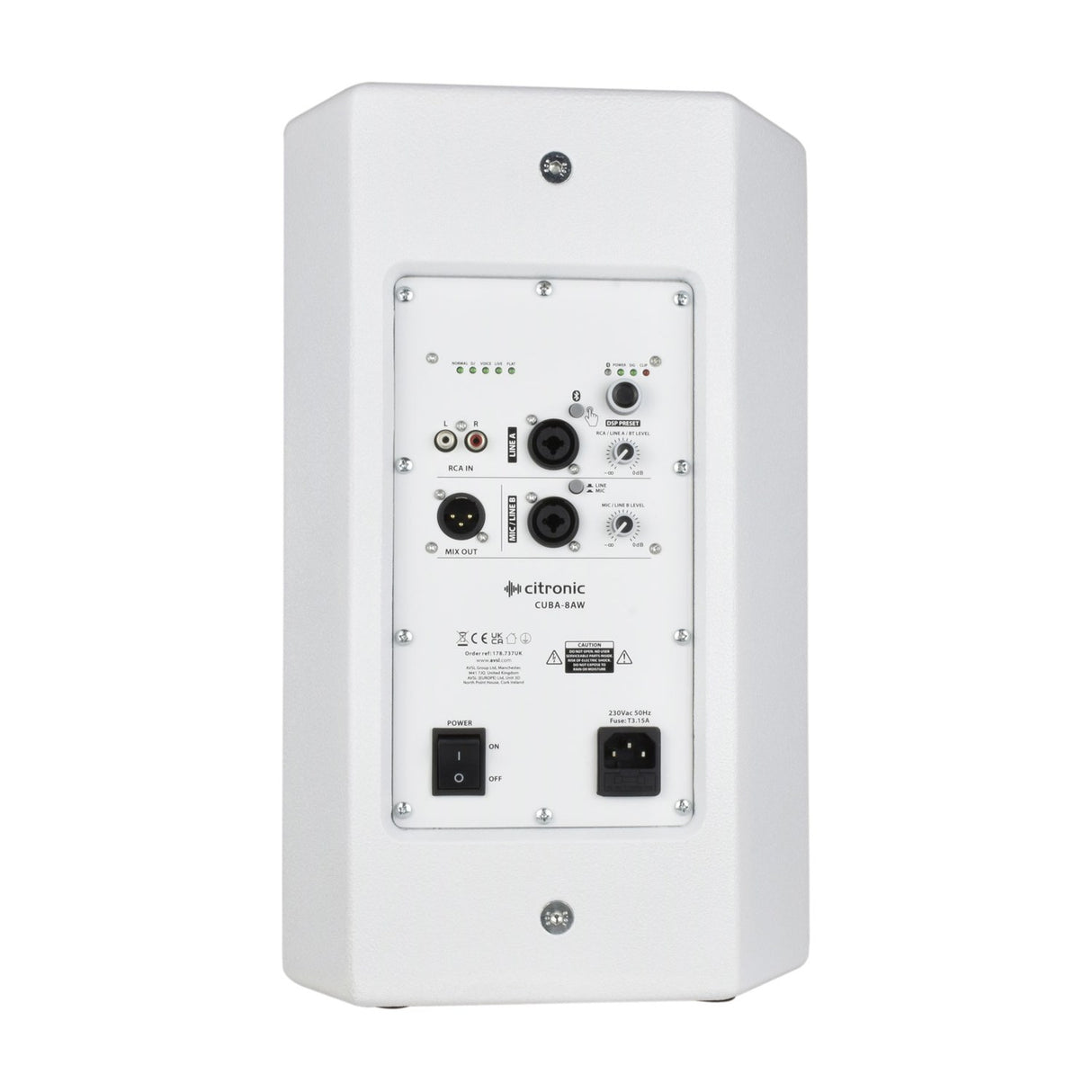

Connections are flexible. There's a switchable Mic/line input on XLR or jack, plus a separate line input that takes XLR, jack or RCA. A Bluetooth receiver is built in for wireless playback from a phone, and an XLR line output lets you link cabinets together. The five DSP profiles are Normal, DJ, Voice, Live and Flat, so you can move quickly between music playback, speech and live sources. Power comes from a standard 230Vac 50Hz IEC supply.

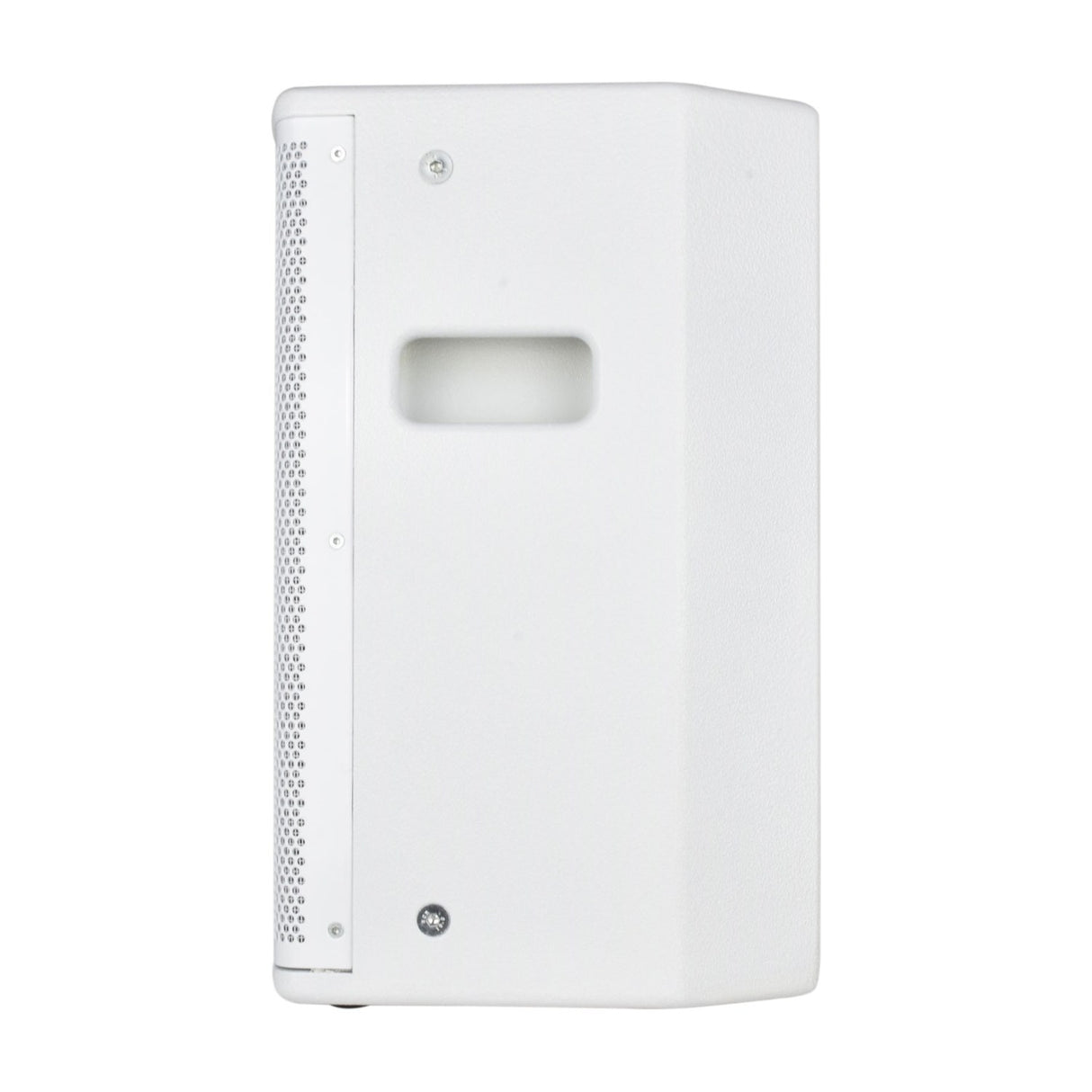

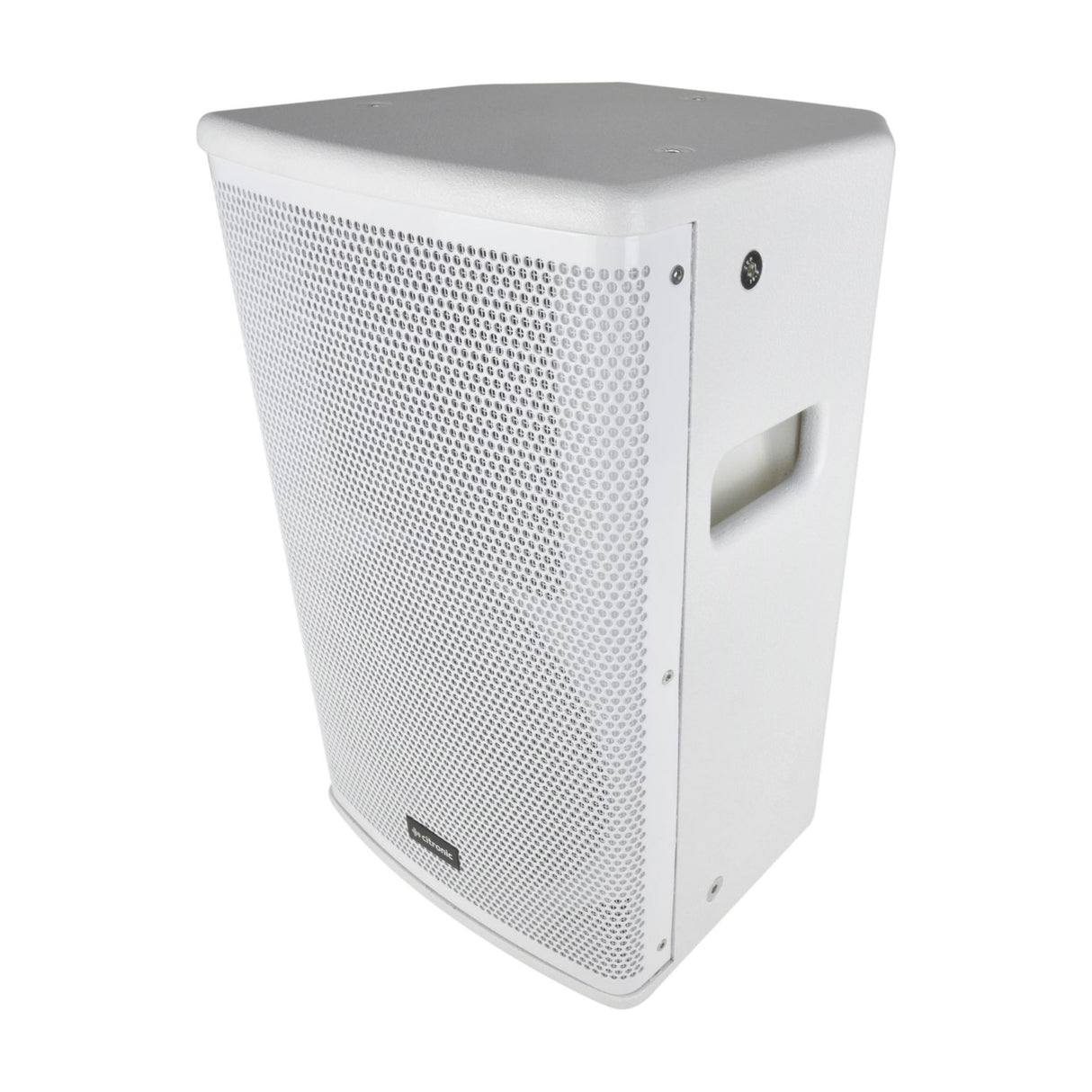

The enclosure is texture-coated MDF with a powder-coated steel grille, keeping the cabinet light while staying rugged. Two side handles make it easy to carry, and a 35mm pole-mount socket sits underneath for stand mounting. The rear has two different bevels for angled placement at ground level or for suspended arraying, and multiple M8 flying points are inset on each cabinet for permanent installs. It's a practical choice for mobile DJs, bands and fixed venues that need clean, high-energy full-range output.
Specification
| Weight |
10.70KG |
| Dimensions |
435mm x 265mm x 265mm |
| HF dispersion |
100°/50° x 55° |
| Max. SPL |
121.0dB |
| Sensitivity |
95dB |
| Frequency response |
60Hz-20kHZ |
| Output power : max. |
500W |
| Output power : rms |
250W |
| HF driver |
35mmØ (1.35") Ti compression driver |
| Voice coil |
50mmØ (2") |
| Main driver |
200mmØ (8") |
| Power supply |
230Vac, 50Hz (IEC) |
| DSP settings |
Normal, DJ. Voice, Live, Flat |
| Inputs |
Mic/line (XLR/jack), Line (RCA/XLR/jack), Bluetooth |
| Line output |
XLR |
| Construction |
Polyurea coated MDF + powder-coated steel grille |
Downloads
Product Manual
Frequently Asked
What power output does the CUBA-8AW deliver?
It's a 250W active speaker driven by an efficient class-D bi-amplifier section, giving high-energy full-range output for live and playback use.
Can I play music wirelessly?
Yes. A Bluetooth receiver is built in, so you can stream audio directly from a phone or other Bluetooth device.
What inputs are available?
There's a switchable Mic/line input on XLR or jack, a line input on XLR, jack or RCA, and Bluetooth. An XLR line output lets you link to another cabinet.
What are the five DSP presets?
The profiles are Normal, DJ, Voice, Live and Flat, letting you tailor EQ and dynamics to music, speech or live sources.
Can the cabinet be flown or pole-mounted?
Yes. It has a 35mm pole-mount socket for stand use, two rear bevels for angled placement, and multiple inset M8 flying points for suspended arraying.
What is the cabinet made from?
The enclosure is polyurea-coated MDF with a powder-coated steel grille, which keeps it light while remaining hard-wearing.
