Description
The Citronic CUBA-15A is an active full-range PA speaker cabinet built for sound reinforcement across a wide range of settings. It runs a lightweight class-D bi-amplifier that delivers 450W of full-range output, so you get clean, high-energy sound from a box that stays easy to carry and set up. The enclosure is made from polyurea texture coated MDF with a powder-coated steel grille, giving it a hard-wearing finish that holds up to regular use on the road or in a fixed install.

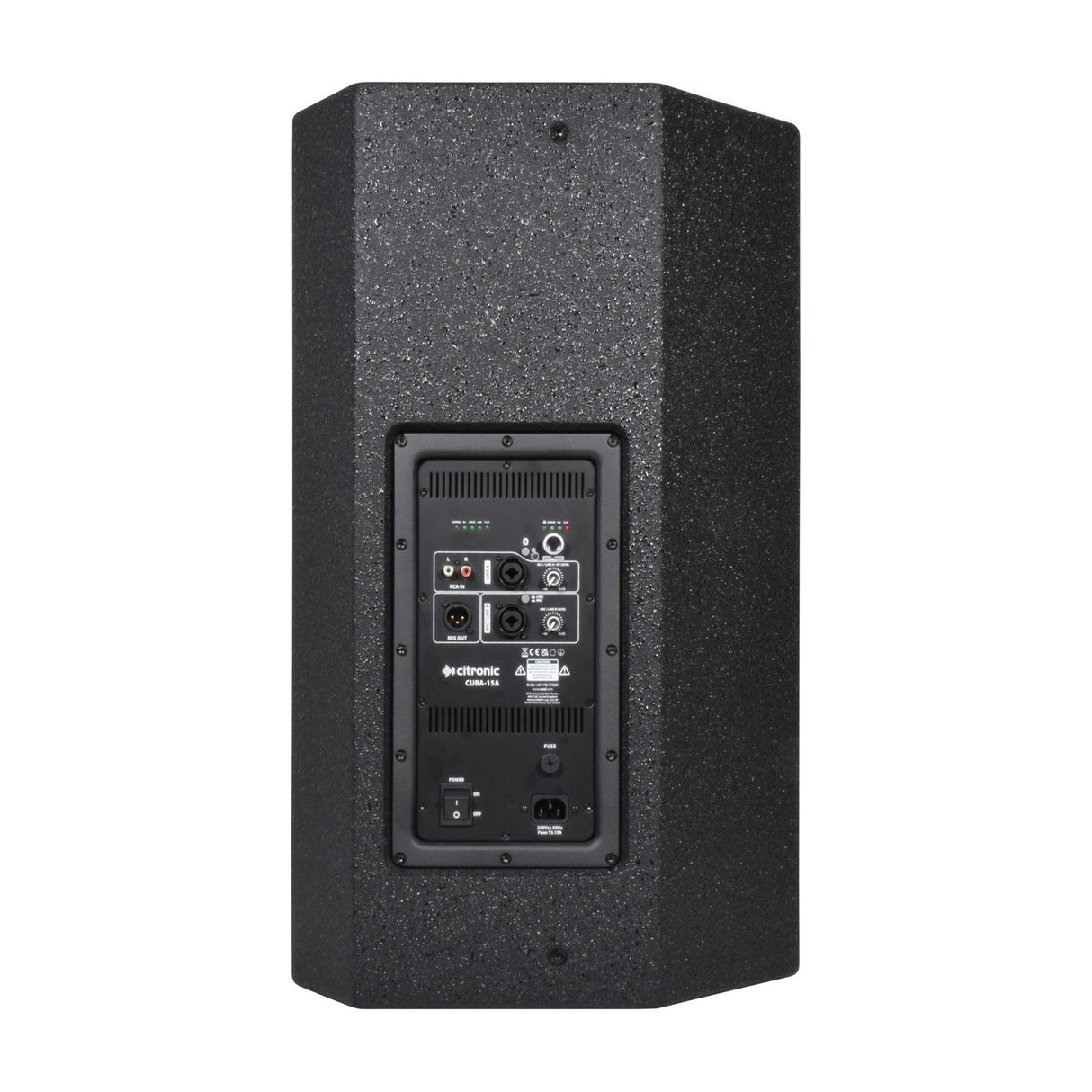

A 5-preset DSP section handles EQ and dynamics, with Normal, DJ, Voice, Live and Flat profiles to suit the material you are playing. The DSP can extend the response down to low resonant frequencies for solid full-range output without adding a separate sub. Connections cover a switchable mic/line input on XLR or jack, a line input on RCA, XLR or jack, and a built-in Bluetooth receiver for wireless playback from a phone or tablet. There is also an XLR line output for linking a second cabinet.

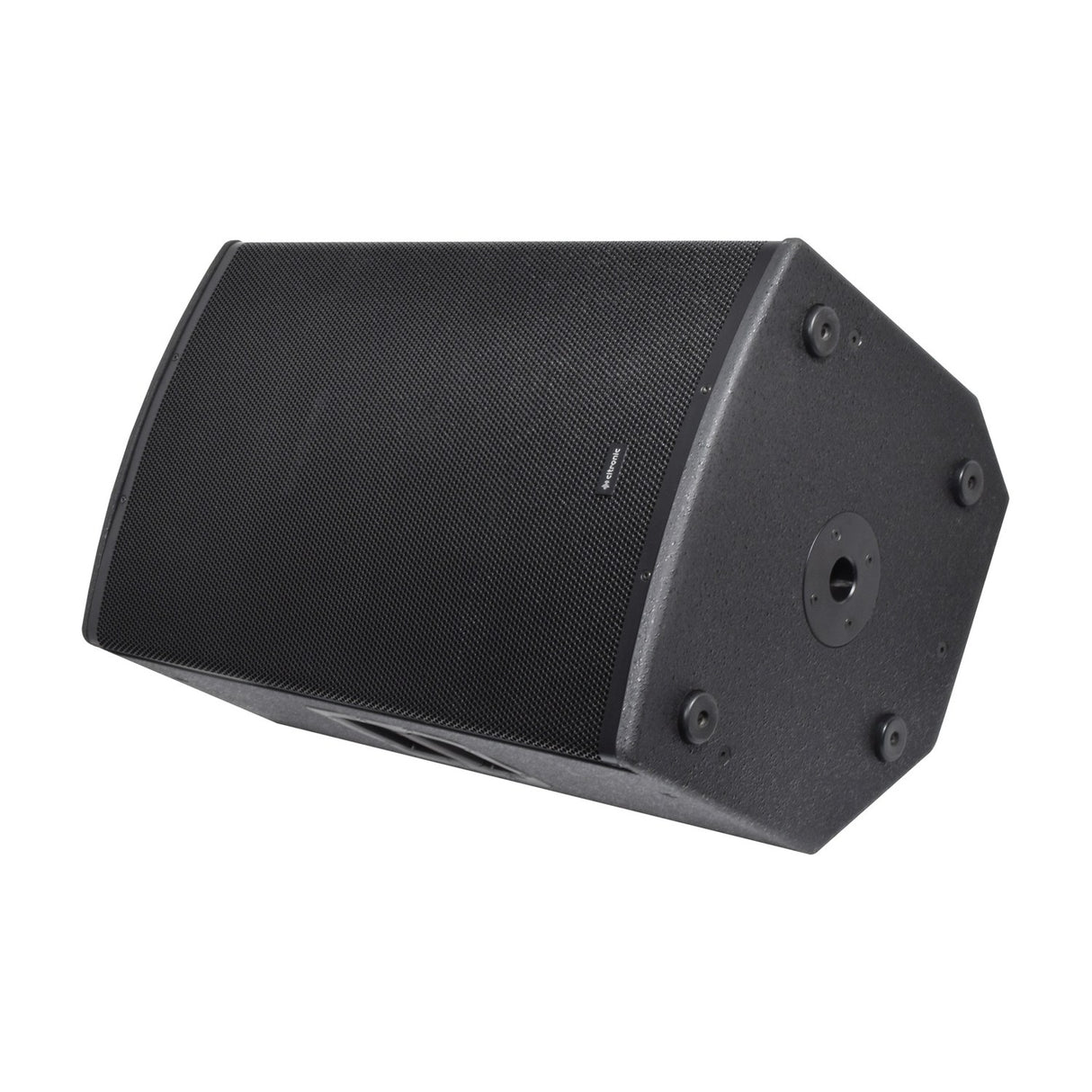

Each cabinet has two side handles and a 35mm pole-mount socket (called a pole socket in the UK, sometimes a speaker stand mount in the US) for stand mounting. The rear features two bevels for angled placement at ground level as a floor monitor, or for suspended arraying, and multiple inset M8 flying points let you rig the speaker safely from truss or ceiling fixings. Power comes from a standard 230Vac IEC mains supply. Whether you need main PA, foreground music or a stage monitor, the CUBA-15A gives you a flexible, straightforward option.
Specification
| Weight |
24.70KG |
| Dimensions |
708mm x 434mm x 430mm |
| HF dispersion |
90° x 60° |
| Max. SPL |
124.0dB |
| Sensitivity |
99dB |
| Frequency response |
45Hz-20kHZ |
| Output power : max. |
900W |
| Output power : rms |
450W |
| HF driver |
44mmØ (1.75") Ti compression driver |
| Voice coil |
64mmØ (2.5") |
| Main driver |
380mmØ (15") |
| Power supply |
230Vac, 50Hz (IEC) |
| DSP settings |
Normal, DJ. Voice, Live, Flat |
| Inputs |
Mic/line (XLR/jack), Line (RCA/XLR/jack), Bluetooth |
| Line output |
XLR |
| Construction |
Polyurea coated MDF + powder-coated steel grille |
Downloads
Product Manual
Frequently Asked
What are the DSP presets on the CUBA-15A?
There are five presets: Normal, DJ, Voice, Live and Flat. Each adjusts the EQ and dynamics to match the type of audio you are playing, so you can set the speaker up quickly for music, speech or live sound.
Can I play music wirelessly?
Yes. The CUBA-15A has a built-in Bluetooth receiver, so you can stream audio wirelessly from a phone, tablet or other Bluetooth device without needing a cable.
What inputs does it have?
It has a switchable mic/line input on XLR or jack, a line input on RCA, XLR or jack, and Bluetooth. There is also an XLR line output for connecting another cabinet.
Can the CUBA-15A be flown or used as a monitor?
Yes. The cabinet has multiple inset M8 flying points for suspended arraying, and two rear bevels let you angle it as a floor monitor or for arrayed placement.
Does it fit a standard speaker stand?
Yes. It has a 35mm pole-mount socket (pole socket) that fits standard speaker stands, along with two side handles for easy carrying.
How much power does the CUBA-15A deliver?
It provides 450W of full-range output from an efficient class-D bi-amplifier, driven by a 230Vac IEC mains supply.
