Citronic CSP-714 700W Powered Mixer with DSP

£46999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

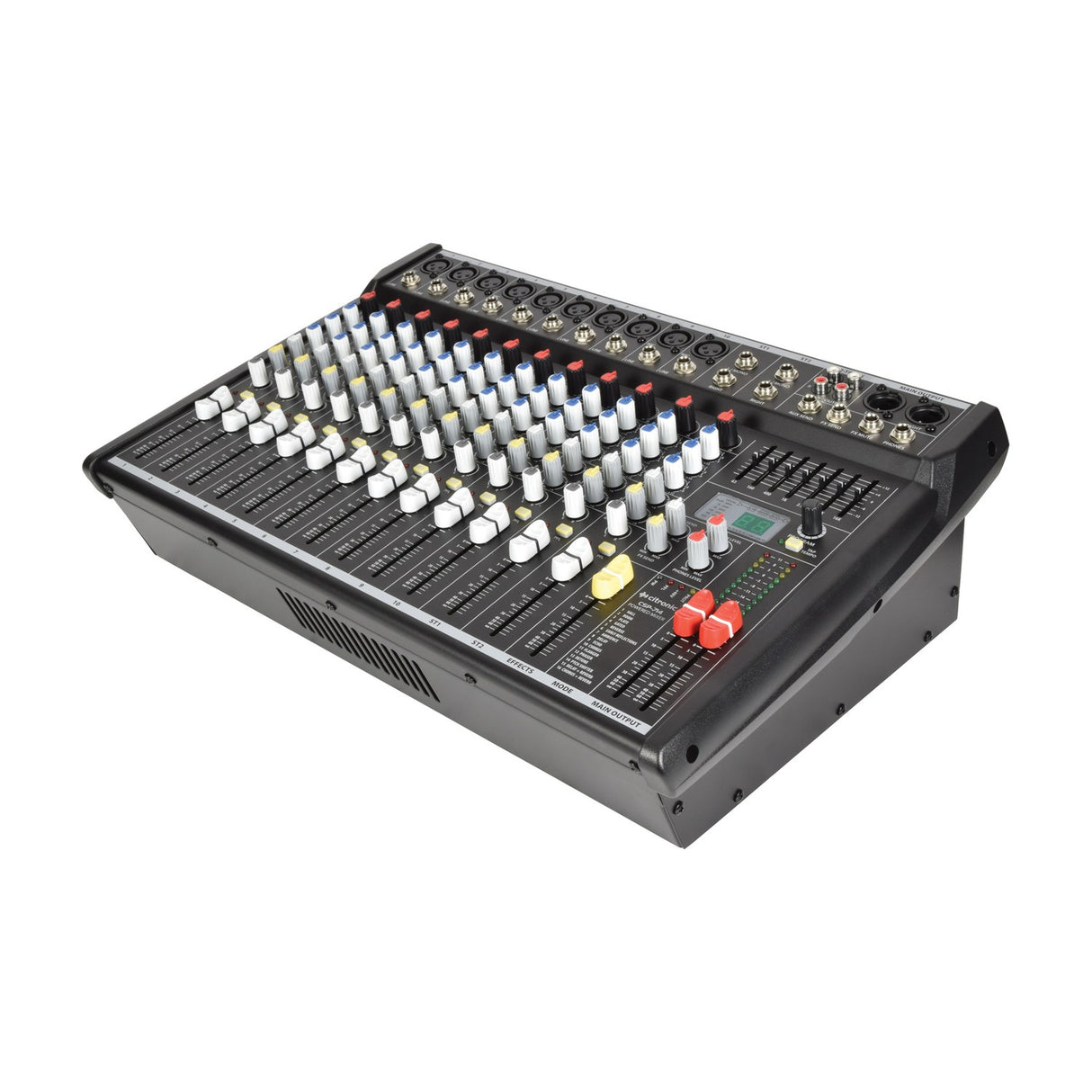

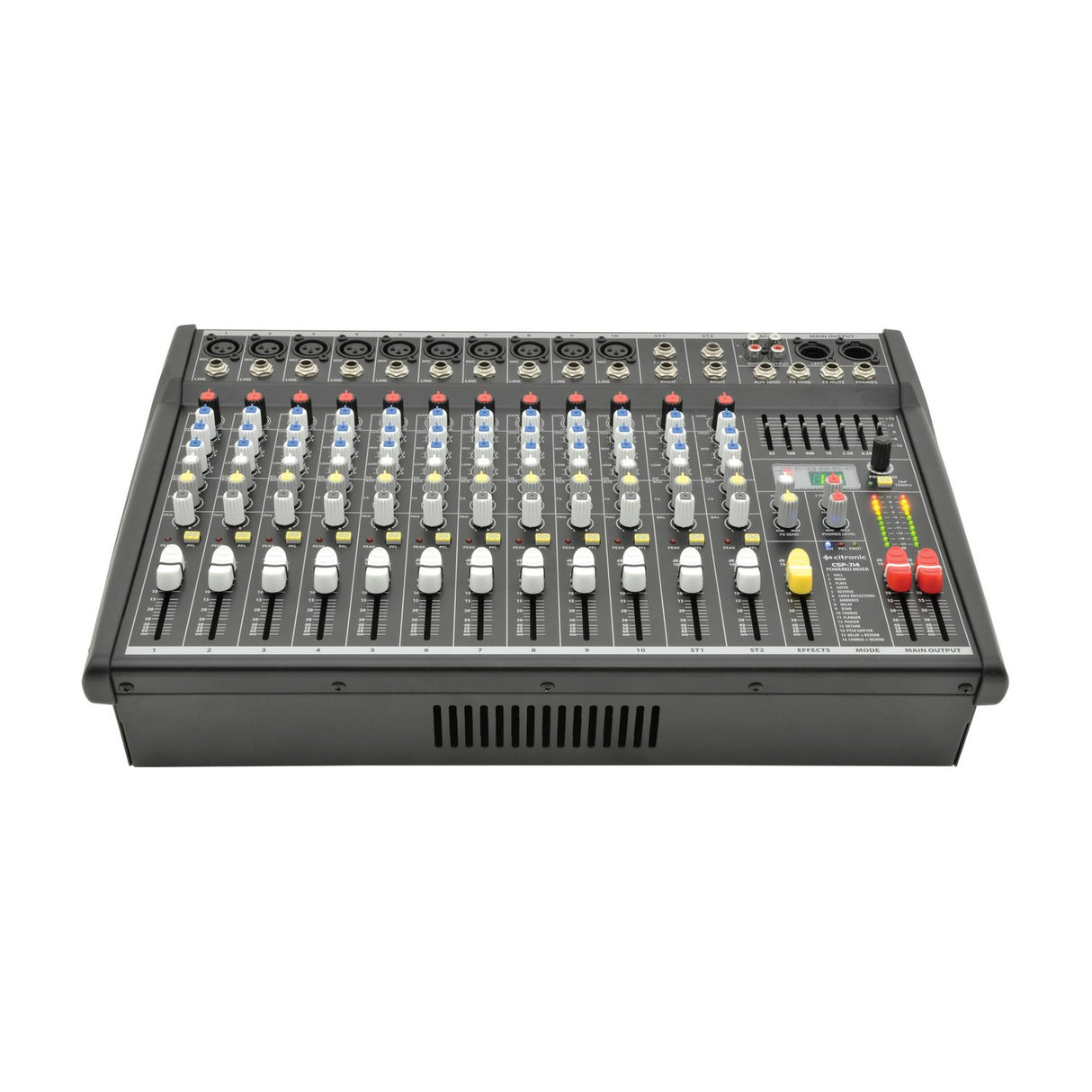

The Citronic CSP-714 is a compact powered mixer that brings the mixing desk and amplifier together in one unit. It carries balanced mic/line inputs plus two stereo inputs, each with 3-band EQ and an aux send, so you can shape voices and backing tracks independently. The internal stereo power amplifier is rated at 700W and drives two or four speakers, giving you enough headroom to cover small and medium sized venues without a separate power amp.

For tone control you get a 3-band EQ on every channel and a 7-band global graphic EQ (US: equaliser is spelled the same, just note the graphic EQ handles the overall system tone). The onboard 24-bit DSP section runs 16 programs with tap tempo, so you can add reverb, delay and other vocal effects and set the timing to match your material. Switchable 48V phantom power feeds the XLR inputs for condenser microphones, and balanced main outputs let you send a clean signal on to further speakers or a recording feed.

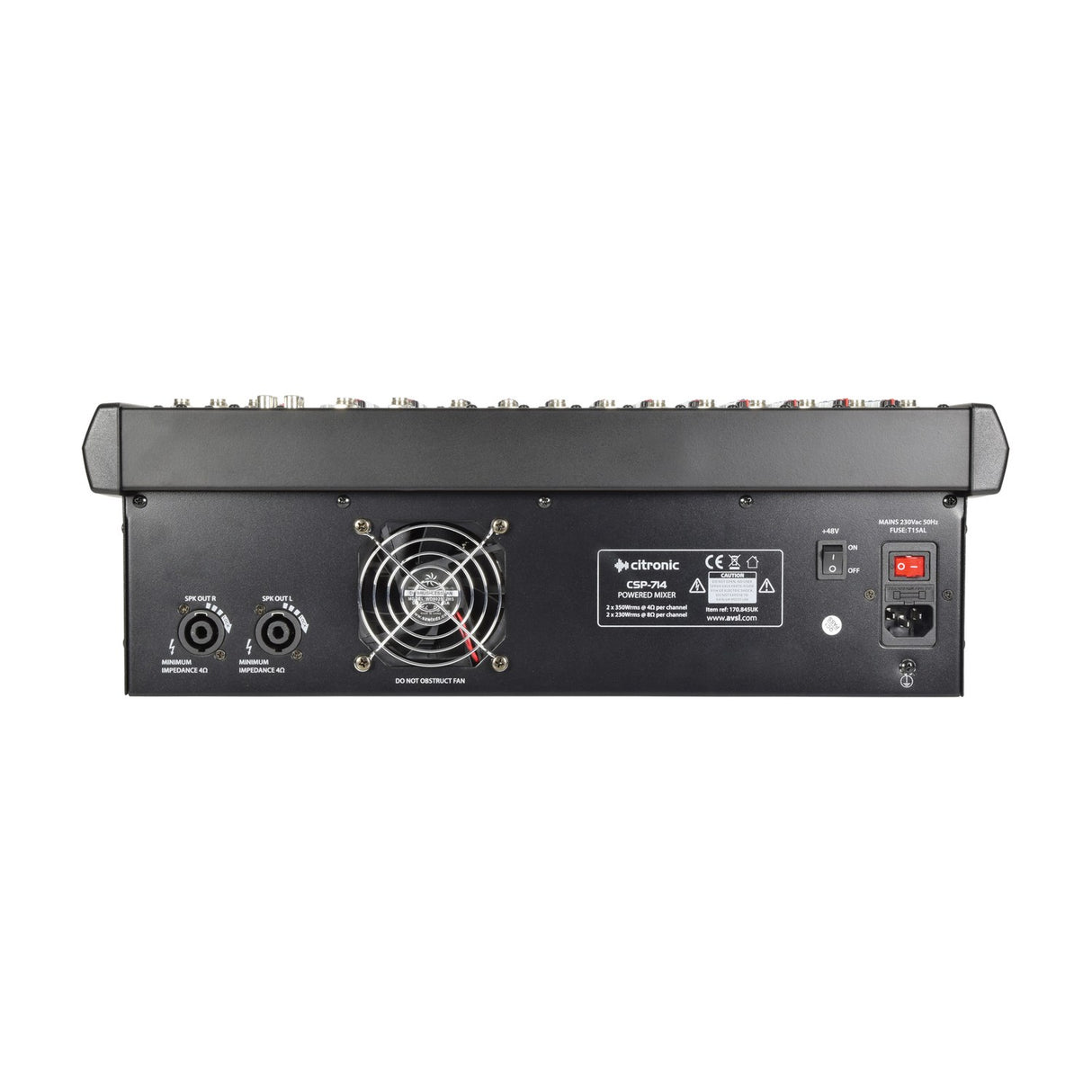

Connections cover the usual working needs, with 2-track RCA in and out for playback or recording, a 6.3mm headphone jack (US: phone plug/headphone jack) and L+R speaker connectors on the back. Frequency response runs from 20Hz to 30kHz, with EIN noise at -122dBu and THD+N below 0.01% from channel to main out, so the audio stays quiet and accurate. It runs from a standard 230Vac IEC mains supply. This makes the CSP-714 a practical all-in-one choice for mobile PA, bars and special events where you want fewer boxes to carry and set up.

Specification
Power supply 230Vac 50Hz (IEC)
Input level +24dBu
Output level : line +26dBu
Frequency response 20Hz-30kHz (0.5dB)
CMRR >74dB (mic 1kHz)
THD +N <0.01% (channel to main out)
Crosstalk >85dB (fader mute), >82dB (channel)
Noise rms : 22Hz-22kHz -122dBu (EIN), -82dBu (mix)
EQ: high 12kHz ±15dB shelving
EQ: mid 2.5kHz ±15dB band pass
EQ: low 80Hz ±15dB shelving
Input impedance : mic (balanced) 2k Ohms
Input impedance : line (balanced) 10k Ohms
Sensitivity : mic -60 to +14dBu
Sensitivity : line -40 to +14dBu
2-track 2 x RCA in & out (-2dBu)
Effects 16 program DSP (24-bit sigma-delta, 40khz)
Output impedance <75 Ohms
Headphone output 6.3mm jack, 30-600 Ohms
Speaker : outputs L+R SPK connectors
Phantom power +48V (XLR inputs)
Downloads

Product Manual

Frequently Asked

How many speakers can the CSP-714 drive?

The internal stereo power amplifier can drive two or four speakers, which suits coverage in small to medium sized venues.

Does it supply phantom power for condenser mics?

Yes. It provides switchable +48V phantom power on the XLR inputs, so you can use condenser microphones alongside dynamic ones.

What effects does the DSP section offer?

It runs a 16 program 24-bit DSP section with tap tempo, letting you add vocal effects such as reverb and delay and match the timing to your track.

What EQ controls are on board?

Each channel has a 3-band EQ, and there is a 7-band global graphic EQ for setting the overall system tone.

Can I record from the mixer?

Yes. It has 2-track RCA in and out plus balanced main outputs, so you can take a feed for recording or send audio to further equipment.

What power supply does it use?

It runs from a 230Vac 50Hz mains supply via a standard IEC connector.
