Description

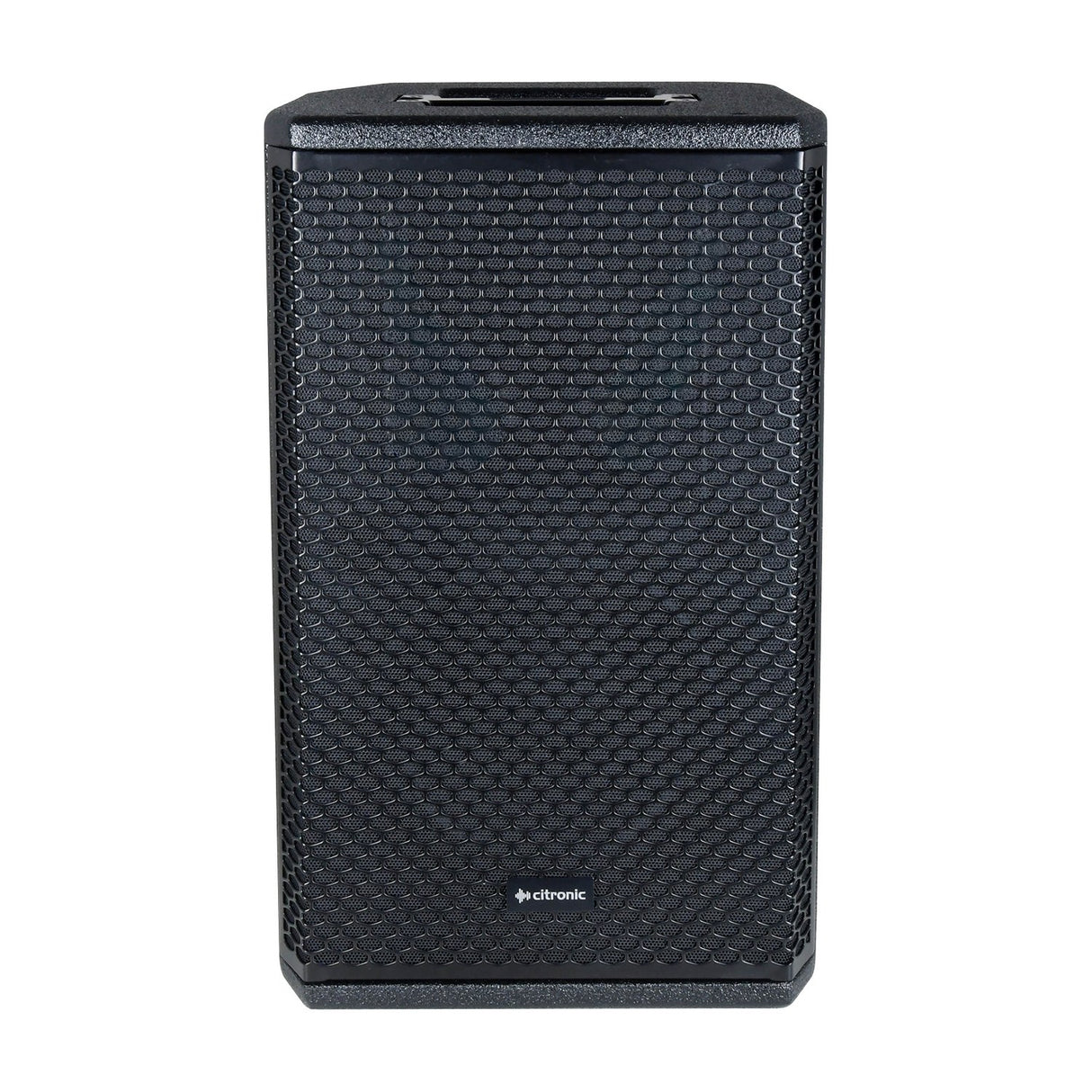

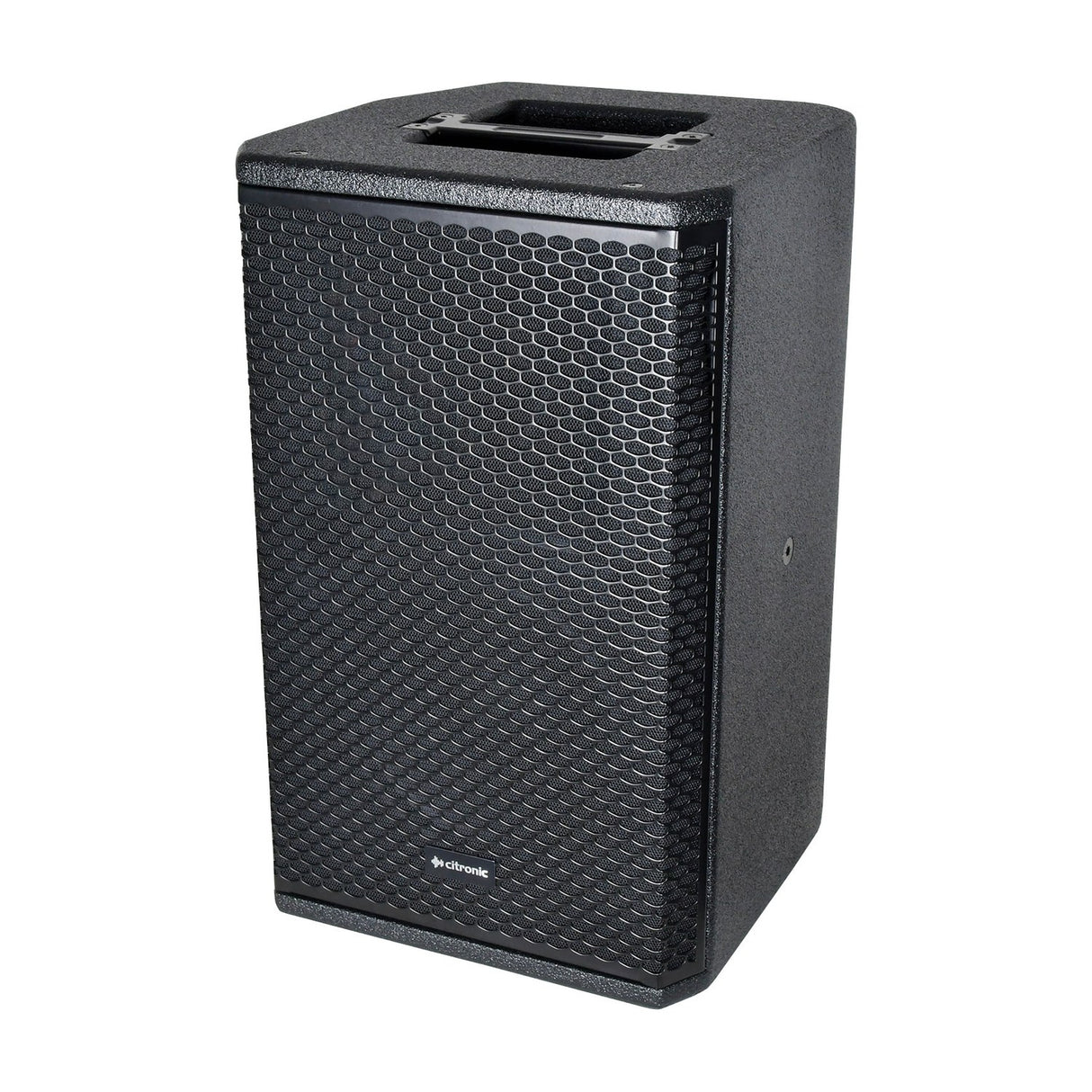

The Citronic CORVA-8A is an active PA speaker cabinet built for high SPL output and serious sound reinforcement. It delivers more than twice the power of the CUBA range, making it suited to outdoor events, fixed installations, and large scale professional hire. Inside sits a high power Class-D amplifier paired with a specially developed heavy duty 8-inch driver, so you get plenty of level without adding a separate amp to the setup.
The enclosure is made from sturdy plywood with a polyurea finish, which stands up well to regular transport and outdoor use. Rigging is straightforward thanks to 12 x M8 flying points, and a 35mm pole socket lets you mount the cabinet on a speaker pole (US: speaker stand) or stack it. This gives you flexible options whether you are hanging the cabinet from a truss or setting it up on the ground.

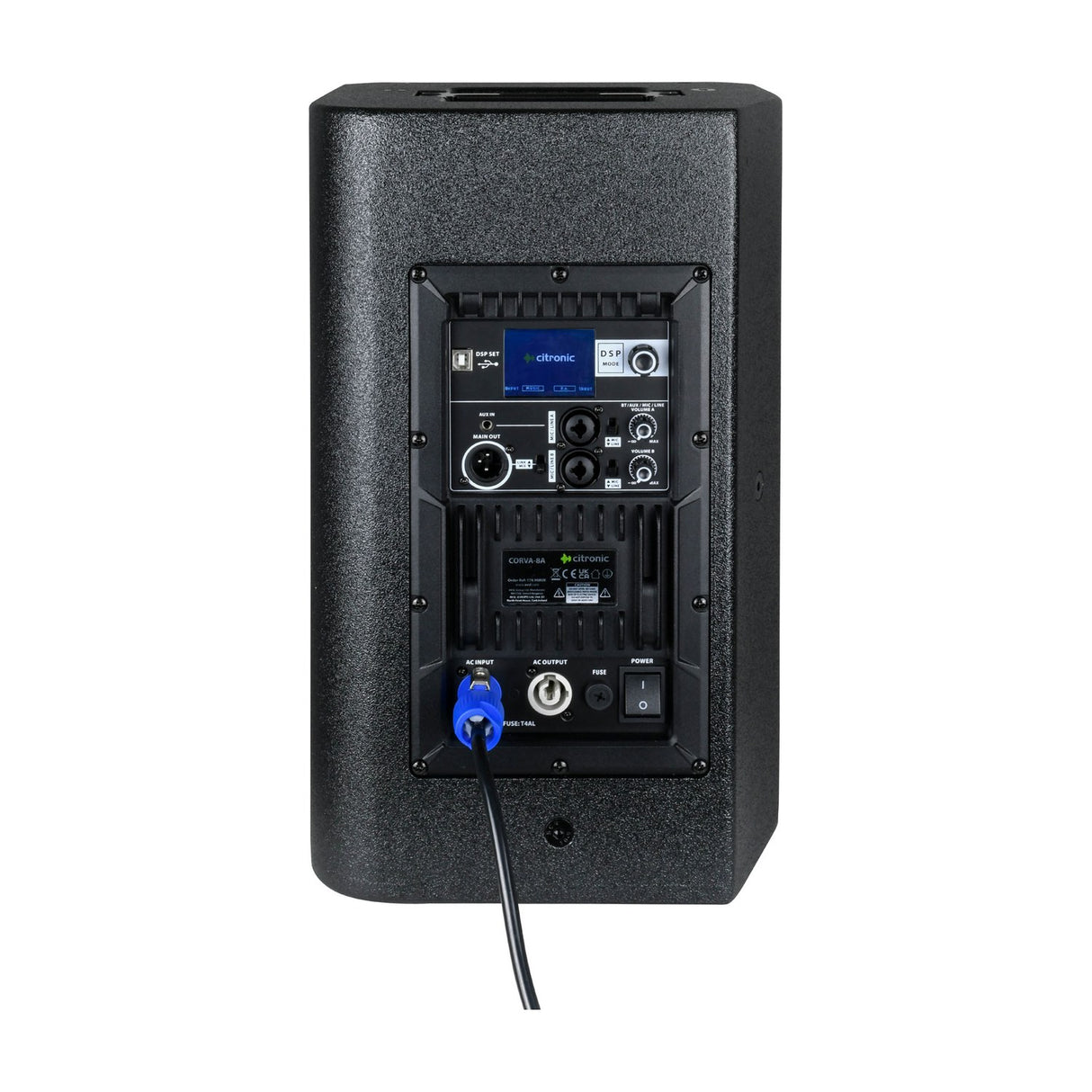

Sound is shaped through menu driven DSP with a colour display, so you can reach EQ, dynamics, and gain settings quickly on site. A USB-PC interface lets you edit, test, and save custom DSP profiles from a computer for more detailed control. Connections include two mic/line inputs on combined XLR/6.3mm (1/4-inch) sockets, an aux input on 3.5mm, and an XLR line output for linking further cabinets. The result is a rugged, powerful cabinet that keeps its settings and holds up to demanding use.
Specification
| Weight |
10.00KG |
| Dimensions |
442mm x 270mm x 263mm |
| SPL max. |
124dB |
| Sensitivity @ 1W/1m |
95dB |
| Frequency response |
60Hz - 19kHz |
| Output power : max. |
800W |
| Output power : rms |
400W |
| HF driver |
34mmØ (1.35") Ti compression driver |
| Main driver |
200mmØ (8") with 50mm voice coil |
| Fuse rating |
T4AL |
| Power supply |
100-240Vac, 50/60Hz (Powercon) |
| Inputs |
2 x Mic/Line (XLR/6.3mm) + Aux (3.5mm) |
| Line output |
XLR |
| Amplifier : construction |
Class-D, DSP controlled |
| Impedance |
8 Ohm (main driver and HF driver) |
Downloads
Product Manual
Frequently Asked
Does the CORVA-8A have a built-in amplifier?
Yes. It has an inbuilt high power Class-D amplifier rated at 400W, so no external amp is needed.
Can I mount it on a speaker pole?
Yes. It has a 35mm socket for pole mounting, and it can also be stacked or flown using the 12 M8 flying points.
What inputs does it have?
Two mic/line inputs on combined XLR/6.3mm sockets, plus an aux input on 3.5mm. There is also an XLR line output for linking cabinets.
Can I adjust the DSP settings?
Yes. There is menu driven DSP with a colour display for EQ, dynamics, and gain. A USB-PC interface lets you edit and save custom profiles from a computer.
Is it suitable for outdoor use?
Yes. The plywood enclosure has a polyurea finish and heavy duty drivers, making it suited to outdoor events, fixed installs, and hire.
How does it compare to the CUBA range?
The CORVA-8A delivers more than twice the power of the CUBA range, so it is aimed at larger scale sound reinforcement.
