Description
The Citronic CORVA-10A is an active PA cabinet built for high SPL output and serious sound reinforcement. Rated at 450W, it delivers more than twice the power of the CUBA range, which makes it a good fit for outdoor events, fixed installations, and large scale professional hire. Specially developed heavy duty driver components handle the load, and the whole unit is designed for long-term reliability when it's working hard.
The enclosure is sturdy plywood with a polyurea finish, so it stands up to knocks on the road and in fixed setups. There are 12 x M8 flying points for rigging, plus a 35mm socket for pole mounting (also called a top-hat or speaker pole) and for stacking cabinets together. Inside sits a high power Class-D amplifier under full DSP control. The menu driven DSP has a colour display for quick access to EQ, dynamics, and gain, and a USB-PC interface lets you edit, test, and save custom DSP profiles from a computer.

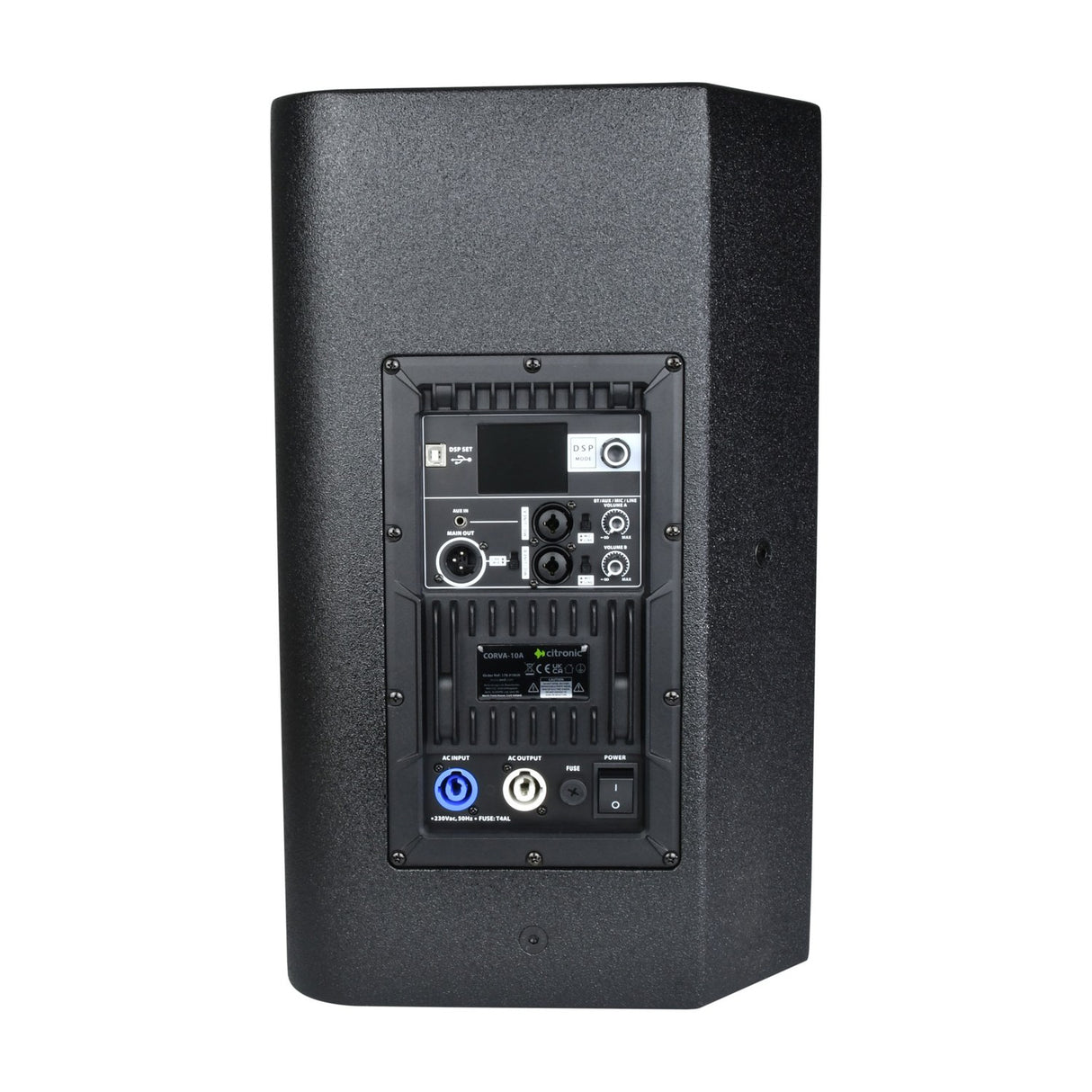

Connections cover most working needs. You get two Mic/Line inputs on combi XLR and 6.3mm jack, an Aux input on 3.5mm, and an XLR line output for linking to another cabinet. Both the main driver and the HF driver run at 8 ohms. This is a self-powered cabinet, so no external amp is needed, and the onboard processing means you can dial in the sound to suit the room or open-air site without carrying extra rack gear.
Specification
| Weight |
13.50KG |
| Dimensions |
510mm x 310mm x 305mm |
| SPL max. |
125dB |
| Sensitivity @ 1W/1m |
96dB |
| Frequency response |
55Hz - 19kHz |
| Output power : max. |
900W |
| Output power : rms |
450W |
| HF driver |
34mmØ (1.35") Ti compression driver |
| Main driver |
250mmØ (10") with 64mm voice coil |
| Fuse rating |
T4AL |
| Power supply |
100-240Vac, 50/60Hz (Powercon) |
| Inputs |
2 x Mic/Line (XLR/6.3mm) + Aux (3.5mm) |
| Line output |
XLR |
| Amplifier : construction |
Class-D, DSP controlled |
| Impedance |
8 Ohm (main driver and HF driver) |
Downloads
Product Manual
Frequently Asked
Does the CORVA-10A need a separate amplifier?
No. It's an active cabinet with a built-in high power Class-D amplifier, so it powers itself. You just connect a mic, line source, or Aux input.
How can I mount or rig it?
There are 12 x M8 flying points for rigging, plus a 35mm socket for pole mounting and stacking cabinets together.
What inputs and outputs does it have?
Two Mic/Line inputs on XLR/6.3mm combi, an Aux input on 3.5mm, and an XLR line output for linking to another cabinet.
Can I adjust the sound settings?
Yes. The menu driven DSP has a colour display for EQ, dynamics, and gain. A USB-PC interface also lets you edit and save custom profiles from a computer.
Is it suitable for outdoor use?
Yes. The rugged plywood enclosure with polyurea finish and heavy-duty drivers is designed for outdoor events, fixed installations, and large scale hire.
