Citronic CMA-6 Compact 6-Channel Mixer with DSP & Bluetooth

£10999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

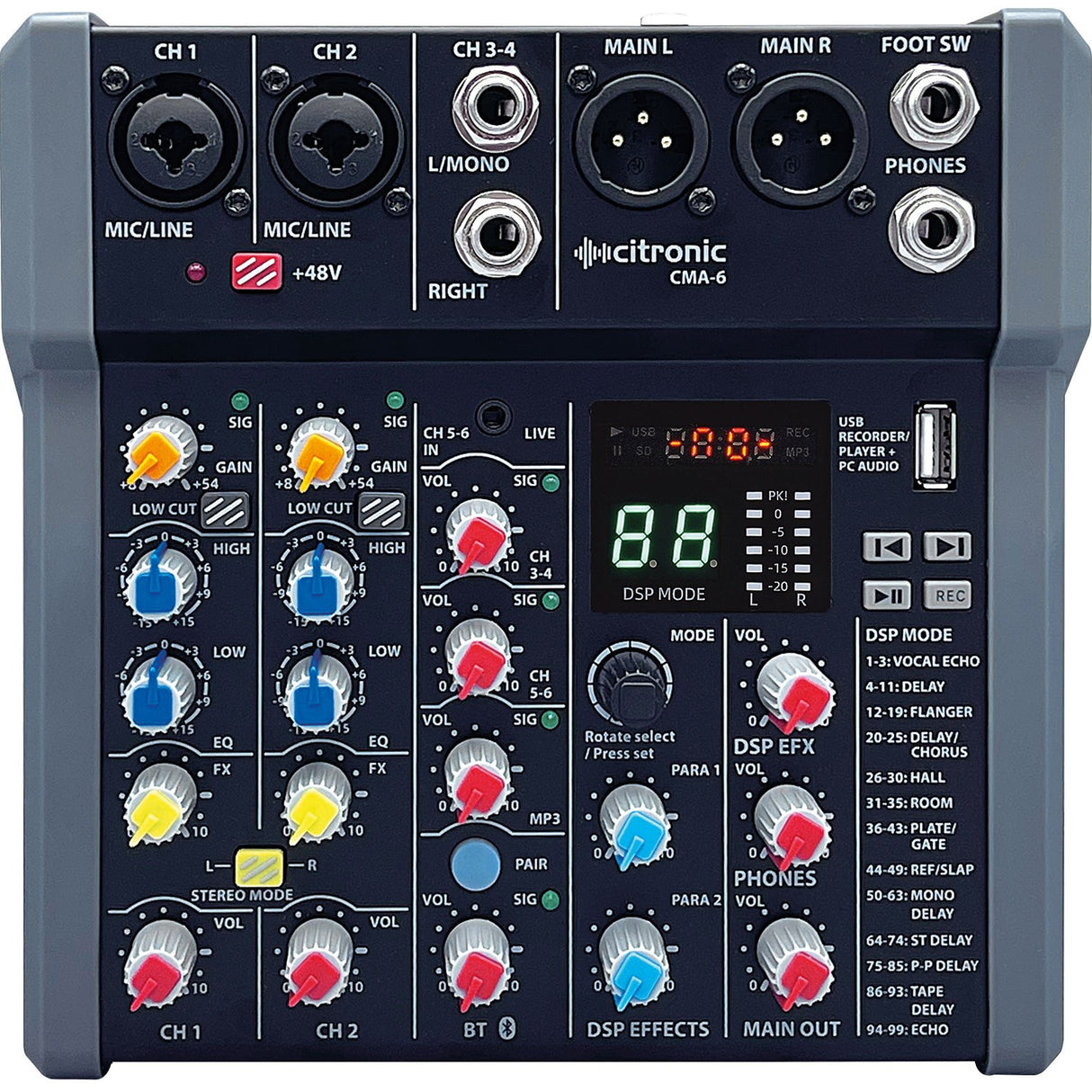

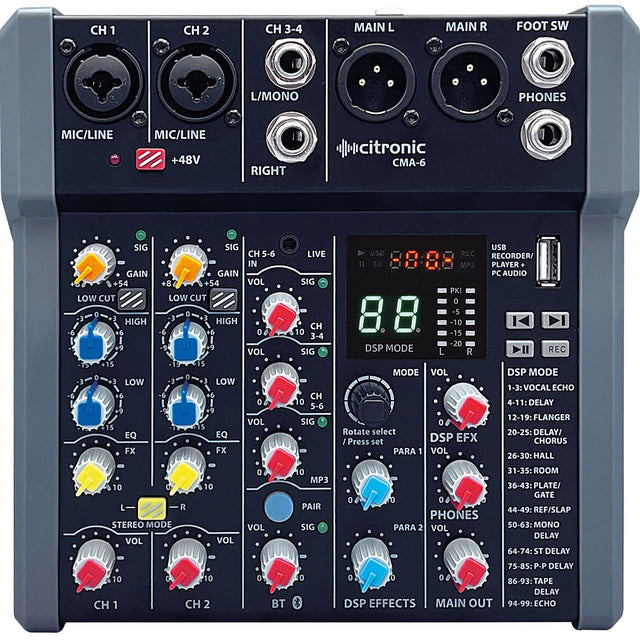

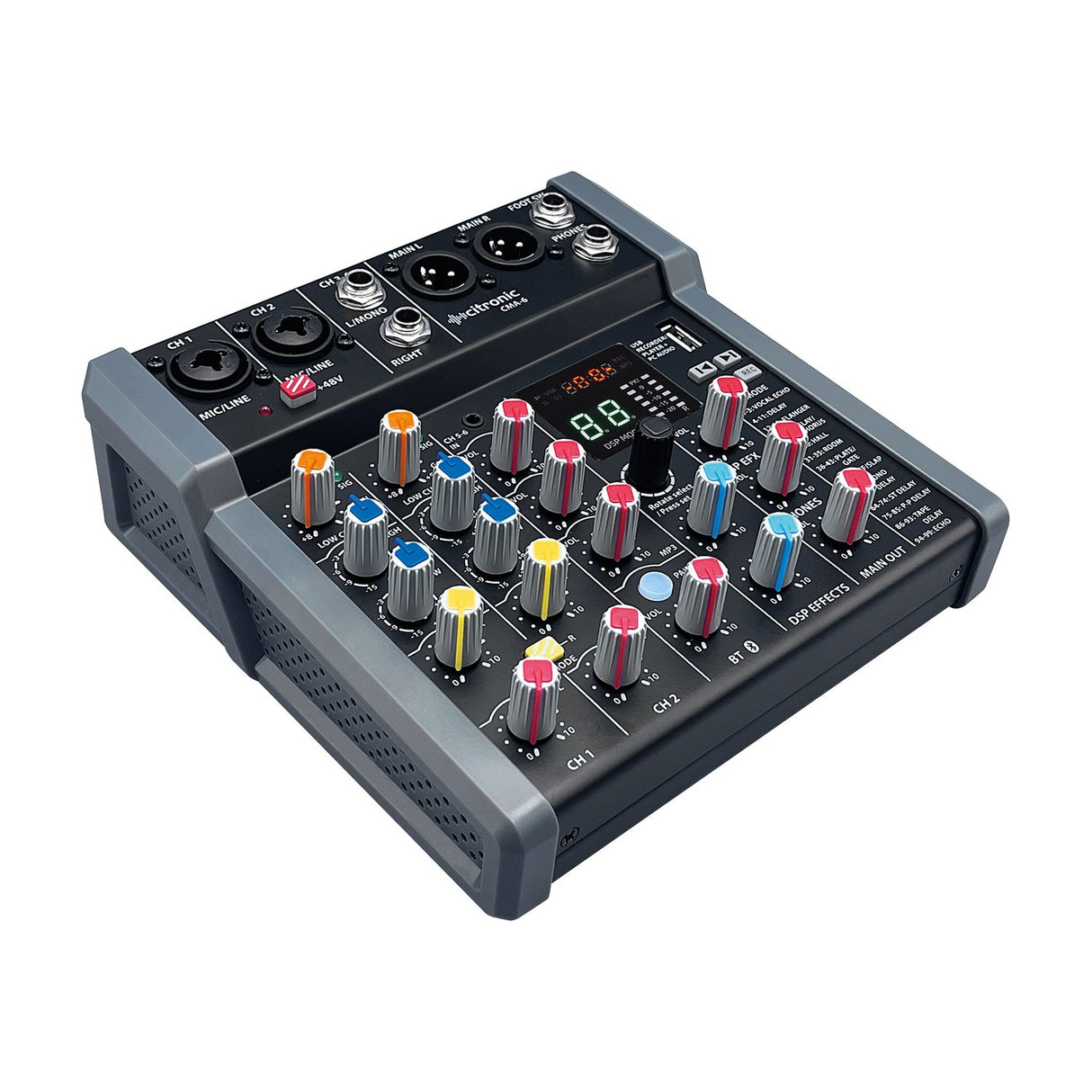

The Citronic CMA-6 is a compact mixer with six mono input channels, a stereo line input and a further stereo minijack input. Each mono mic/line channel uses a combo XLR/jack input, with +48V phantom power switchable in pairs for the XLR connections. Every mono channel has a Gain control for matching the input source, a low-cut switch to filter out rumble and microphone handling noise, plus High and Low EQ controls and an FX level control. Pairs of mono channels can be linked to act as a stereo left and right pair when you need them.

The onboard DSP effects engine offers 99 presets covering delay, reverb and modulation, each adjustable using two parameter controls. The effects section is foot-switchable, so you can bring effects in and out during a performance without reaching for the desk. A Bluetooth v5.1 receiver has an illuminated pairing button and its own independent volume control, handy for background music or backing tracks. The USB type-A port on the top panel plays back audio files, records the main outputs to a USB storage device, or works as an external audio device when connected to a laptop or PC/Mac.

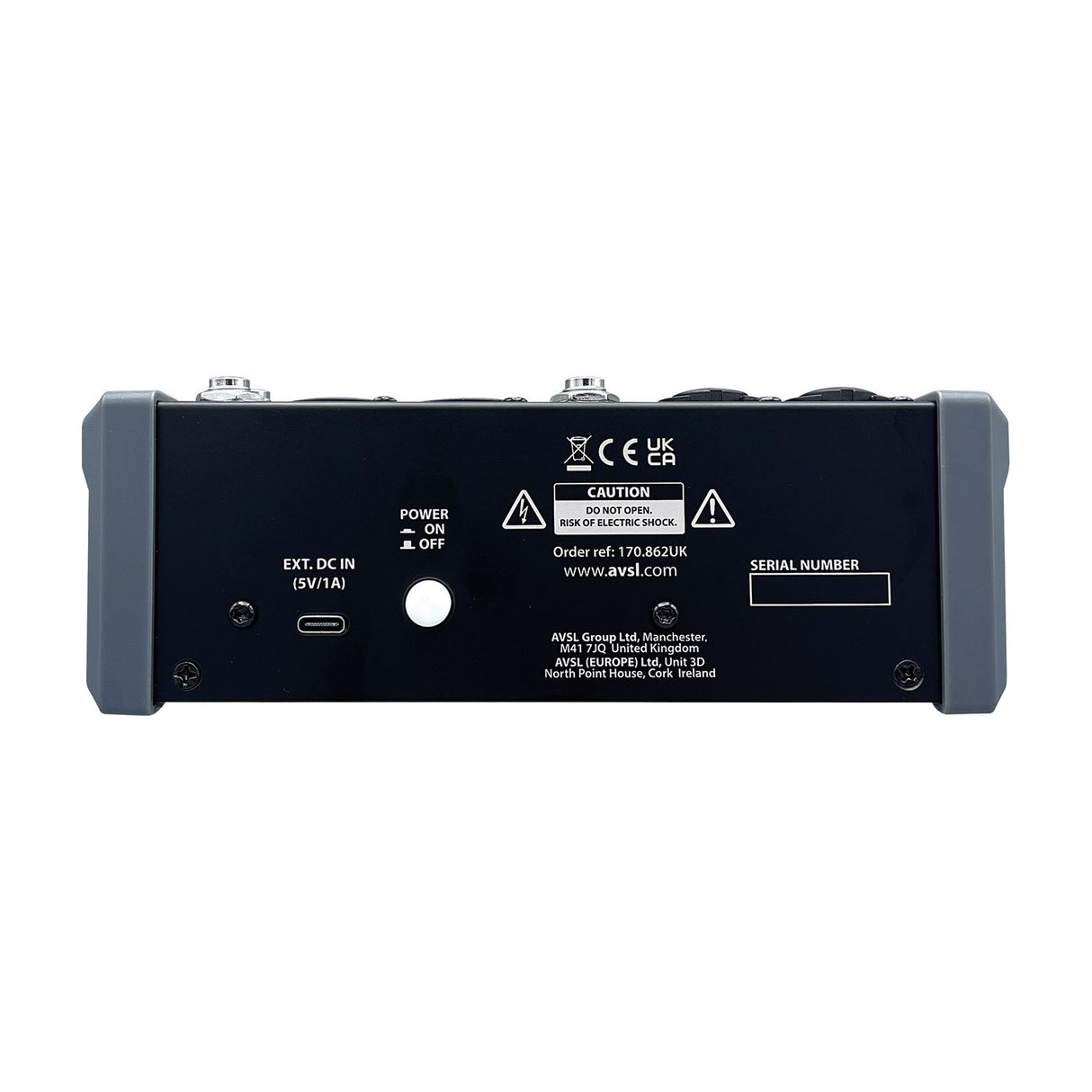

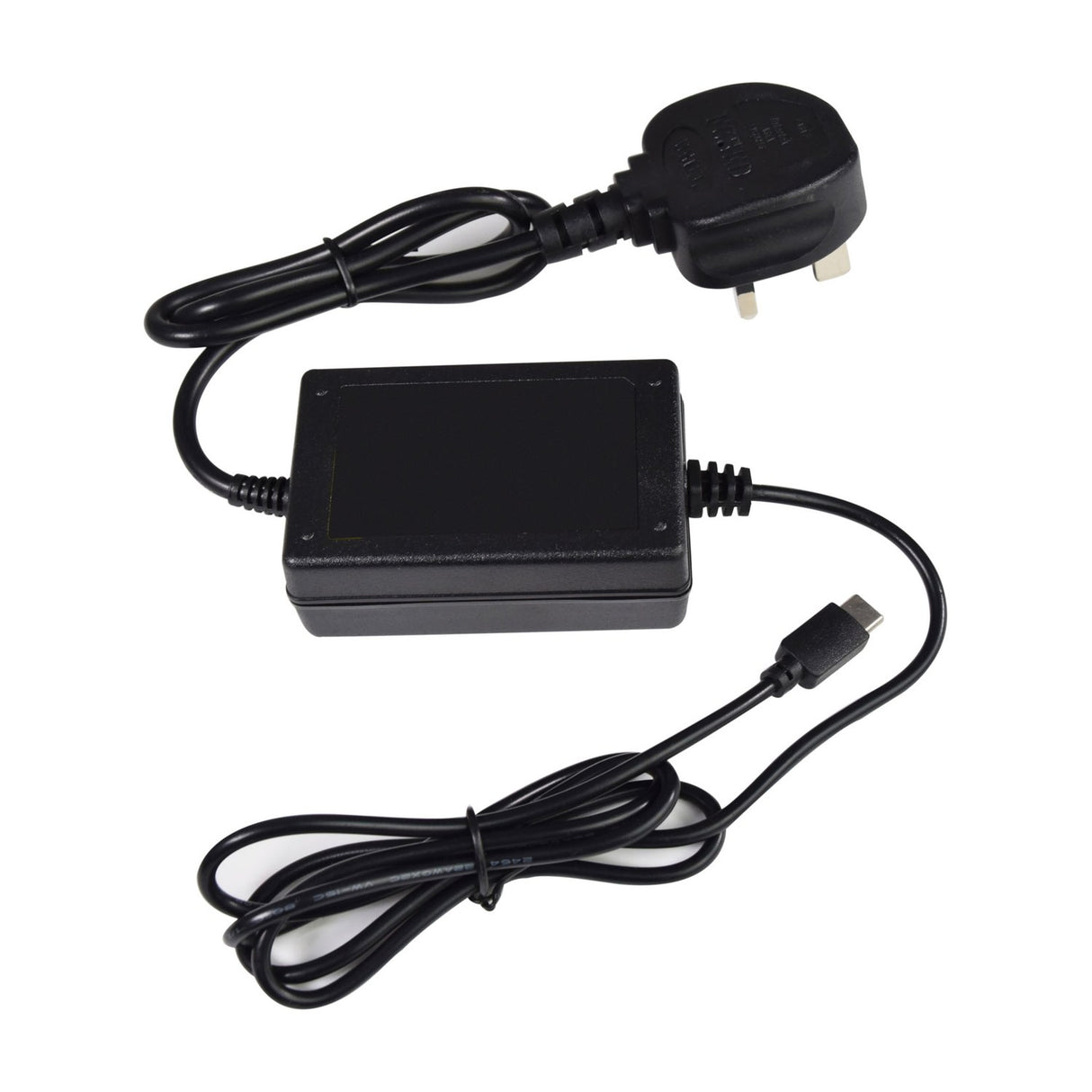

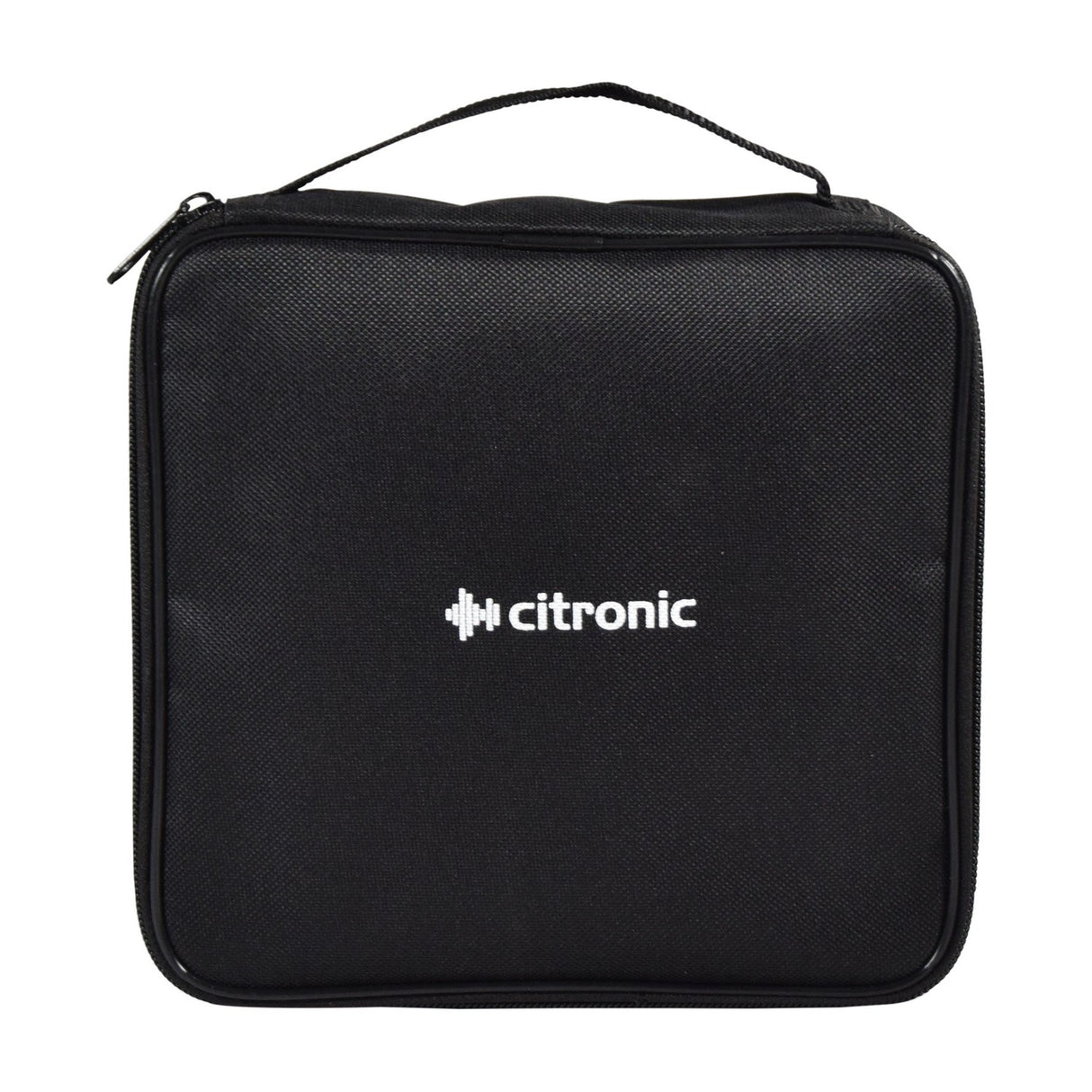

Output is delivered through a pair of balanced XLR connectors for low-noise operation in the studio or on stage, with a 6.3mm headphone jack for monitoring. Power comes from a USB type-C supply (a 5Vdc adaptor is included), and the USB type-A connection also provides aux power for connected devices. Frequency response runs from 20Hz to 22kHz (±1dB) with THD+N below 0.05% at 1kHz. The mixer ships in a padded transit bag so it stays protected between jobs.

Specification
Weight 0.88KG
Dimensions 183mm x 182mm x 60mm
Inputs 2 x combo XLR/jack + stereo L+R 6.3mm + stereo 3.5mm
Power supply 5Vdc 1A min. (USB-C adaptor included)
Power consumption max. 5W
Effects 99 program DSP (2 parameter controls)
DSP sample rate 48khz (24-bit)
Audio source Bluetooth receiver, USB mp3 player/recorder
Bluetooth version v5.1 (+BR+EDR+BLE)
USB version v1.1 audio (mp3/wav/ape/flac)
EQ: low ±15dB @ 80Hz
EQ: high ±15dB @ 12kHz
Phantom power +48V switchable in pairs (XLR inputs only)
Frequency response 20Hz - 22kHz (±1dB)
Input level Mic +10dBu max. / Line +22dBu max.
Input impedance Balanced XLR 2k Ohm, Balanced TRS jack 10k Ohm
THD +N <0.05% @ 1kHz
Noise EIN -122dBu (22Hz - 22kHz)
CMRR >75dB (Mic 1kHz)
Sensitivity XLR -60 to +10dBu, TRS jack -20 to +20dBu, Stereo -20 to +14dBu
Crosstalk : stereo >80dB (1kHz fader shutoff)
Outputs Left + Right balanced XLR, Headphones 6.3mm jack
Max. output level XLR +22dBu, TRS +20dBu
Downloads

Product Manual

Frequently Asked

How many input channels does the CMA-6 have?

The CMA-6 has six mono input channels, plus a stereo line input and a separate stereo minijack input. Pairs of mono channels can be linked to work as a stereo left and right pair.

Does it supply phantom power for condenser microphones?

Yes. It provides +48V phantom power, switchable in pairs for the XLR inputs, so you can run condenser microphones that need it.

How is the mixer powered?

It runs from a USB type-C supply rated at 5Vdc, 1A minimum, and the adaptor is included. Maximum power consumption is 5W.

Can I record my mix to a computer?

Yes. The USB type-A port lets you record the main outputs to a USB storage device, or use the mixer as an external audio device when connected to a laptop, PC or Mac.

What effects are built in?

There is a DSP effects section with 99 adjustable presets covering delay, reverb and modulation. Each preset has two parameter controls, and the section is foot-switchable.

What outputs does it have?

The main output is a pair of balanced XLR connectors, and there is a 6.3mm headphone jack for monitoring.
