Citronic CMA-10 Compact Mixer with DSP FX and Bluetooth

£13999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

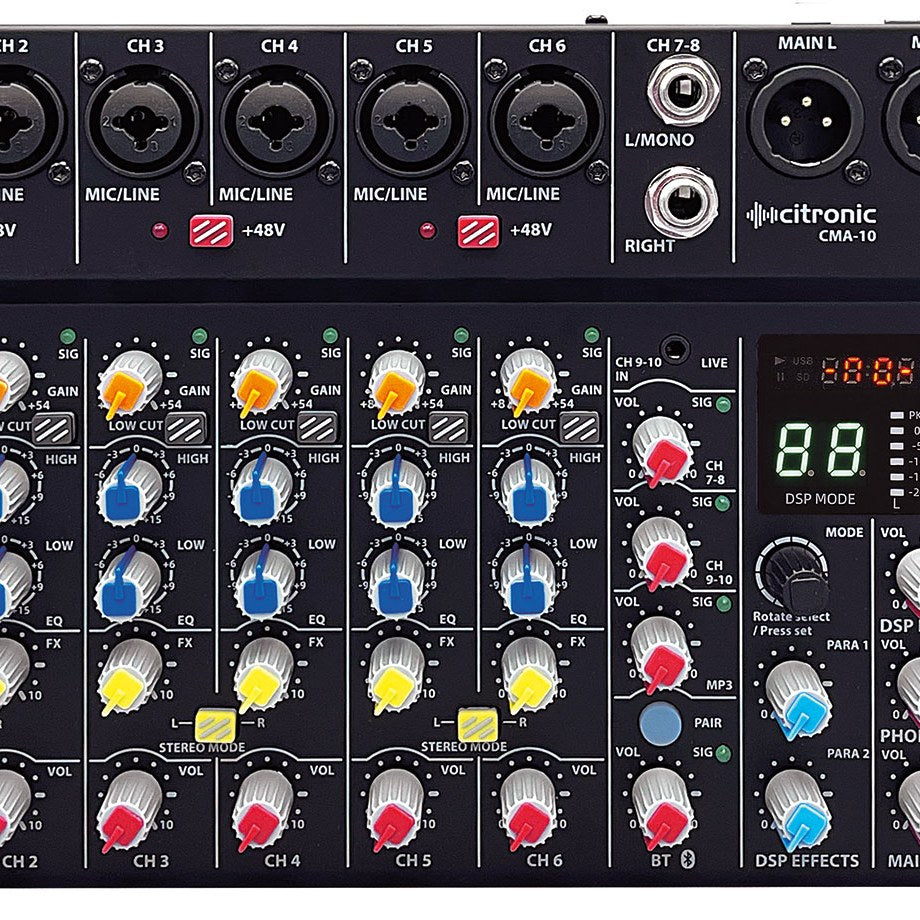

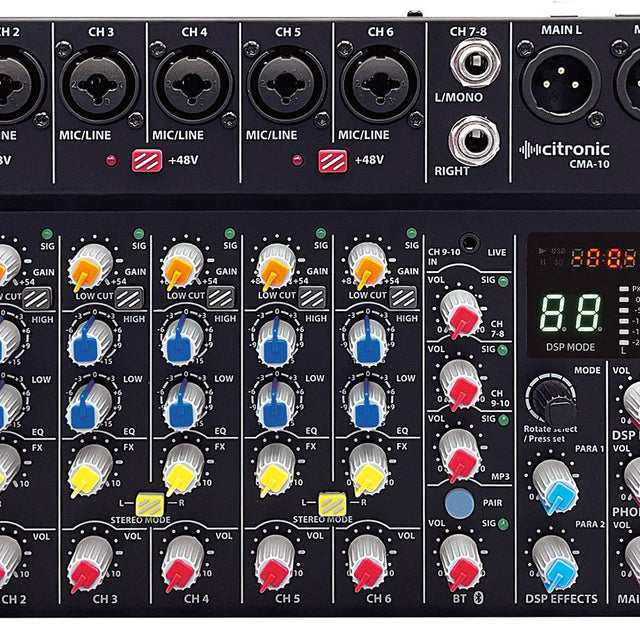

The Citronic CMA-10 is a compact audio mixer built for small live setups, home studios and anywhere space is tight. It carries mono mic/line input channels, a stereo line input and a further stereo minijack input, so you can bring together microphones, instruments and playback sources on one desk. Each mono channel uses a combo XLR/jack (phono/jack in some regions) input, with +48V phantom power switchable in pairs for condenser microphones. A Gain control matches each input source and a low-cut switch filters out rumble and handling noise. Pairs of mono channels can be linked to work as a stereo left and right pair when you need it.

Every mono channel has High and Low EQ controls plus an FX level send. The onboard DSP effects engine holds 99 presets covering delay, reverb and modulation, and each preset can be adjusted with two parameter controls. Effects are foot-switchable, so you can drop them in and out during a performance without reaching for the desk. A built-in Bluetooth v5.1 receiver has an illuminated pairing button and its own independent volume control, keeping wireless playback separate from your main mix.

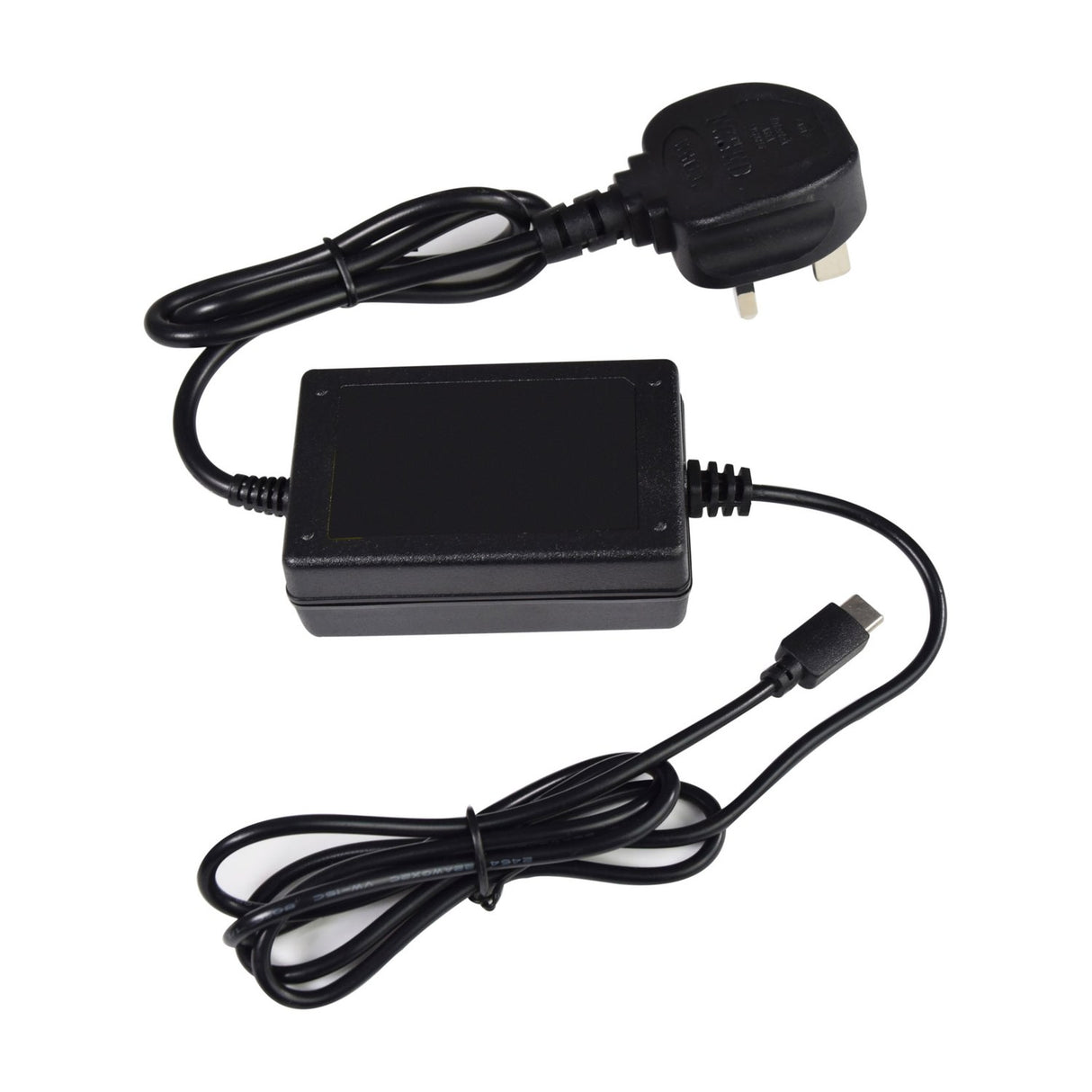

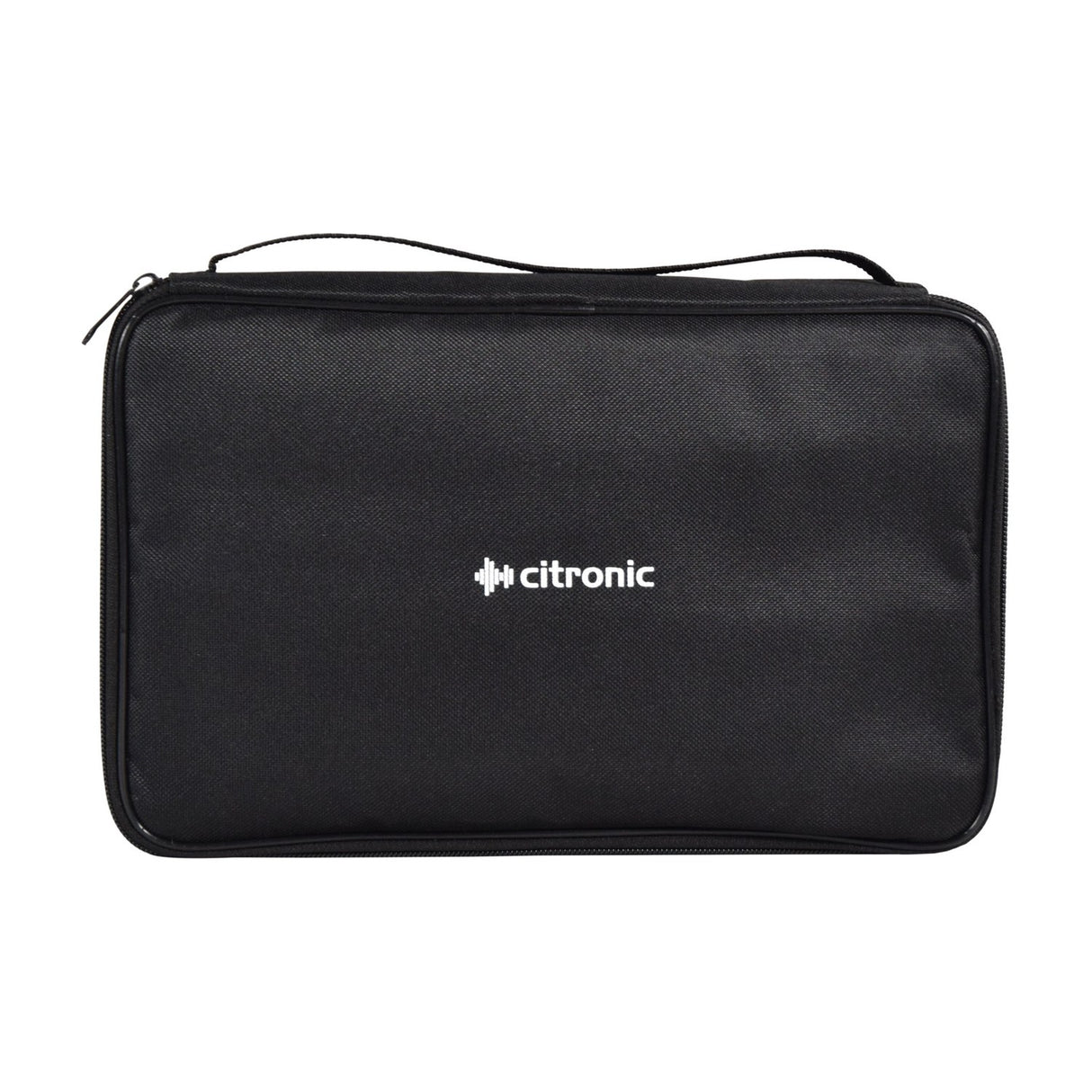

The USB type-A port on the top panel plays audio files (MP3, WAV, APE, FLAC), records the main outputs to a USB drive, or acts as an external audio device for a laptop or PC/Mac. Main output runs to a pair of balanced XLR connectors for low-noise operation, with a 6.3mm headphone jack for monitoring. Power comes from an included USB type-C adaptor, drawing 5V at 1A minimum and a maximum of 5W. The CMA-10 ships in a padded transit bag, so it is ready to carry between rooms and gigs.

Specification
Weight 1.40KG
Dimensions 282mm x 183mm x 60mm
Inputs 6 x combo XLR/jack + stereo L+R 6.3mm + stereo 3.5mm
Power supply 5Vdc 1A min. (USB-C adaptor included)
Power consumption max. 5W
Effects 99 program DSP (2 parameter controls)
DSP sample rate 48khz (24-bit)
Audio source Bluetooth receiver, USB mp3 player/recorder
Bluetooth version v5.1 (+BR+EDR+BLE)
USB version v1.1 audio (mp3/wav/ape/flac)
EQ: low ±15dB @ 80Hz
EQ: high ±15dB @ 12kHz
Phantom power +48V switchable in pairs (XLR inputs only)
Frequency response 20Hz - 22kHz (±1dB)
Input level Mic +10dBu max. / Line +22dBu max.
Input impedance Balanced XLR 2k Ohm, Balanced TRS jack 10k Ohm
THD +N <0.05% @ 1kHz
Noise EIN -122dBu (22Hz - 22kHz)
CMRR >75dB (Mic 1kHz)
Sensitivity XLR -60 to +10dBu, TRS jack -20 to +20dBu, Stereo -20 to +14dBu
Crosstalk : stereo >80dB (1kHz fader shutoff)
Outputs Left + Right balanced XLR, Headphones 6.3mm jack
Max. output level XLR +22dBu, TRS +20dBu
Downloads

Product Manual

Frequently Asked

How many input channels does the CMA-10 have?

The CMA-10 is the compact model in the range, with mono mic/line channels plus a stereo line input and a separate stereo minijack input. Pairs of mono channels can be linked to act as a stereo pair when needed.

Can I use condenser microphones with it?

Yes. The mono channels provide +48V phantom power, switchable in pairs on the XLR inputs, so you can power condenser microphones alongside dynamic mics.

What can the USB port do?

The USB type-A port plays MP3, WAV, APE and FLAC files, records the main outputs to a USB storage device, and works as an external audio device when connected to a laptop or PC/Mac.

Does it work with Bluetooth?

It has a built-in Bluetooth v5.1 receiver with an illuminated pairing button and independent volume control, so you can stream playback wirelessly and set its level apart from the rest of the mix.

What effects are included?

The DSP engine holds 99 presets for delay, reverb and modulation. Each preset has two parameter controls for adjustment, and the effects section is foot-switchable.

How is the mixer powered?

It runs from a USB type-C adaptor, supplied in the box, rated 5V 1A minimum with a maximum power consumption of 5W.
