Citronic CM10 Passive Wedge Monitor Speaker 250W

£20999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

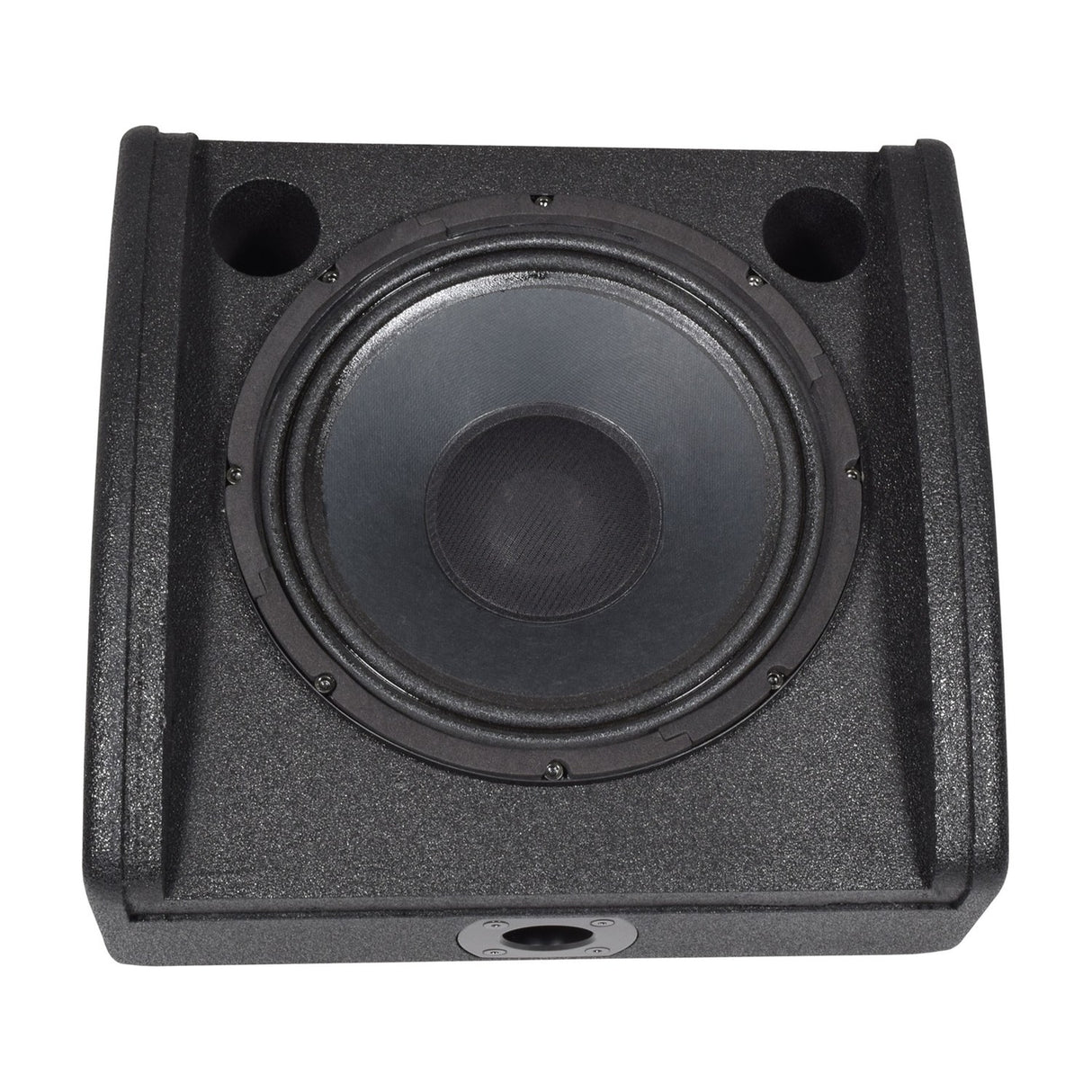

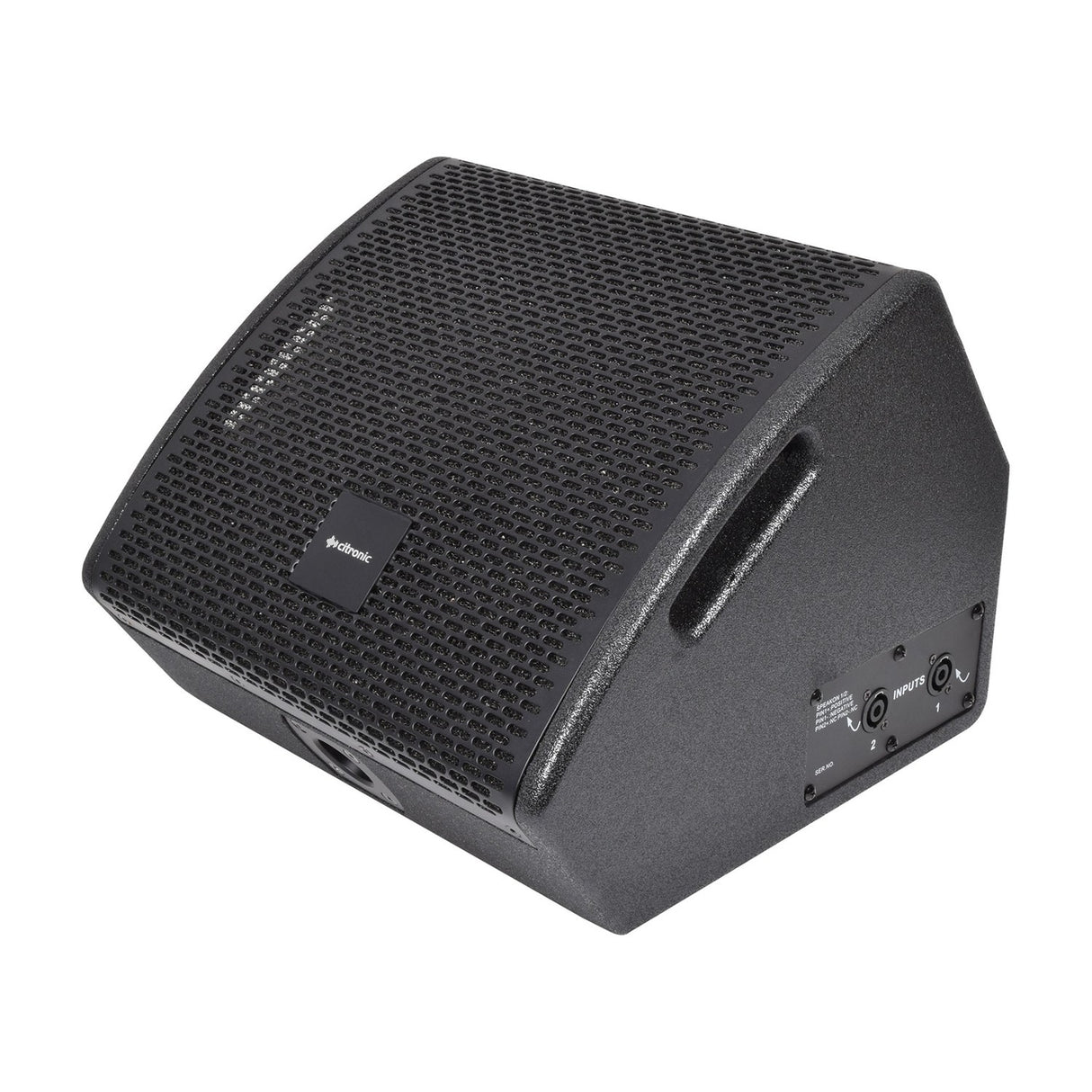

The Citronic CM10 is a passive wedge monitor built for stage foldback, though it works just as well as a compact PA speaker. The cabinet is made from durable, texture coated plywood with a minimal footprint, so it sits neatly on stage without getting in the way. A concentric titanium tweeter is mounted within the main driver, which keeps the high and low frequencies aligned and gives you clear, crisp highs alongside a punchy low end. Two bass ports help the main driver deliver the low frequencies with weight.

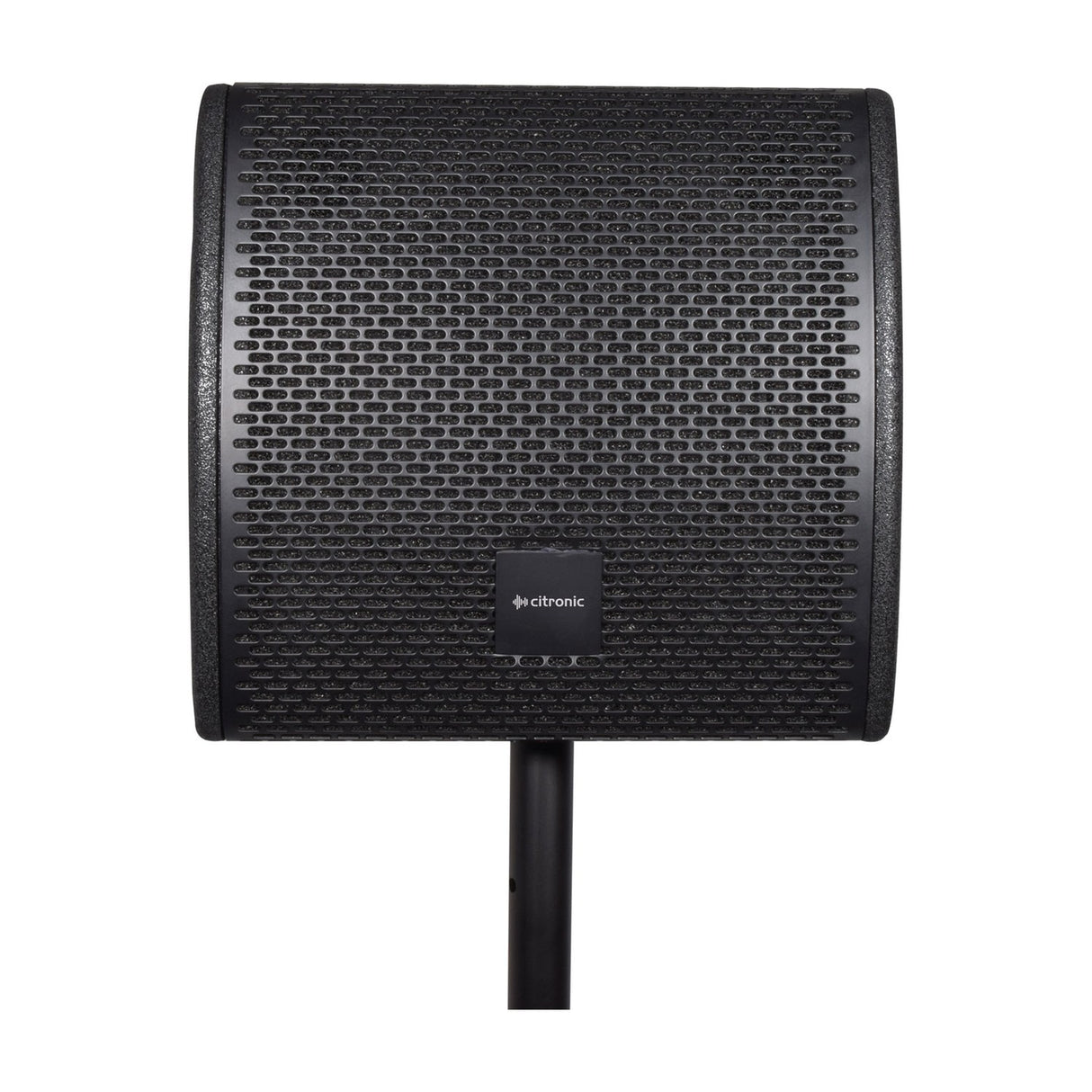

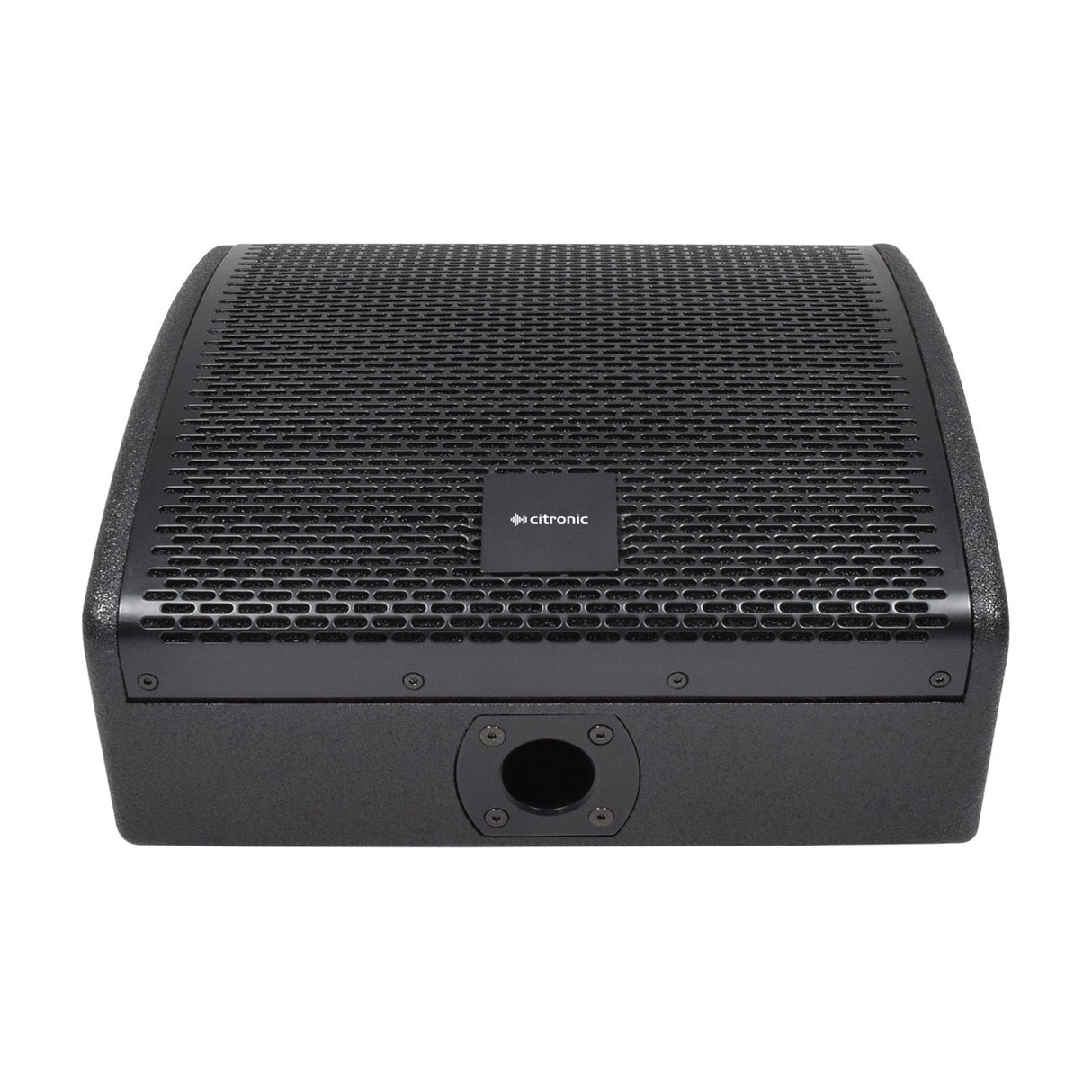

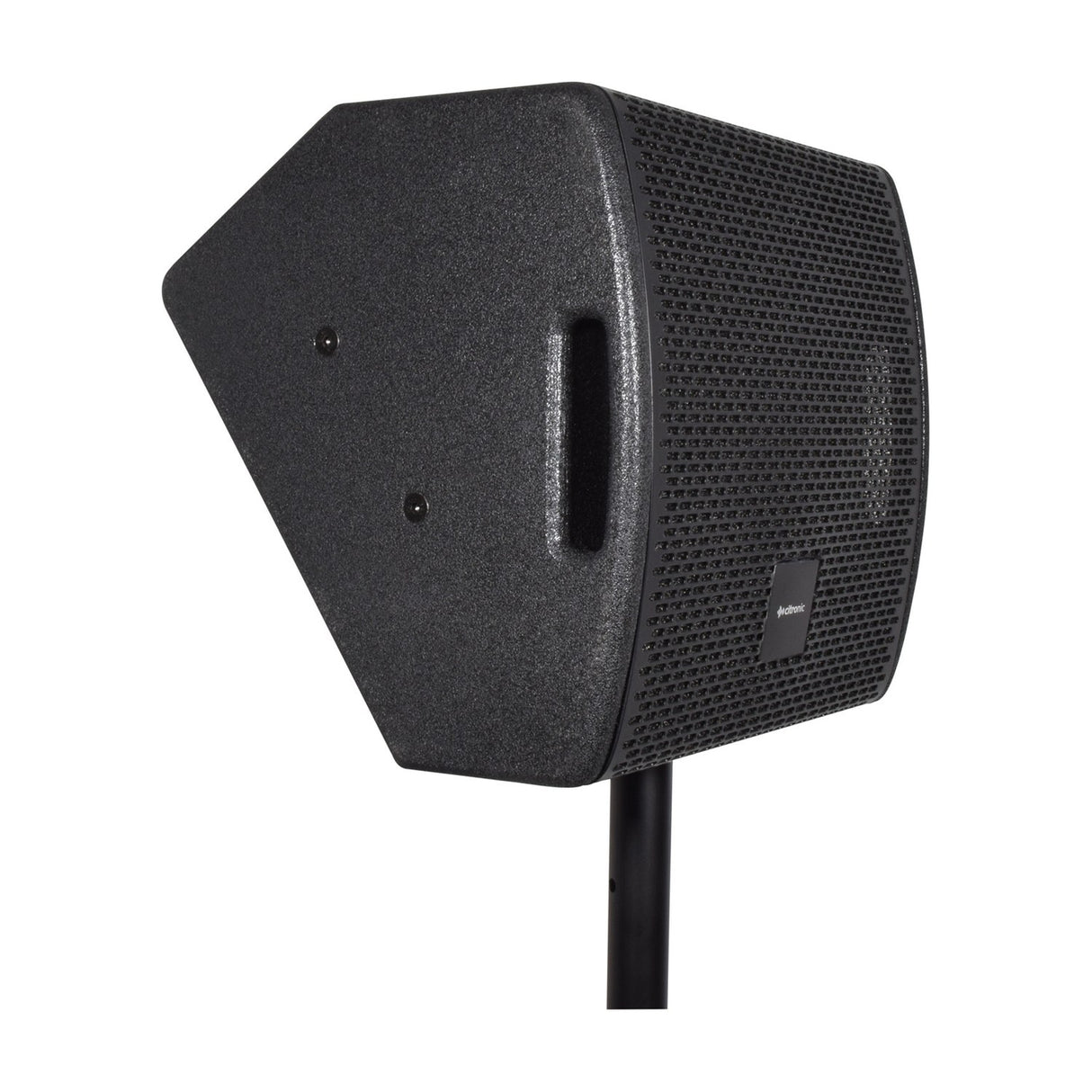

Getting the CM10 in and out of a venue is straightforward. The arched powder-coated steel grille protects the drivers from the knocks of live performance, and it forms two side handle holes so you can carry the speaker easily. There's a 35mm pole-mount socket if you want to raise it up as a PA speaker, plus M8 flying points for rigging overhead. At 250Wrms and 8 Ohms, it handles plenty of power for its size.

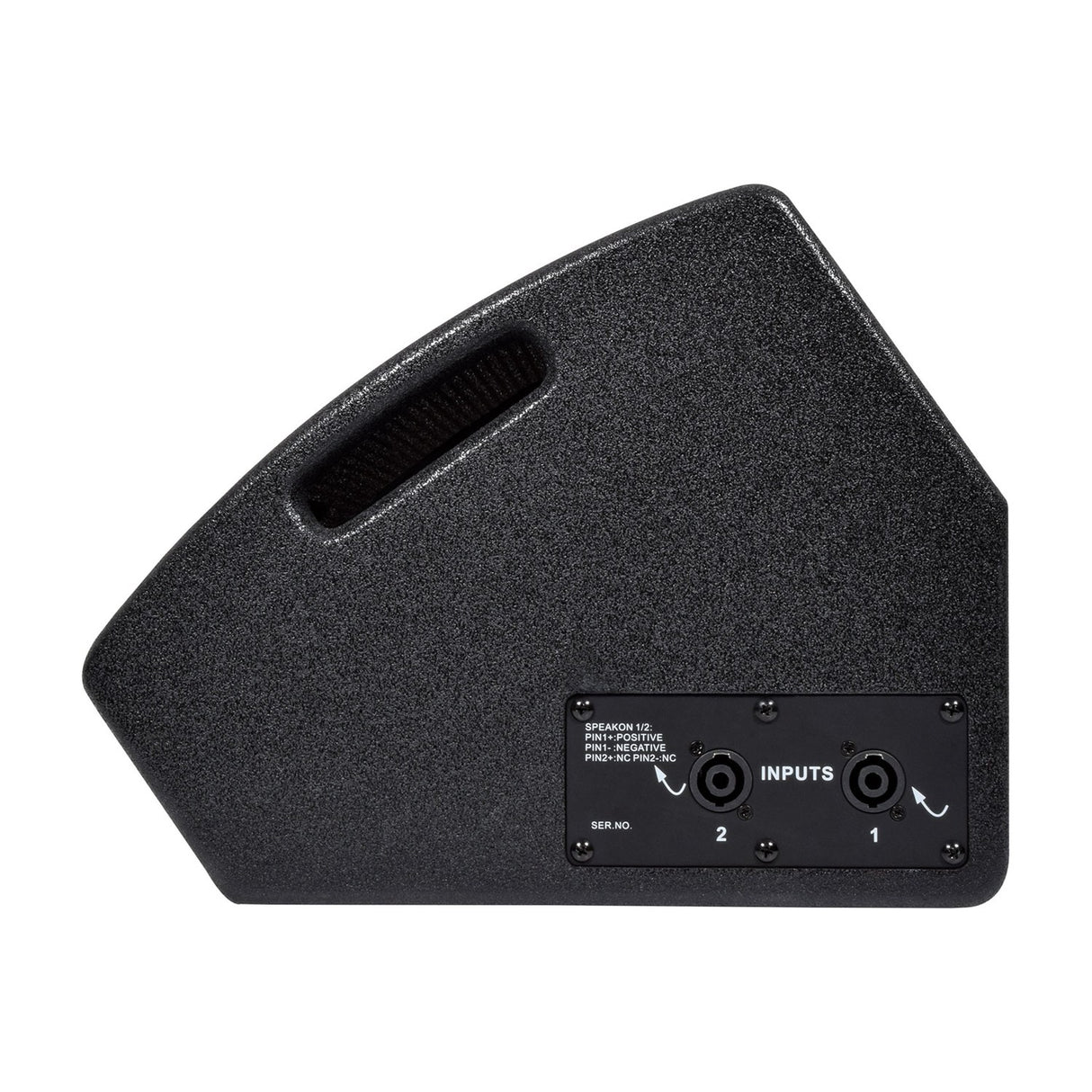

Connection is handled by a pair of twist-lock SPK (Speakon) connectors wired in parallel. You feed input from your amplifier into one, and use the second to link on to a further passive speaker or monitor if you need it. The HF driver measures 44mm (1.75") and uses a titanium diaphragm. Between the compact size, the high power handling and the flexible mounting options, the CM10 covers a lot of ground for both fixed installs and mobile setups.

Specification
Weight 8.64KG
Sensitivity 95dB
Dimensions 355mm x 350mm x 275mm
Frequency response 65Hz - 20kHz
Power handling : peak 450W
Power handling : rms 250W
Magnet weight 1.13KG
Voice coil 50mmØ (2")
Main driver 250mmØ (10") with concentric tweeter
Impedance 8 Ohm
Inputs 2 x SPK connectors (parallel pins 1±)
HF driver 44mmØ (1.75") titanium driver
Downloads

Product Manual

Frequently Asked

Is the CM10 an active or passive speaker?

It's a passive wedge monitor, so you'll need a separate amplifier to drive it. Input comes in through the twist-lock SPK connectors.

Can I link two CM10 speakers together?

Yes. The two SPK (Speakon) connectors are wired in parallel, so you can feed one from your amplifier and daisy-chain onto a further passive speaker or monitor from the second.

Can I mount the CM10 on a speaker pole?

Yes. It has a 35mm pole-mount socket, which lets you use it as a compact PA speaker on a stand rather than just as a floor wedge.

What power handling does the CM10 have?

It handles 250Wrms and has an impedance of 8 Ohms. Make sure your amplifier is matched to suit these figures.

Can the CM10 be flown or rigged overhead?

Yes. It has M8 flying points, so you can rig it overhead as well as use it on a pole or as a stage wedge.

What is the concentric HF driver?

The titanium tweeter is mounted within the main driver rather than beside it. This keeps the high and low frequencies aligned so the sound reaches you together.

Shipping & Returns

Delivery UK delivery is £14.99, and delivery is free on all orders of £99 or more, in the UK and internationally.

Returns If you change your mind, you have 14 days from delivery to tell us, and a further 14 days to send the goods back. Return postage for a change-of-mind return is paid by you. Change-of-mind returns are subject to an inspection and handling deduction. See our full returns policy.

To arrange a return, call us on 020 8149 5199 or use our contact page.
