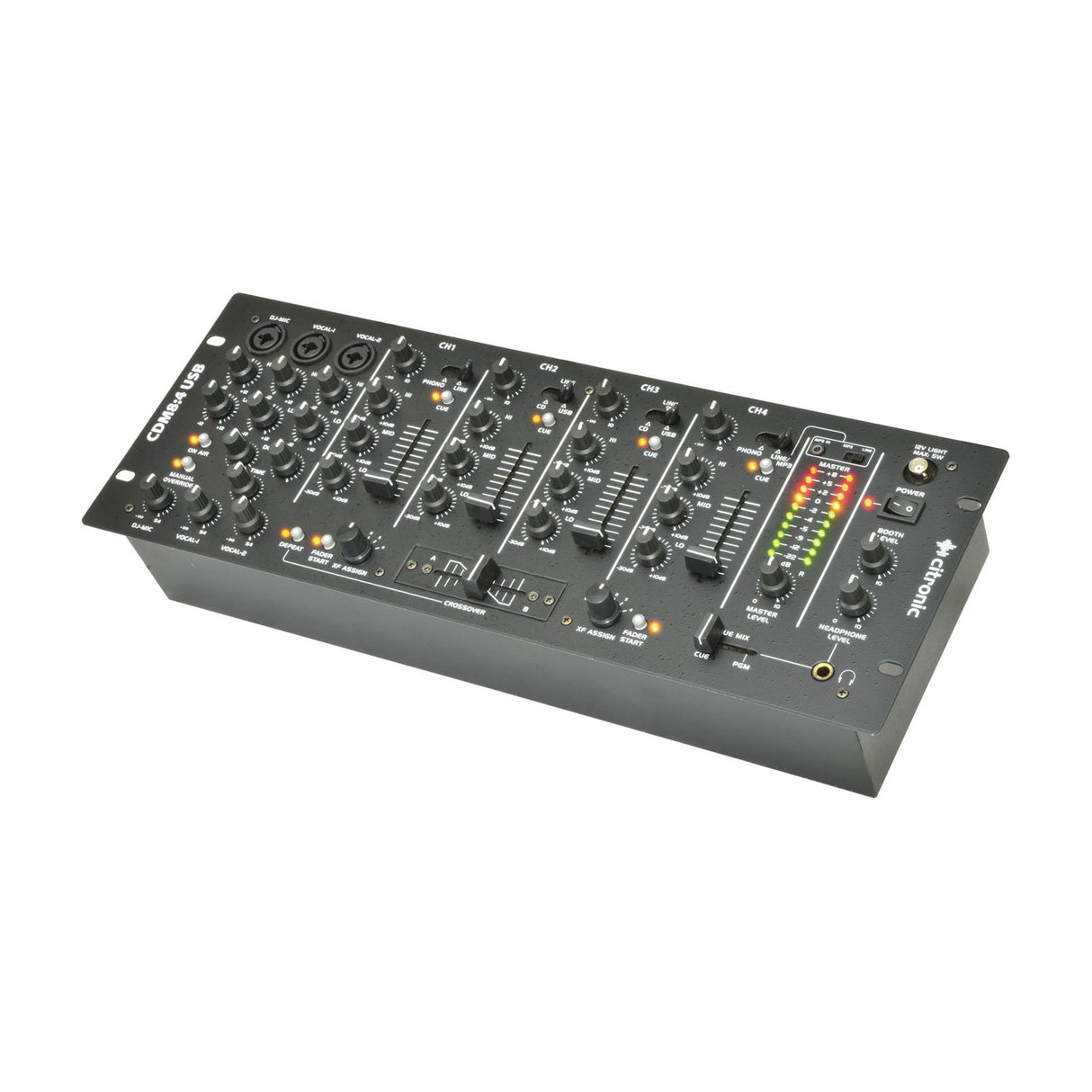

Citronic CDM8:4 USB 4-Channel 19" Rack DJ Mixer

£32999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The Citronic CDM8:4 USB is a 14-input, four-channel DJ mixer built for mobile work and fixed installations. It fits a standard 19" rack at 4U, so you can slot it into a case or console alongside the rest of your kit. Each music channel has its own gain control and 3-band EQ, giving you room to balance sources before they hit the main mix.

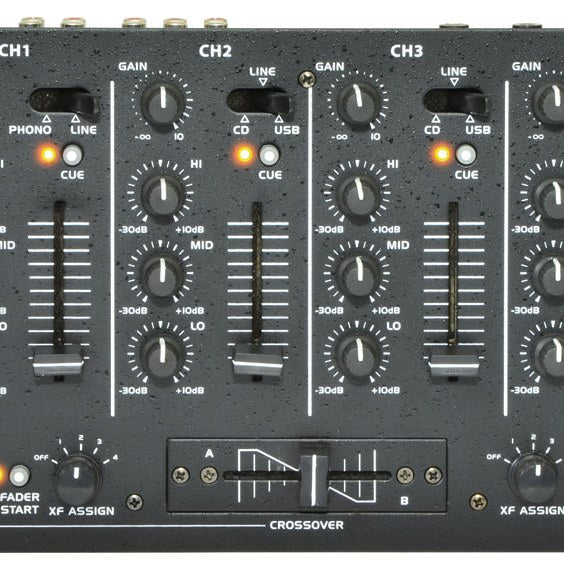

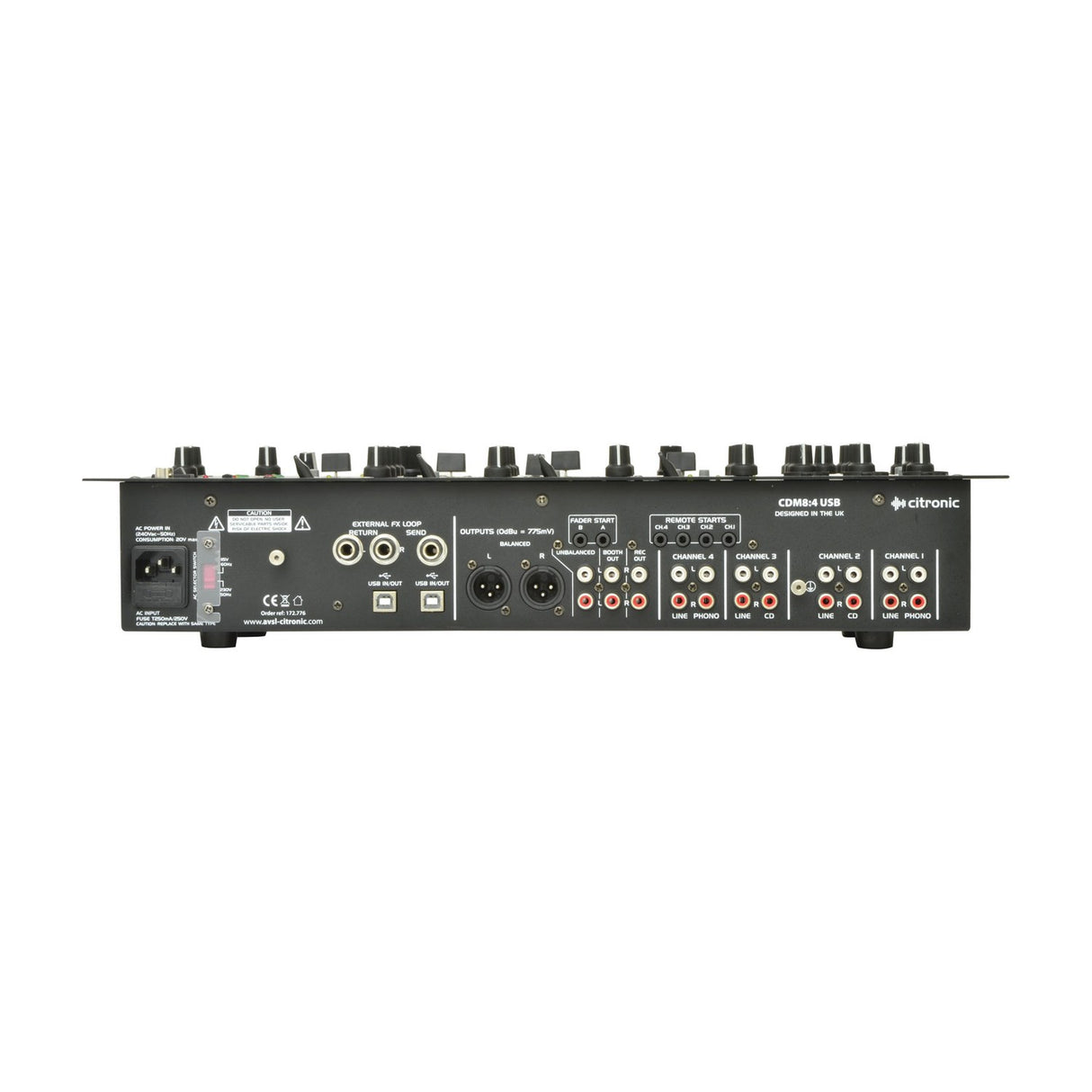

At the heart of the mixer is a 45mm rail glide crossfader that you can replace when it wears, with a defeat switch and channel assign so you decide which sources sit on each side. Remote fader starts on the stereo channels let you trigger playback from compatible decks, and there is a cue mix fader for lining up the next track. Connections cover 2 phono, 6 line, 2 USB in/out, one 3.5mm jack for patching in an MP3 player, and three microphone inputs. The USB in/out handles playback and recording straight from a computer.

The three mic inputs make this a solid choice for karaoke as well as DJ sets, with a DJ mic plus two vocal mic inputs, each fitted with Hi/Lo EQ and a shared internal digital delay or FX loop for a touch of vocal effect. A 12Vdc BNC output powers a console light (also called a gooseneck lamp) up to 5W. The unit runs on 115/230Vac via IEC and weighs 4.06kg, so it stays portable for gigs on the move.

Specification
Power supply 115/230Vac, 50/60Hz (IEC)
Equaliser : bass -30 +10dB @ 100Hz
Equaliser : midrange -30 +10dB @ 800Hz
Equaliser : treble -30 +10dB @ 9kHz
Signal to noise ratio : line >87dB
Signal to noise ratio : mic 68dB
Signal to noise ratio : phono 73dB
Headphone output 112mV @ 32 Ohms
Console light power 12Vdc 5W max (BNC)
Dimensions 483mm x 175mm x 110mm (4U)
Weight 4.06KG
Downloads

Product Manual

Frequently Asked

Does the CDM8:4 USB fit a standard 19-inch rack?

Yes. It measures 483 x 175 x 110mm and takes up 4U in a standard 19" rack.

Can I record and play back over USB?

Yes. It has 2 USB in/out connections for playback from and recording to a computer.

How many microphone inputs are there?

Three: one DJ mic and two vocal mic inputs, each with Hi/Lo EQ and access to the internal delay or FX loop, which suits karaoke setups.

Is the crossfader replaceable?

Yes. The 45mm rail glide crossfader can be replaced, and it includes a defeat switch and channel assign.

What EQ does each channel have?

All stereo music channels have 3-band EQ: bass at 100Hz, midrange at 800Hz and treble at 9kHz, each with a range of -30 to +10dB.

Can I connect an MP3 player?

Yes. There is a 3.5mm jack input for patching in an MP3 player.
