Citronic CASA-28BA Active Subwoofer, Dual 8" 400W

£34999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

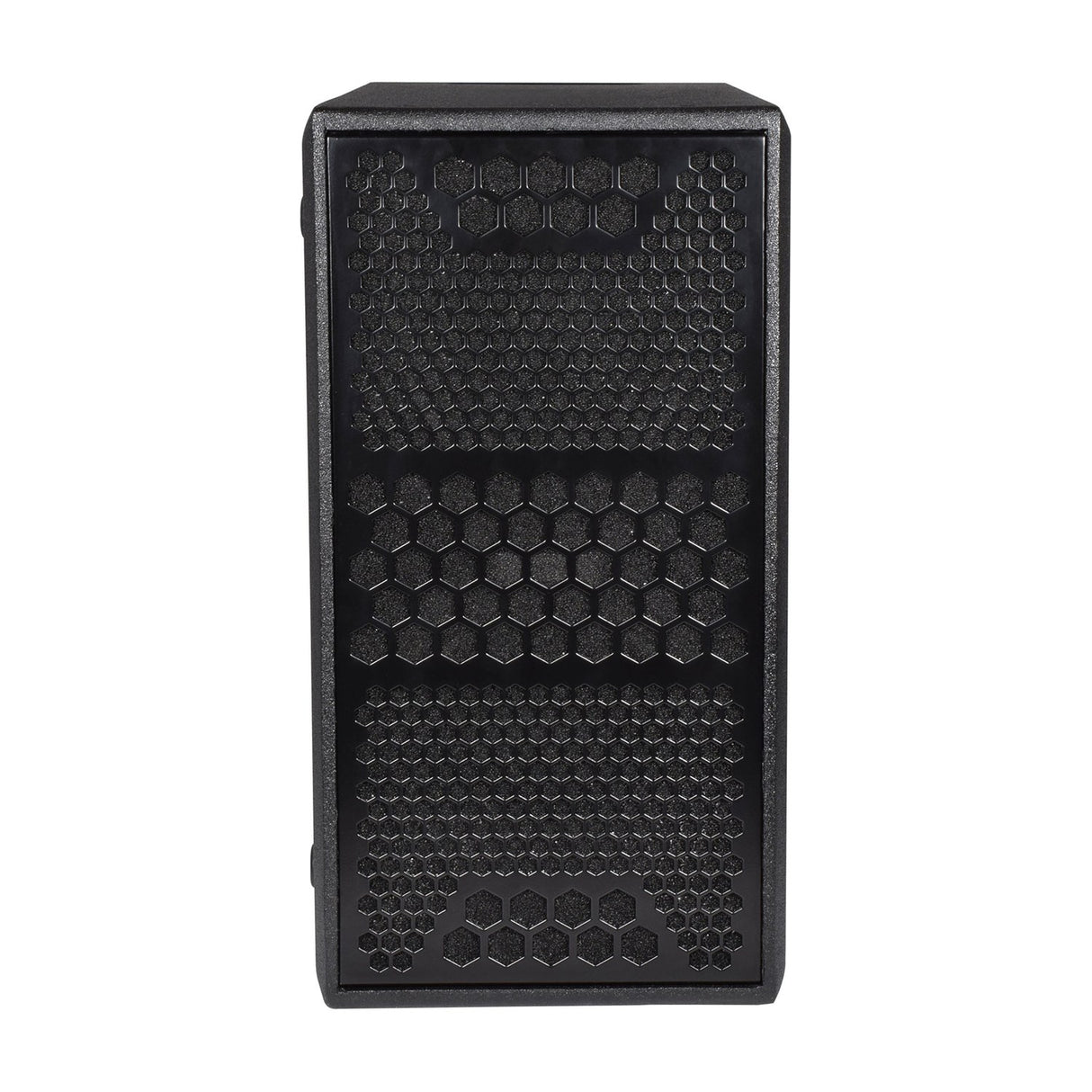

The Citronic CASA-28BA is a compact, slim active subwoofer built for mobile and fixed sound reinforcement. It houses two 200mm (8") woofers driven by an internal 400W rms class-D amplifier, with preset DSP control filtering low frequencies accurately to the amplifier section. Peak output reaches 1400W and maximum SPL is 122dB, giving you solid low-end support without needing a separate outboard amp.

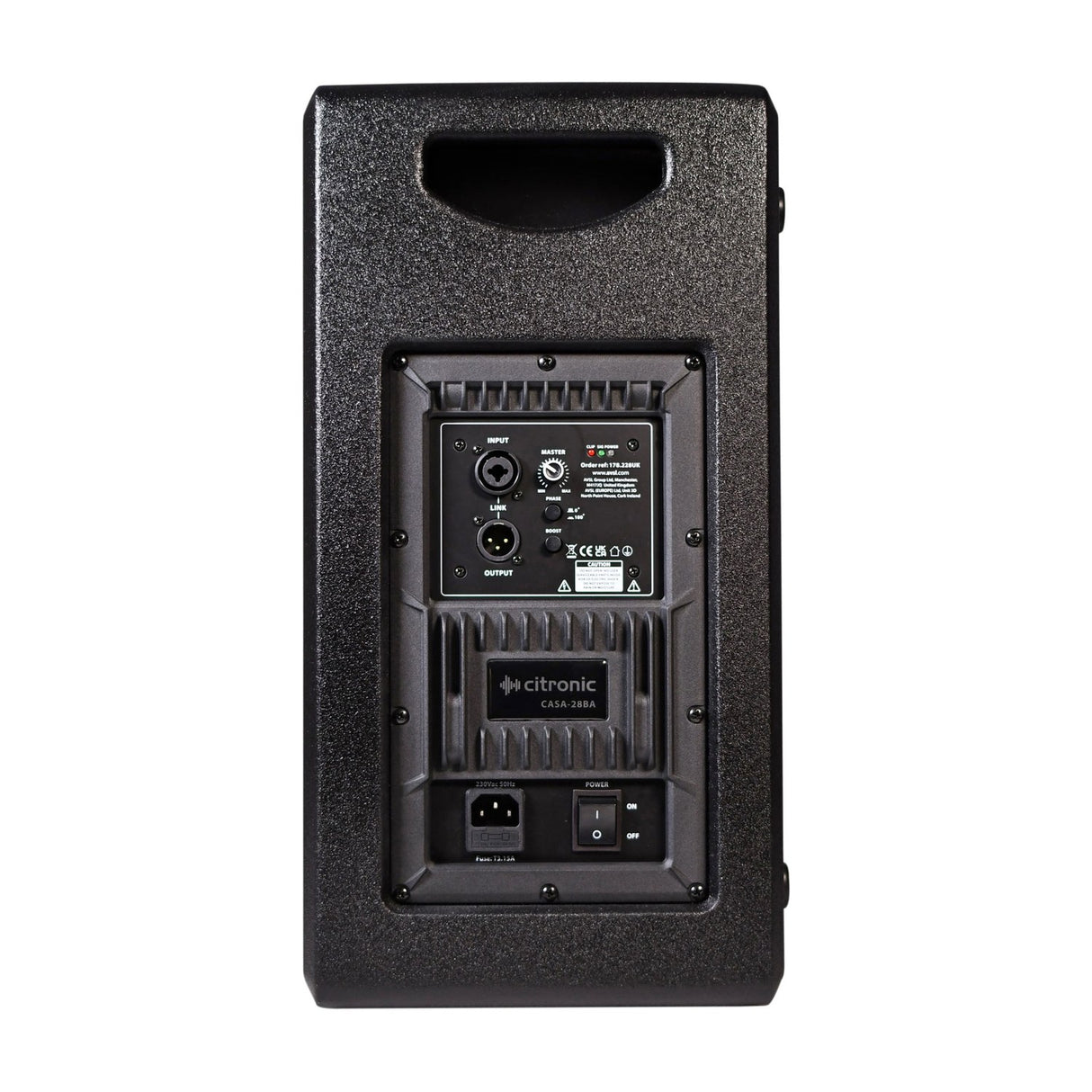

Connection is straightforward. A line level input arrives via balanced XLR or 6.3mm jack, and there's a balanced XLR line output for cascading the signal on to further active cabinets. On the rear you get a master level control, a Boost switch to lift the gain, and a phase switch to correct time-alignment or out-of-phase situations. The frequency response runs from 55 to 150Hz, so it sits neatly under a full-range top.

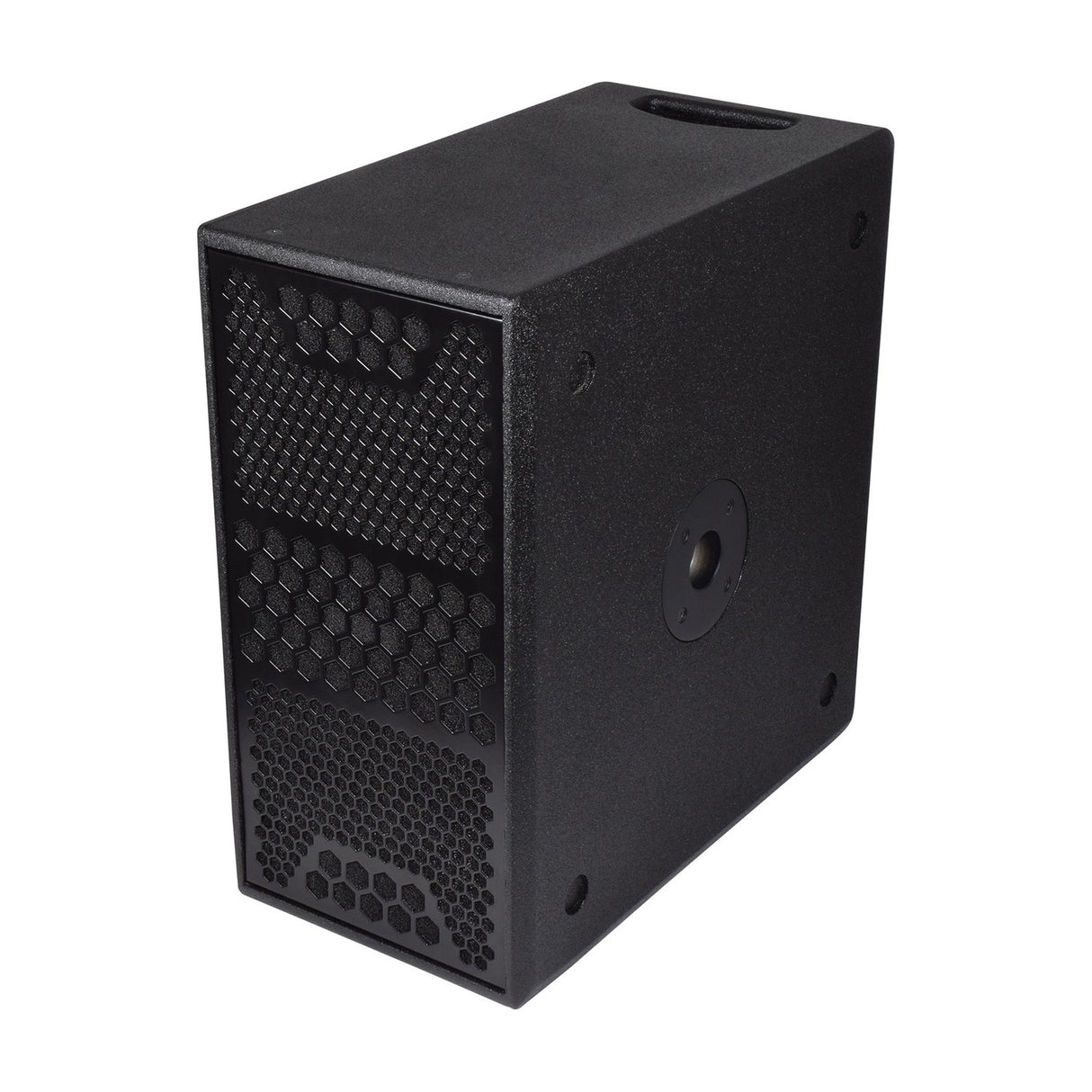

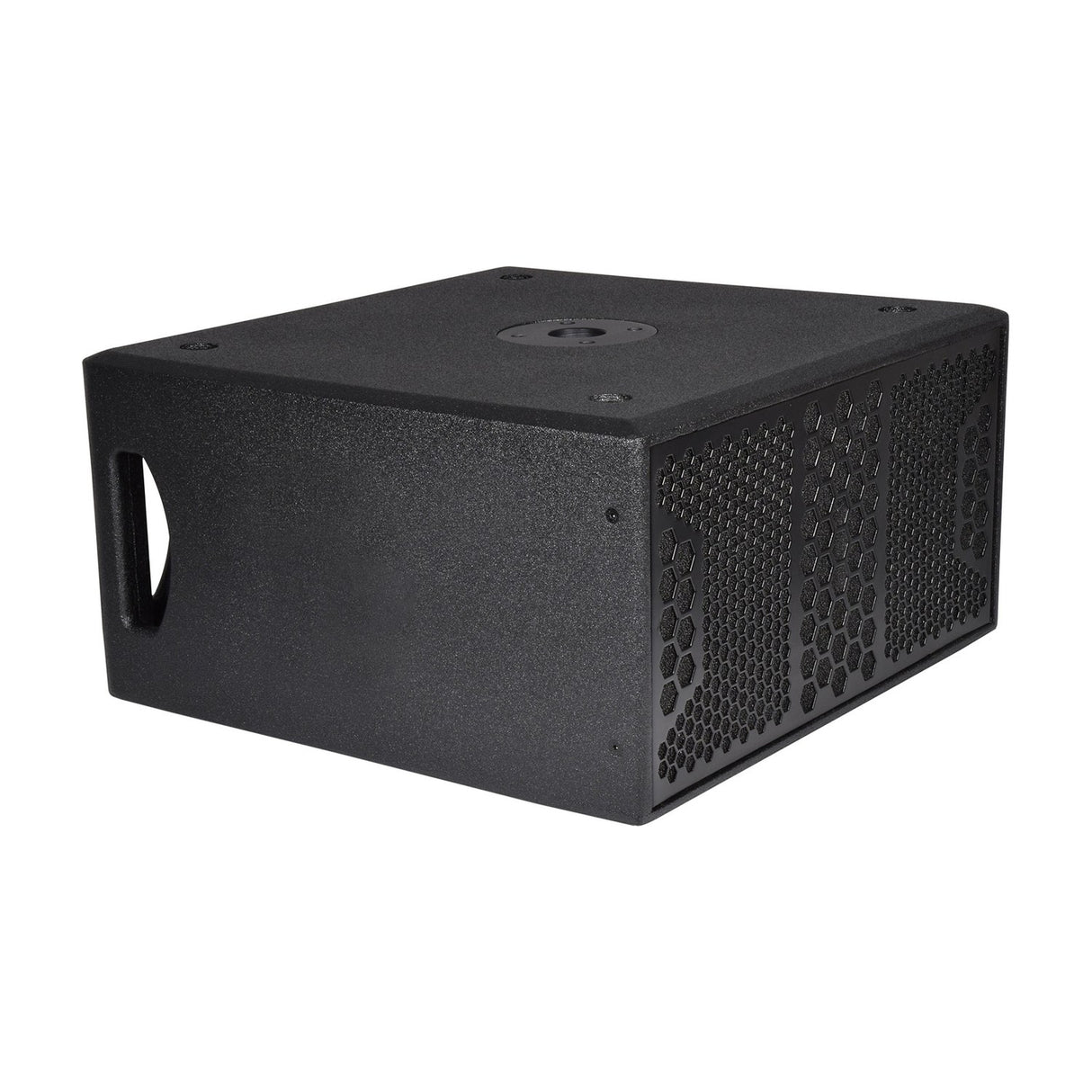

The cabinet is made from 15mm MDF with a durable polyurea finish, and includes an integral carry handle plus a 35mm pole mount socket. Lay it flat to take a 35mm pole and mount a full-range speaker on top, or stand it upright for a smaller footprint. The compact dimensions of 475 x 450 x 250mm and 15.7kg weight also make it easy to tuck behind or under furnishings in an install. It runs on 230Vac mains via an IEC inlet.

Specification
Power supply 230Vac, 50Hz (IEC)
Construction 15mm MDF with durable polyurea finish
Hardware Integral carry handle & 35mm pole mount socket
Amplifier : construction Class-D
Line input Balanced XLR / 6.3mm jack
Line output Balanced XLR
Controls Master level, Phase switch, Boost switch
Drivers 2 x 200mmØ (8") woofers
Frequency response 55 - 150Hz
Output power rms 400W
Output power max. 700W
Peak output 1400W
SPL max. 122dB
Dimensions 475mm x 450mm x 250mm
Weight 15.70KG
Downloads

Product Manual

Frequently Asked

How many drivers does the CASA-28BA have?

It uses two 200mm (8") woofers driven by a single internal 400W rms class-D amplifier.

What inputs and outputs are provided?

A balanced XLR or 6.3mm jack line input, plus a balanced XLR line output for cascading the signal to further active cabinets.

Can I mount a top speaker on it?

Yes. Positioned flat, it accepts a 35mm pole via the built-in socket so you can mount a full-range speaker above it.

What controls are on the rear panel?

Master level, a Boost switch to increase gain, and a phase switch to correct time-alignment or out-of-phase situations.

What is the frequency response and maximum output?

It covers 55 to 150Hz, with 400W rms output, 700W maximum, 1400W peak and a maximum SPL of 122dB.

How is the cabinet built?

From 15mm MDF with a durable polyurea finish, and it includes an integral carry handle for transport.
