Citronic CASA-18BA 18" Active Subwoofer Cabinet

£54999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

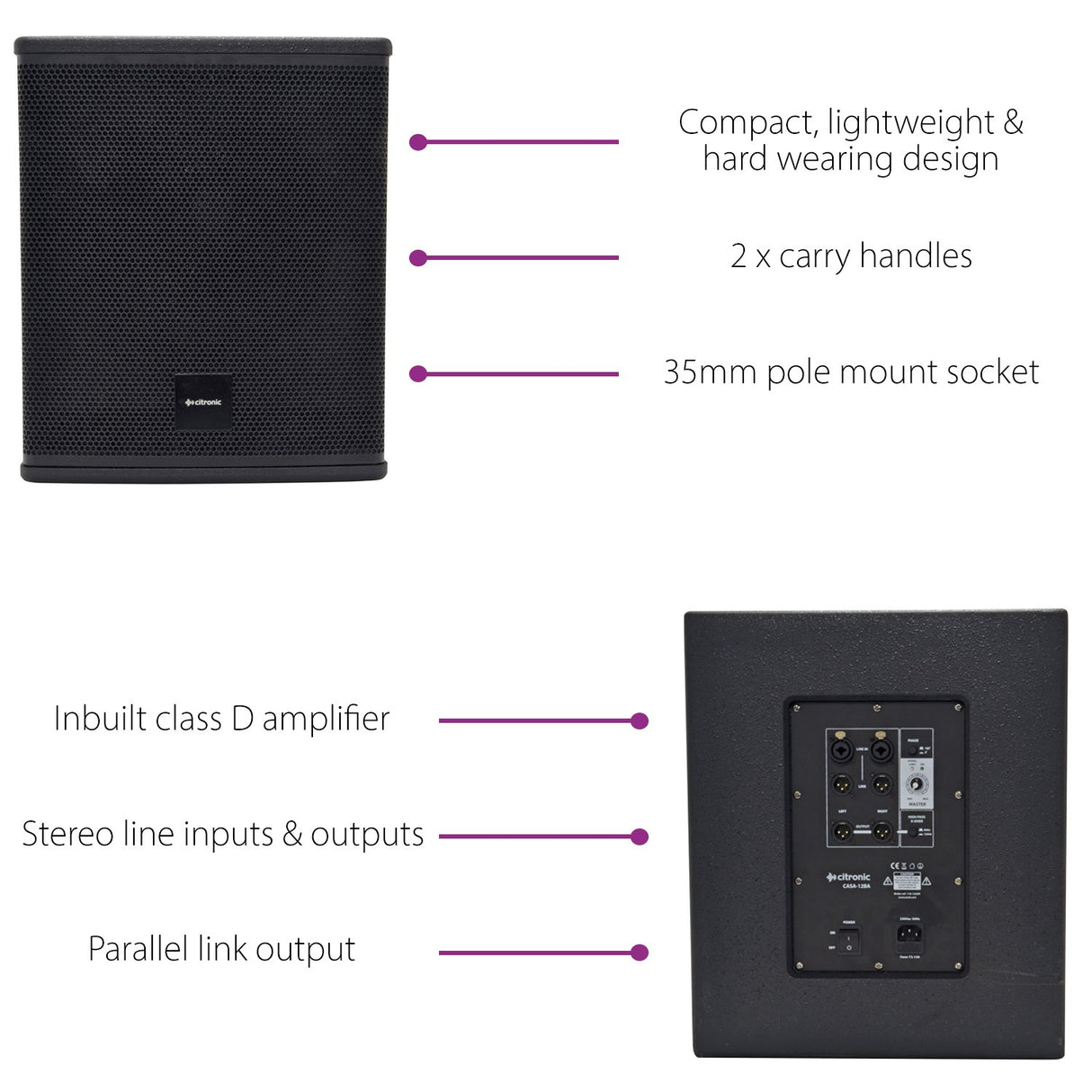

The Citronic CASA-18BA is an active subwoofer (sub) built around an 18" front-loaded driver and an inbuilt Class D amplifier rated at 600W RMS. The cabinet is made from 15mm MDF with a polyurea texture paint finish, so it stands up to the knocks that come with regular transport and setup. Two side carry handles and a compact, lightweight build make it straightforward to move between jobs, while the high-flex driver sits behind a protective steel grille to handle powerful transients and add warmth to the low end.

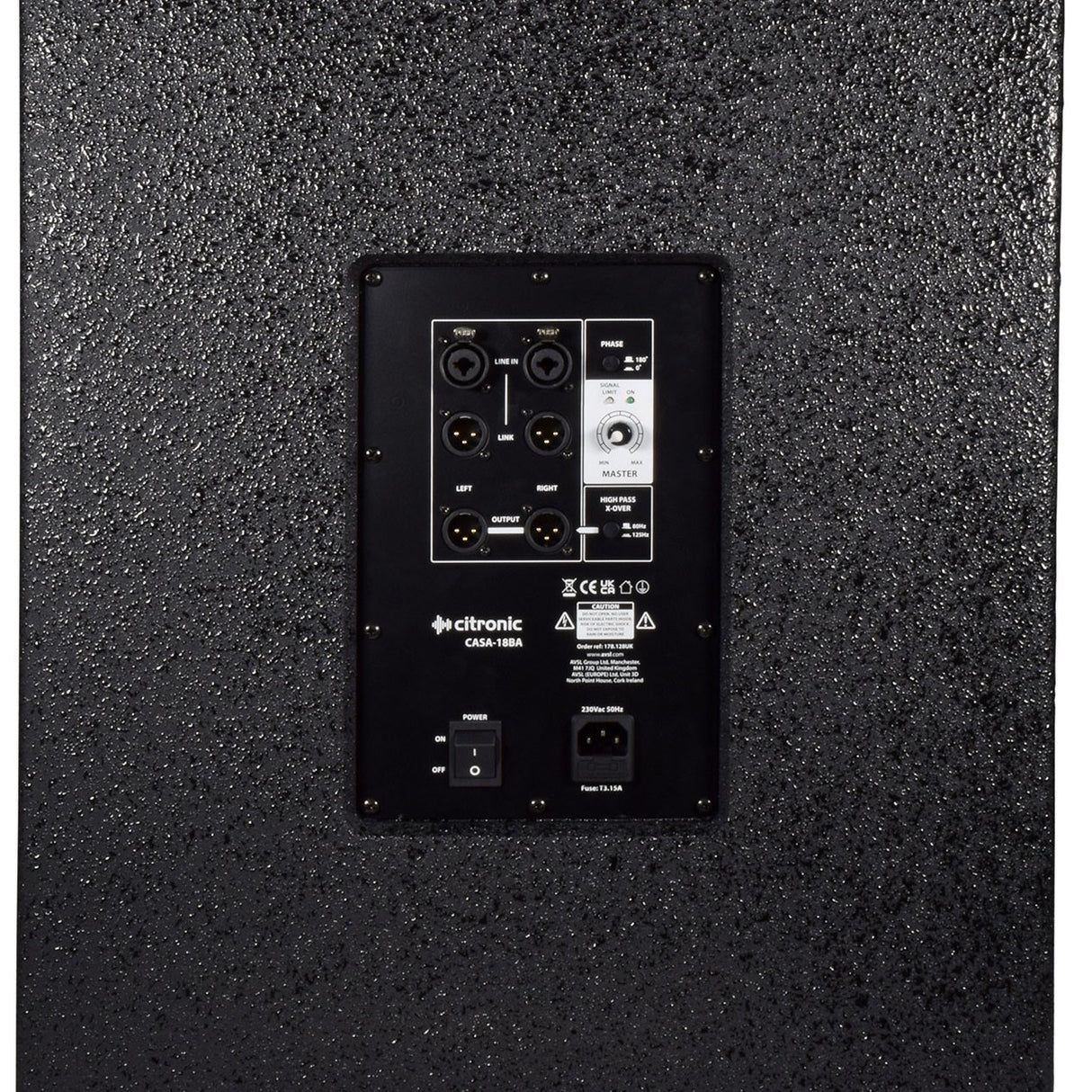

Connections are handled through balanced XLR line inputs (L+R) with a parallel link output to pass the signal on to further active speakers. A second pair of balanced XLR line outputs carries a switchable high pass filter, so you can feed active top cabinets without the low frequencies they don't need. A phase switch helps you avoid sound cancellation and time-align multiple speaker setups, and the output level control lets you match the sub to your tops. You can run it as a mono sub under a stereo pair, or use one sub per top speaker.

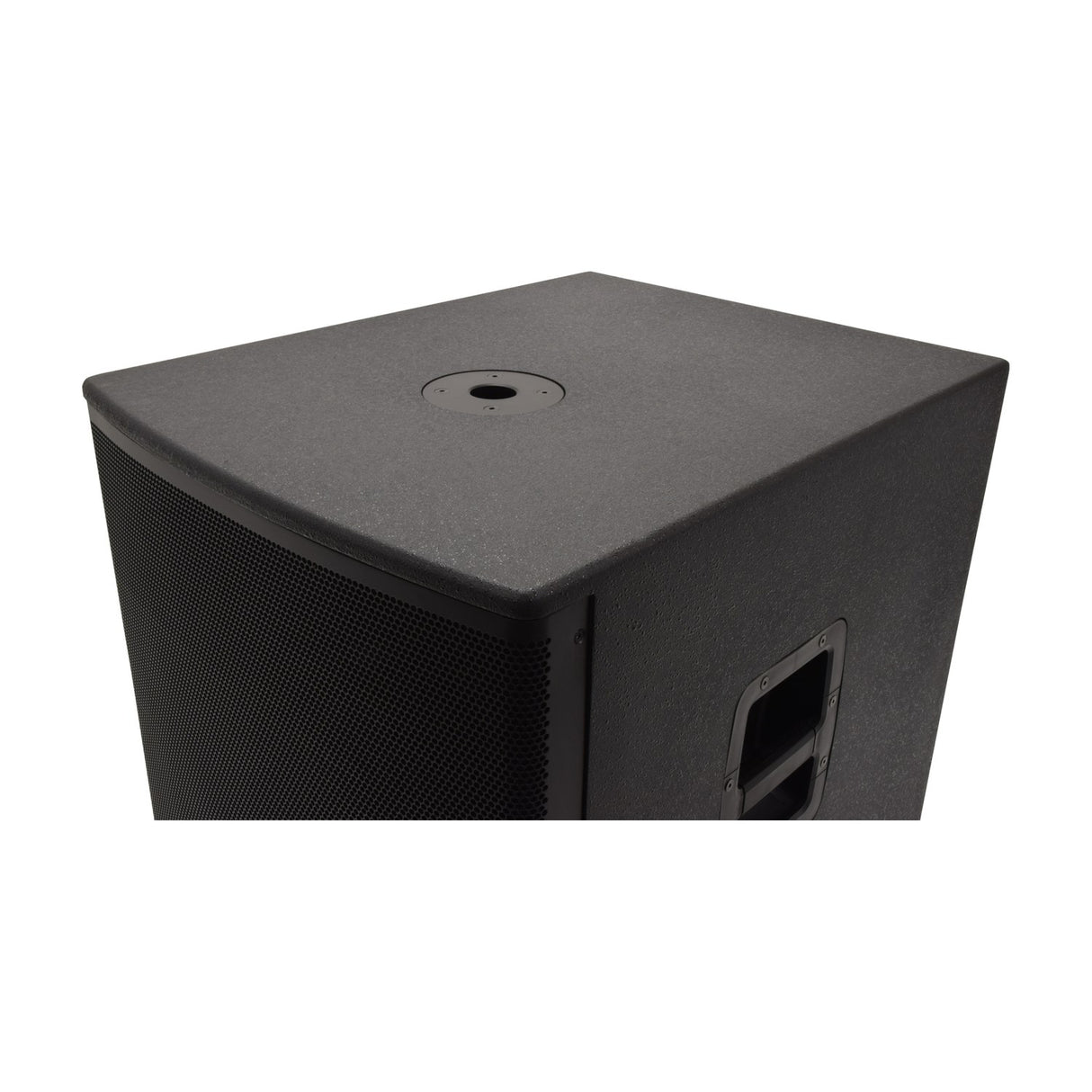

A 35mm pole mount socket lets you fit a mounting pole (aerial pole in some setups) to raise a top cabinet directly above the sub, keeping cable runs short and the footprint tidy. The 18" model also includes mounting points for castors, making it easier to wheel into position. It runs from a 230Vac 50Hz IEC supply. The CASA-18BA is designed as a match for the wider CASA range, and works equally well alongside other active full range cabinets.

Specification
Weight 34.00KG
Dimensions 645mm x 605mm x 510mm
Frequency response 45 - 150Hz
SPL max. 124.0dB
Peak output 2200W
Output power : max. 1100W
Output power : rms 600W
Voice coil 75mmØ (3")
Sub driver 450mm­­­Ø (18")
Power supply 230Vac, 50Hz (IEC)
Construction 15mm MDF with durable texture paint finish
Hardware 2 x side carry handles + 35mm pole mount socket
Amplifier : construction Class D
Line inputs L+R balanced XLR
Line outputs L+R balanced XLR & L+R link XLR
Controls Output level, phase switch, high pass x-over (output)
Downloads

Product Manual

Frequently Asked

What power does the CASA-18BA deliver?

It has an inbuilt Class D amplifier rated at 600W RMS, driving the front-loaded 18" sub driver.

Can I run two subs and two tops?

Yes. The balanced XLR inputs and link outputs let you use it as a mono sub with stereo tops, or fit one sub per top speaker.

How do I connect active top cabinets?

Use the L+R balanced XLR line outputs, which have a switchable high pass filter to send only the higher frequencies to your active tops.

Does it take a mounting pole?

Yes, there is a 35mm pole mount socket on top so you can raise a top cabinet directly above the sub.

Can I fit castors to it?

The 18" model includes mounting points for castors, which makes moving it around easier.

What does the phase switch do?

It helps you avoid sound cancellation and time-align the sub with other speakers in a multi-cabinet setup.
