Citronic CASA-12BA 12" 400Wrms Active Subwoofer

£33999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

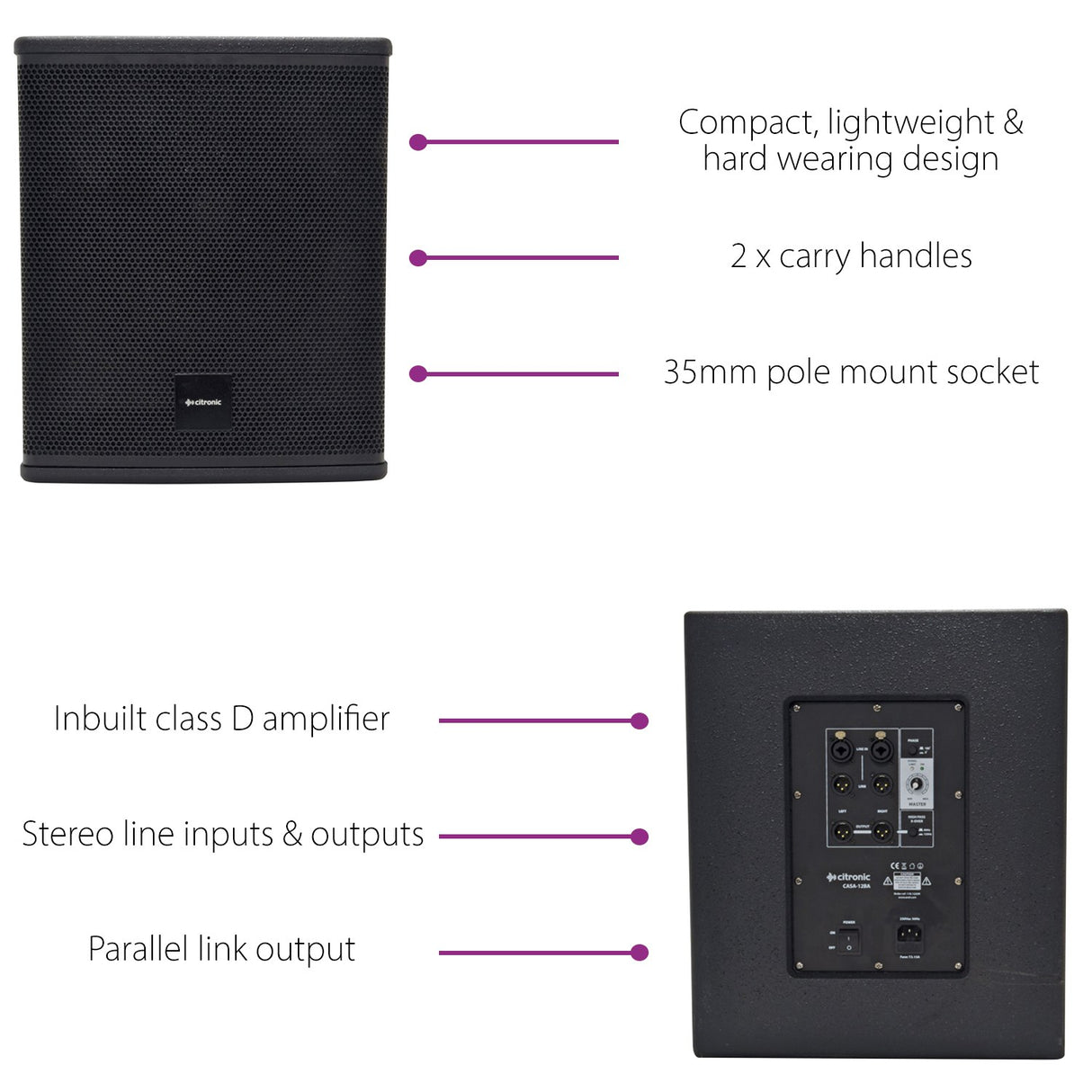

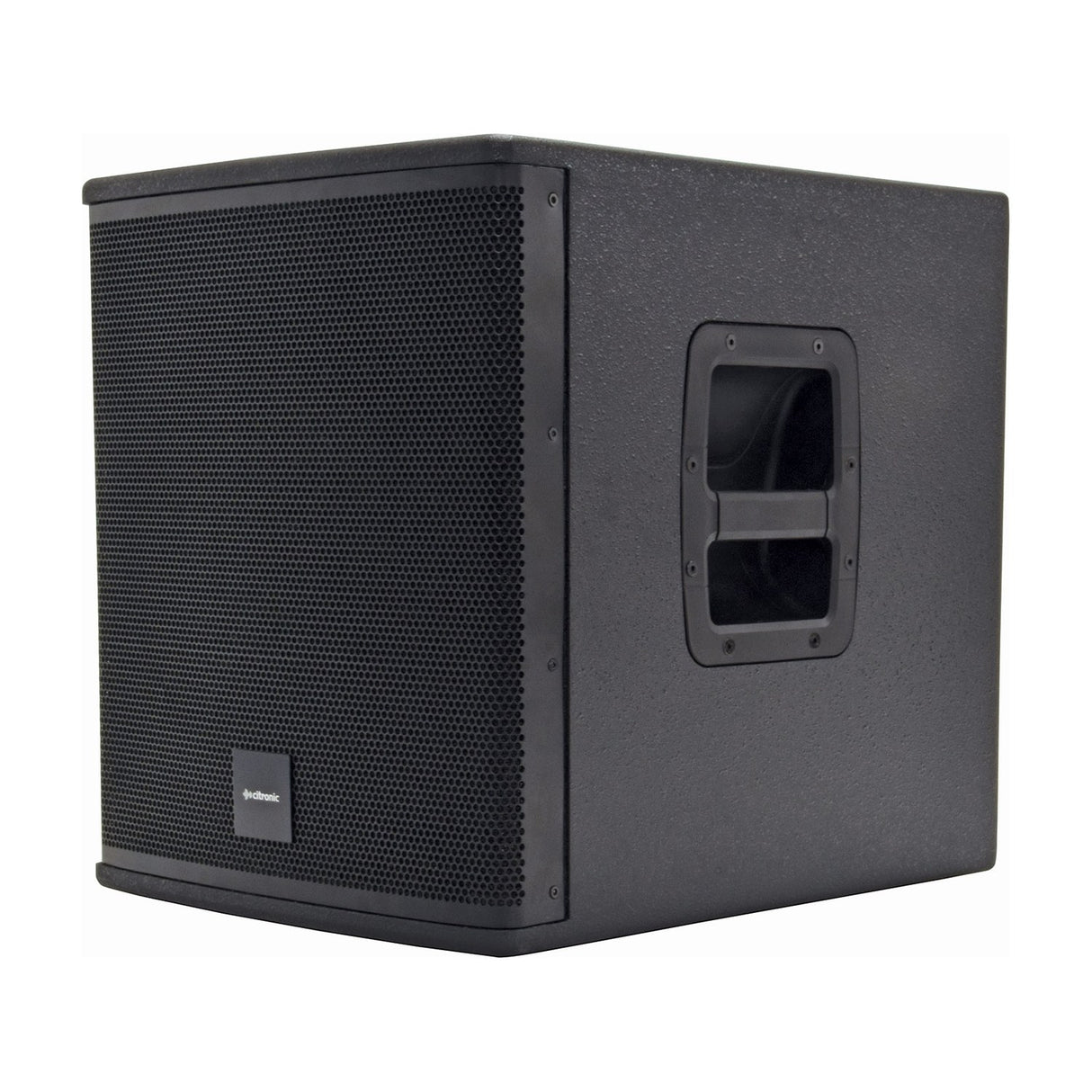

The Citronic CASA-12BA is an active subwoofer built for portable sound systems that need extra low end without extra bulk. Each cabinet is made from 15mm MDF with a polyurea texture paint finish, and the compact, lightweight design makes it easy to move and set up. Two side carry handles help with lifting, and a 35mm pole mount socket lets you fit a top speaker directly above the sub for a tidy full-range stack.

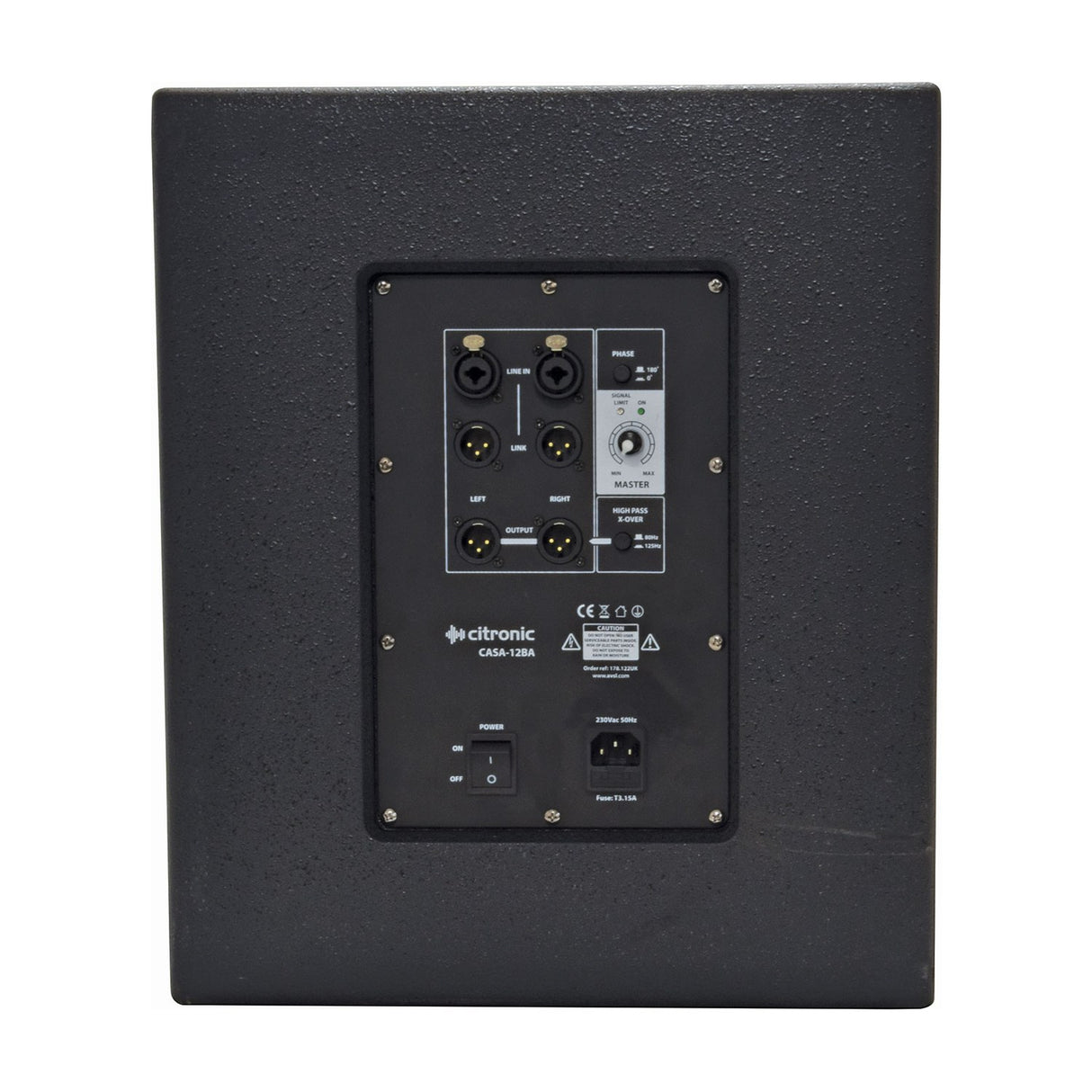

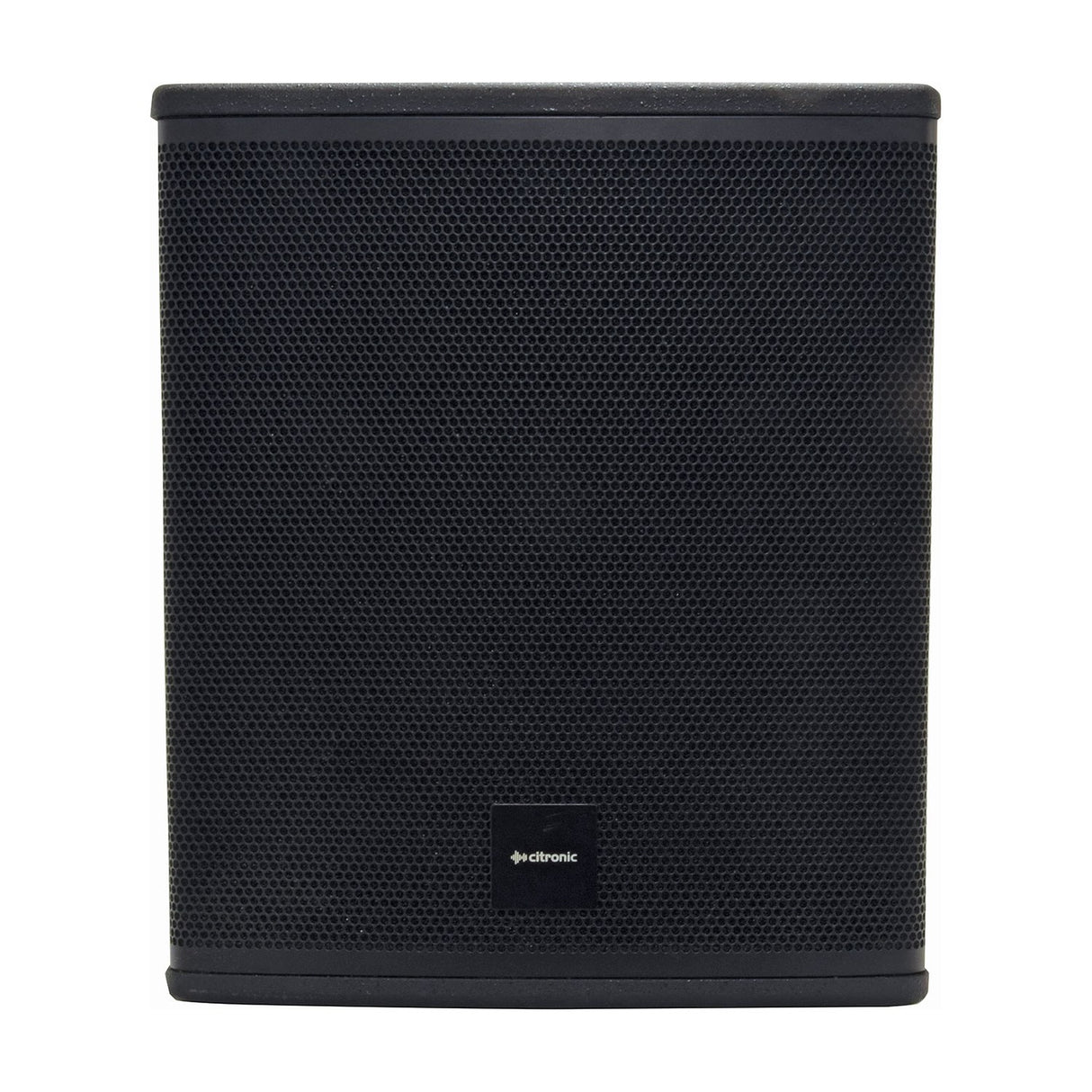

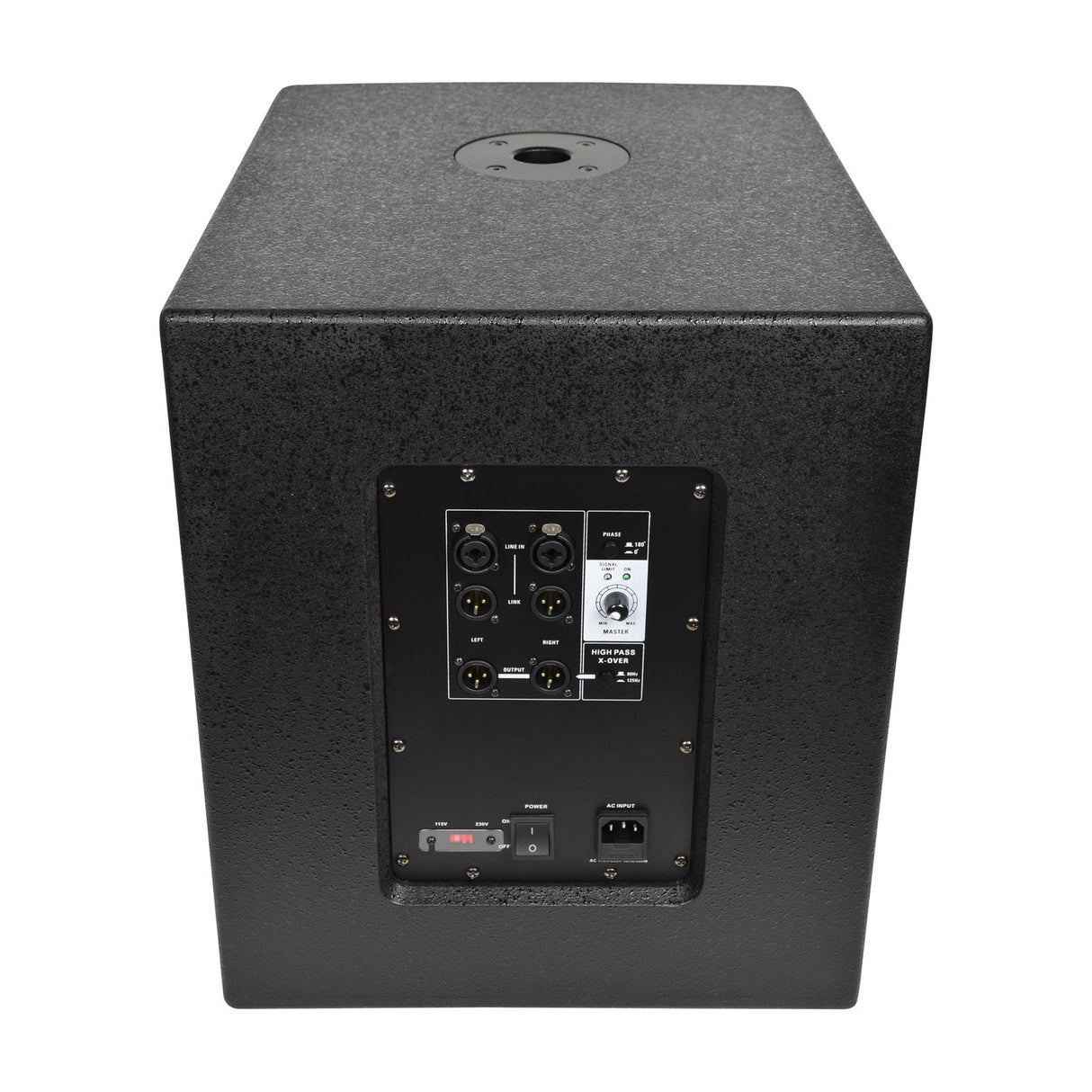

Inside sits a class D amplifier rated at 400Wrms, driving a front-loaded high flex sub driver behind a protective steel grille. This gives you solid, warm bass and clean transients across music and speech. The amp section has stereo balanced XLR line inputs and outputs, so you can run the CASA-12BA as a single mono sub feeding stereo tops, or use one sub per top speaker. Parallel link outputs pass the signal on to further active speakers, while a separate pair of line outputs carries a switchable high pass filter (also called a crossover) to feed your active top cabinets.

A phase switch is included to help you avoid sound cancellation and time-align multiple speakers, which matters when you combine subs and tops in a larger rig. The CASA-12BA is designed as a match for the rest of the CASA range, and it works just as well with other active full-range cabinets. Both the 15" and 18" models in the series include mounting points for castors, so bigger setups stay easy to wheel around. It runs from a standard 230Vac IEC mains supply.

Specification
Weight 18.86KG
Dimensions 480mm x 450mm x 380mm
Frequency response 55 - 150Hz
SPL max. 122.0dB
Peak output 1400W
Output power : max. 700W
Output power : rms 400W
Voice coil 62mmØ (2.5")
Sub driver 300mmØ (12")
Power supply 230Vac, 50Hz (IEC)
Construction 15mm MDF with durable texture paint finish
Hardware 2 x side carry handles + 35mm pole mount socket
Amplifier : construction Class D
Line inputs L+R balanced XLR
Line outputs L+R balanced XLR & L+R link XLR
Controls Output level, phase switch, high pass x-over (output)
Downloads

Product Manual

Frequently Asked

How much power does the CASA-12BA deliver?

It uses an inbuilt class D amplifier rated at 400Wrms, driving a 12" high flex sub driver.

Can I run it as a mono sub with stereo tops?

Yes. The stereo balanced XLR inputs and outputs let you use it as a single mono sub with stereo tops, or as a matching sub for each top speaker.

Does it have a crossover for the top speakers?

Yes. There is a pair of line outputs with a switchable high pass filter (crossover) to connect to your active top cabinets.

Can I mount a top speaker on it?

Yes. It has a 35mm pole mount socket, so you can fit a speaker pole and top cabinet directly above the sub.

What is the phase switch for?

The phase switch helps you avoid sound cancellation and time-align multiple speakers when you combine subs and tops.

Is it easy to move around?

Yes. The cabinet is compact and lightweight with two side carry handles. The 15" and 18" models also include mounting points for castors.
