Citronic CAB-10 Passive PA Speaker Cabinet 220W

£16999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

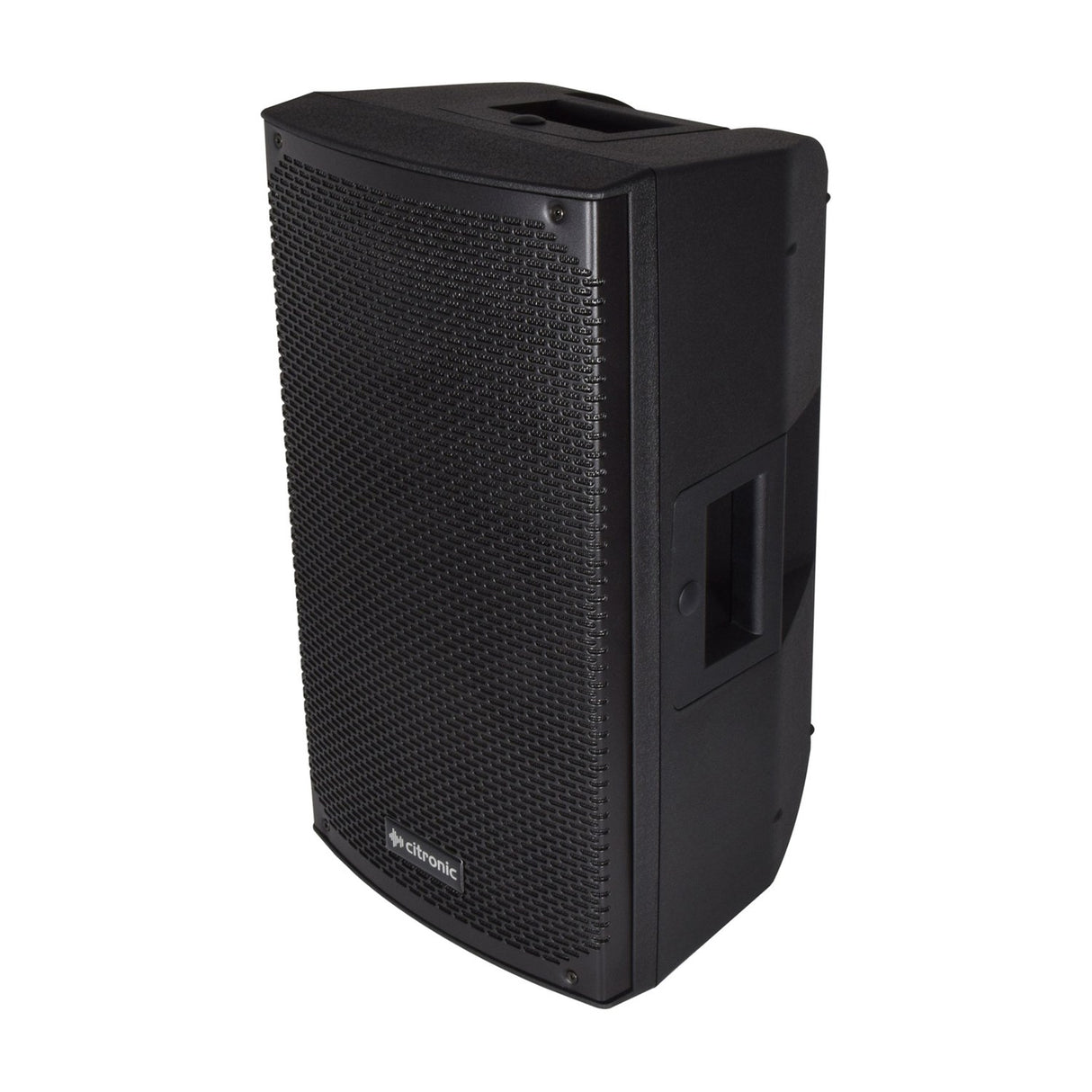

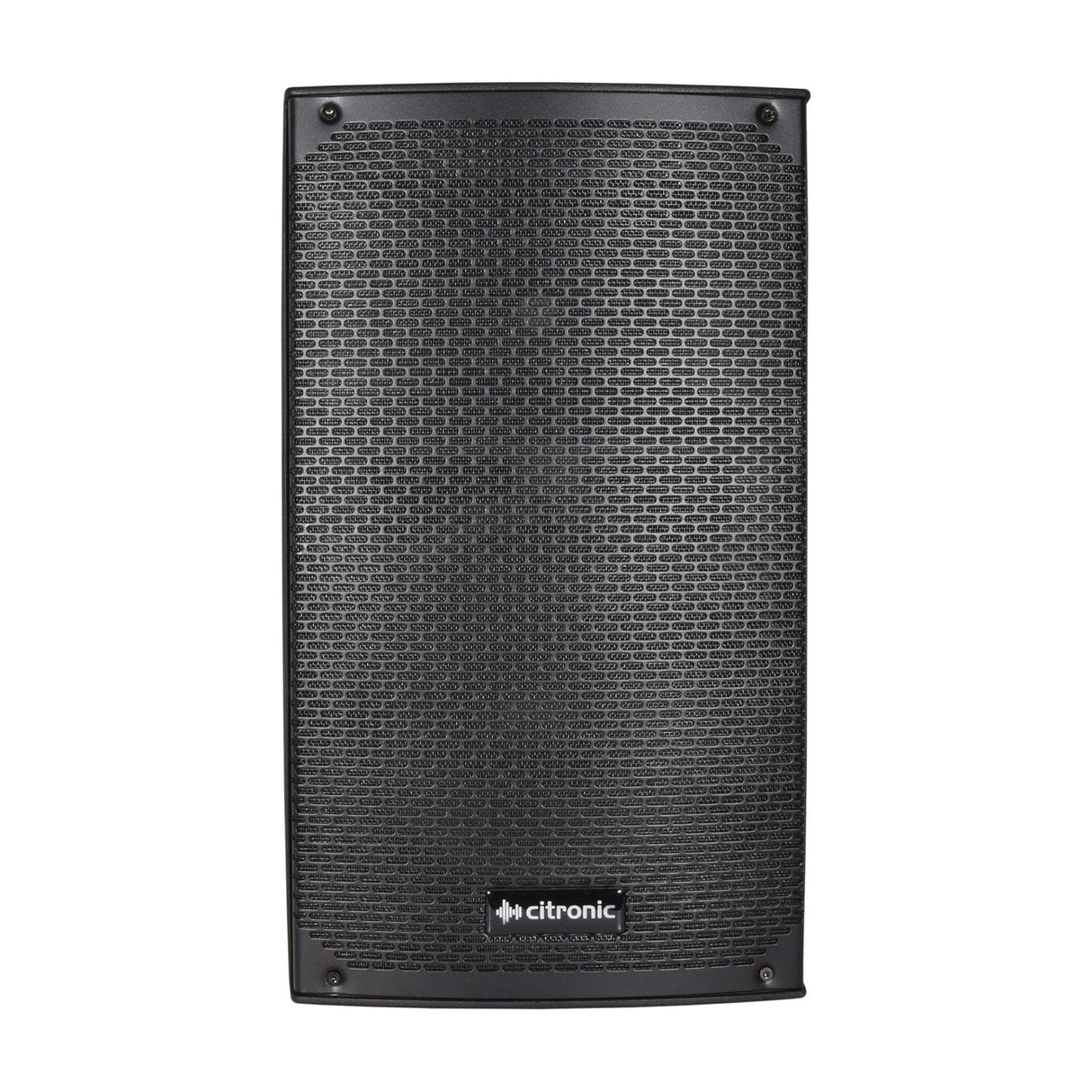

The Citronic CAB-10 is a full-range passive speaker cabinet built for compact, portable sound reinforcement. It houses a custom-designed low frequency woofer paired with a titanium compression driver, giving you a powerful yet balanced sound across the full range. The moulded polypropylene enclosure keeps the weight down while holding up to the knocks of regular gigging and hire work.

Getting the CAB-10 into position is straightforward thanks to integral top and side carry handles, and a 35mm pole mount socket lets you fit it on a speaker stand or sub pole. Connection from your amplifier is made through a Speakon lead (a locking twist connector), with two SPK sockets on the rear panel so you can link a second cabinet without extra cabling. The dispersion is rated at 90 degrees horizontal by 60 degrees vertical, which spreads sound evenly across a typical room or small stage.

Being a passive cabinet, the CAB-10 needs a separate power amplifier rather than having one built in. It handles 220W RMS and presents an 8 Ohm load with the low and high frequency sections combined, so it pairs sensibly with most PA amplifiers. This makes it a practical choice for mobile DJs, bands, presentations and venues that want capable sound without heavy, bulky boxes. Whether you run a single cabinet or a stereo pair, the CAB-10 keeps setup quick and the sound clear.

Specification
Weight 10.00KG
Dimensions 530mm x 310mm x 300mm
Crossover frequency 3.2kHz
SPL max. 116dB
Sensitivity @ 1W/1m 93dB
Frequency response 58Hz - 19kHz
HF driver 35mmØ (1.00") Ti CD
Voice coil 50mmØ (2.00")
LF driver 250mmØ (10")
Power handling : rms 220W
Housing material Injection moulded polypropylene
Impedance 8 Ohm (LF+HF combined)
Dispersion 90° x 60°
Connectors 2 x SPK socket
Frequently Asked

Is the CAB-10 active or passive?

It is a passive cabinet, so it needs a separate power amplifier to drive it. There is no built-in amp.

What amplifier do I need for the CAB-10?

You need an amplifier that can drive an 8 Ohm load and supply around 220W RMS per channel for a comfortable match.

How do I connect the CAB-10 to my amplifier?

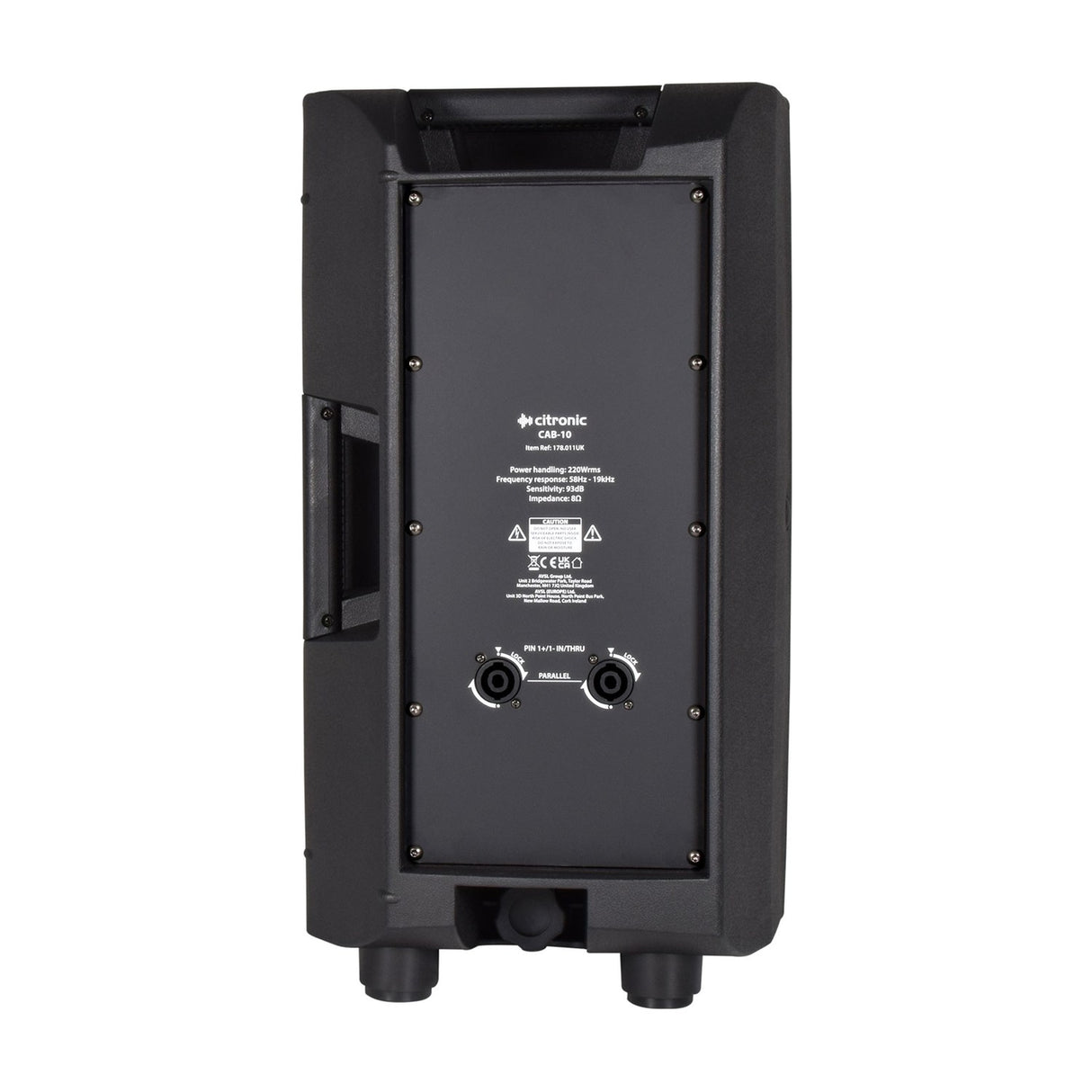

Connection is via a Speakon lead into one of the two SPK sockets on the rear panel. The second socket lets you link another cabinet.

Can I mount the CAB-10 on a speaker stand?

Yes. It has a 35mm pole mount socket, so it fits standard speaker stands and sub poles.

What are the sound coverage angles?

The dispersion is 90 degrees horizontal by 60 degrees vertical, giving even coverage across most rooms and small stages.
