Description

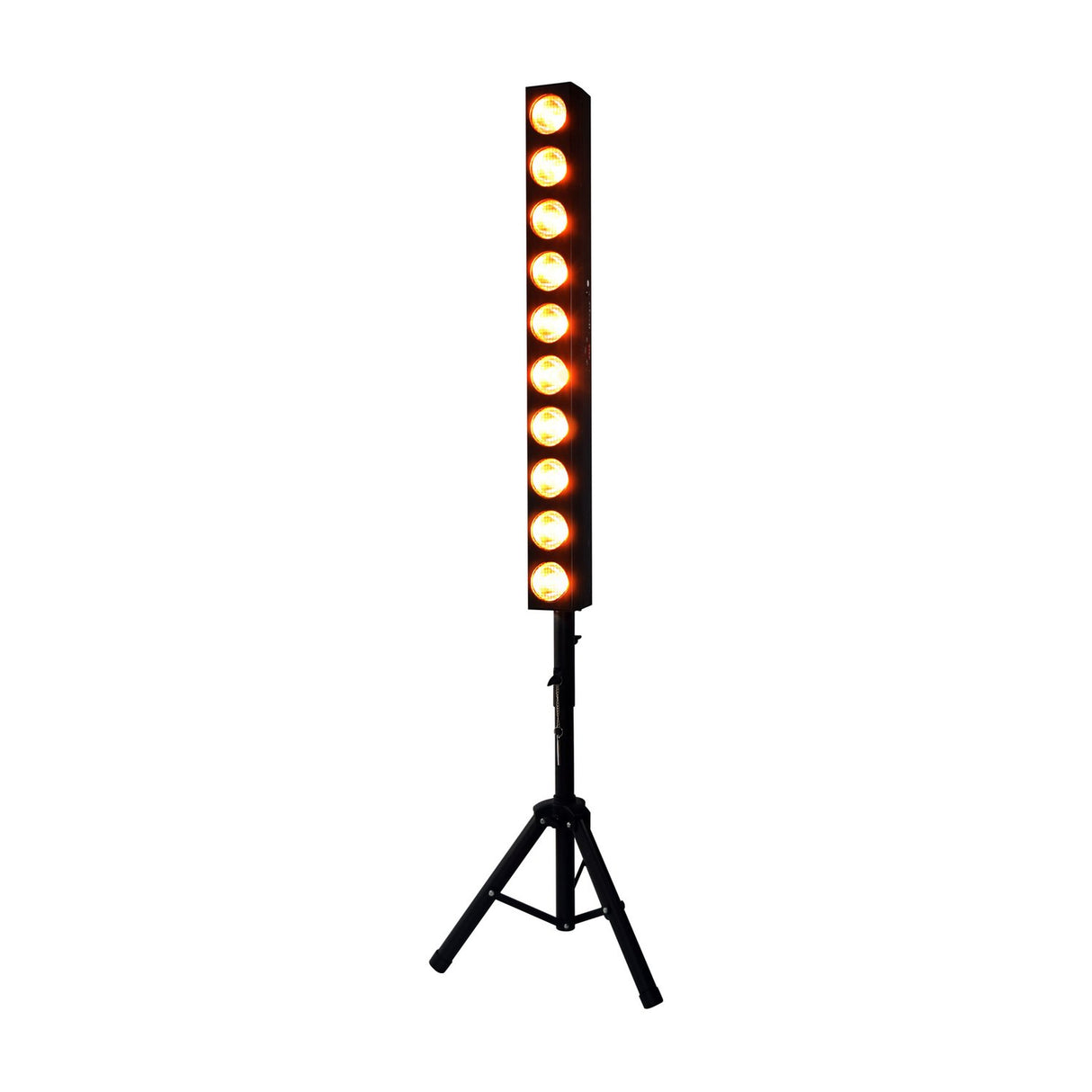

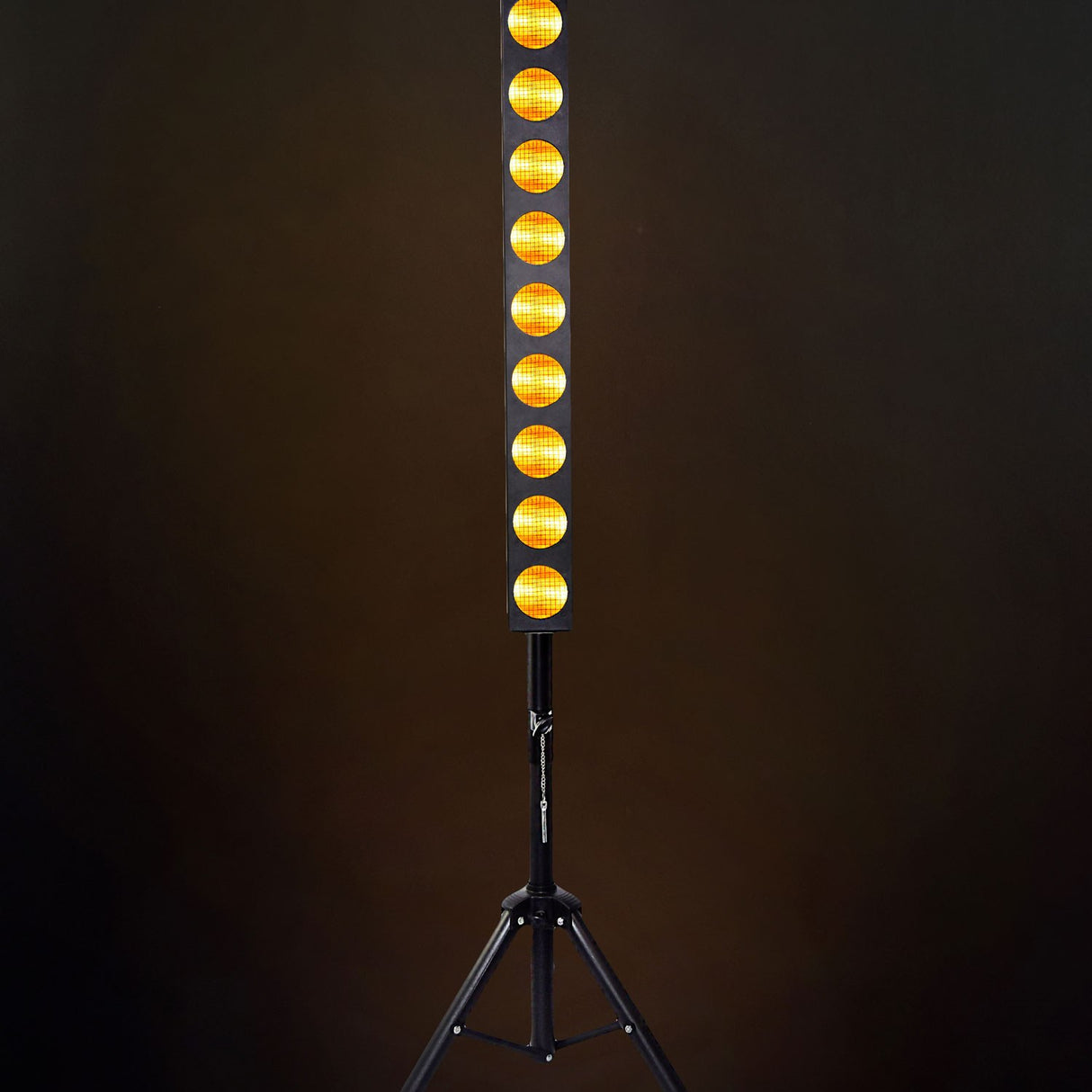

The Citronic Amber Blinder is an effects bar fitted with 10 high output 12W amber COB LEDs. These give amber colour washes across walls, ceilings or floors, so you can build the warm glow you want in a venue or on stage. Each LED runs at 12W with a 25 degree beam angle and a colour temperature of 1800K, which keeps the amber tone consistent across the whole bar.

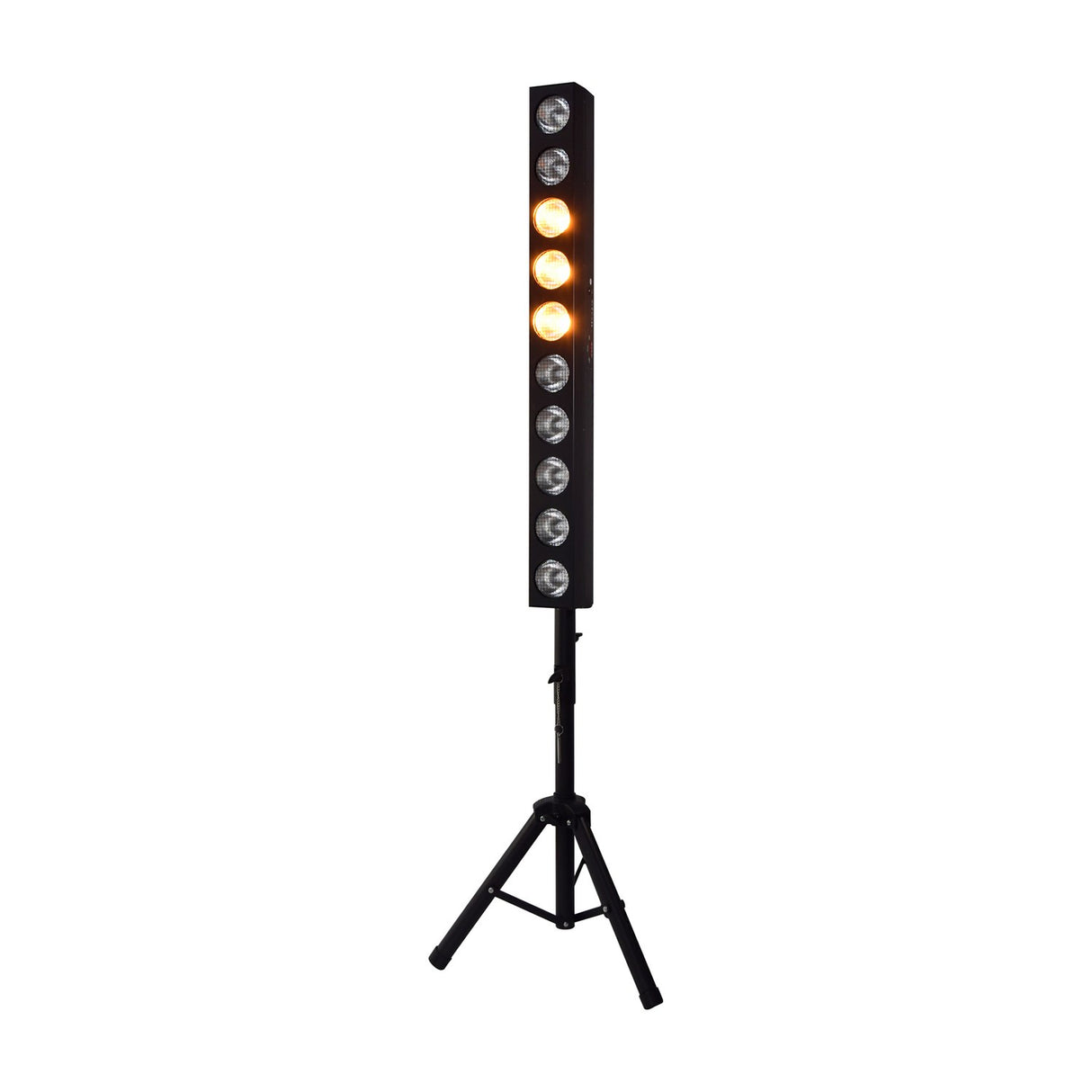

You can run the unit from its built-in sequences using auto or sound to light modes, with additional speed settings to match the pace of your event. The sound to light mode has a microphone sensitivity adjustment so it reacts the way you need it to. For fuller control, the bar works over DMX (the standard lighting control protocol) in 4, 6, 10 or 14 channel modes, and you can link several units together for a larger effect. Twist and lock power connections keep everything secure once it is set up.

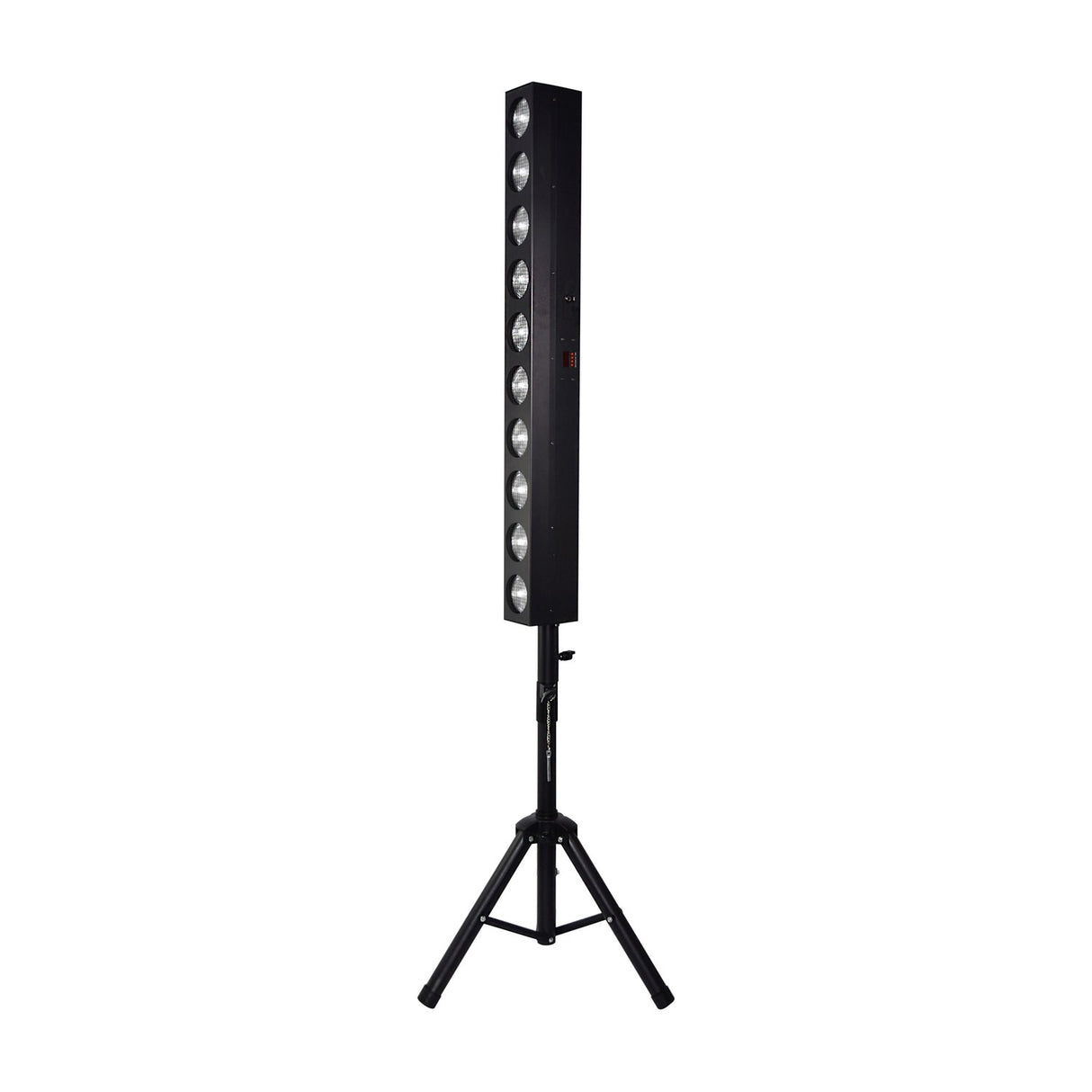

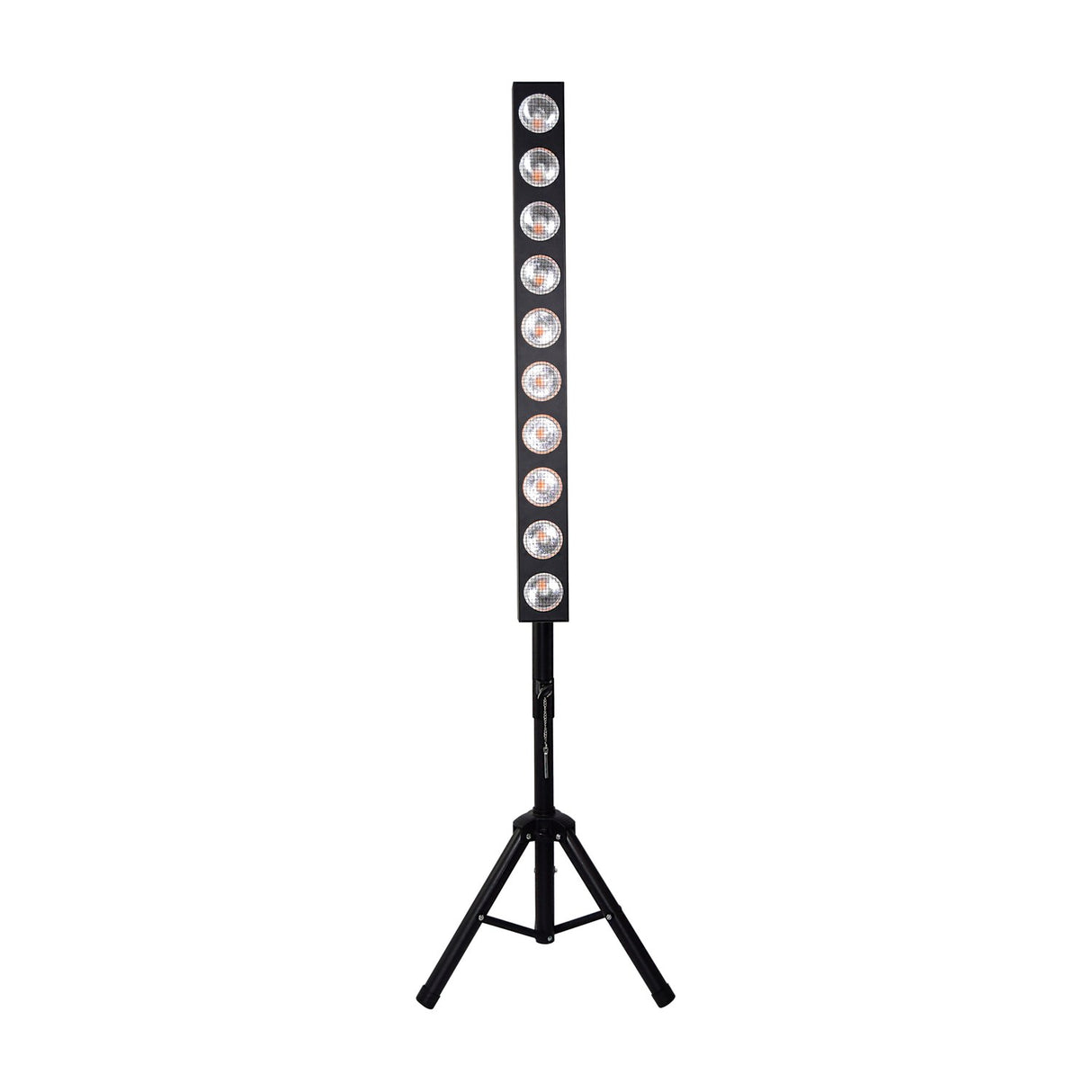

The bar measures 95 x 125 x 1150mm and weighs 6.1kg, and it draws 122W from a 110-240Vac supply. It comes with a tripod floor stand plus wall and ceiling mounting brackets, so you can stand it up quickly or fix it in place. Connections include 1x power in and 2x power out via twist and lock, along with 1x DMX in and 2x DMX out on 3pin XLR. It ships in two boxes with the stand and fixings included.
Specification
| Power supply |
110-240Vac, 50/60Hz |
| Power consumption |
122W |
| LED : type |
10x 12W COB LED |
| Beam angle |
25° |
| Modes |
Auto mode, Gradient mode, Built-in conversion speed, Manual dimmer and Strobe effect |
| DMX channels |
4, 6, 10 and 14CH |
| Connections |
1x Power in and 2x Power out (twist and lock), 1x DMX in and 2x DMX out (3pin XLR) |
| Dimensions |
95mm x 125mm x 1150mm |
| Weight |
6.10KG |
| Fuse rating |
F3A |
| Colour temperature |
1800K |
| Packed |
Packed in 2 boxes |
Downloads
Product Manual
Frequently Asked
What DMX modes does the Amber Blinder support?
It runs in 4, 6, 10 or 14 channel DMX modes, so you can choose the level of control that suits your setup.
Can I use it without a DMX controller?
Yes. It has built-in auto and sound to light modes with adjustable speed and microphone sensitivity, so it works on its own.
Does it come with a stand?
Yes. It is supplied with a tripod floor stand, plus wall and ceiling mounting brackets for fixed installs.
How many units can I link together?
You can connect multiple bars using the twist and lock power outs and 3pin XLR DMX outs to cover a larger area.
What LEDs does it use?
It has 10 amber COB LEDs rated at 12W each, with a 25 degree beam angle and 1800K colour temperature.
What is the power consumption?
It draws 122W and runs from a 110-240Vac, 50/60Hz supply with an F3A fuse rating.
