Chord NU20-HT-863.8 Handheld Wireless Microphone Transmitter

£5099
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

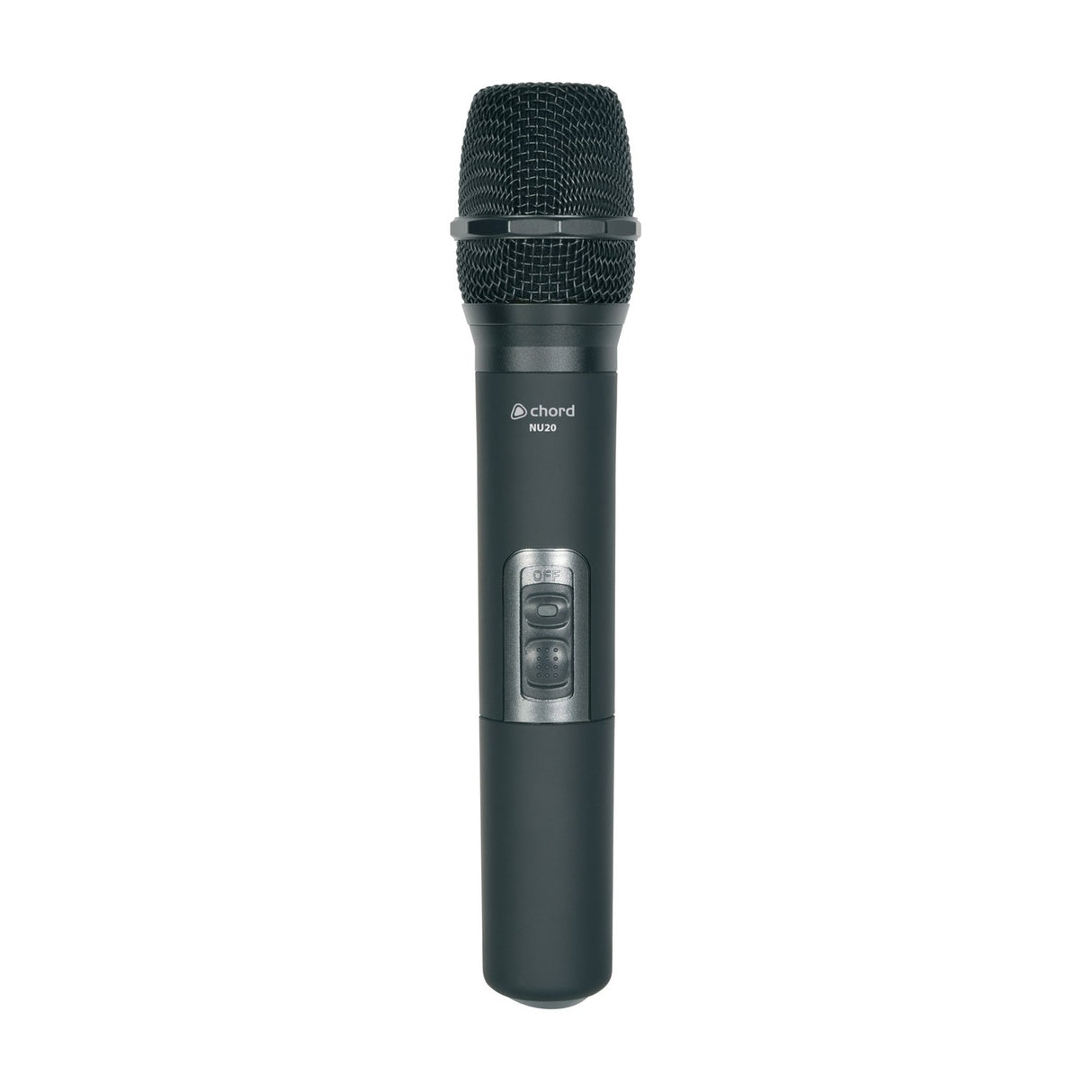

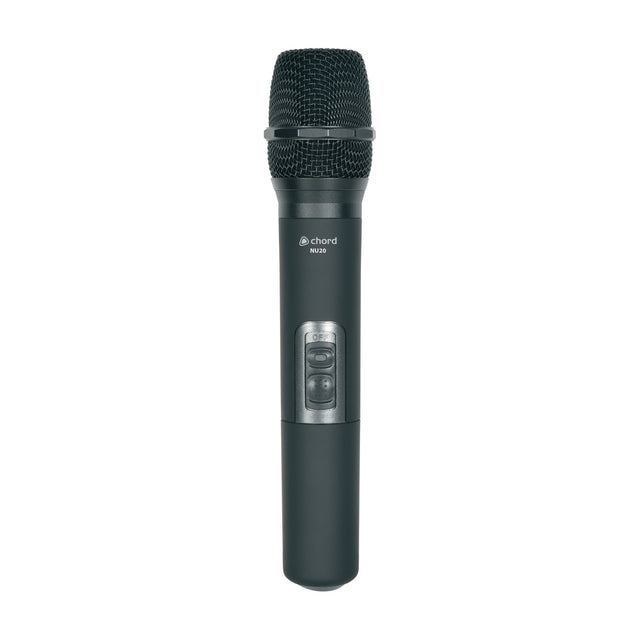

This is the Chord NU20-HT handheld transmitter, built to work with the Chord NU20 dual channel wireless receiver. It runs on the 863.8MHz carrier frequency and includes a pilot tone, which keeps the link between transmitter and receiver stable and helps cut out unwanted signals. If you already run an NU20 system, this handheld unit slots straight in as a vocal microphone for stage, presentation or event use.

The transmitter uses a high quality dynamic capsule, so it handles close-up vocal work well and keeps handling noise low. You get up to 60m of range, which covers most rooms, halls and small stages without dropouts. Power comes from two AA batteries (3Vdc), so there is no proprietary pack to worry about, and swapping cells mid-event takes seconds. The handheld measures 243mm long with a 48mm diameter barrel and weighs 238g without batteries, giving it enough weight to feel steady in the hand.

The NU20-HT comes in two carrier frequency versions, and this one is set to 863.8MHz. Because the pilot tone is built in, tuning stays reliable across a session, which matters when you are running multiple microphones (mics) in the same space. It pairs with the matching NU20 receiver rather than working as a standalone unit, so make sure your receiver is set to the same channel. For anyone building out or replacing parts of an existing NU20 setup, this gives you a straightforward handheld option with dependable performance.

Specification
Carrier frequency 863.8MHz
Power supply 3Vdc (2 x AA batteries)
Maximum range 60m
Dimensions 243mm x 48mmØ
Weight 0.24KG
Frequently Asked

Which receiver does this transmitter work with?

It is designed for the Chord NU20 dual channel wireless receiver. It is not a standalone unit, so you need a matching NU20 receiver set to the same channel.

What frequency does this version run on?

This model uses the 863.8MHz carrier frequency. The NU20-HT is available in two frequency versions, so check yours matches your receiver.

How far will it transmit?

Up to 60m, which is enough for most rooms, halls and small stages. Range can be shorter where there are walls or interference between the transmitter and receiver.

What batteries does it need?

It takes two AA batteries for a 3Vdc supply. There is no proprietary battery pack, so you can use standard cells and swap them quickly.

What is the pilot tone for?

The pilot tone keeps the link between transmitter and receiver stable and helps reject unwanted signals, so tuning stays reliable through a session.

What type of microphone capsule does it use?

It has a dynamic capsule, which suits close-up vocal work and keeps handling noise low.
