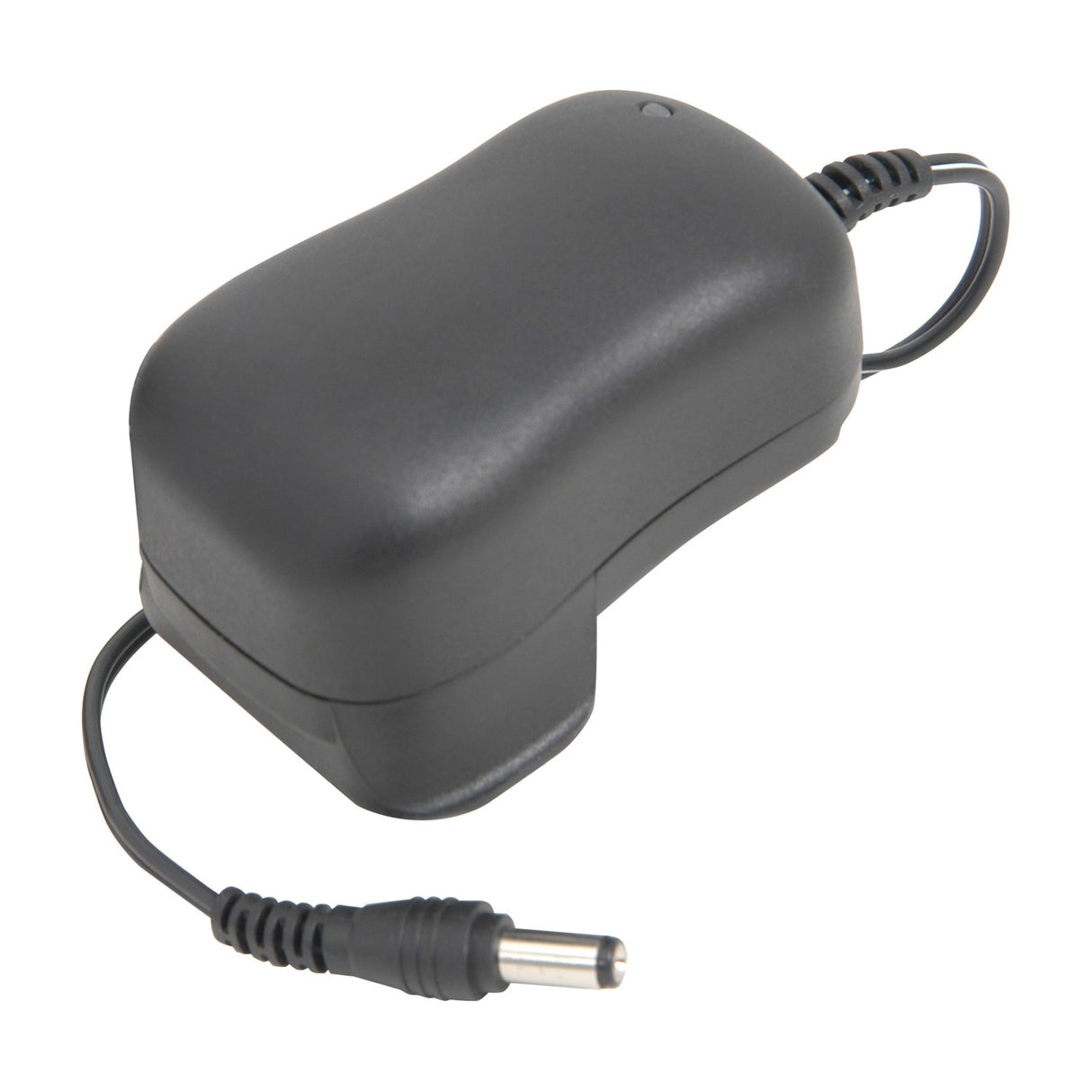

Chord GTDC0910UK 9Vdc 1000mA Guitar Pedal Power Adaptor

£1199
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The Chord GTDC0910UK is a plug-in power adaptor (US: AC adapter) for running Chord and many other brand guitar effects pedals. It takes a mains input of 100-240Vac at 50/60Hz and gives a regulated output of 9Vdc with up to 1000mA on tap, which is enough headroom to power a single hungry pedal or several smaller ones through a suitable daisy chain lead.

Polarity is fixed at negative tip (centre) and positive sleeve, the standard arrangement used by most nine-volt effects pedals, so it drops straight into a typical pedalboard setup without any guesswork. The connector is a fixed 5.5 x 2.1mm DC jack (US: DC barrel plug), which matches the input socket found on the majority of guitar effects. It comes fitted with a UK mains plug ready to use.

The unit uses an energy efficient design and stays compact and lightweight, measuring 75 x 50 x 42mm and weighing 120g. That small footprint means it sits neatly at the wall or behind a board without hogging space on a multi-way extension. Whether you are replacing a lost supply or setting up a new rig, this adaptor covers the everyday nine-volt requirement that most stompboxes are built around.

Specification
Mains input 100-240Vac, 50/60Hz
Output 9Vdc, 1000mA max.
Polarity Fixed negative tip (centre), positive sleeve
Connector Fixed 5.5 x 2.1mm DC jack
Dimensions 75mm x 50mm x 42mm
Weight 0.12KG
Frequently Asked

What output does this adaptor provide?

It supplies a regulated 9Vdc output with up to 1000mA maximum, suitable for a single high-draw pedal or several lower-draw pedals via a daisy chain lead.

What is the connector type and polarity?

It has a fixed 5.5 x 2.1mm DC jack with negative tip (centre) and positive sleeve polarity, the common standard for nine-volt guitar effects pedals.

Will it work with pedals from other brands?

Yes. It is designed for Chord and various other brand guitar effects, so it works with any pedal that needs 9Vdc, centre-negative polarity and a 5.5 x 2.1mm jack.

What is the mains input voltage?

It accepts 100-240Vac at 50/60Hz and is supplied with a UK mains plug.

How big and heavy is it?

It measures 75 x 50 x 42mm and weighs 120g, so it stays compact at the wall or behind a pedalboard.

Can I power more than one pedal with it?

Yes, using a compatible daisy chain lead, provided the total current draw of your pedals stays within the 1000mA maximum.
