AV:Link AD-SPK21 2-Way Loudspeaker Selector Switch

£1699
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

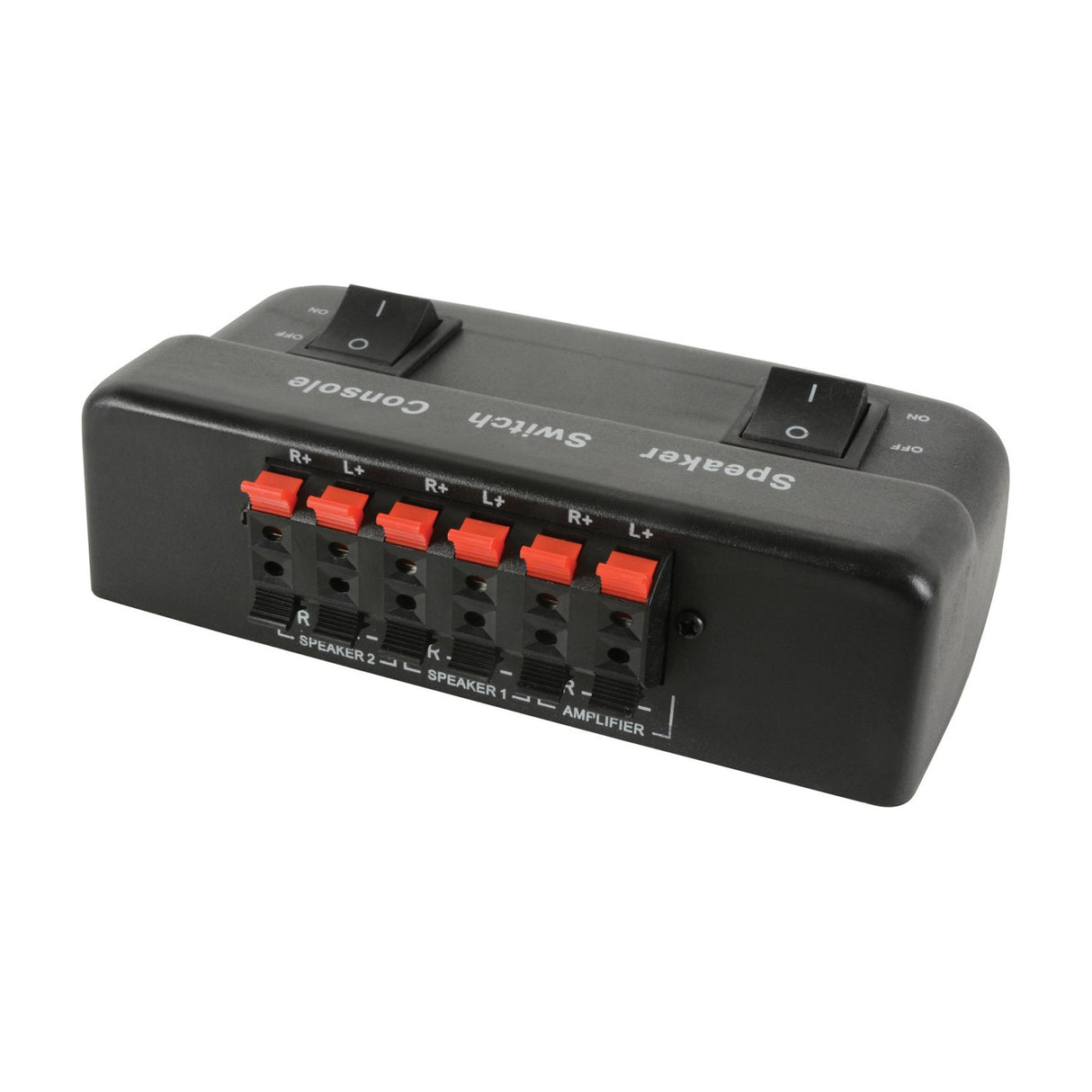

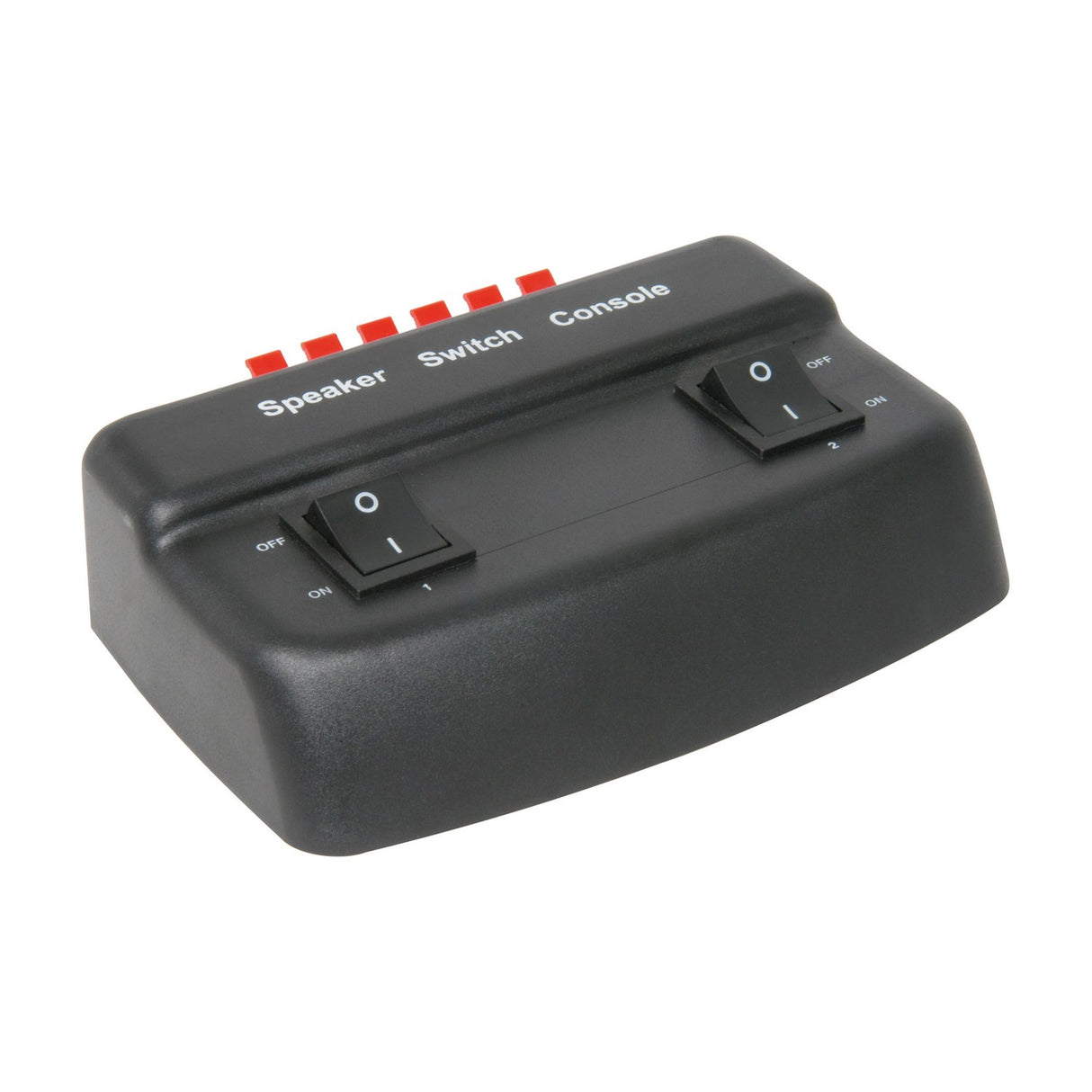

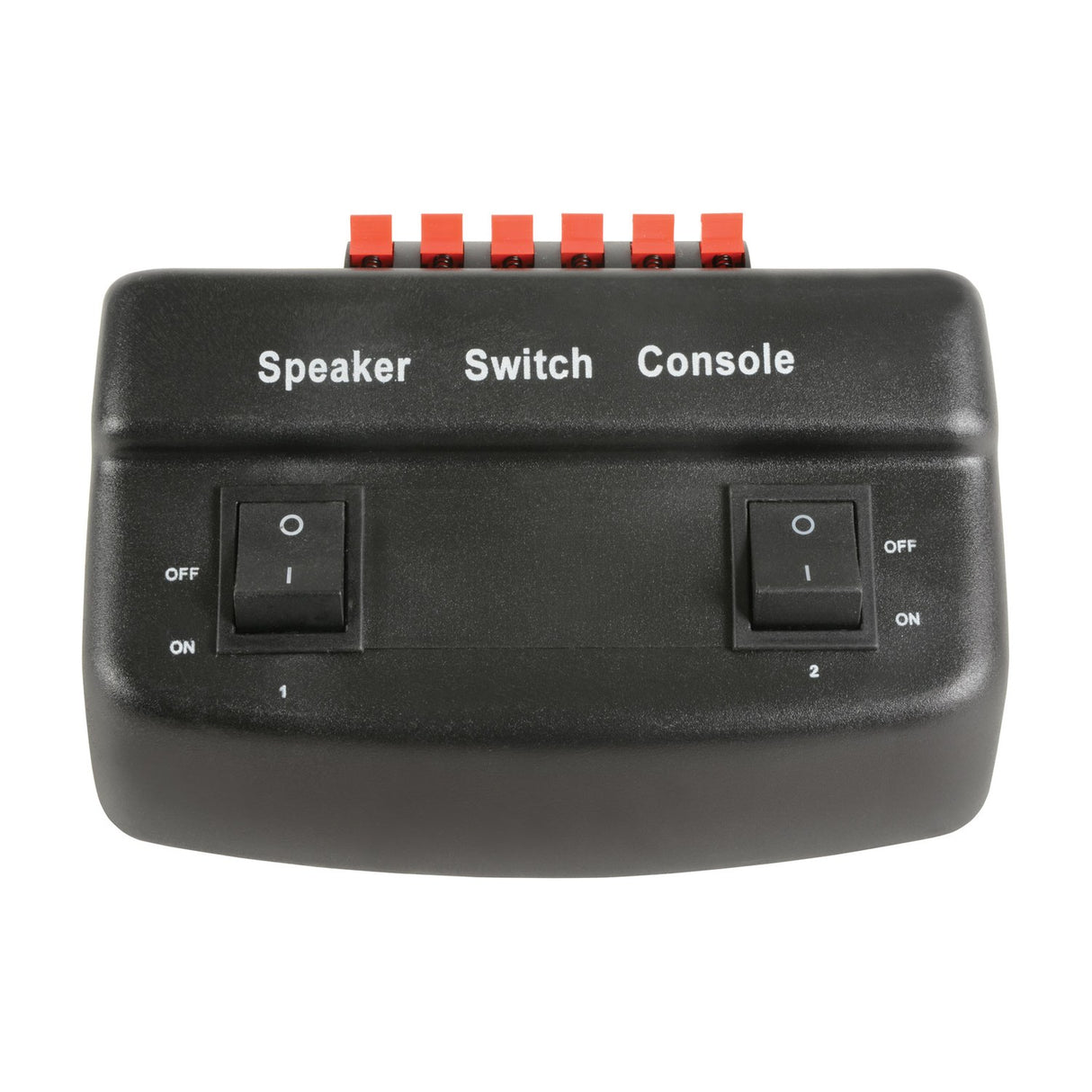

The AV:Link AD-SPK21 is a compact loudspeaker selector that lets you connect two pairs of speakers to a single stereo amplifier. You can switch either pair on its own or run both together, which makes it a quick way to add extra speakers or set up basic zoning for a sound system. The unit sits neatly on a shelf or in a rack and gets on with the job without any fuss.

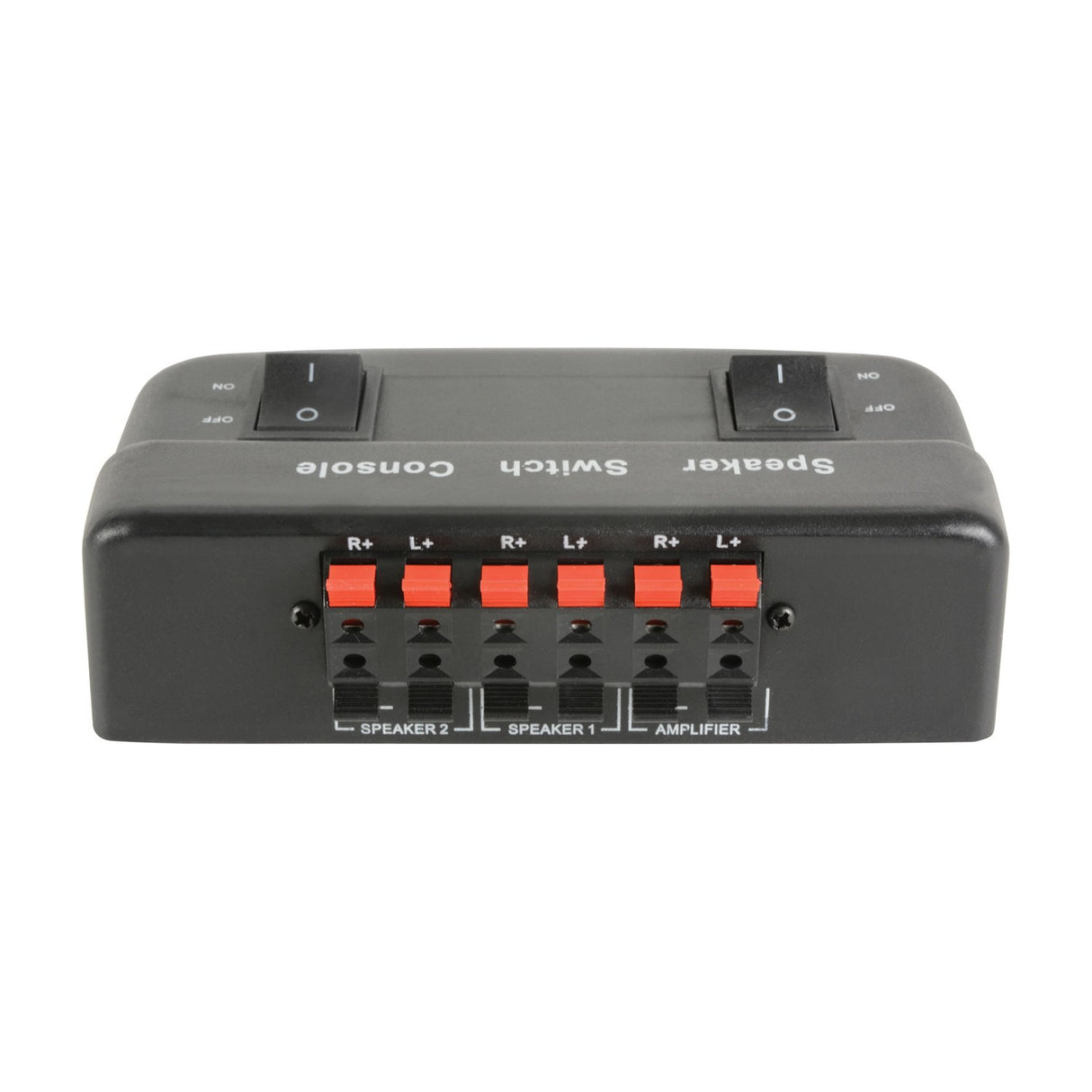

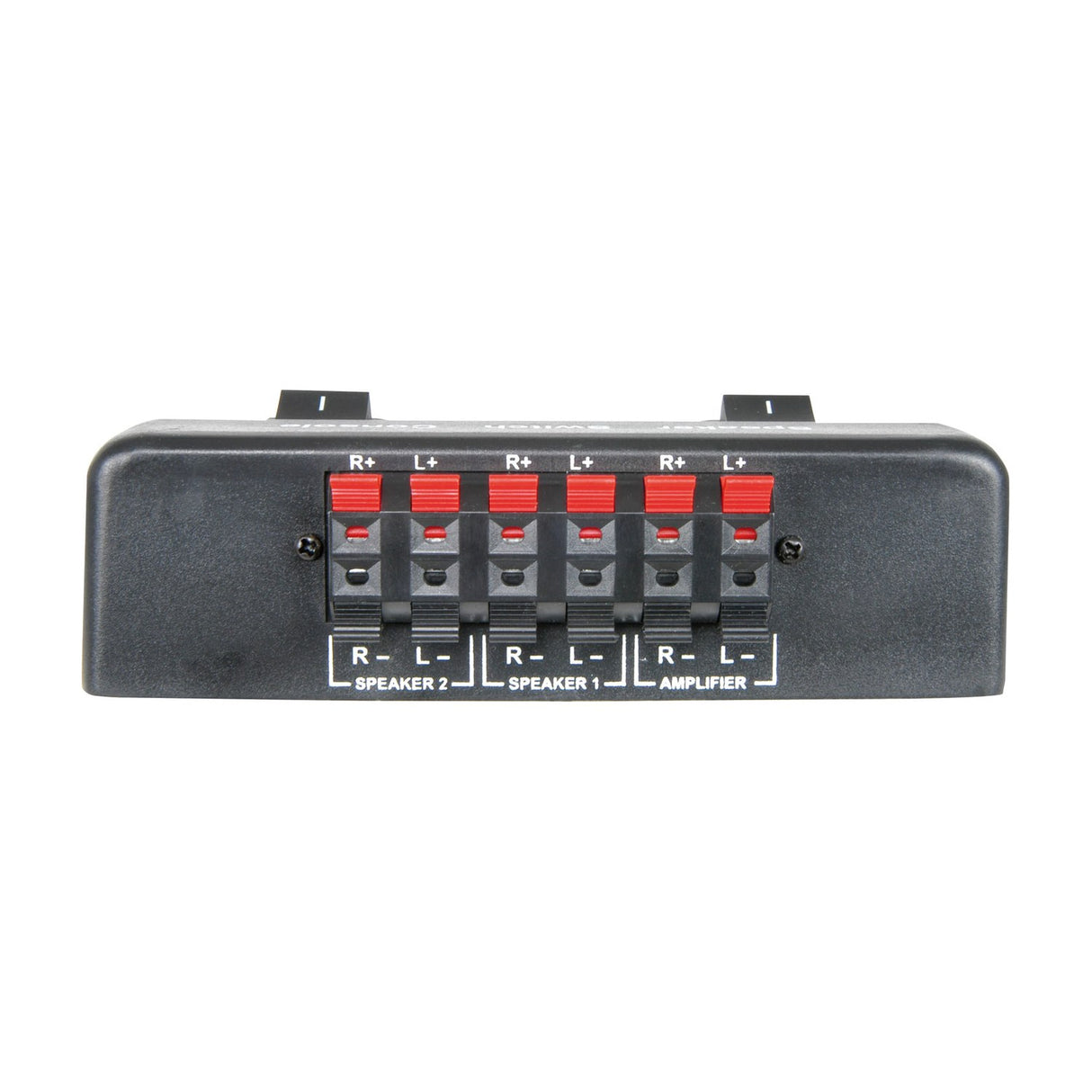

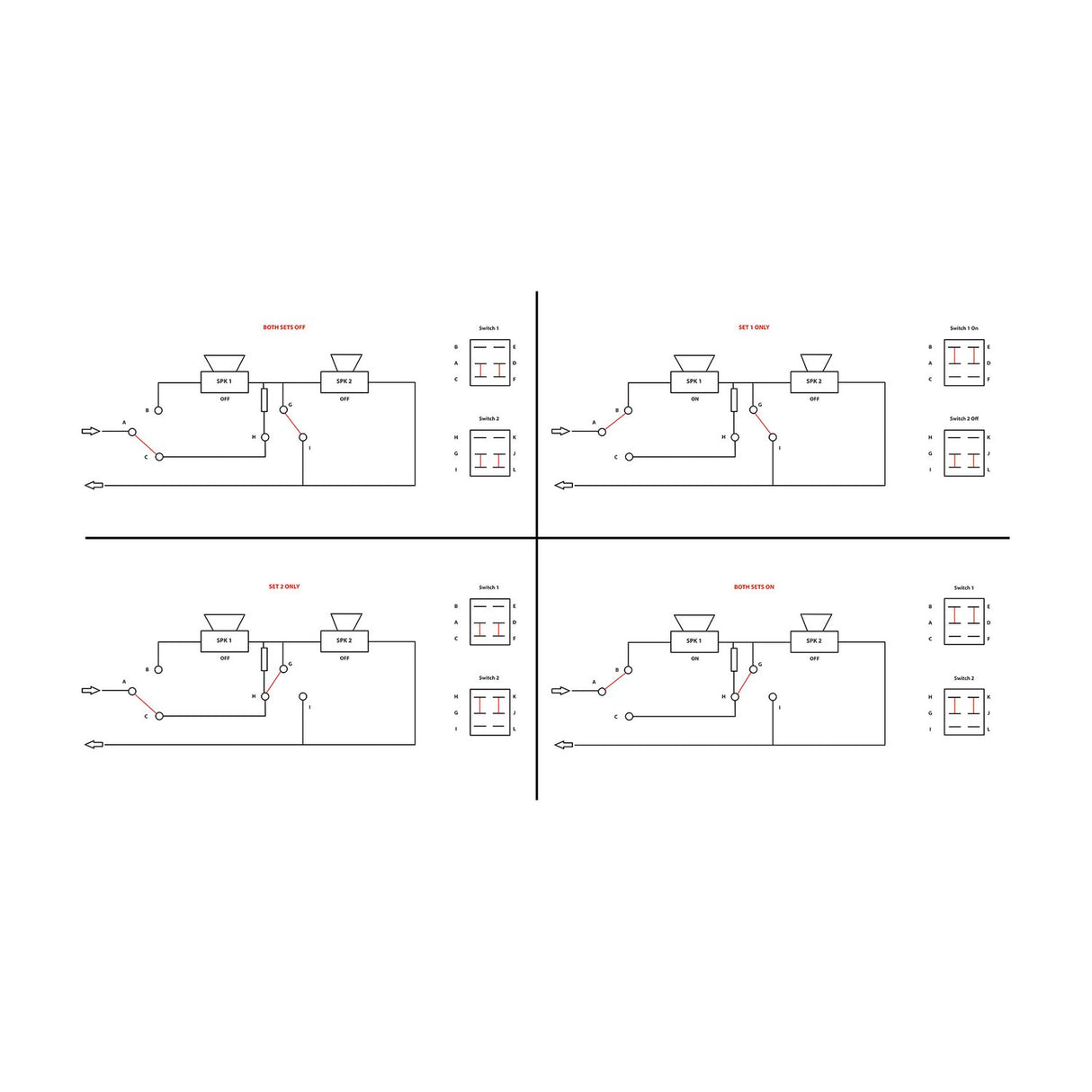

Connections are made using spring clip terminals, so bare speaker wire pushes straight in and holds securely. The selector is designed for 8 ohm speakers. With two pairs of 8 ohm speakers connected, the impedance stays at 8 ohms per channel when a single pair is enabled, or when nothing is switched on. When both channels are enabled, the speakers are linked in series and the impedance rises to 16 ohms, so it is worth keeping that in mind when matching to your amplifier.

Each channel handles up to 50W maximum, which covers most home and small commercial setups. The housing measures 170 x 47 x 117mm and weighs 324g, so it takes up very little space. If you want to run speakers in two rooms from one amp, or simply add a second pair in the same space, the AD-SPK21 gives you straightforward manual control over which pair is playing.

Specification
Power per channel 50W max.
Dimensions 170mm x 47mm x 117mm
Weight 0.32KG
Downloads

Product Manual

Frequently Asked

How many speaker pairs can I connect?

Two pairs of loudspeakers can be connected to the output of a single stereo amplifier.

Can I run both pairs at the same time?

Yes. You can select either pair individually or switch both on together.

What speaker impedance does it support?

It is designed for 8 ohm speakers. A single pair enabled gives 8 ohms per channel, while both pairs enabled links them in series for 16 ohms.

What type of connections does it use?

It uses spring clip terminals, which accept bare speaker wire pushed straight in.

What is the maximum power per channel?

Each channel handles up to 50W maximum.

Is this suitable for zoning a sound system?

Yes. It gives a quick, manual way to zone a system or add an extra pair of speakers to one amplifier.
