Adastra Z5M Balanced XLR 5-Zone Mixer

£11999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

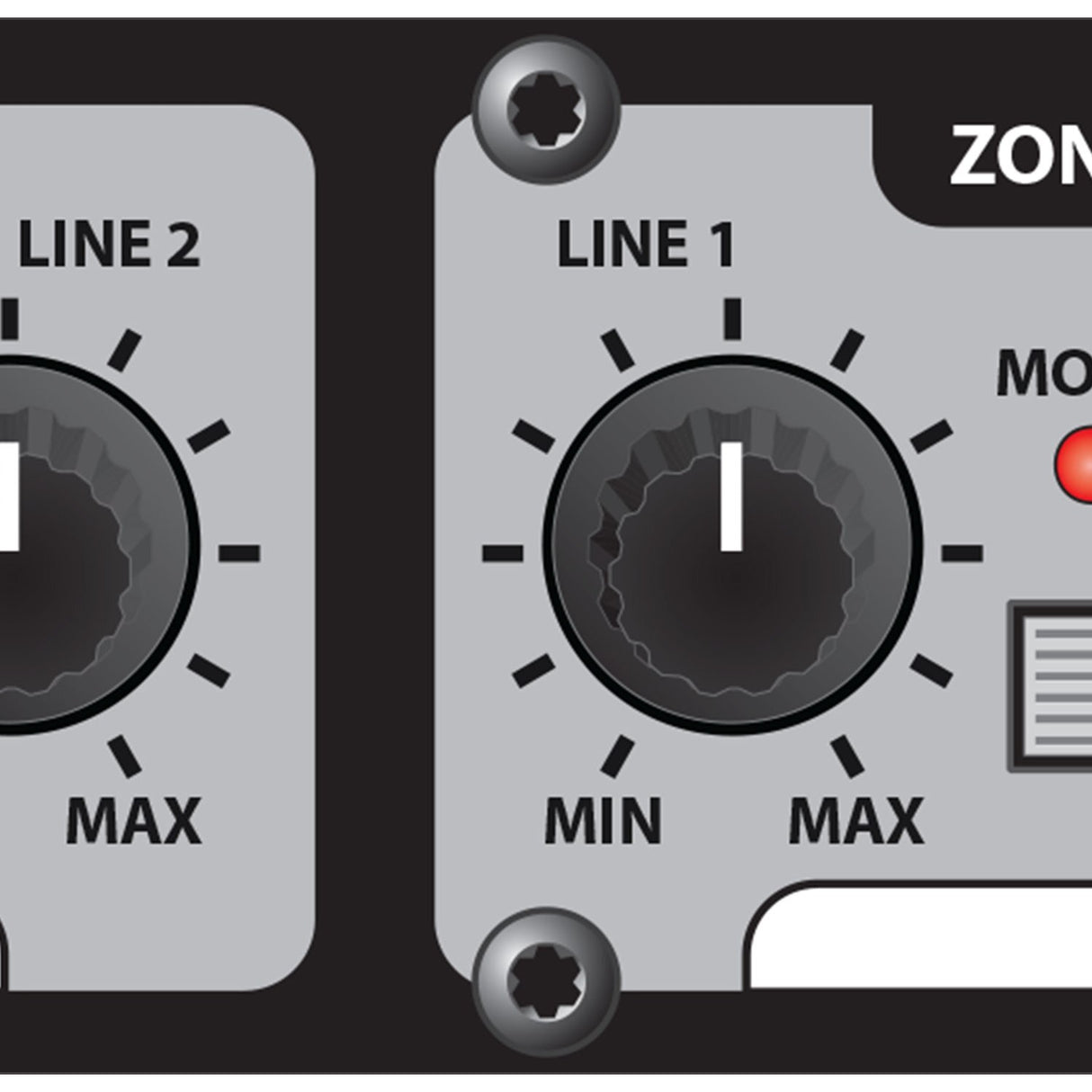

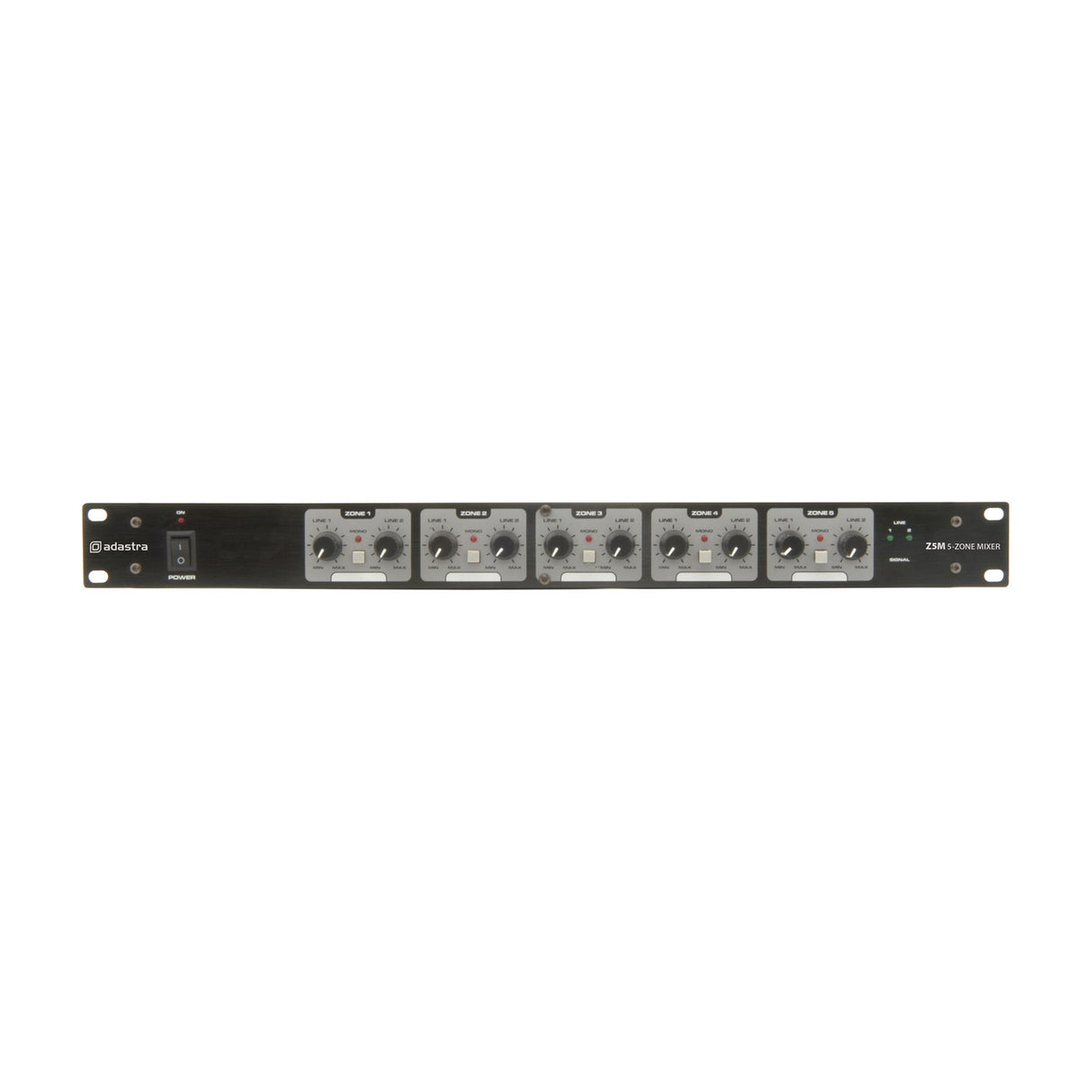

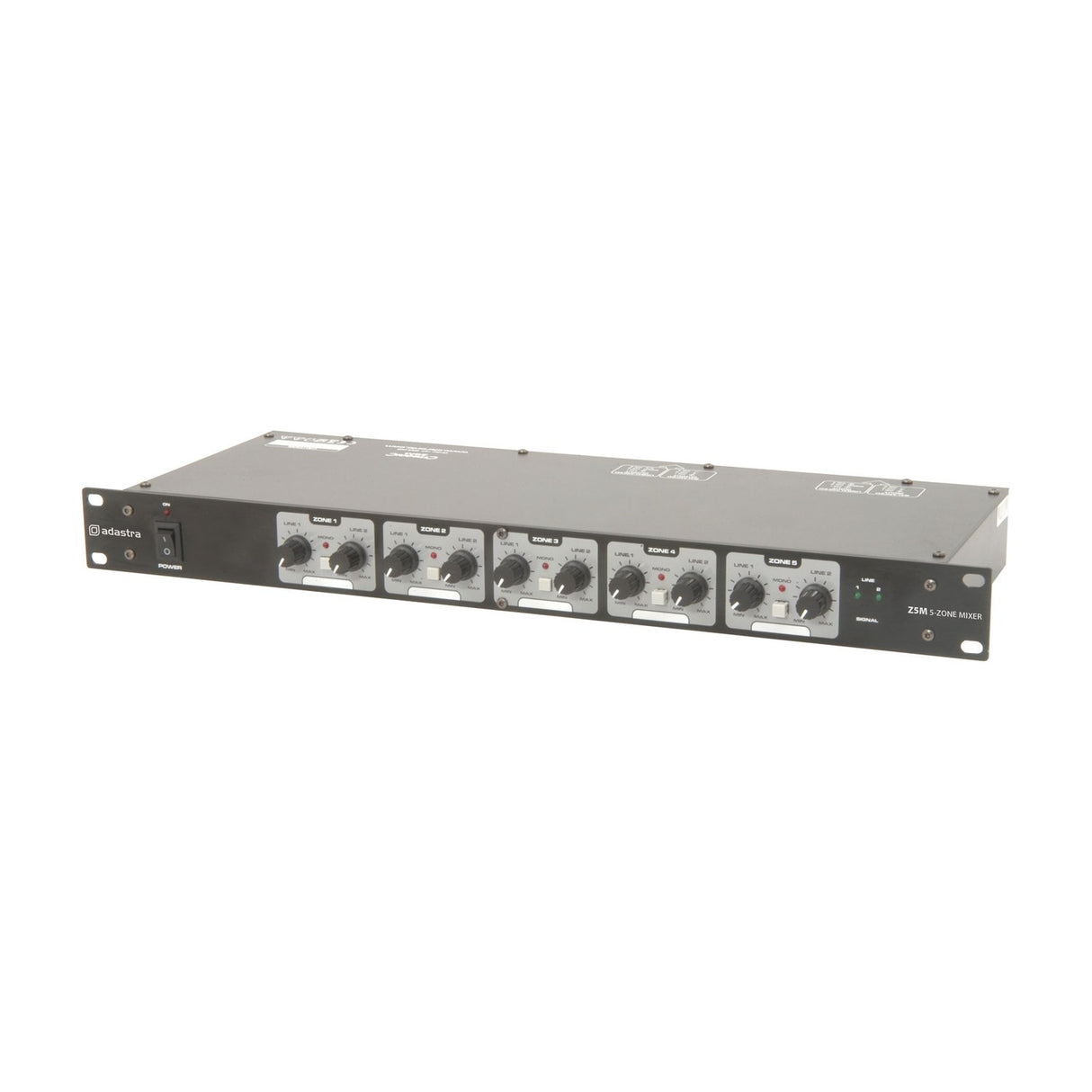

The Adastra Z5M is a zoning mixer built to sit at the heart of a multi-room audio install. It takes two stereo inputs and routes them to five separate stereo speaker zones, giving you central control over what plays where. Each of the two inputs has its own volume level, and each of the five zones has an individual mono switch, so you can tailor the sound for each area on its own terms.

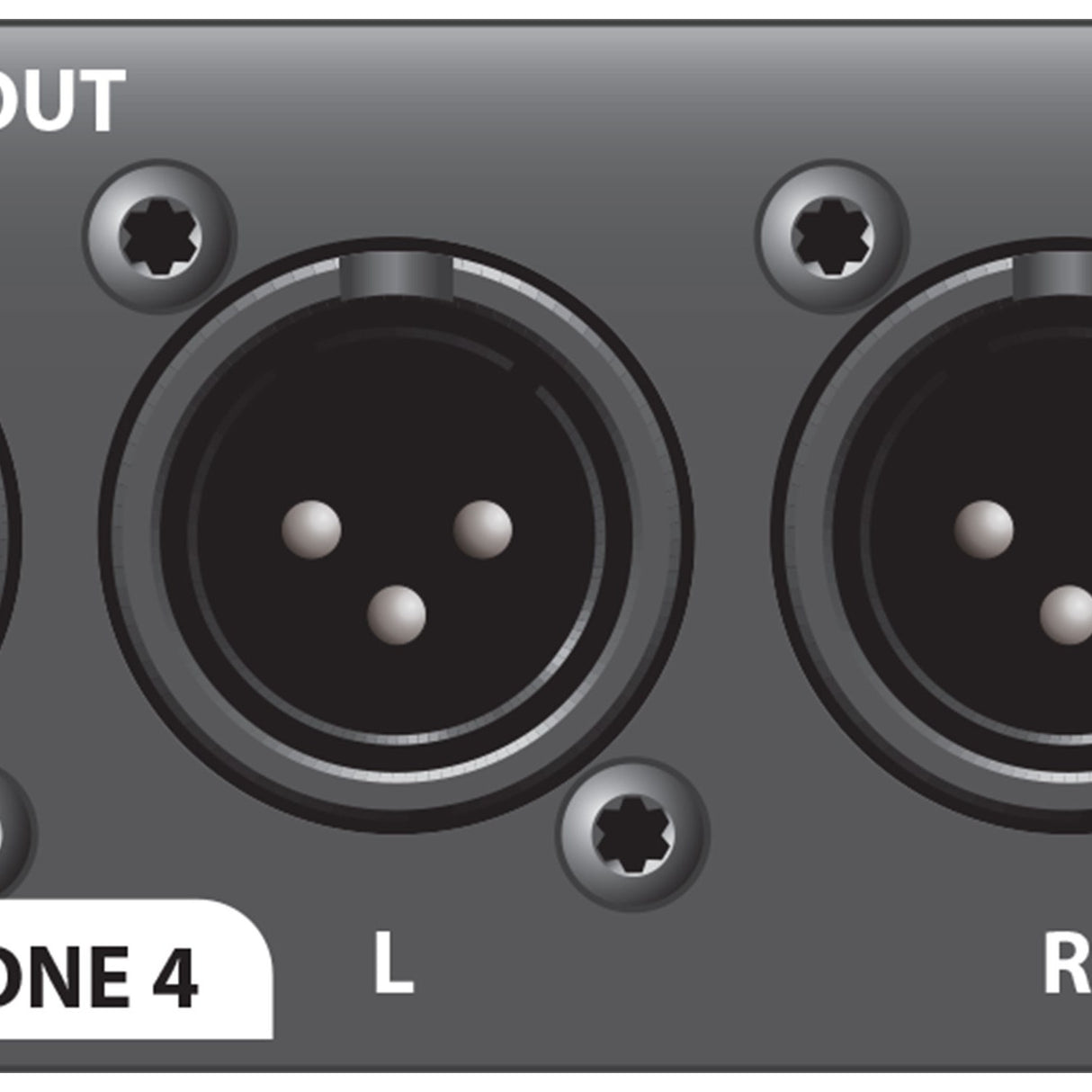

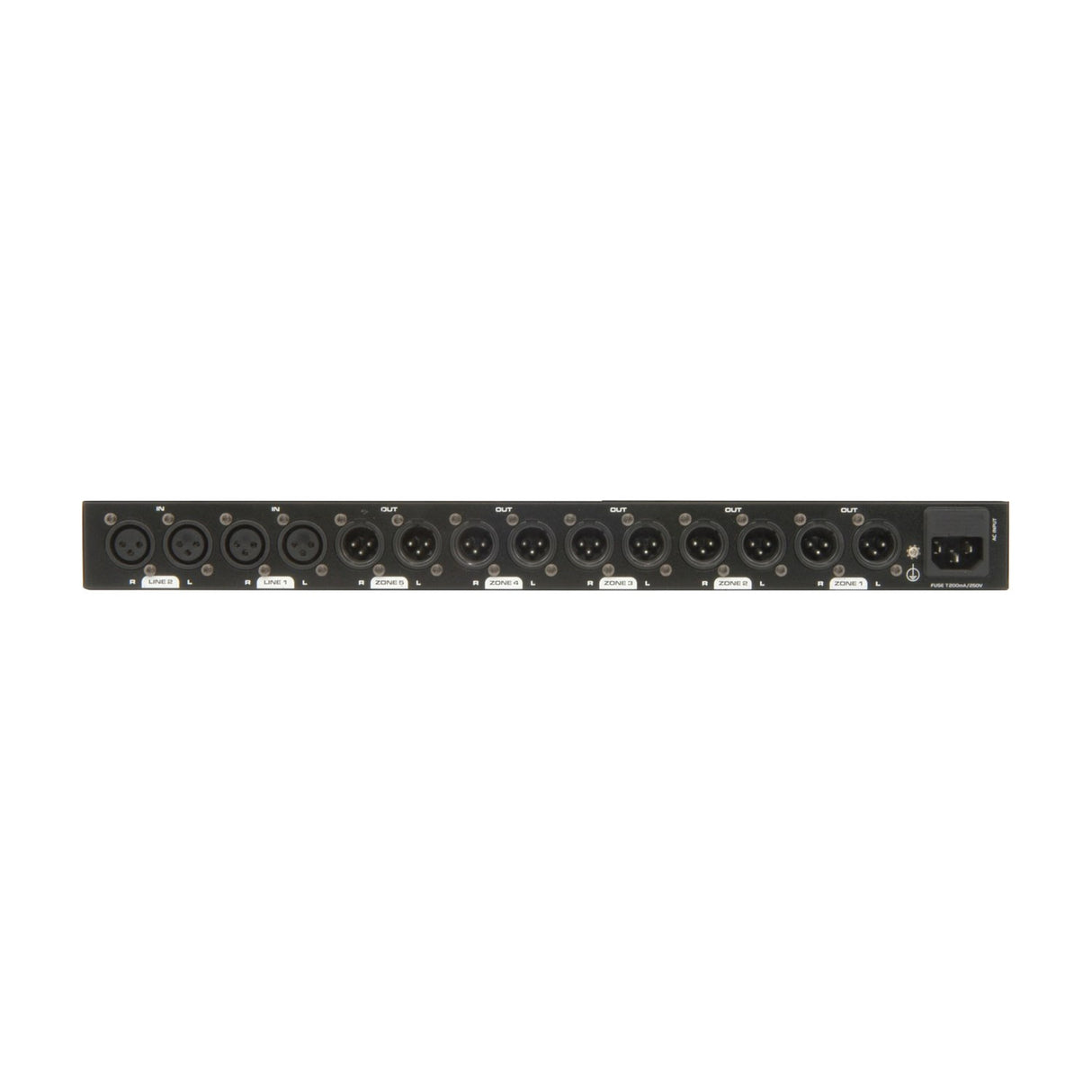

All inputs and outputs run through fully balanced XLR connectors, which helps keep signal clean over longer cable runs in a fixed installation. The two line inputs use balanced XLRF (female) connectors, while the five zone outputs use balanced XLRM (male). Input impedance sits at 40k Ohms and output impedance at 220 Ohms, with a frequency response of 20Hz to 25kHz (+0/-1dB). Signal to noise ratio is rated above 100dB and THD below 0.005%, so the unit keeps out of the way of your source material.

The Z5M measures 483 x 175 x 44mm, a standard 1U rack width that fits neatly into an equipment rack alongside amplifiers and other install kit. It weighs 2.2kg and runs from a 115/230Vac 50/60Hz IEC power supply, so it suits both UK and wider mains standards. If you need one source feeding several rooms with the option to switch any zone to mono, this mixer covers that job without extra hardware. It works well in bars, retail spaces, offices and other venues where separate zones need their own levels from a shared set of sources.

Specification
Power supply 115/230Vac 50/60Hz (IEC)
Inputs Line 1 L+R, Line 2 L+R, balanced XLRF
Outputs Zone 1 to 5 L+R, balanced XLRM
Input impedance 40k Ohms
Output impedance 220 Ohms
Frequency response 20Hz - 25kHz, +0/-1dB
Signal to noise ratio >100dB
THD <0.005%
Dimensions 483mm x 175mm x 44mm
Weight 2.20KG
Downloads

Product Manual

Frequently Asked

How many zones and inputs does the Z5M handle?

It takes 2 stereo inputs and routes them to 5 separate stereo speaker zones, with individual volume control for both inputs.

Can I set a zone to mono?

Yes. Each of the five zones has its own mono switch, so you can run any zone in mono while leaving others in stereo.

What connectors does it use?

All inputs and outputs are balanced XLR. The two line inputs use XLRF (female) connectors and the five zone outputs use XLRM (male).

Will it fit in a standard rack?

Yes. At 483 x 175 x 44mm it fits a standard 19-inch, 1U rack space alongside your amplifiers and other install gear.

What power supply does it need?

It runs from a 115/230Vac 50/60Hz mains supply via an IEC connector, suiting UK and international mains.
