Adastra TR86 Touch Wall Plate Remote for RZ45 Matrix

£6799
RRP £6900
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

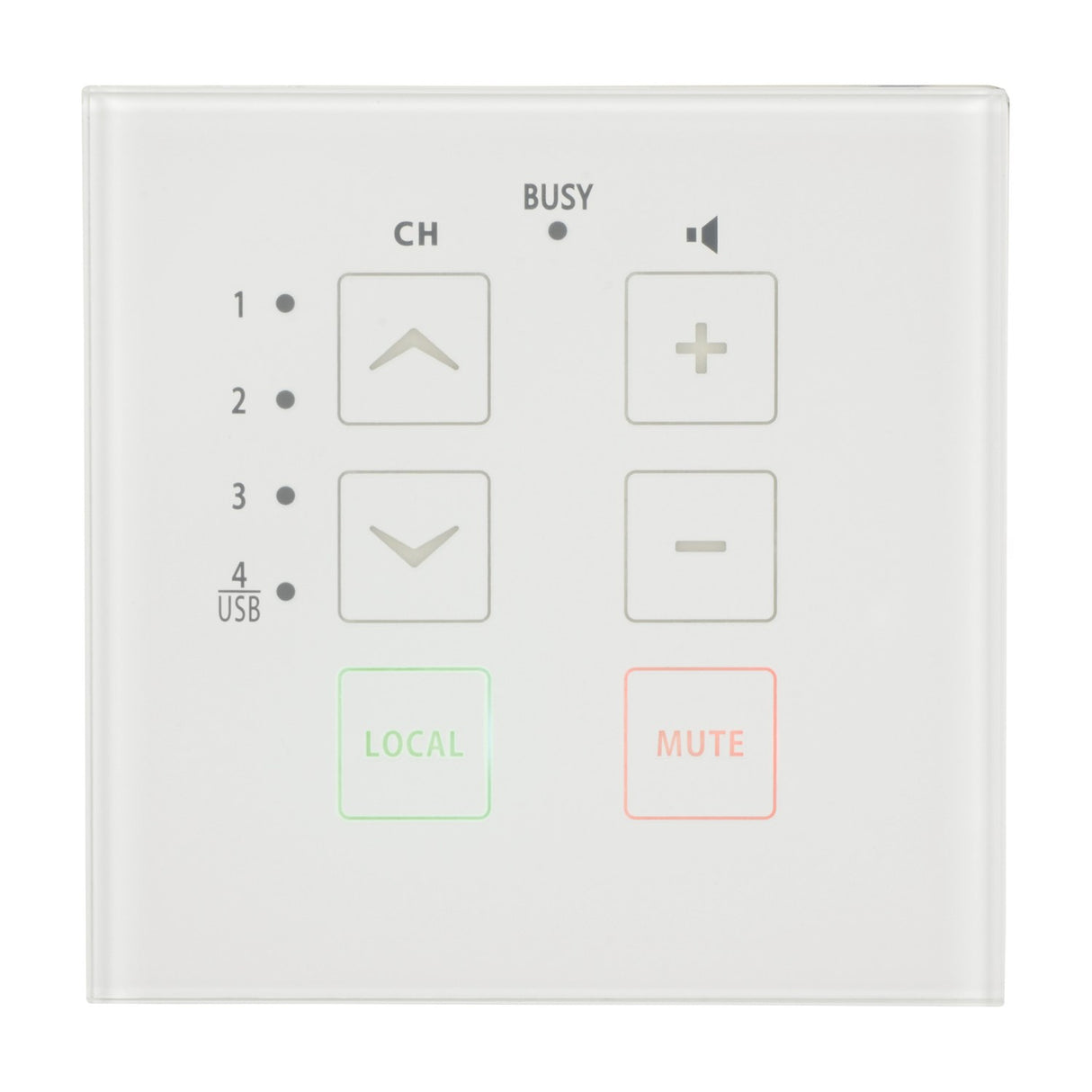

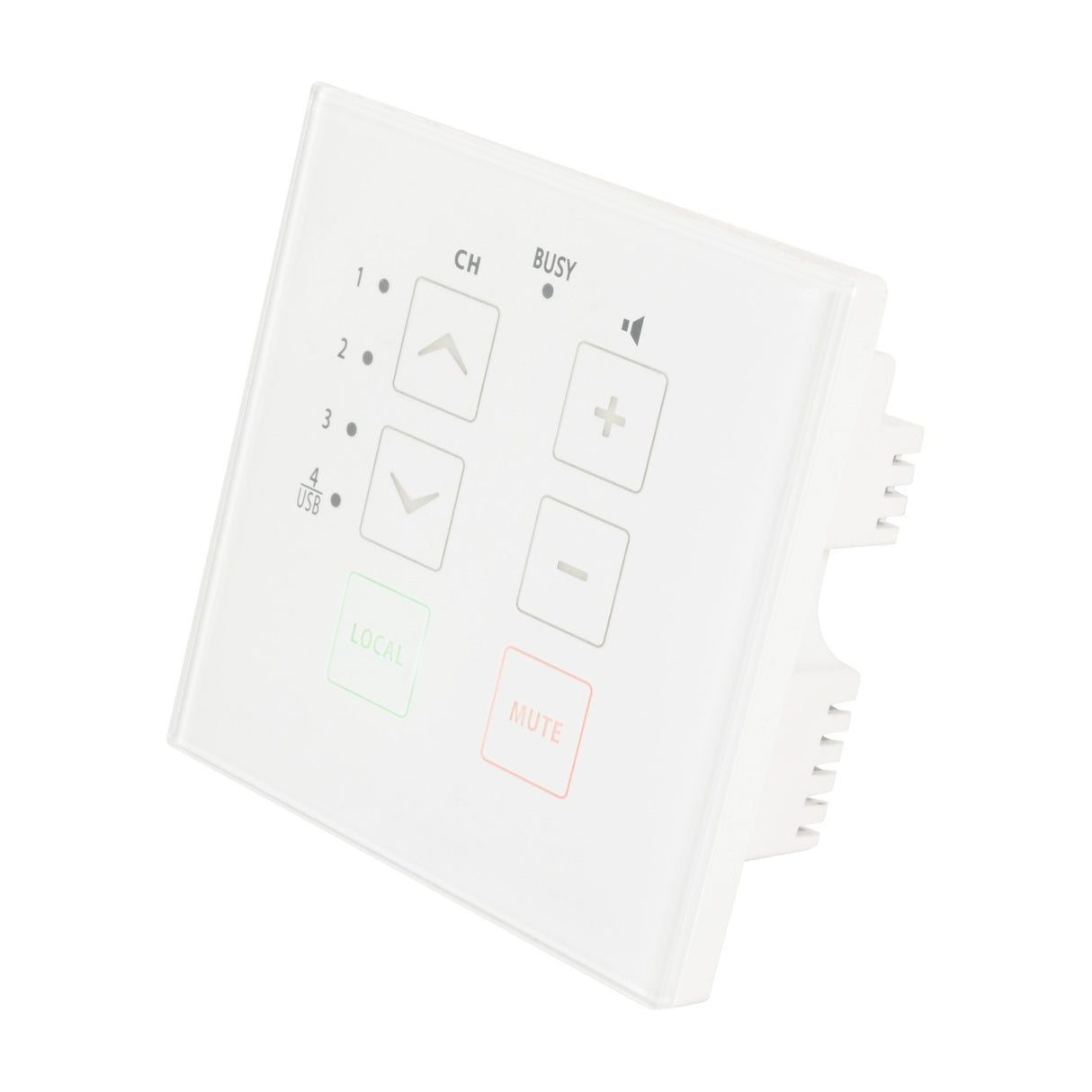

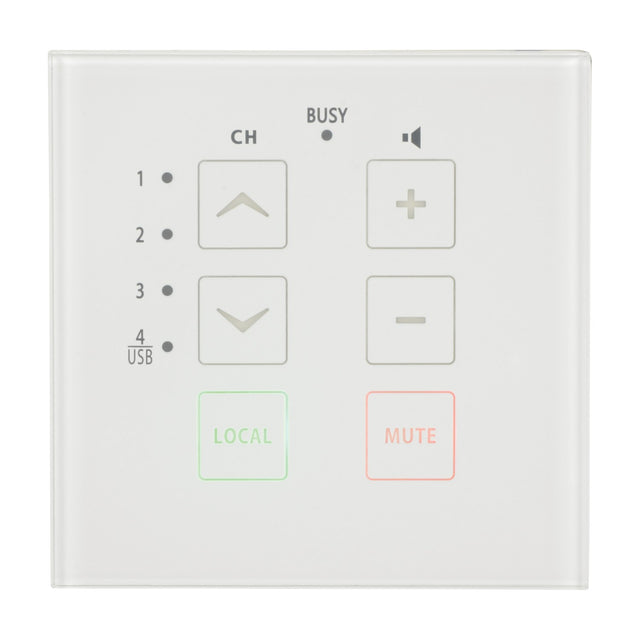

The Adastra TR86 is a wall-mounted touch remote for the RZ45 audio matrix system. It fits into a single gang 86 x 86mm wall plate, giving you neat local control in each zone without cluttering the space. The acrylic touch surface is hygienic and easy to wipe down, and it stays illuminated with colour coded indicators so you can see the selected source and status at a glance.

From the panel you can switch between three stereo audio sources or the inbuilt media player on the RZ45, and set the output level for that zone. A mono line level signal can also be wired into the panel through screw terminals, giving you an independent local source at the wall if you need one. Up to five TR86 panels can run from a single RZ45 unit, controlling up to five separate zones.

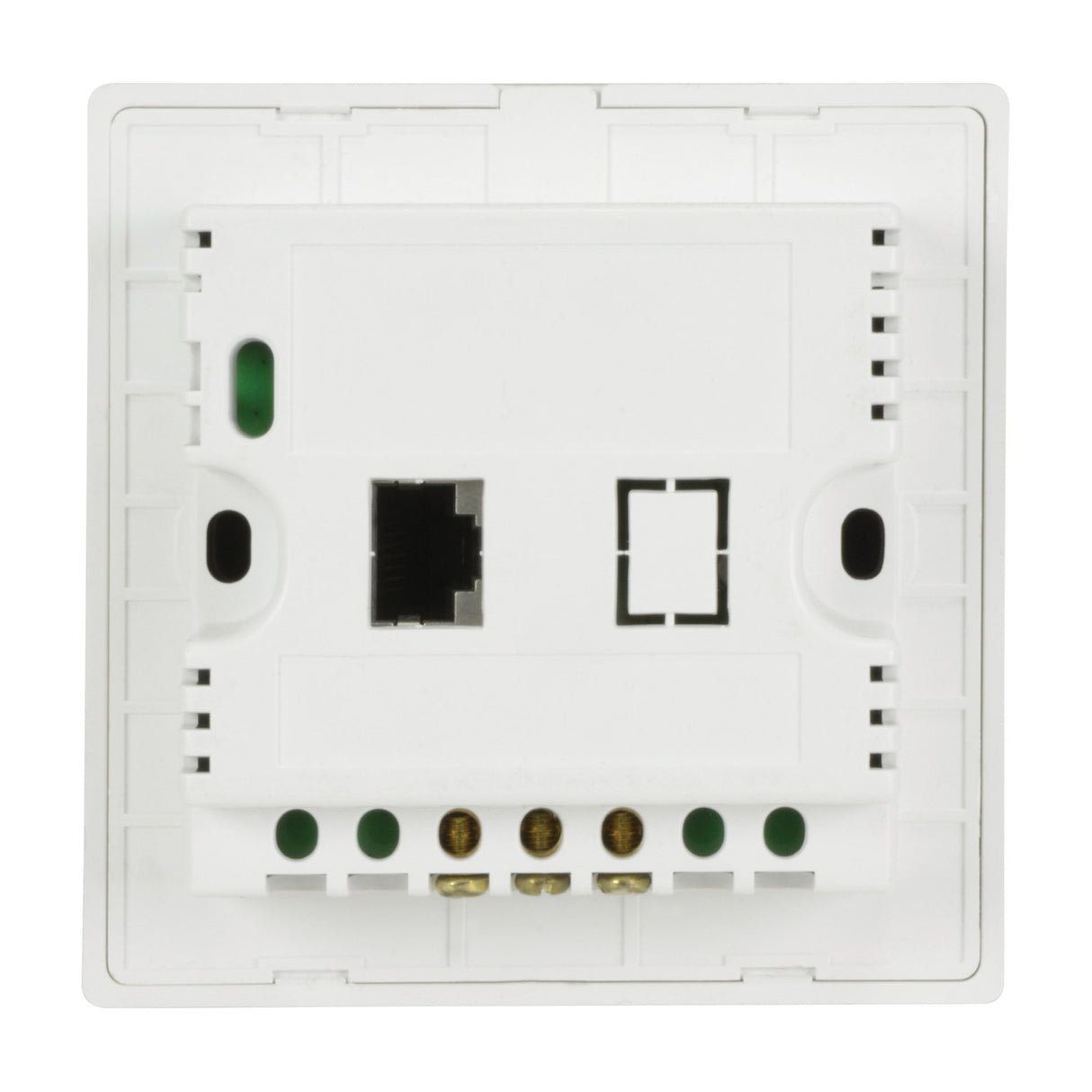

Installation is straightforward using a standard network cable (Cat5e or similar) with an 8P8C RJ45 connector, which carries both signal and power. The panel runs up to 100m directly powered from the RZ45, or up to 1km when you add a separate 24Vdc supply. Controls cover sources 1 to 4 over USB, the local input, mute and level up and down. The plate measures 86 x 86 x 38mm with a 38mm mounting depth and weighs 128g.

Specification
Connection 8P8C (RJ45)
Power supply 24Vdc (from RZ45 or externally)
Controls Sources 1-4 (USB), Local, Mute, Level +/-
Terminals Local +24V, Ground, Local line input
Dimensions 86mm x 86mm x 38mm
Mounting depth 38mm
Weight 0.13KG
Downloads

Product Manual

Frequently Asked

How many TR86 panels can I use with one RZ45?

Up to five TR86 remote panels can be connected to a single RZ45 audio matrix, controlling up to five independent zones.

How is the TR86 connected to the RZ45?

It connects using a standard network cable with an 8P8C RJ45 connector, which carries both the signal and power to the panel.

How far can the panel be from the RZ45?

Up to 100m when powered directly from the RZ45, or up to 1km if you add a separate 24Vdc power input at the panel.

What can I control from the TR86?

You can select between three stereo sources or the RZ45 media player, choose a local input, mute, and adjust the output level for that zone.

Can I add a local audio source at the panel?

Yes. A mono line level signal can be wired directly into the panel via screw terminals to provide an independent local source.

What size wall box does the TR86 need?

It fits a single gang 86 x 86mm wall plate with a 38mm mounting depth.
