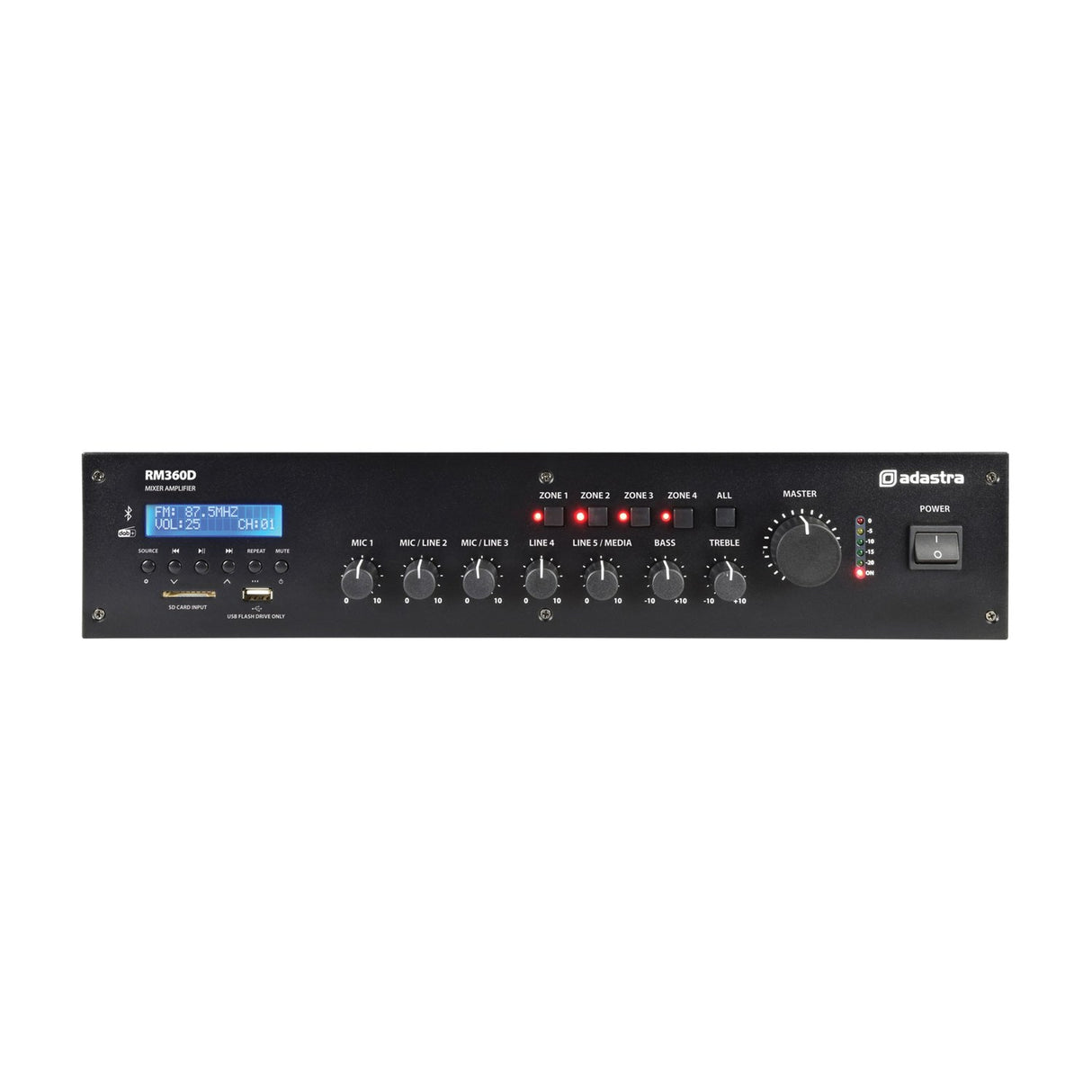

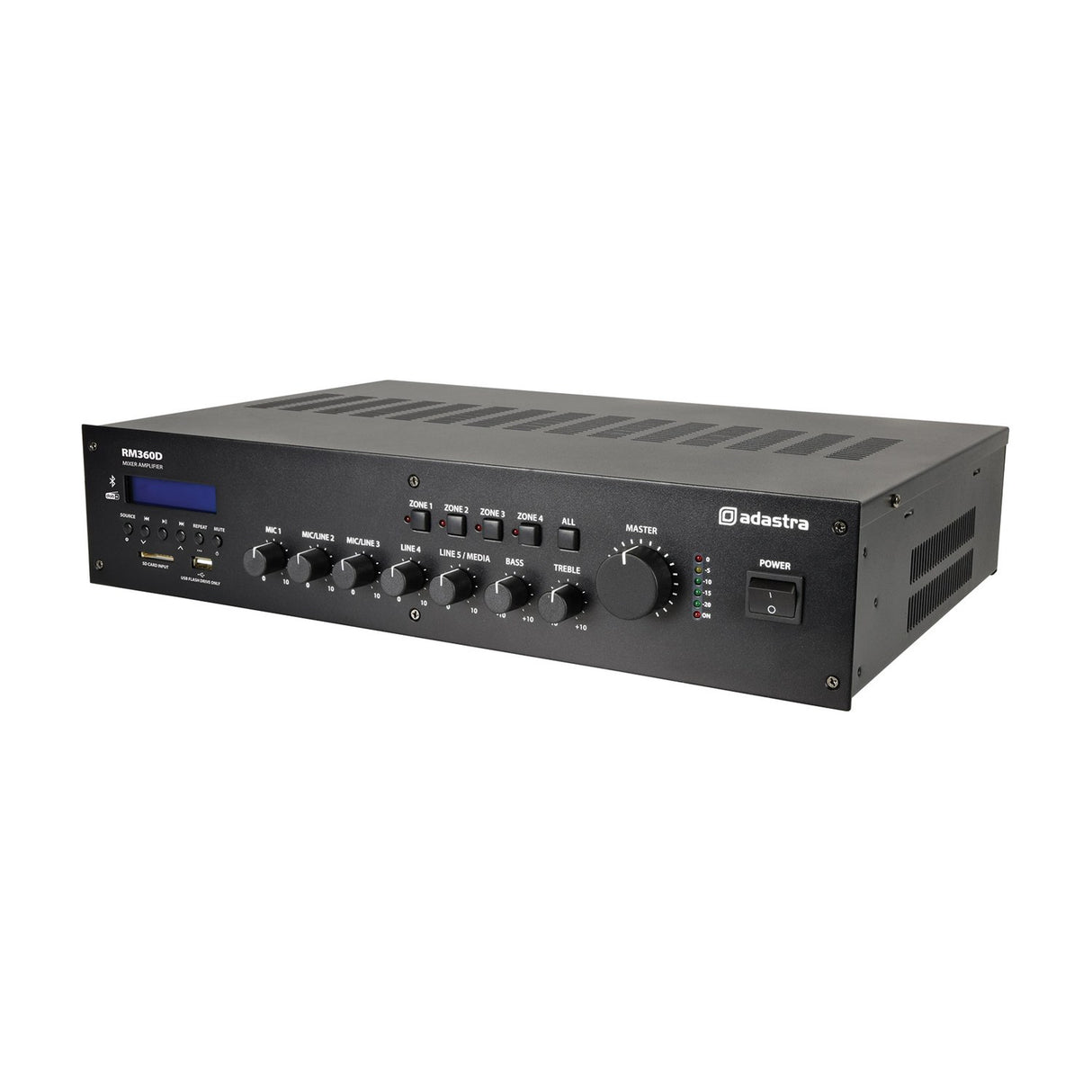

Adastra RM360D 100V DAB+ Bluetooth Mixer-Amplifier

£49999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The Adastra RM360D is a 5-channel mixer-amplifier built for commercial sound installations. It powers 100V line speakers or standard low-impedance speakers down to a 4 Ohm load, so it suits shops, cafes, offices and similar spaces where you need reliable background music and announcements. The unit fits a 2U 19" rack and comes with rack ears supplied. Outputs are on screw terminals, arranged as four switchable zones plus one always-on output for priority alert speakers.

Input options cover most sources you are likely to connect. There is an XLR input with switchable +20V phantom power, two mic/line jacks and two RCA line inputs, along with an RCA line output. The built-in media player handles a DAB+/FM radio tuner (aerial/antenna required), front-mounted USB and SD ports, and a Bluetooth 5.0 receiver with a unique serial ID. Controls on the front cover mic 1, mic/line 2 and 3, line 4 and 5, plus bass, treble and master volume. Bass gives ±10dB at 100Hz and treble ±10dB at 10kHz.

A switchable VOX voiceover feature automatically lowers the background music when a signal is detected on mic input 1, which is handy for spoken announcements. Rear panel 24V emergency mute contacts cut all inputs except mic 1 when triggered, useful for tying into an alarm or paging system. Power runs from 230Vac mains or a 24Vdc backup supply via screw terminals. Total harmonic distortion stays below 1.0%, and rear switches let you set phantom power, VOX and mic/line mode for inputs 2 and 3.

Specification
Weight 9.14KG
Dimensions 433mm x 410mm x 88mm
Fuse T5A
Output power : rms 360W
Power supply 170-264Vac, 50Hz (IEC)
DC power 24Vdc (screw terminals)
Inputs Mic XLR, 2 x mic/line jack, 2 x RCA line
Input sensitivity : mic 1 (balanced) -53dBV
Input impedance : mic 1 5k Ohm
Input sensitivity : line (unbalanced) -15dBV (-18.5dBV line 5)
Input impedance : inputs 2-5 1k Ohm
Line output RCA

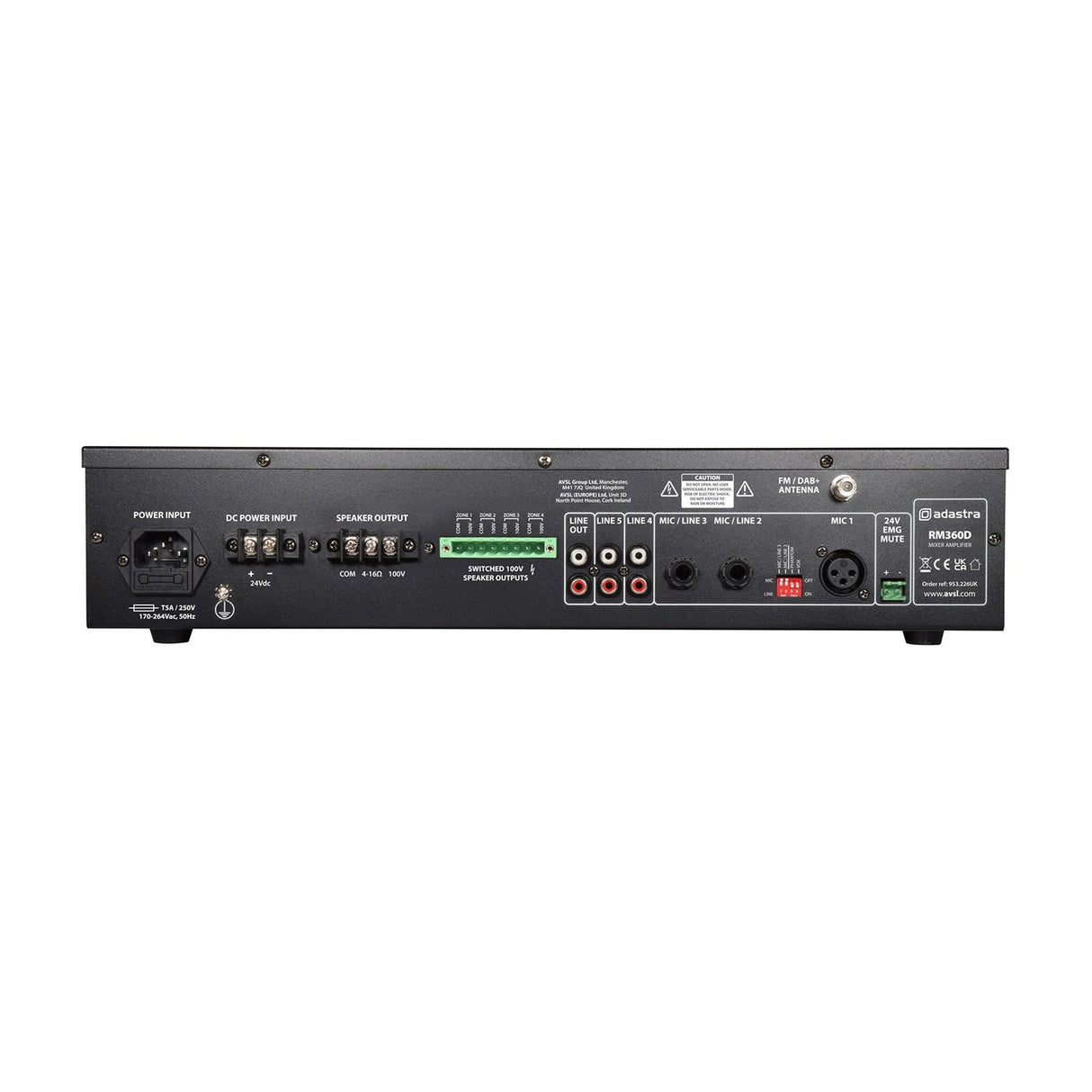

Speaker outputs 4 switched + 1 non-switched 100V / 4-16 Ohm / COM
Bluetooth version 5.0
Controls Mic1, mic/line2+3, line4+5, bass, treble, master volume
Equaliser : bass 100Hz ±10dB
Equaliser : treble 10kHz ±10dB
Rear panel switches Phantom, Vox, Mic/Line (2 + 3)
Phantom power +20V (mic 1 XLR, switchable)
Audio source DAB+/FM tuner, USB/SD player, Bluetooth receiver
Emergency control 24V contacts - mute all except Mic.1 when triggered
THD <1.0%
Downloads

Product Manual

Frequently Asked

Can it drive both 100V line and low-impedance speakers?

Yes. It outputs to 100V line speakers or standard speakers down to a 4 Ohm load, so you can choose the setup that fits your install.

How many speaker zones does it have?

There are four switchable 100V zones plus one non-switched, always-on output for priority alert speakers.

What audio sources are built in?

A DAB+/FM tuner, a USB/SD media player and a Bluetooth 5.0 receiver, all handled by the integrated media player.

Does it support emergency muting?

Yes. Rear panel 24V contacts mute all inputs except mic 1 when triggered, which lets you connect it to an alarm or paging system.

Can it run on backup power?

It runs from 230Vac mains or a 24Vdc supply via screw terminals, so you can add battery backup for continued operation.

What is the VOX voiceover feature?

When a signal is detected on mic input 1, VOX automatically lowers the background music so announcements come through clearly.
