Adastra RC22U600 22U 600mm Deep 19" Rack Cabinet

£32699
RRP £32900
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The Adastra RC22U600 is a 19" rack cabinet with 22U of mounting height and a 600mm depth, built for professional rack-mount equipment installations. It is made from 1.2mm cold-rolled steel with folded edges for strength and stability, and finished in epoxy powder coat to RAL9004. The static load rating is 100kg total, and the cabinet meets ANS/EIA RS-310-D, IEC297-2, DIN41491 Part 1 and Part 7, and ETSI standards.

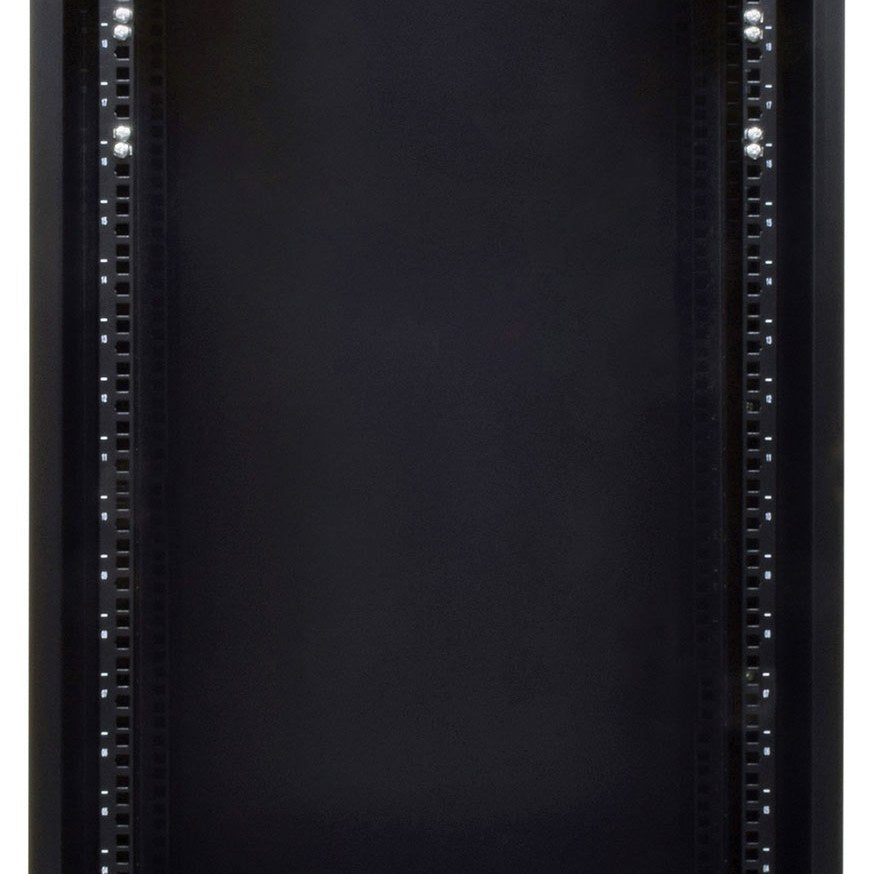

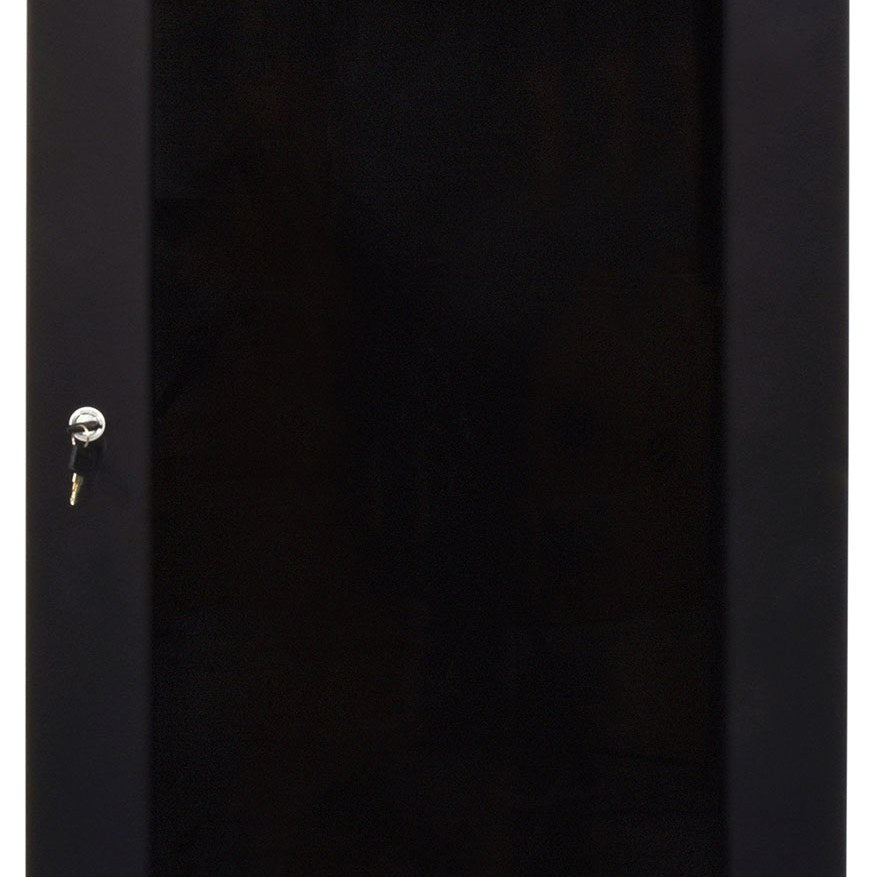

Front and rear rack strips are supplied and mounted to internal rails, so you can adjust the mounting depth to suit equipment with overhanging fittings or to support the rear of heavier units. The front door is removable and holds a pane of 5mm tempered glass flanked by folded steel edge panels. It can be set to open from the left or right, and comes with a lock and two keys. Clip-in side panels give quick access to cabling and connections when you need it.

The top panel is vented for cooling and has a cut-out for fitting a cooling fan if required. Top and bottom knock-outs handle cable feeds, and the rear panel has fixing apertures so you can wall mount the cabinet or use it free-standing. Assembly is straightforward. This model is one of a wider range available in two depths and several rack heights, so you can match the cabinet to the space and kit you are working with.

Specification
Material 1.2mm cold rolled steel & 5mm tempered glass
Finish Epoxy powder coated RAL9004
Maximum load 100kg static (total)
Standard ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI compliant
Width 600mm
Downloads

Product Manual

Frequently Asked

How much equipment can this cabinet hold?

The RC22U600 offers 22U of rack space and is rated for a 100kg static load in total.

Can I wall mount it?

Yes. The rear panel has fixing apertures for wall mounting, or you can use the cabinet free-standing.

Does the door open from either side?

Yes. The front door is removable and can be mounted to open from the left or the right to suit your setup.

Is it lockable?

Yes. The front door has a lock and is supplied with two keys.

Can I fit a cooling fan?

Yes. The top panel is vented and has a cut-out for mounting a cooling fan if you need extra airflow.

How deep is the cabinet?

This model is 600mm deep. The range is also available in a second depth and various rack heights.
