Adastra RC18U450 18U 450mm Deep 19" Rack Cabinet

£25999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

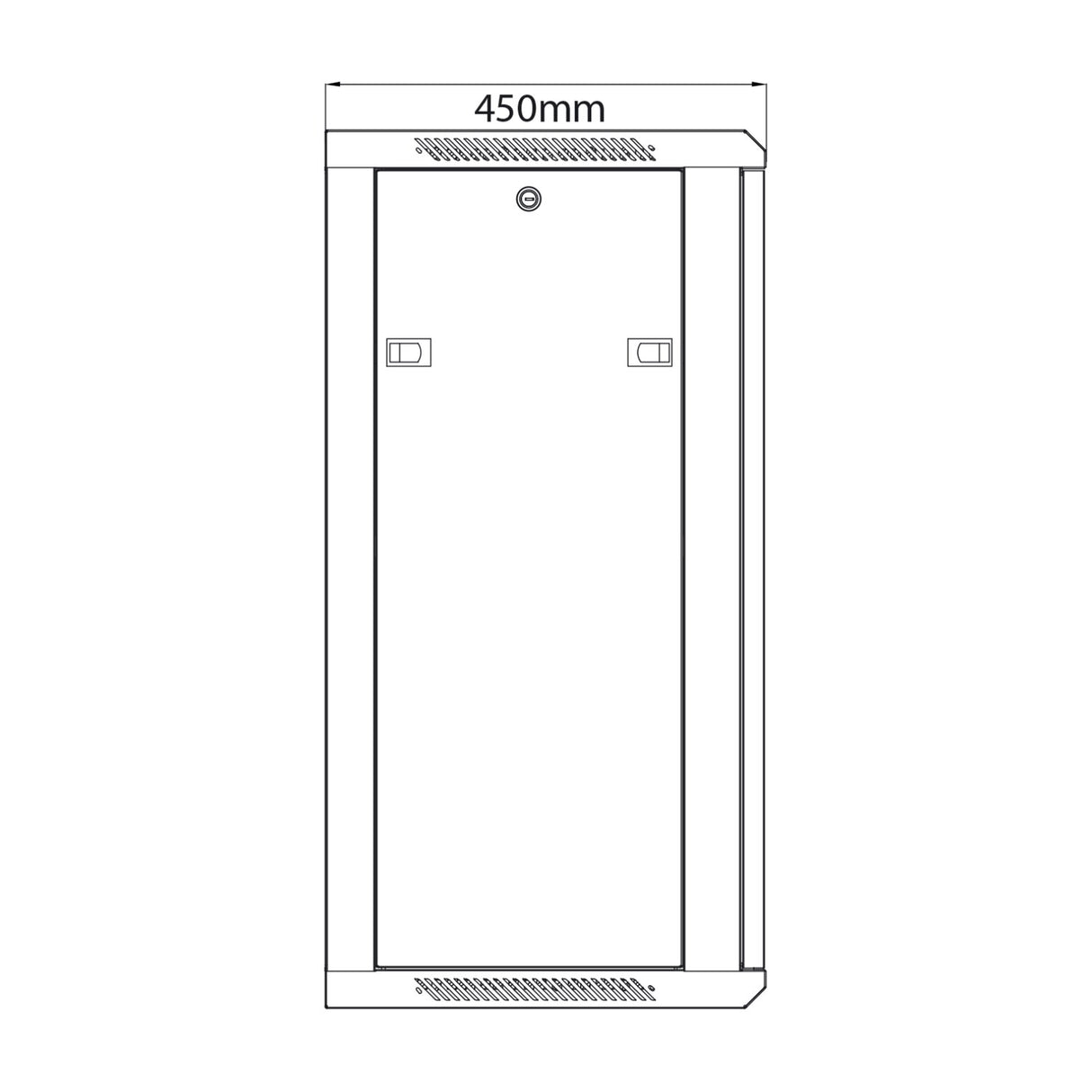

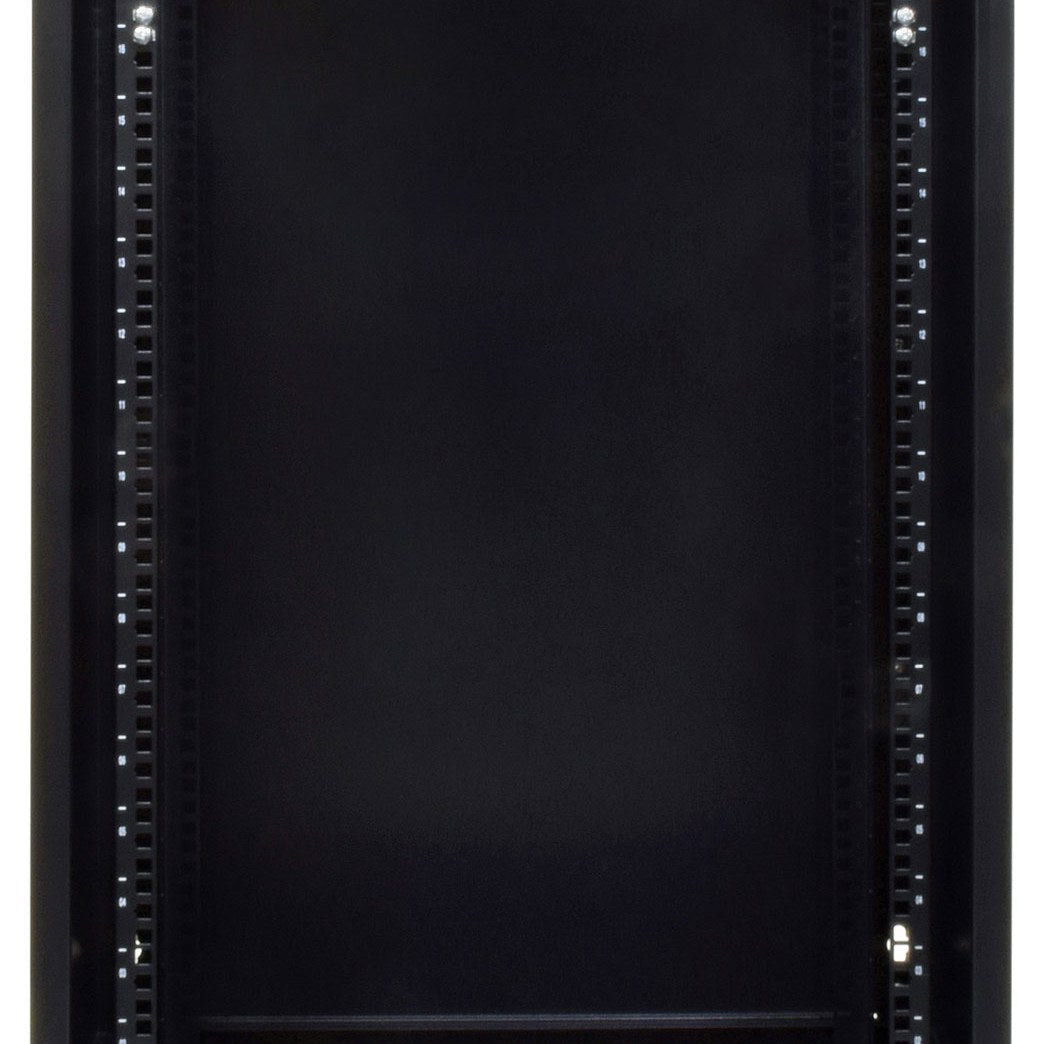

The Adastra RC18U450 is an 18U 19" rack cabinet with a 450mm mounting depth, built for professional rack-mount equipment. It's made from 1.2mm cold-rolled steel with folded edges for strength, and finished in an epoxy powder coating in RAL9004. The front and rear rack strips are supplied and mounted to internal rails, so you can adjust the mounting depth to suit equipment with overhanging fittings or to support the rear of heavier units.

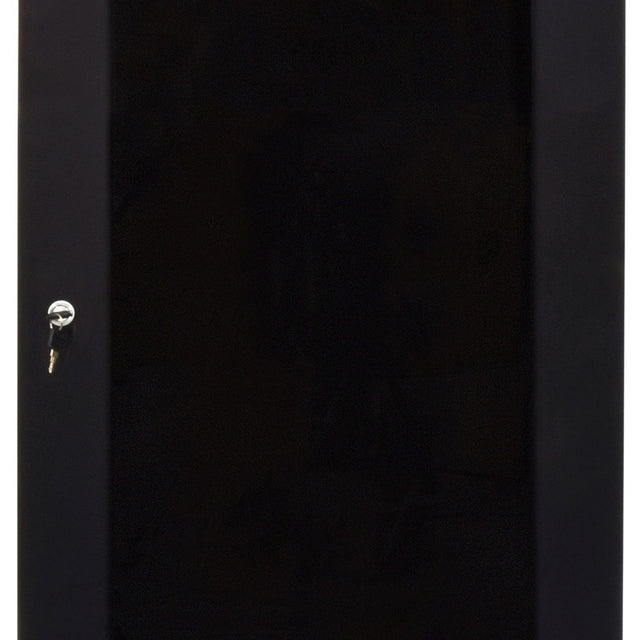

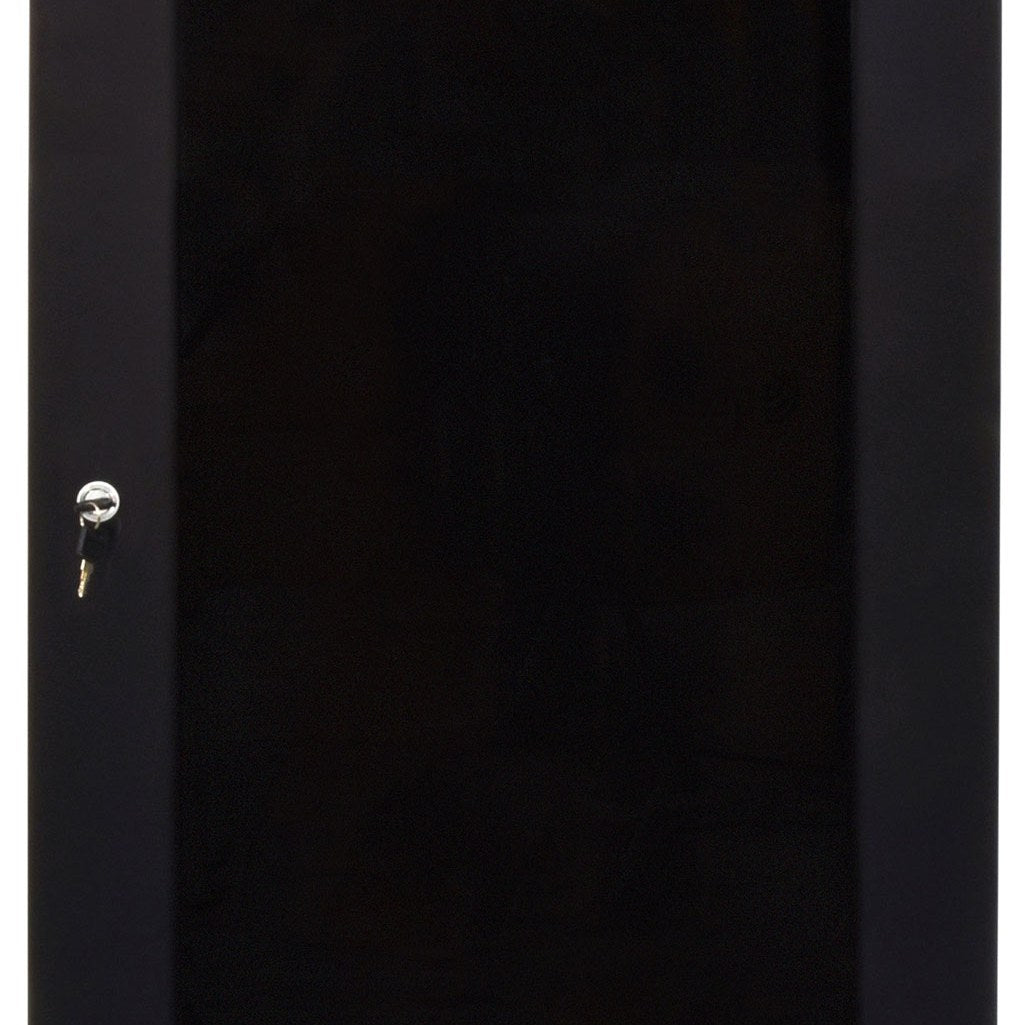

The front door is removable and holds a pane of 5mm tempered glass flanked by folded steel edge panels. It can be set to open from either the left or right, and comes with a lock and two keys. Access to the sides is straightforward thanks to clip-in side panels, and the top and bottom feature knock-outs for cable feeds. The top panel is vented for cooling and includes a cut-out for fitting a cooling fan if you need one.

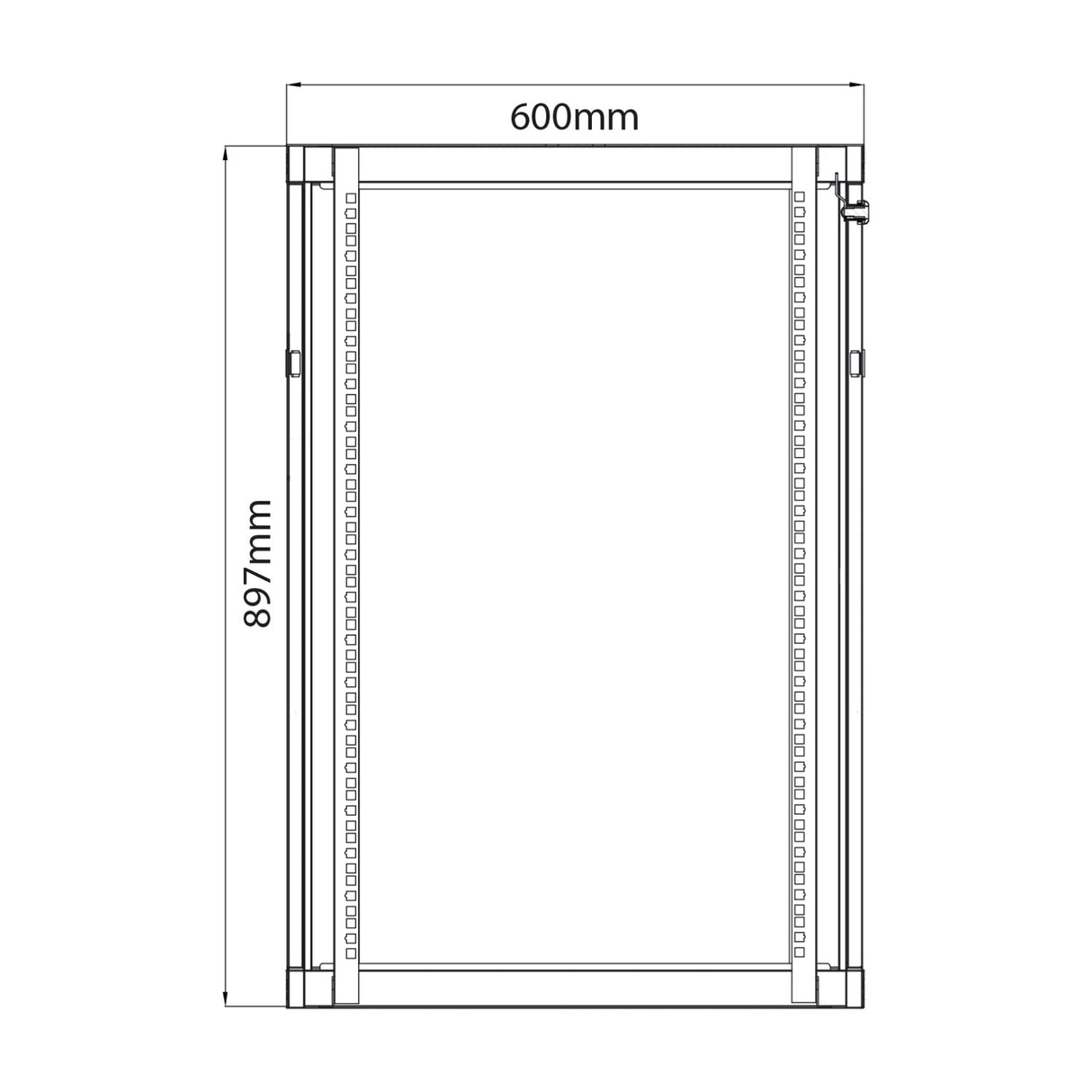

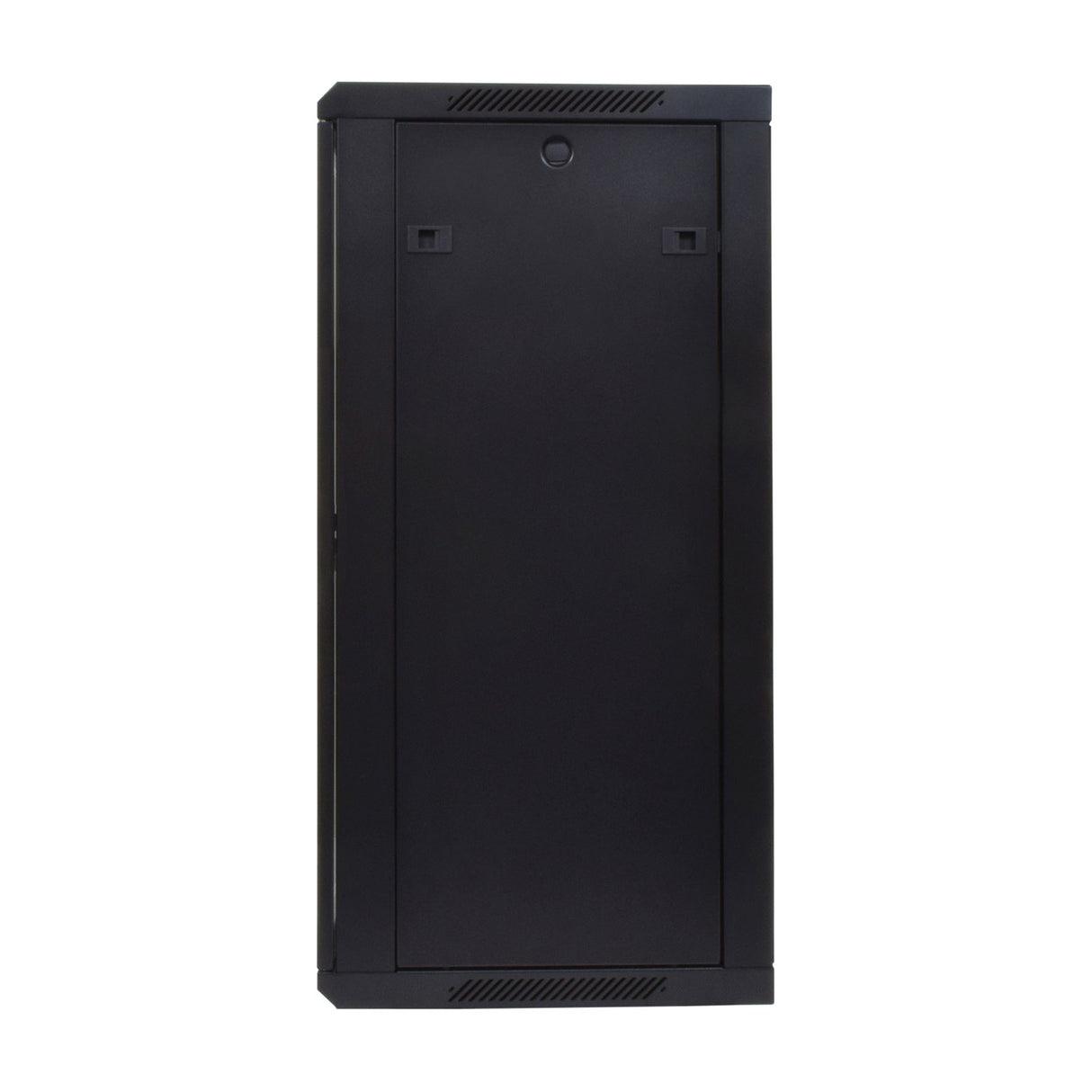

This cabinet works either wall-mounted, using the fixing apertures on the rear panel, or free-standing. It handles a maximum static load of 100kg total and meets ANS/EIA RS-310-D, IEC297-2, DIN41491 and ETSI standards. The cabinet measures 600mm wide and is easy to assemble with adjustable front and rear rack strips. It's available in two depths and a range of rack heights, so you can match it to the equipment you're housing.

Specification
Material 1.2mm cold rolled steel & 5mm tempered glass
Finish Epoxy powder coated RAL9004
Maximum load 100kg static (total)
Standard ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI compliant
Width 600mm
Downloads

Product Manual

Frequently Asked

What size equipment does this cabinet hold?

It's an 18U cabinet with a 450mm mounting depth, suitable for standard 19" rack-mount equipment. The front and rear rack strips adjust to accommodate units with overhanging fittings.

Can it be wall-mounted?

Yes. The rear panel has fixing apertures for wall mounting, or you can use it free-standing.

How much weight can it support?

The maximum static load is 100kg total across the cabinet.

Does the door lock?

Yes. The front door has a lock and is supplied with two keys. It can be set to open from the left or right.

Can I add a cooling fan?

Yes. The top panel is vented and has a cut-out for mounting a cooling fan if required.

Is the front door glass?

The door holds a pane of 5mm tempered glass with folded steel edge panels, and it is removable.
