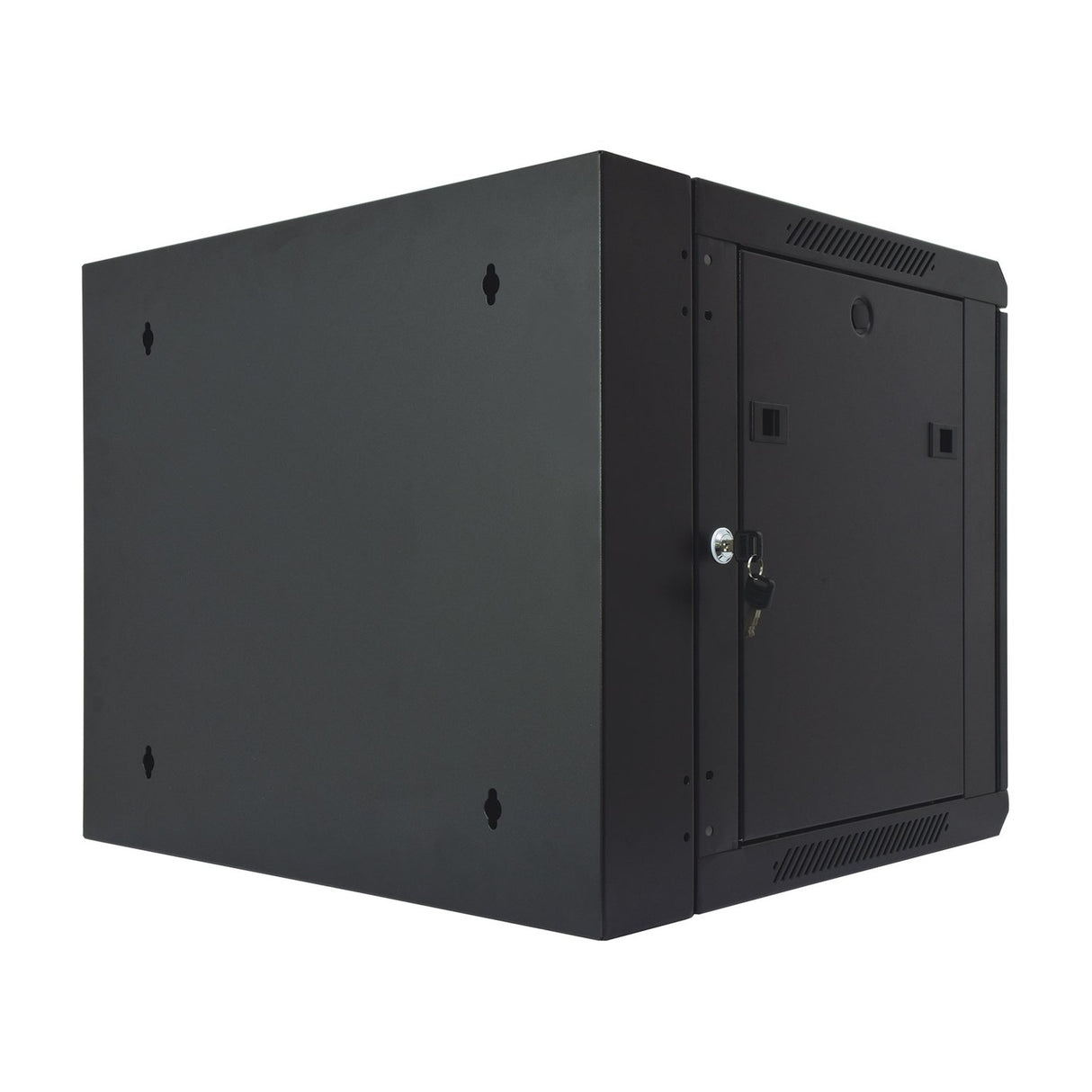

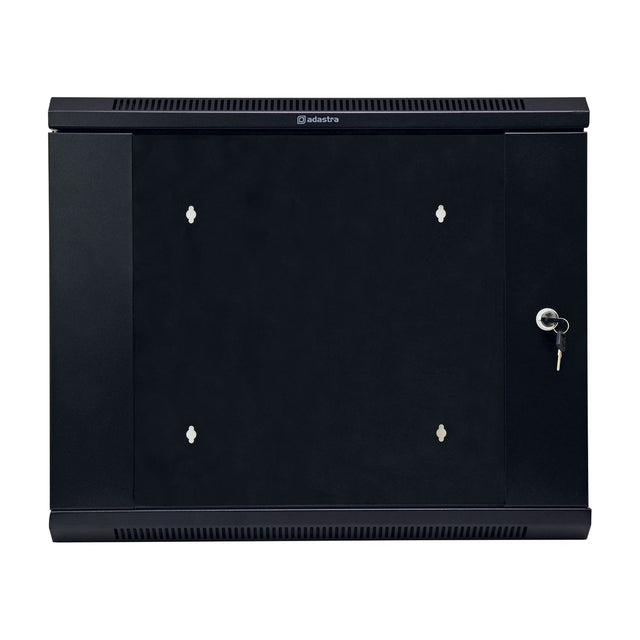

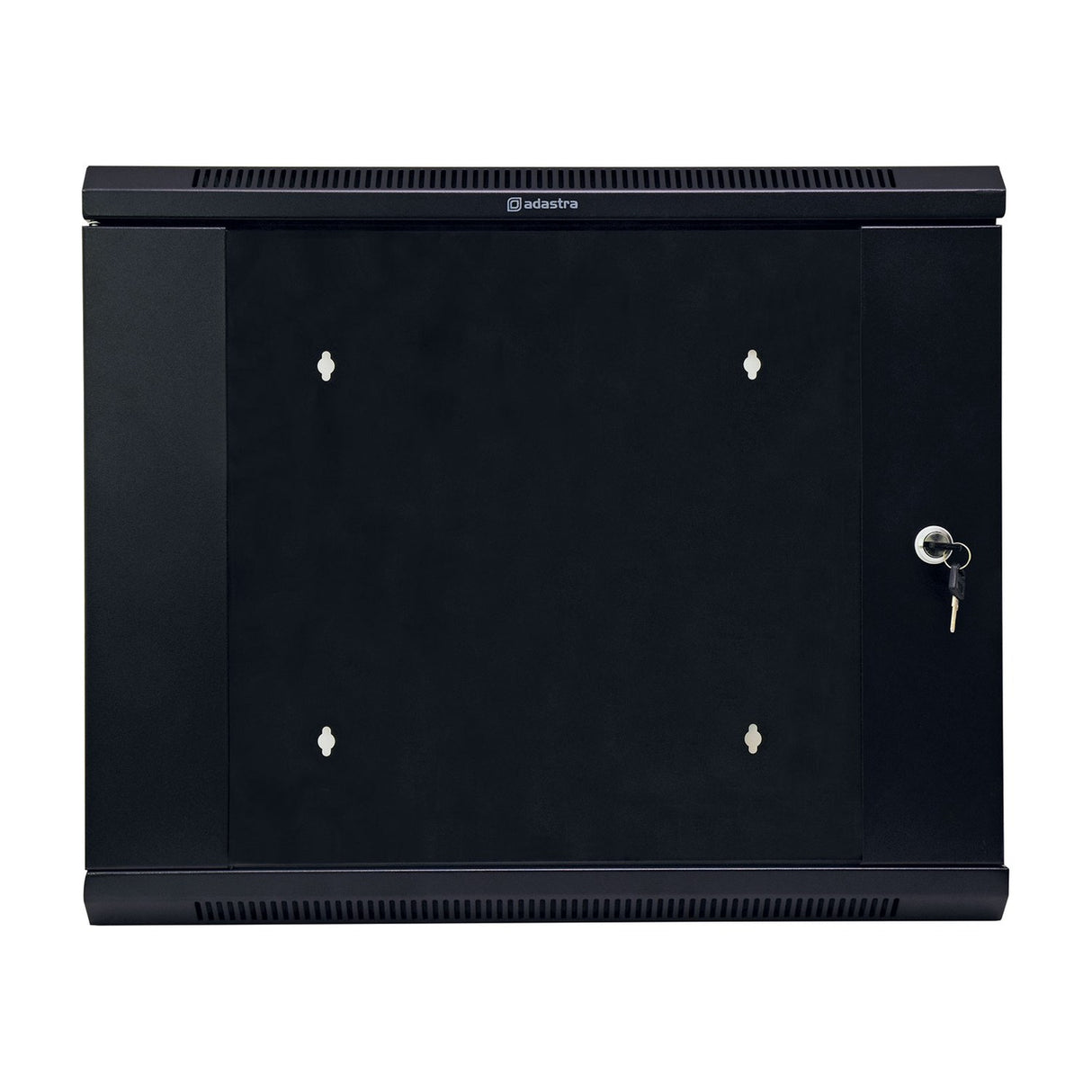

Adastra HC9U450 Hinged 9U 19" Rack Cabinet

£22699
RRP £23900
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

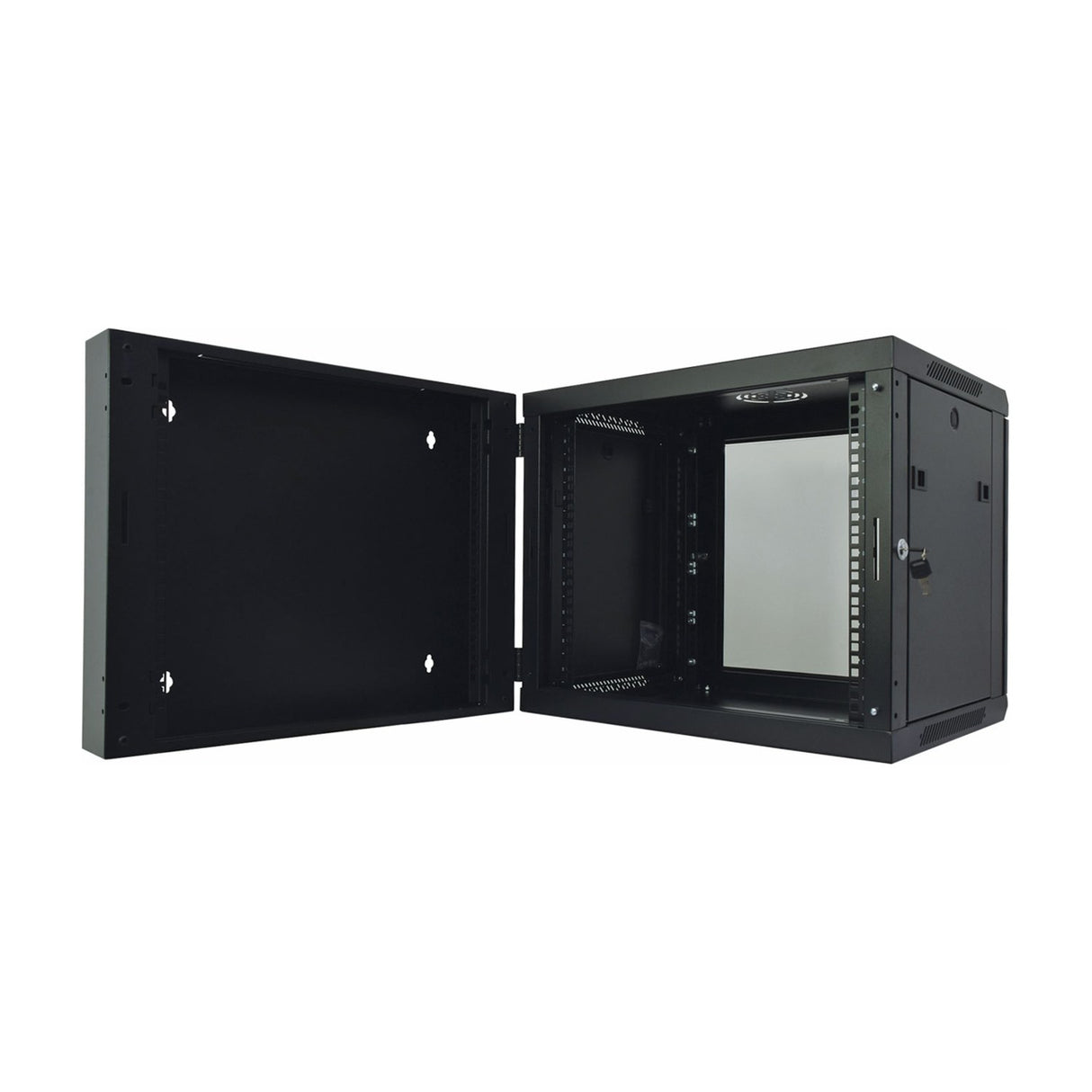

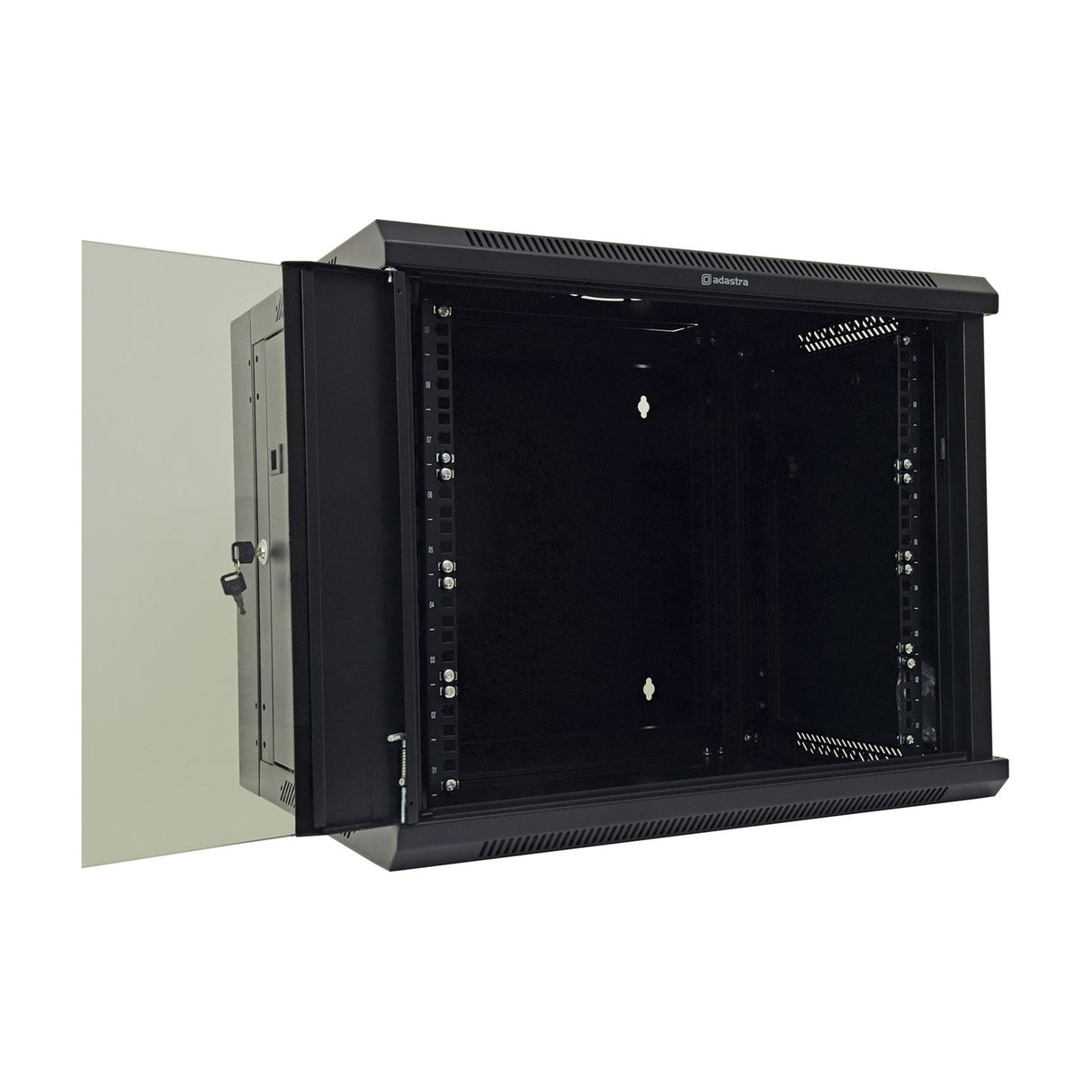

The Adastra HC9U450 is a hinged 9U wall cabinet built for 19" rack-mount equipment. The whole cabinet swings out on a lockable rear section, so once it is fixed to the wall you can reach the back panels of your gear for connections and wiring without unbolting anything. Removable side panels and a lockable front door give you easy access from every side, which makes installation and servicing far quicker than a fixed enclosure.

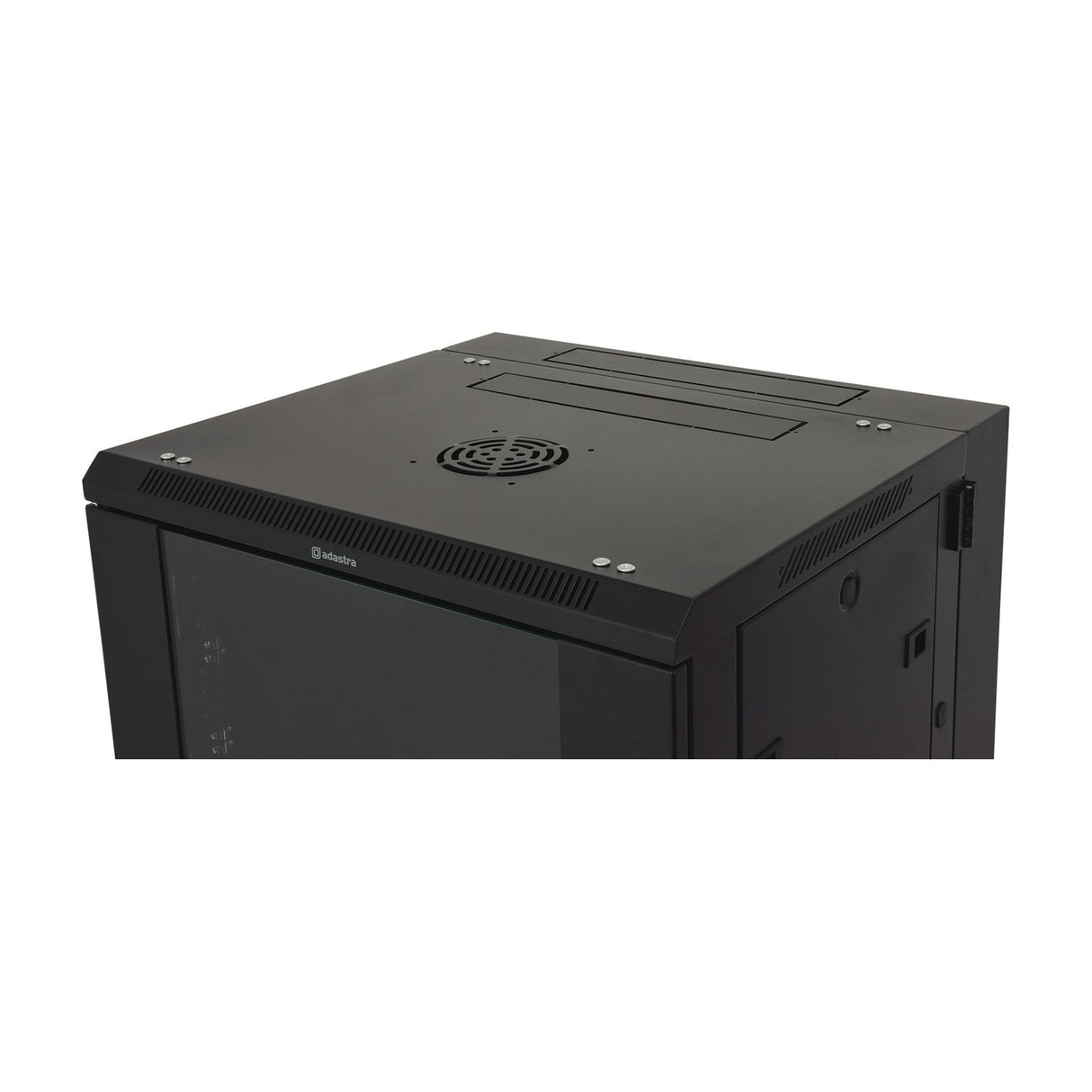

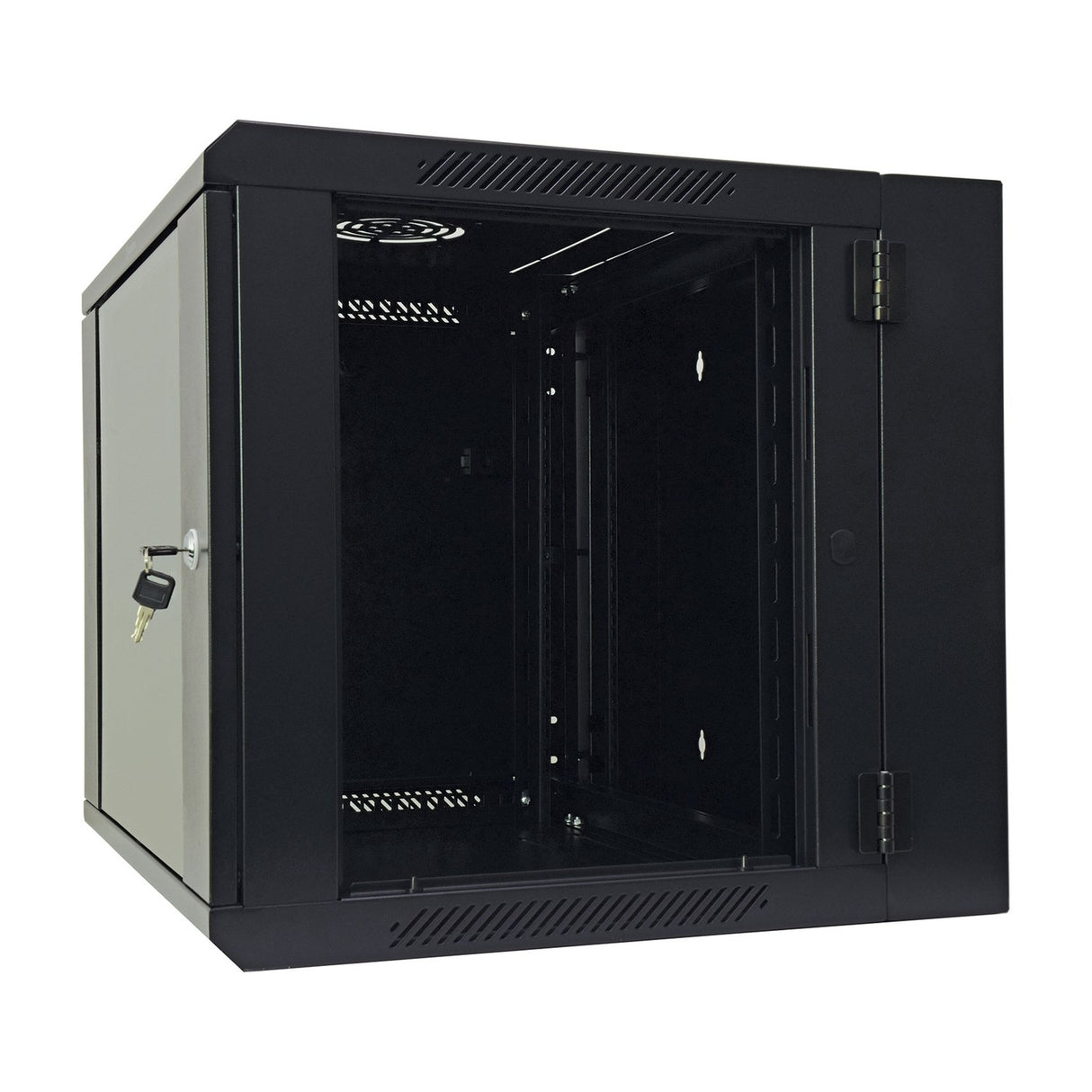

Construction is cold-rolled steel with folded edges for strength, finished in an epoxy powder coat to RAL9004. The front door carries a 5mm pane of tempered (toughened) glass set within folded steel edge panels, and it can be mounted to open from the left or right to suit your space. Both the front door and the hinged rear section lock, and each comes with two keys. Top and bottom knock-outs handle cable feeds, so power and signal runs stay tidy.

Front and rear rack strips are supplied, letting you set the mounting depth to fit equipment with overhanging fittings or to support the rear of heavier units. Assembly is straightforward, and the cabinet takes a maximum static load of 60kg in total. It meets ANSI/EIA RS-310-D, IEC297-2, DIN41491 and ETSI standards, so it works with standard 19" hardware. A practical, secure choice for professional installs where rear access matters.

Specification
Material 1.2mm cold rolled steel & 5mm tempered glass
Finish Epoxy powder coated RAL9004
Maximum load 60kg static (total)
Standard ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI compliant
Width 600mm
Downloads

Product Manual

Frequently Asked

How much equipment does the HC9U450 hold?

It offers 9U of 19" rack space and takes a total static load of up to 60kg.

Can I reach the back of installed equipment?

Yes. The rear section is hinged and lockable, so once the cabinet is wall-mounted it swings out to reveal the rear panels for access to connections and wiring.

Which way does the front door open?

The front door is removable and can be mounted to open to either the left or right, so you can set it up to suit your space.

Is the door glass safe?

The door uses a 5mm pane of tempered (toughened) glass, framed by folded steel edge panels for strength.

Does it come with locks and keys?

Yes. Both the glass front door and the hinged rear section lock, and each is supplied with two keys.

Can I adjust the mounting depth?

Yes. Front and rear rack strips are included, so you can set the depth to fit equipment with overhanging fittings or support the rear of heavy units.
