Description

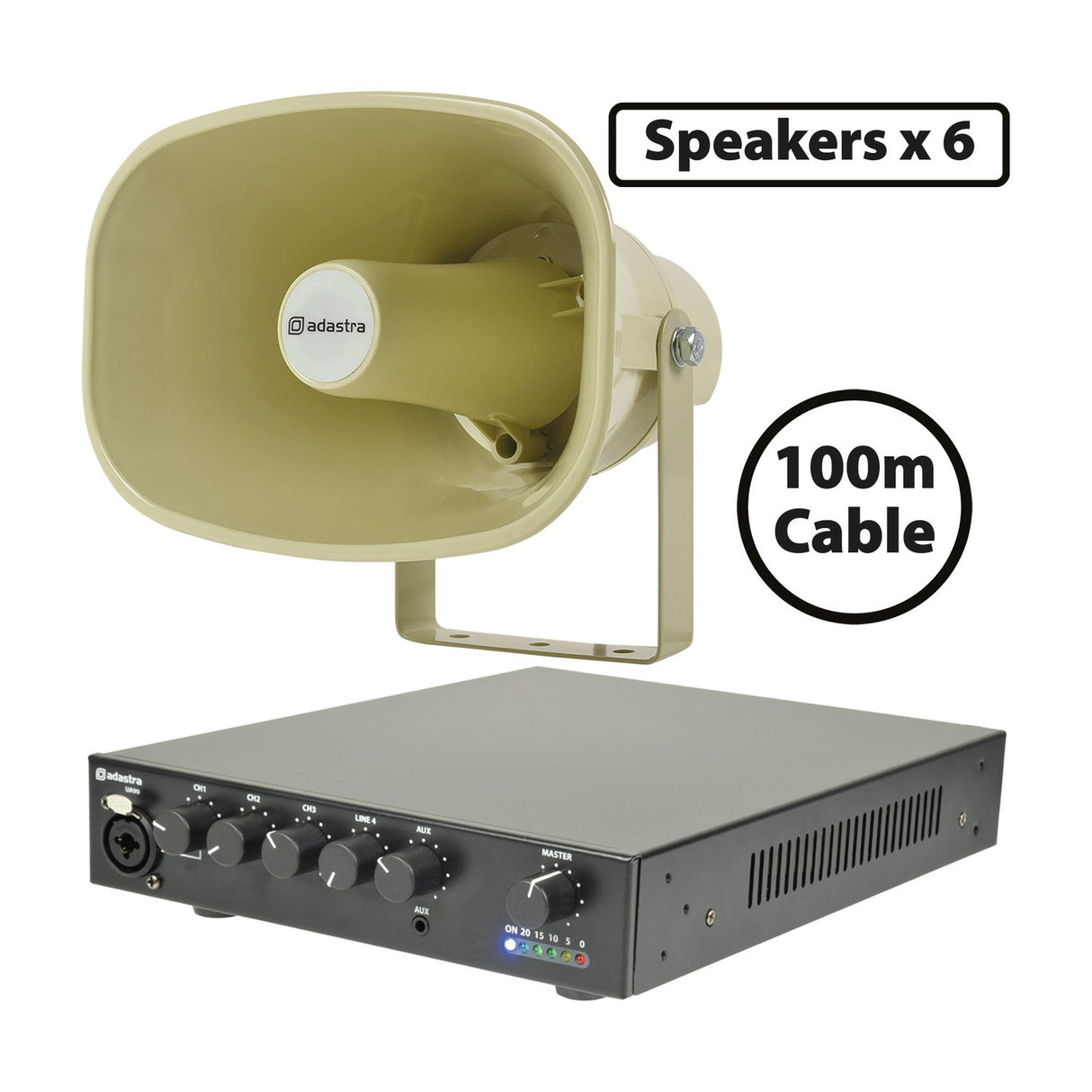

This package brings together six weatherproof ABS horn speakers and a UA90 mixer-amplifier, giving you a complete 100V line system for outdoor voice alerts and paging. Horn speakers are the most rugged type available, built to cope with rain, wind and general weather, and their focussed mid-range sound is well suited to speech and announcements across forecourts, market grounds and other industrial or public spaces. The kit works indoors too, wherever clear voice projection matters more than music playback.
The UA90 amplifier sits at the heart of the system. It can be rack mounted in pairs or fixed to a wall or under a worktop, and offers three mic/line input channels plus one Line and one Aux input. Each package matches the combined wattage tappings of all six horn speakers to the amplifier's maximum output, and we recommend running it below 90% volume. If you use lower tappings you can add more speakers, as long as the total combined speaker watts stays under 90% of the amp's rated power.
The set arrives with 100m of speaker cable, with the amplifier, cable and speakers packed separately. For 100V operation, do not use the 8Ω tappings or terminals, and use a terminal block to extend cable rather than shorting the positive and negative together. Any exposed cable should be protected from UV with conduit or capping. You can pair the system with a paging microphone for voice alerts, and choose EH15V or EH30V horn speakers depending on the coverage you need.
Specification
| Length |
100m |
| Voltage |
100 |
| Power |
15 |
| Type |
PA System |
Frequently Asked
How many speakers are included?
The package includes six ABS horn speakers rated at 15W each, matched to the UA90 mixer-amplifier.
Can I use this system outdoors?
Yes. The horn speakers are weatherproof moulded ABS, built to withstand adverse weather, and the kit is designed for industrial and public outdoor areas as well as indoor use.
Does it work on 100V line?
Yes, it runs as a 100V system. For 100V operation, do not use the 8Ω tappings or terminals.
How much speaker cable comes with it?
100m of speaker cable is supplied. Additional cable is available separately if you need to extend the runs.
Can I add a microphone for announcements?
Yes. You can add a paging microphone for voice alerts. The UA90 has three mic/line input channels plus Line and Aux inputs.
Can I add more speakers to the amplifier?
Yes, if you use lower tappings. The total combined speaker watts must stay below 90% of the amplifier's maximum output power.
