Adastra DM40 100V Mixer-Amp with USB, FM & Bluetooth

£8999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

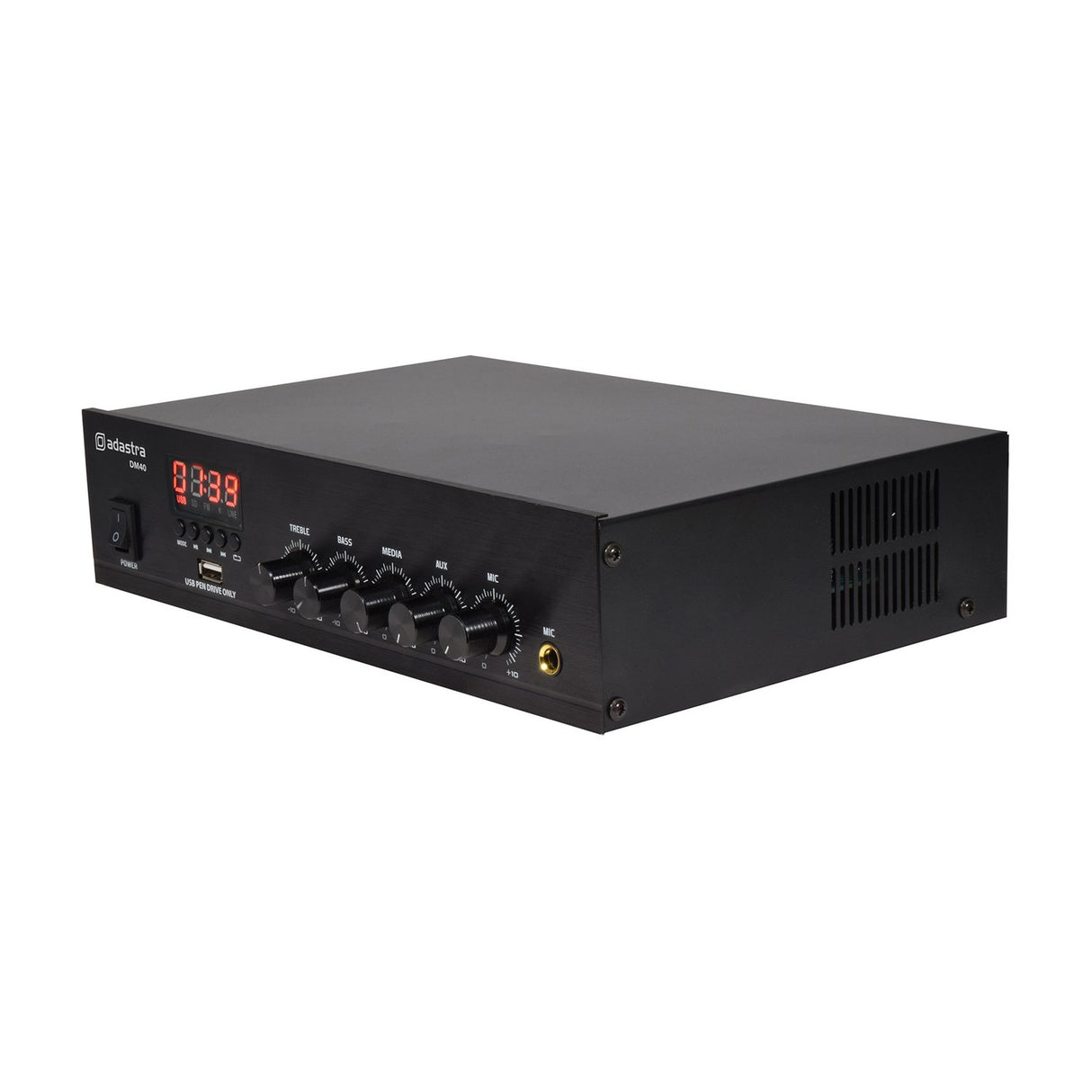

The Adastra DM40 is a compact 100V line mixer-amp built around a digital amplifier, giving you a single unit for small sound installations. It handles background music and paging in one housing, so you can run a shop, cafe, office or reception area without stacking up separate boxes. The mono output connects to either a 100V line system or a 4-16 ohm speaker load, wired through spring terminals on the rear panel.

Audio sources are covered from three directions. The onboard player reads USB media (USB 2.0, FAT32 formatted, up to 128GB) for digital playback, and the same section can be tuned to FM radio stations. Switch to Bluetooth mode and you can pair a phone or tablet for wireless playback across the room. One thing to note: the USB port is for media playback only and will not charge a phone. Bluetooth here runs on version 2.1.

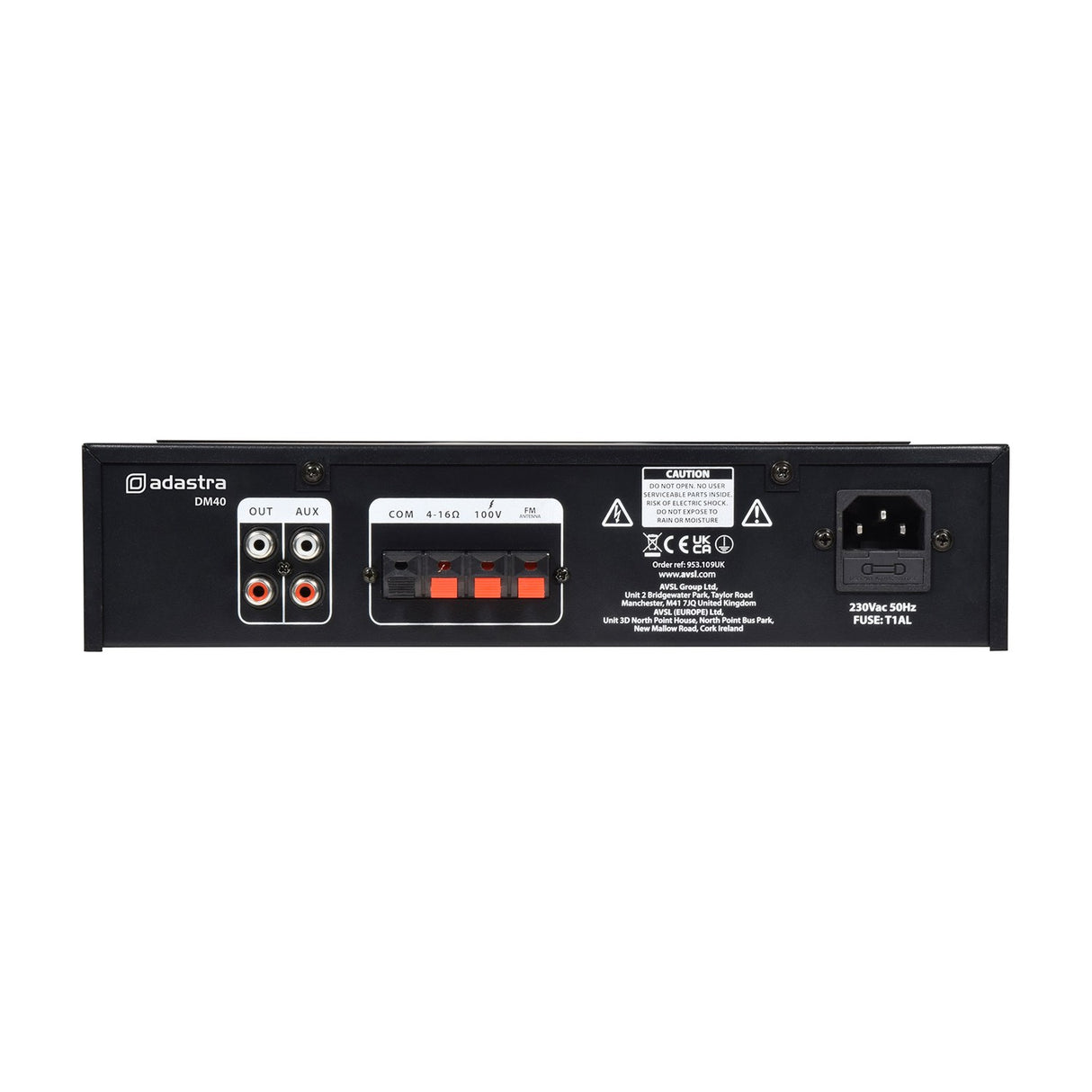

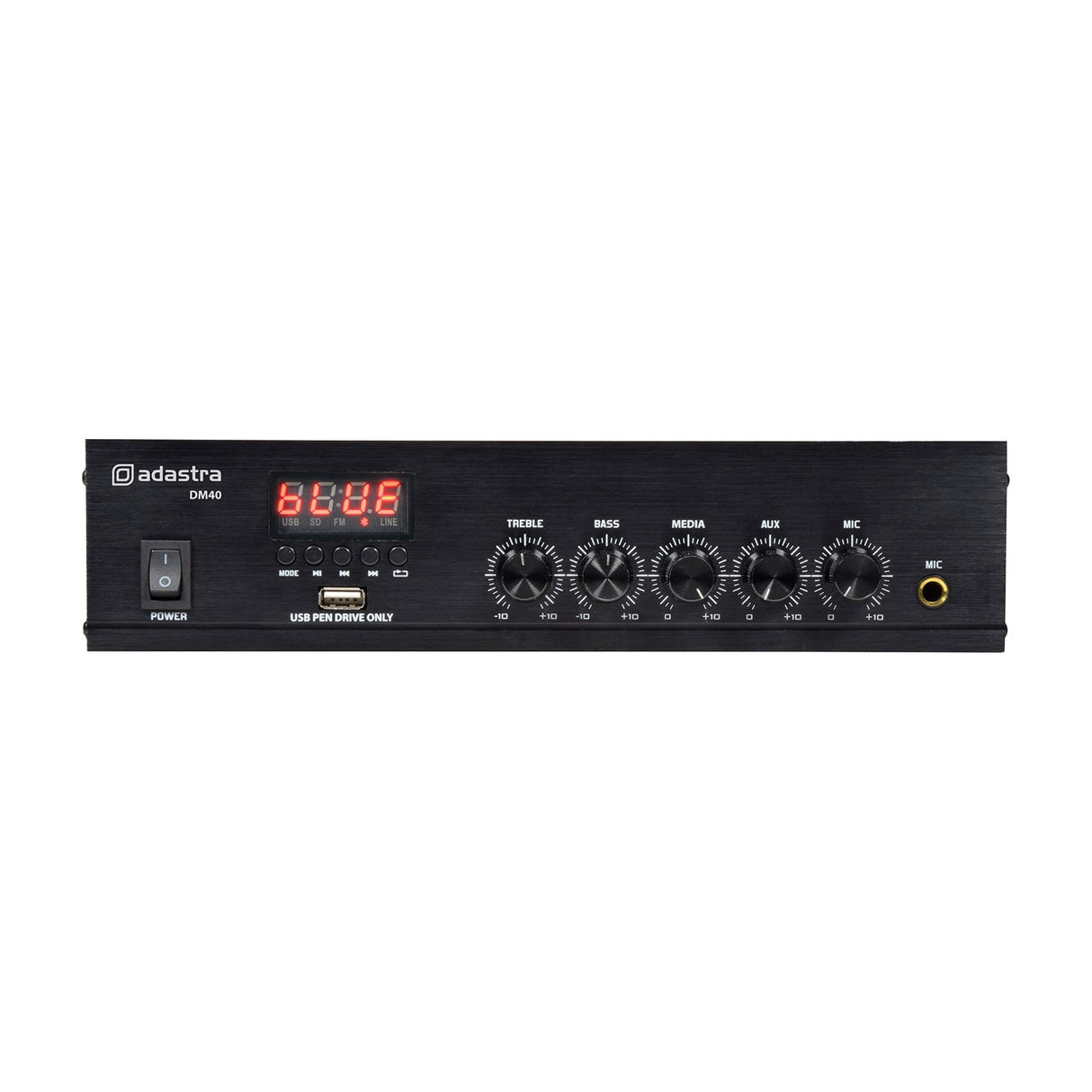

Connections on the rear give you a 6.3mm jack microphone input (unbalanced), two RCA line inputs summed to mono, and two RCA line outputs. The aerial (US antenna) uses a spring terminal. Front panel controls cover treble, bass and switching between MP3, Aux and Mic sources, so you can balance a music feed against announcements. The amp runs from a standard 230Vac IEC supply and measures 280 x 205 x 67mm, small enough to sit on a shelf or in a rack space.

Specification
Power supply 230Vac, 50Hz (IEC)
Speaker : outputs COM, 100V and 4-16 Ohms (spring terminals)
Audio source USB player, FM tuner and Bluetooth receiver
Bluetooth version V2.1
Controls Treble, Bass, MP3, Aux, Mic
Microphone : inputs 6.3mm jack (unbalanced)
Line input 2 x RCA (summed to mono)
Line output 2 x RCA
Antenna connection Spring terminal
Dimensions 280mm x 205mm x 67mm (L x W x H)
Fuse T1AL 230V
USB version USB 2.0 (FAT32, 128GB max.)
Downloads

Product Manual

Frequently Asked

Can the DM40 drive 100V line speakers?

Yes. The mono output works with a 100V line system or a 4-16 ohm speaker load, connected via spring terminals on the rear panel.

What audio sources does it support?

It has an integral USB player, an FM tuner and a Bluetooth receiver, plus a microphone input and RCA line inputs.

Can I charge my phone from the USB port?

No. The USB port is for media playback only and does not charge phones or tablets.

What USB media does it accept?

USB 2.0 drives formatted as FAT32, up to 128GB in capacity.

Is there a microphone input for paging?

Yes. There is a 6.3mm jack microphone input (unbalanced), and you can switch between Mic and music sources on the front panel.

What size is the unit?

It measures 280 x 205 x 67mm (L x W x H) and runs from a 230Vac IEC supply.
