Description

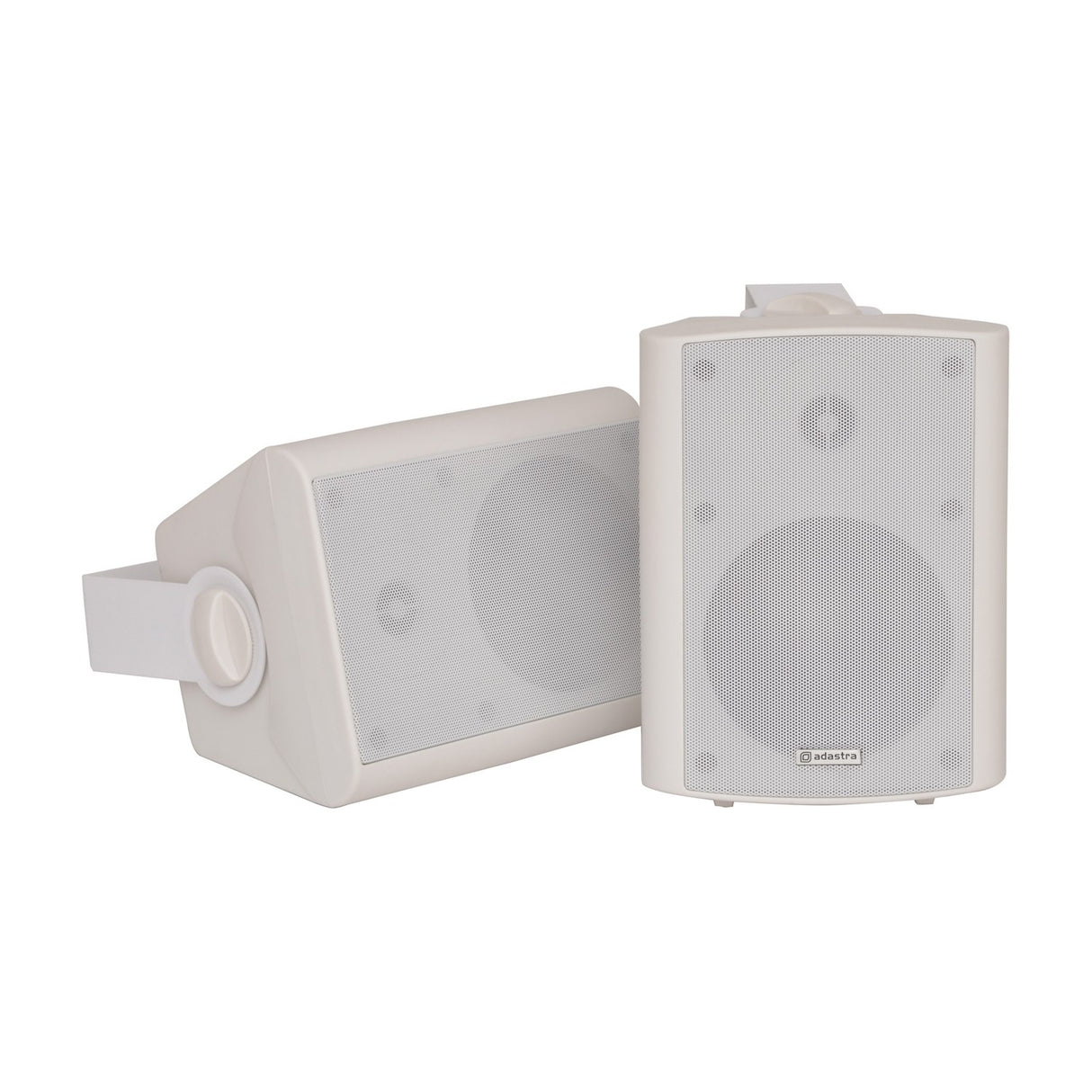

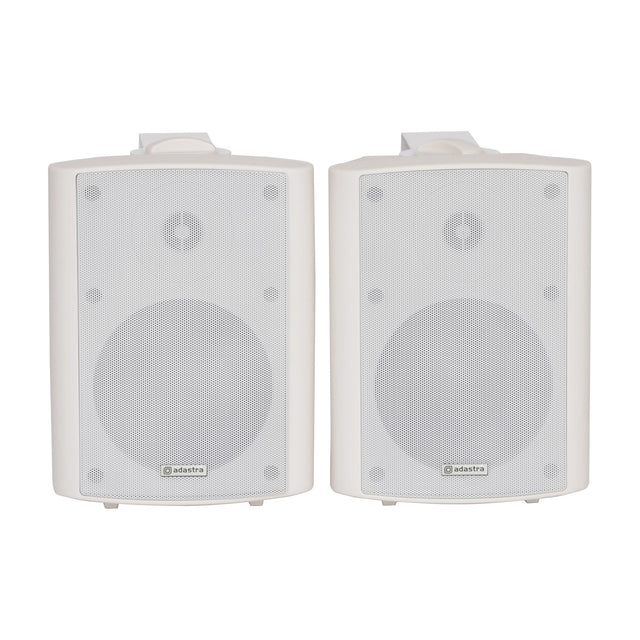

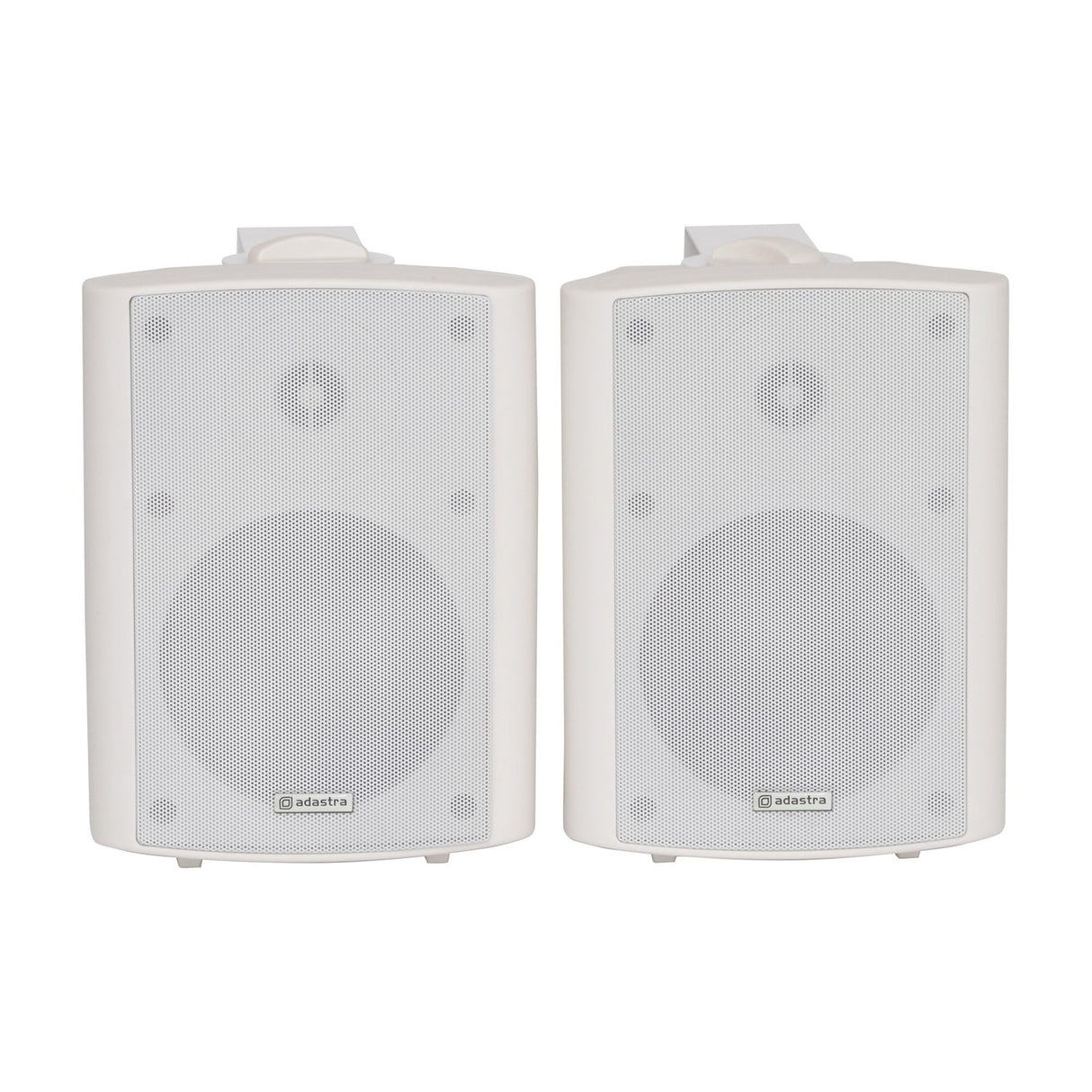

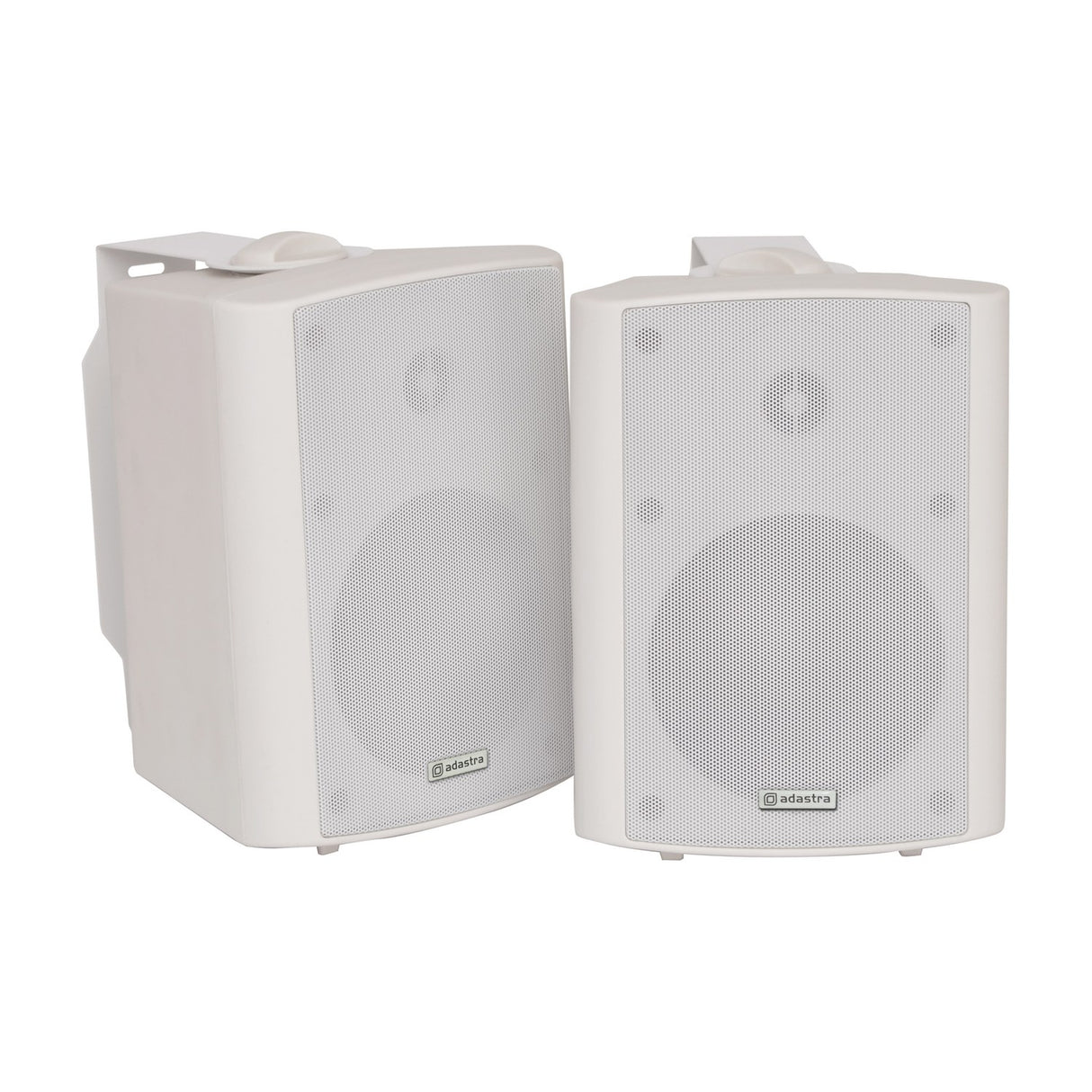

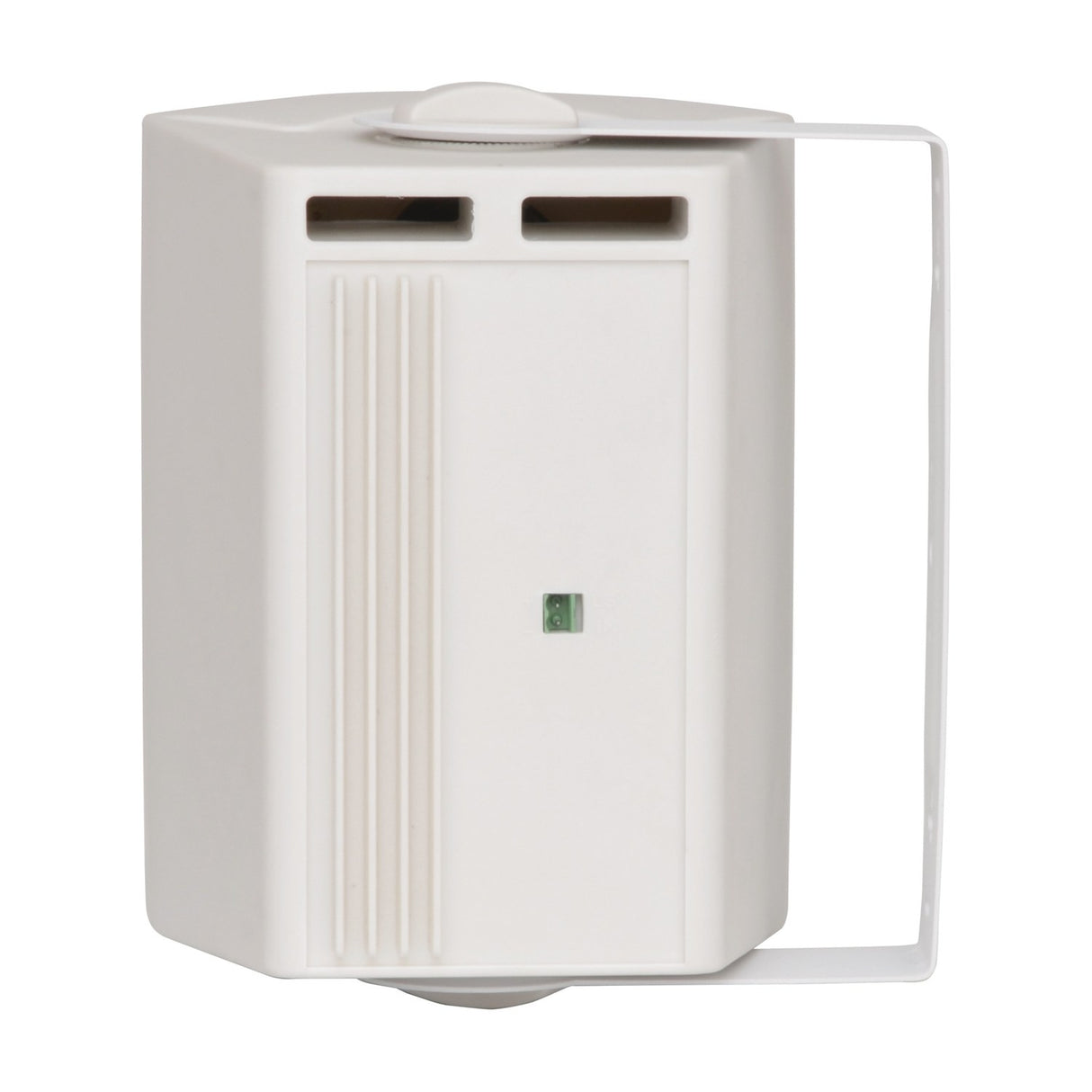

The Adastra BC5A-W is a two-way active monitor speaker set supplied as a pair, with one powered unit and one passive satellite. The powered unit houses a stereo amplifier module rated at 2 x 30W RMS, driving both speakers so you don't need a separate amp. It's built for nearfield monitoring, home entertainment or use as a small active background music system, and the finish here is white.

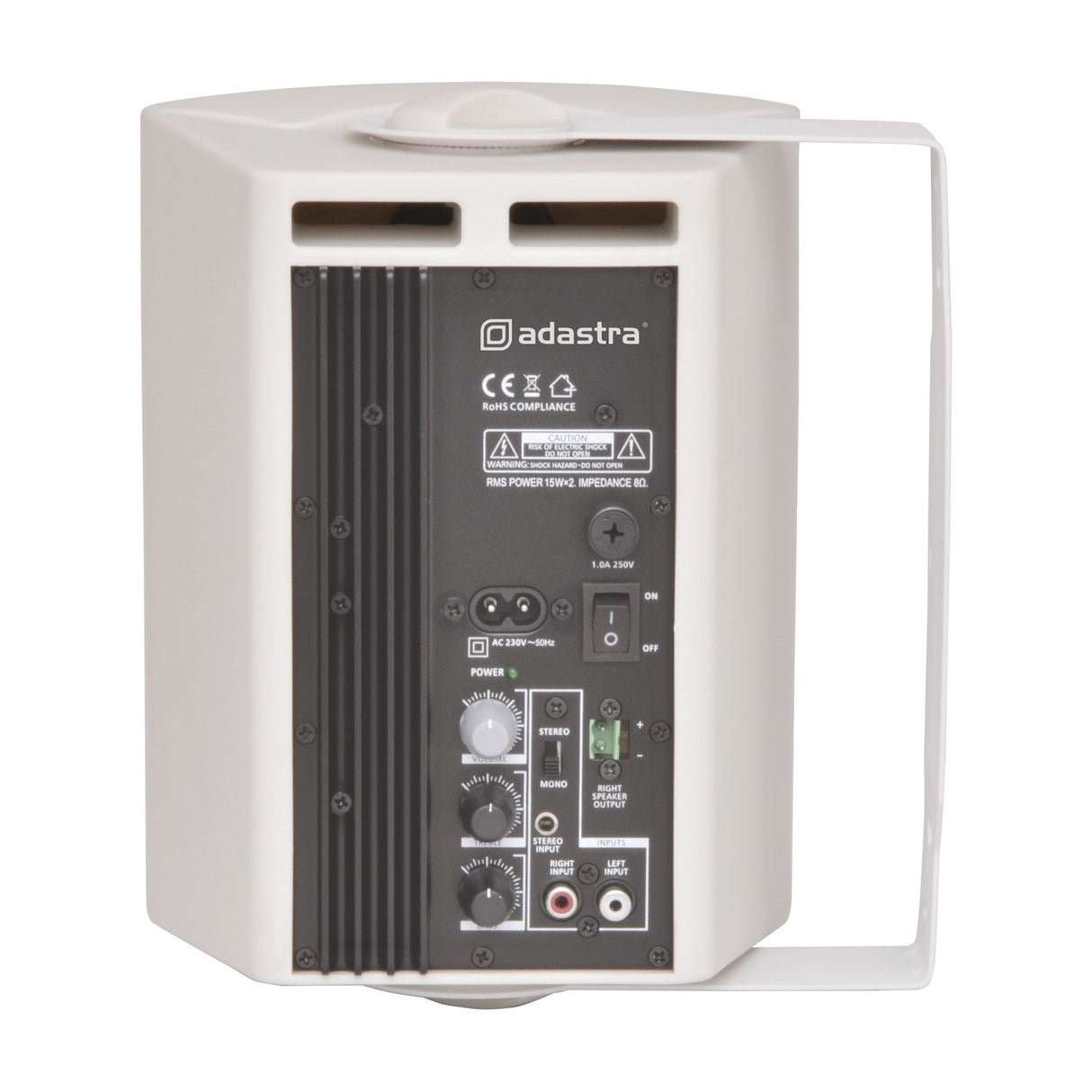

Each speaker uses a 133mm (5.25") polypropylene cone woofer paired with a 25mm balanced dome tweeter, giving a frequency response of 100Hz to 20kHz and a sensitivity of 88dB. The drivers are magnetically shielded, so you can place the speakers near a monitor or television without picture interference. Front-panel controls cover volume, treble and bass, along with a power on/off switch and an LED indicator so you can see at a glance when the set is running.
The set runs from a 230Vac, 50Hz mains supply through a supplied 1.5m Fig.8 (figure-of-eight) lead. A 4m speaker link cable connects the passive unit to the powered one, and mounting brackets are included if you want to wall-mount rather than shelf-stand them. Each cabinet measures 240 x 180 x 155mm, and the full set weighs 4.6kg. Dispersion is rated at 150° (-3dB), giving a wide listening area for a compact pair.
Specification
| Colour |
White |
| Power supply |
230Vac, 50Hz (fig 8) |
| Woofer |
133mmØ (5.25") PP cone |
| Tweeter |
25mm balanced dome |
| Frequency response |
100Hz - 20kHz |
| Output power rms |
2 x 30W |
| Dispersion |
150° (-3dB) |
| Sensitivity |
88dB |

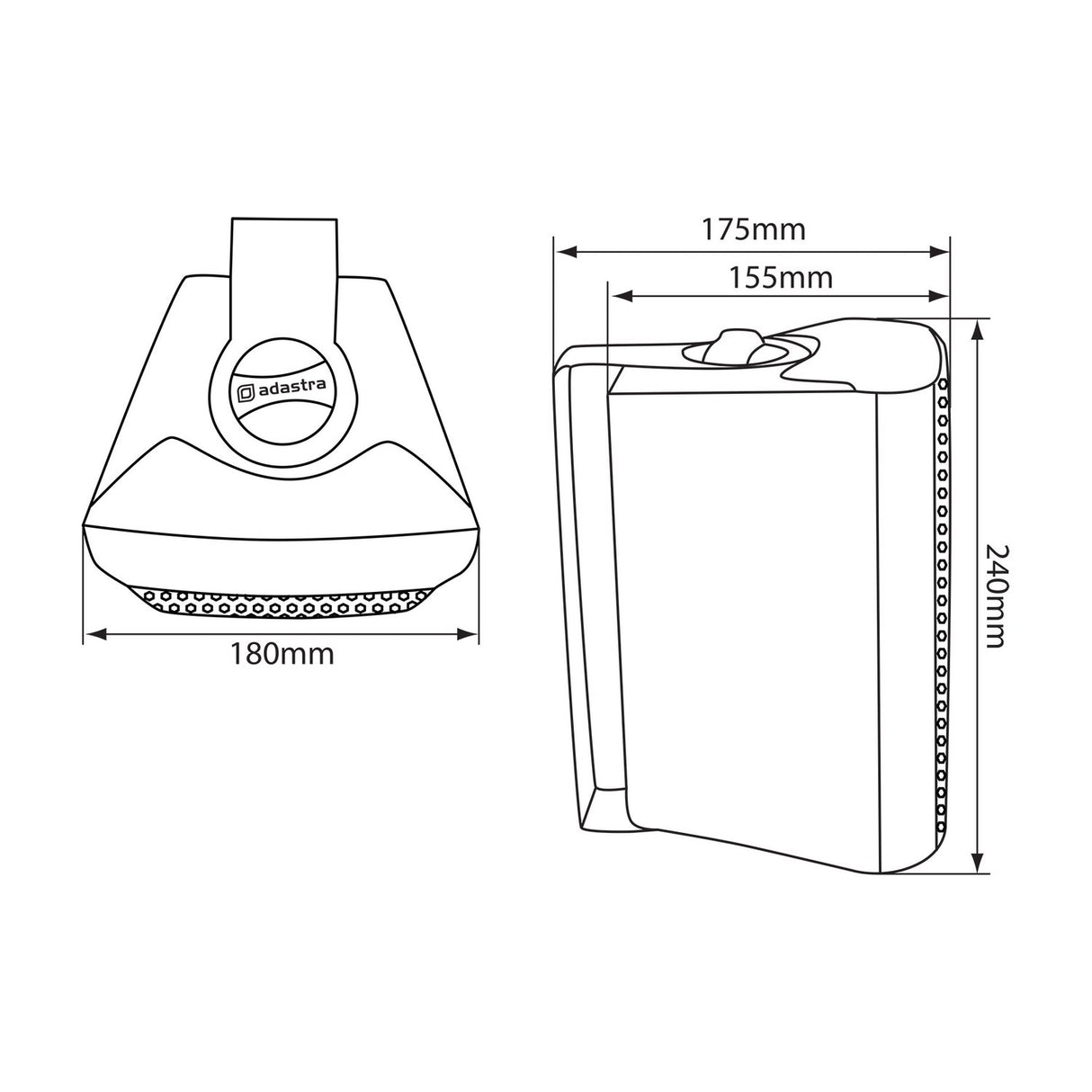

| Dimensions |
240mm x 180mm x 155mm |
| Weight (per set) |
4.60KG |
Downloads
Product Manual
Frequently Asked
Do I need a separate amplifier?
No. The powered unit has a built-in stereo amplifier module rated at 2 x 30W RMS, which drives both the active and passive speakers.
What's included in the set?
You get one active (powered) speaker and one passive speaker, plus mounting brackets, a 4m speaker link cable and a 1.5m Fig.8 mains lead.
Can I place these near a screen?
Yes. The speakers are magnetically shielded, so they can sit near a monitor or television without causing picture interference.
Can they be wall-mounted?
Yes. Mounting brackets are supplied, so you can wall-mount the speakers or stand them on a shelf.
What size are the drivers?
Each cabinet has a 133mm (5.25") polypropylene cone woofer and a 25mm balanced dome tweeter.
How far apart can the two speakers sit?
The supplied speaker link cable is 4m long, so you can space the passive unit up to that distance from the powered one.
