Description

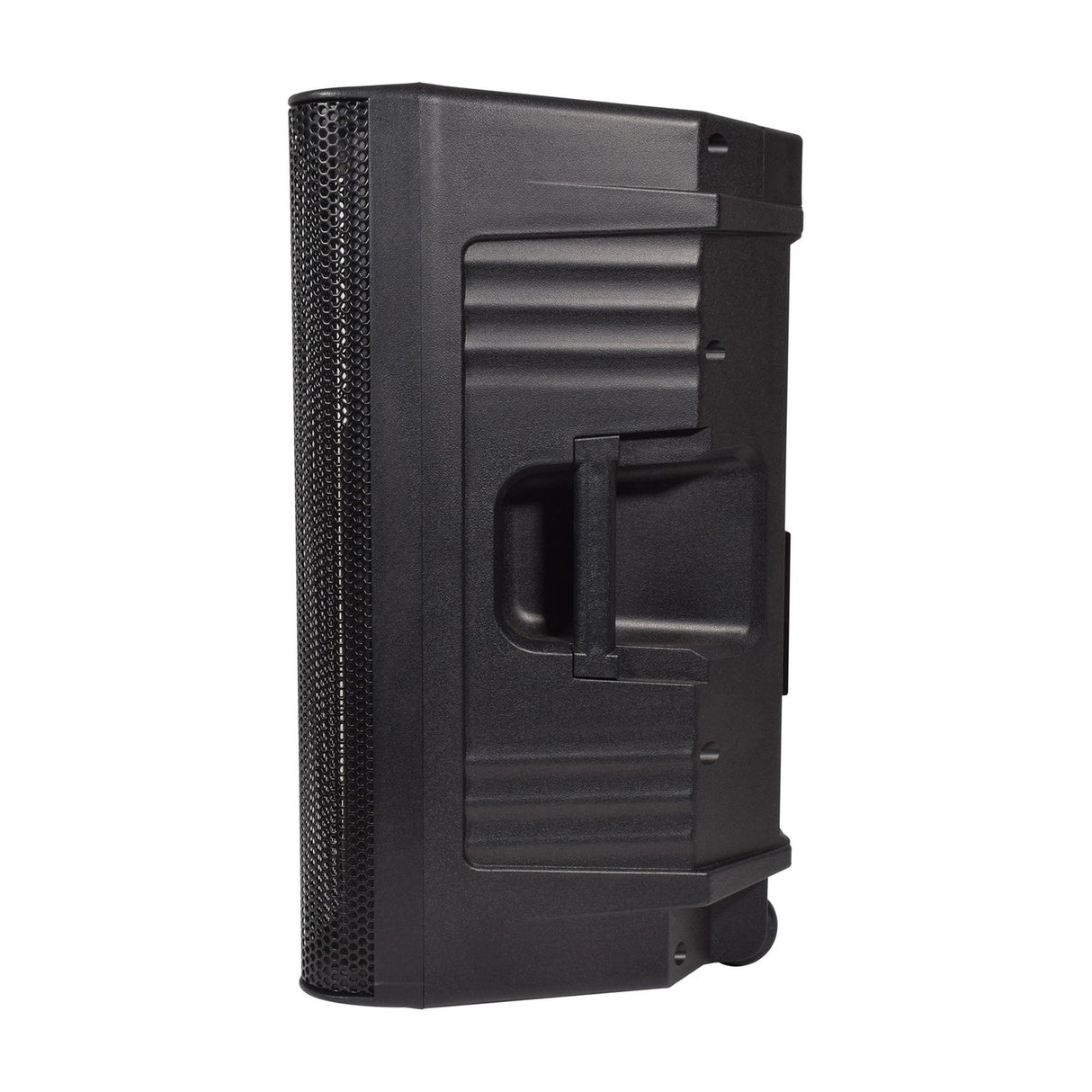

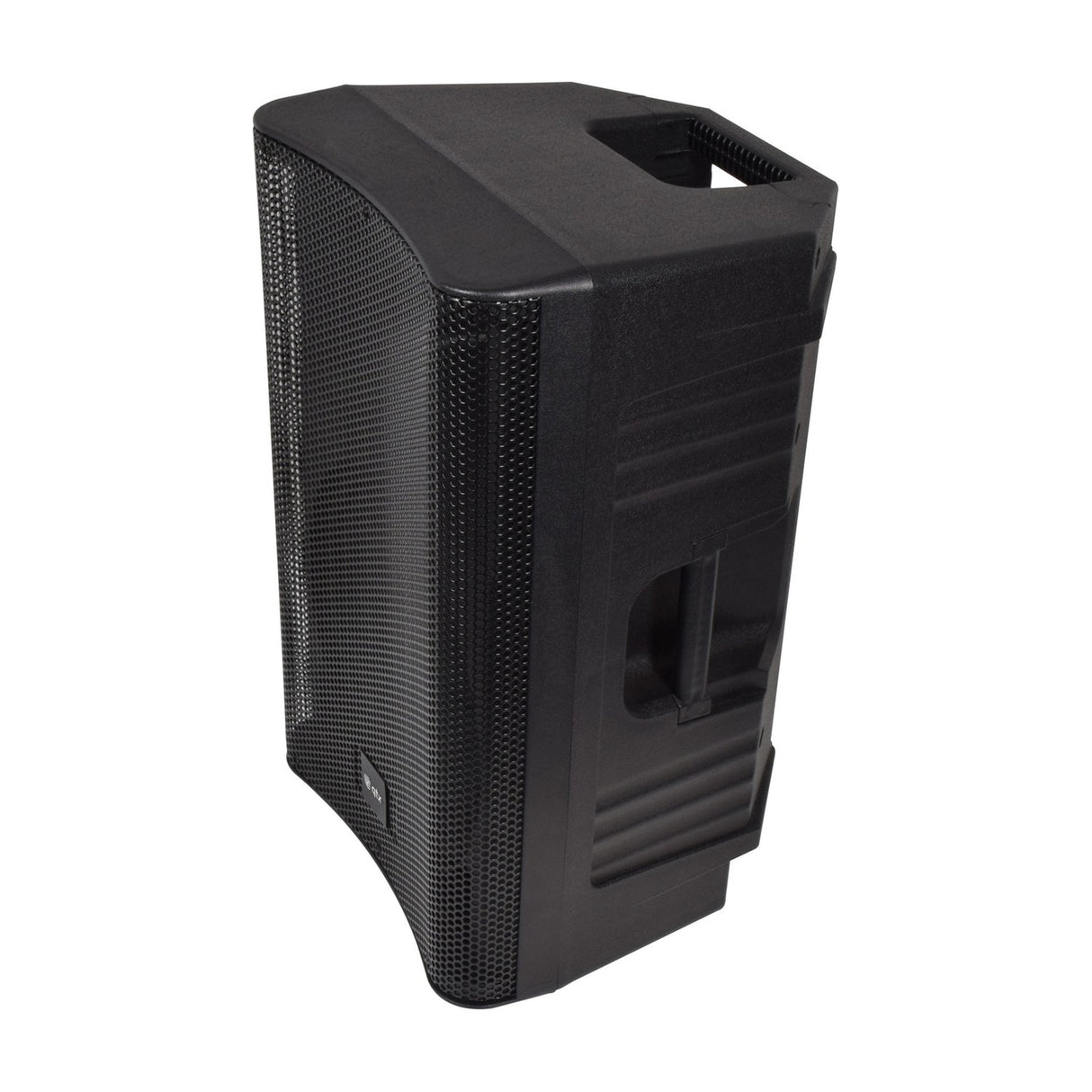

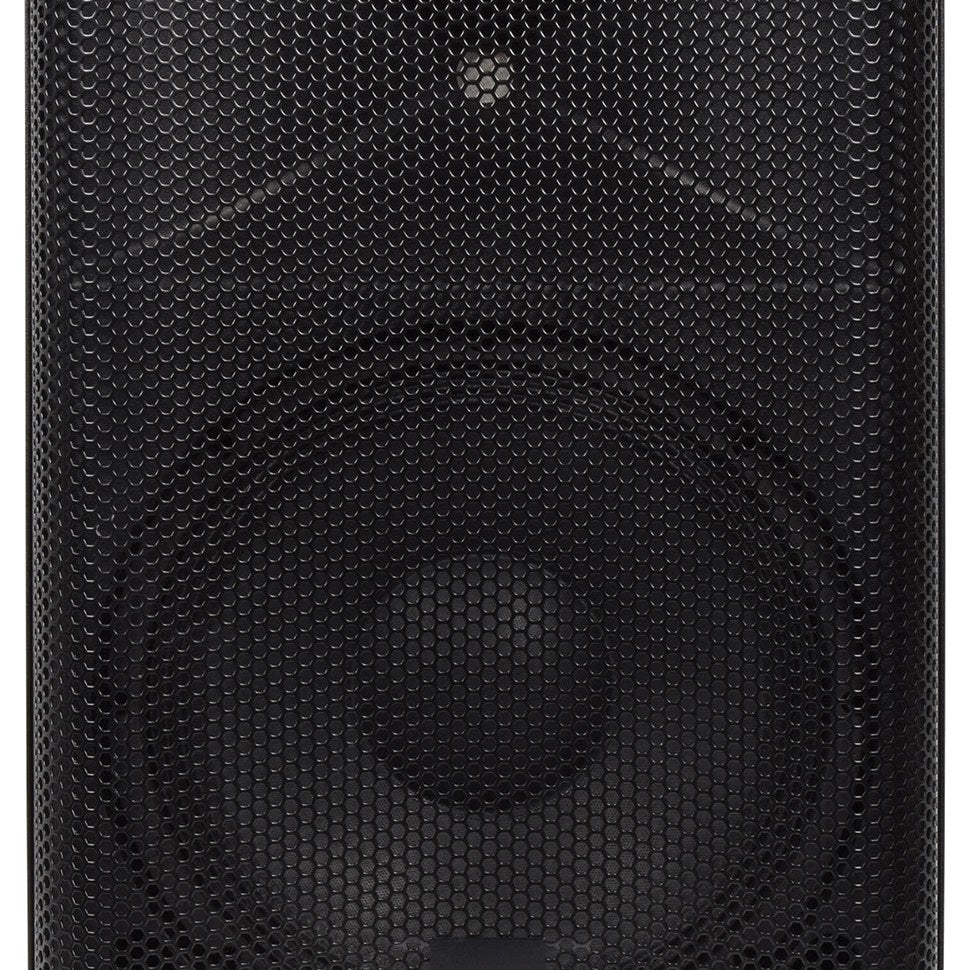

The QTX QUEST-12A is an active PA cabinet with an amplifier built in, so you don't need a separate amp to run it. It uses a class-AB amplifier and handles up to 720W peak, housed in a moulded polypropylene enclosure that keeps the weight down while standing up to regular use. Rear wheels are fitted for easy moving between rooms or venues, and a 35mm pole mount socket lets you fit it to a speaker stand (tripod).

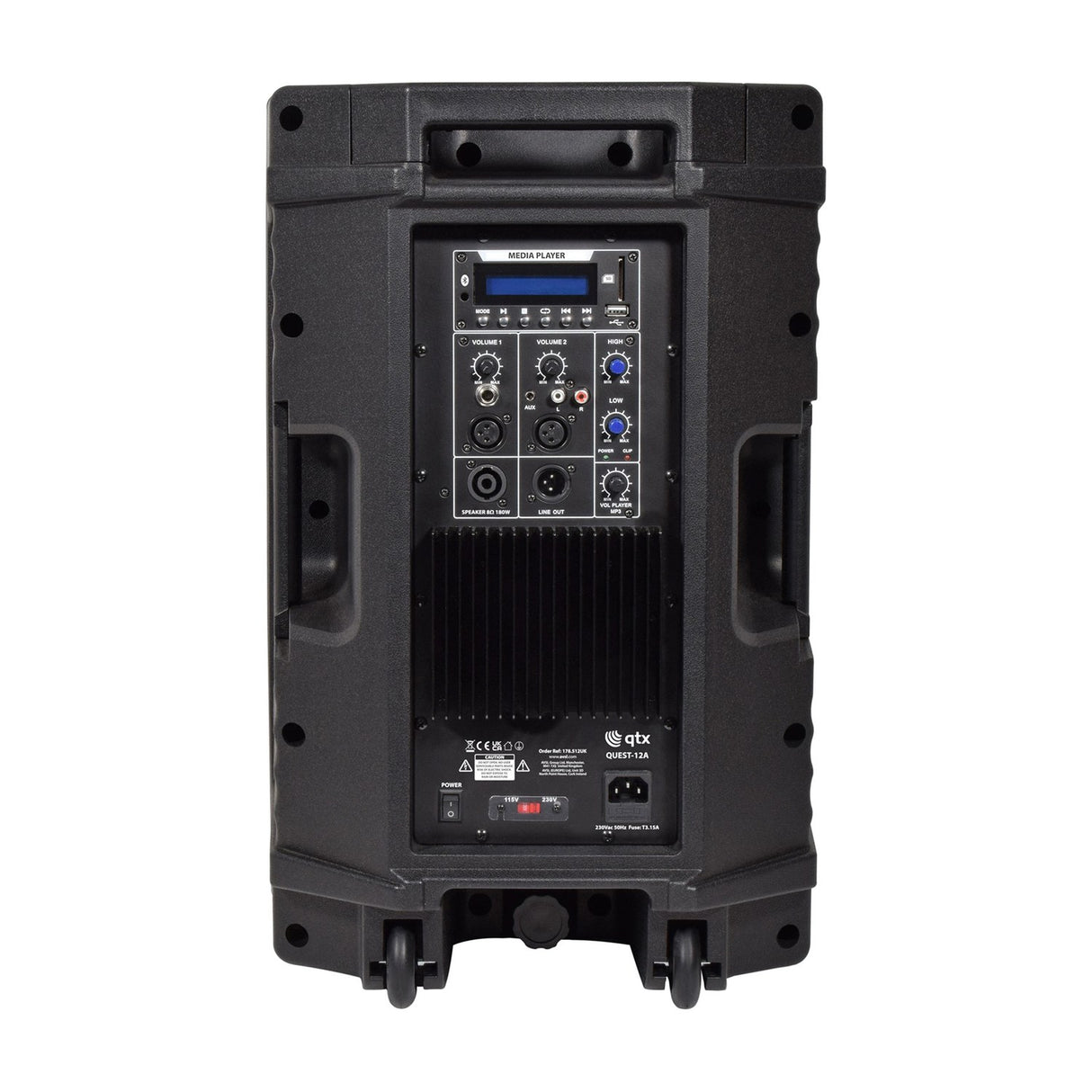

Inputs cover both microphone and line level, each with its own volume control, so you can balance a mic against backing music without one drowning out the other. Connection options include jack, XLR, RCA (phono) and minijack, which covers most sources you're likely to plug in. The built-in media player has independent volume too and reads mp3 tracks from USB or SD, works as an FM tuner, or takes audio wirelessly over Bluetooth.
Treble and bass tone controls shape the output, and there's an XLR line output if you want to feed the signal on to another device. The internal amplifier also drives a passive speaker, so you can add a second cabinet and run a straightforward two-speaker PA setup from the one active unit. This makes the QUEST-12A a practical choice for DJs, stage performers, presentations and general event use where you want a self-contained system that's quick to set up and move.
Specification
| Weight |
15.20KG |
| Dimensions |
590mm x 380mm x 335mm |
| Frequency response |
50Hz - 19kHz |
| Sensitivity |
96dB |
| Output power peak |
720W |
| Output power : rms |
180W |
| Tweeter |
35mmØ (1.35") Ti Compression driver |
| Woofer |
300mmØ (12") |
| Power supply |
230Vac, 50Hz (IEC) |
| Amplifier : construction |
Class-AB |
| Audio source |
USB/SD/FM/BT media player |
Downloads
Product Manual
Frequently Asked
Does the QUEST-12A need a separate amplifier?
No. It has a class-AB amplifier built in, so it powers itself from the mains. You just connect your sources and go.
Can I connect a second speaker?
Yes. The internal amplifier has an output for a passive speaker, letting you build a two-speaker PA system from the one active cabinet.
What audio sources does it accept?
Microphone and line level inputs via jack, XLR, RCA or minijack, plus a built-in player for USB or SD mp3 files, FM radio and Bluetooth.
How does it mount on a stand?
It has a 35mm pole mount socket on the base, so it fits standard speaker stands and tripods.
Is it easy to move around?
Yes. The moulded polypropylene cabinet is fairly light and rear wheels are fitted for wheeling it between locations.
What power does it run on?
It runs from 230Vac, 50Hz mains via an IEC connection.
