Supervised Output Module with Isolator (MAGPRO-1OSi)

£16999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

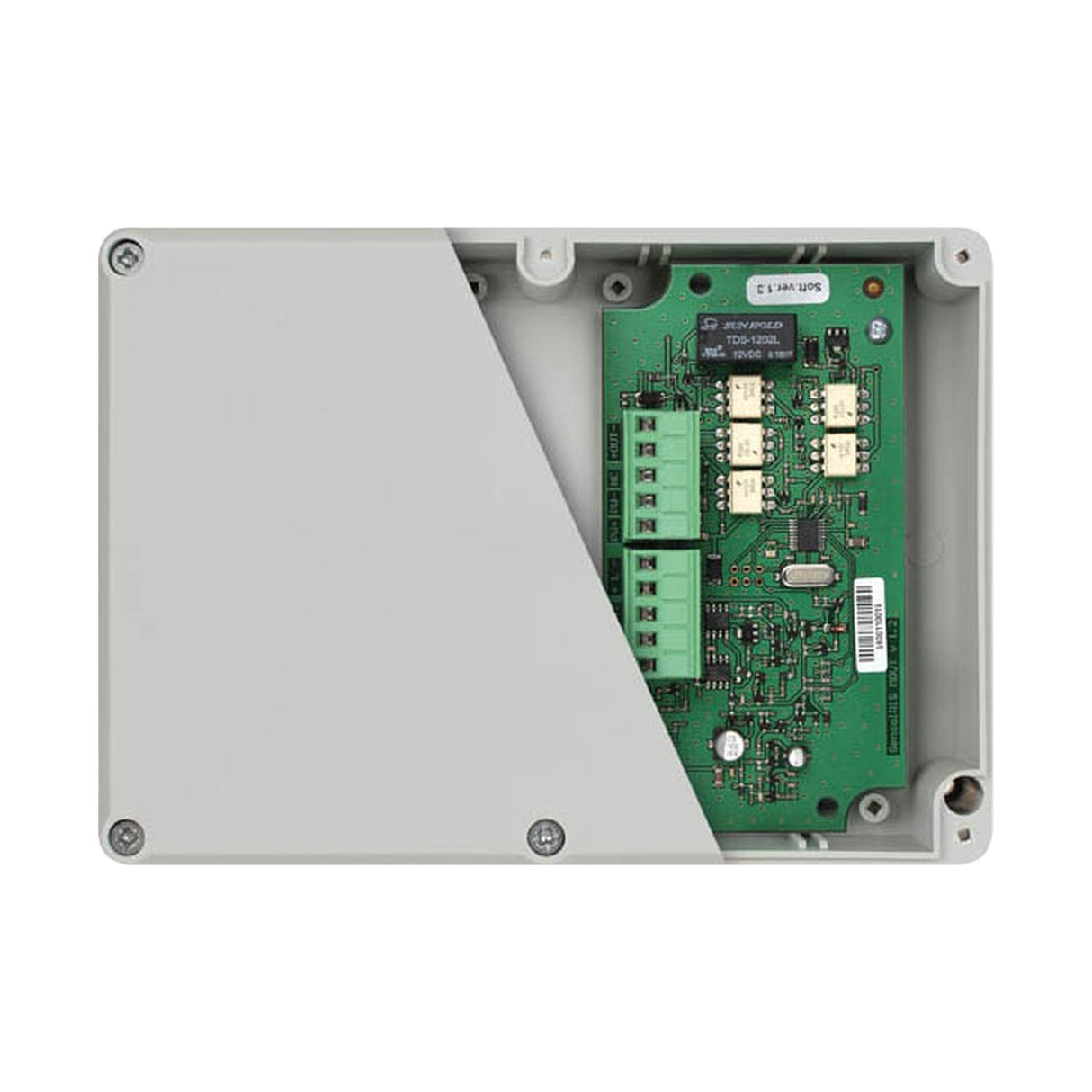

This is a supervised output module with an isolator, part of the Magfire addressable range for fire protection systems. It provides a single monitored output that can be controlled from the fire panel over the addressable loop.

The module connects into the addressable loop and reports its status back to the control panel, with supervision on the output so faults can be detected. The built-in isolator helps keep the loop working if a short circuit occurs, keeping other devices on the line active.

It suits addressable fire protection installations where a controlled, monitored output is needed as part of a wider Magfire system. It is intended for professional installation by a competent fire alarm engineer.

Specification
Materials ABS
Operating Voltage 15 - 32V DC
Maximum Current Consumption 3.6mA
Cable Size 0.4 - 2.0mm²
Number of Outputs 1 Monitored Conventional Detection Zone
Wiring Type Analogue Addressable (MAGPRO)
Protocol Type Custom (Closed)
Dimensions 126 x 176 x 57mm
Product Net Weight 0.23KG
Product Gross Weight 0.25KG
Downloads

Product Specification Sheet

Product Manual

Frequently Asked

What does this module do?

It provides one supervised output that can be controlled from the fire panel over the addressable loop.

What is the isolator for?

The built-in isolator helps keep the loop running if a short circuit occurs, so other devices on the line stay active.

Is the output monitored?

Yes, the output is supervised, which allows faults to be detected and reported back to the control panel.

Which systems is it compatible with?

It is part of the Magfire addressable range and is designed for use within that addressable fire protection system.
