Description

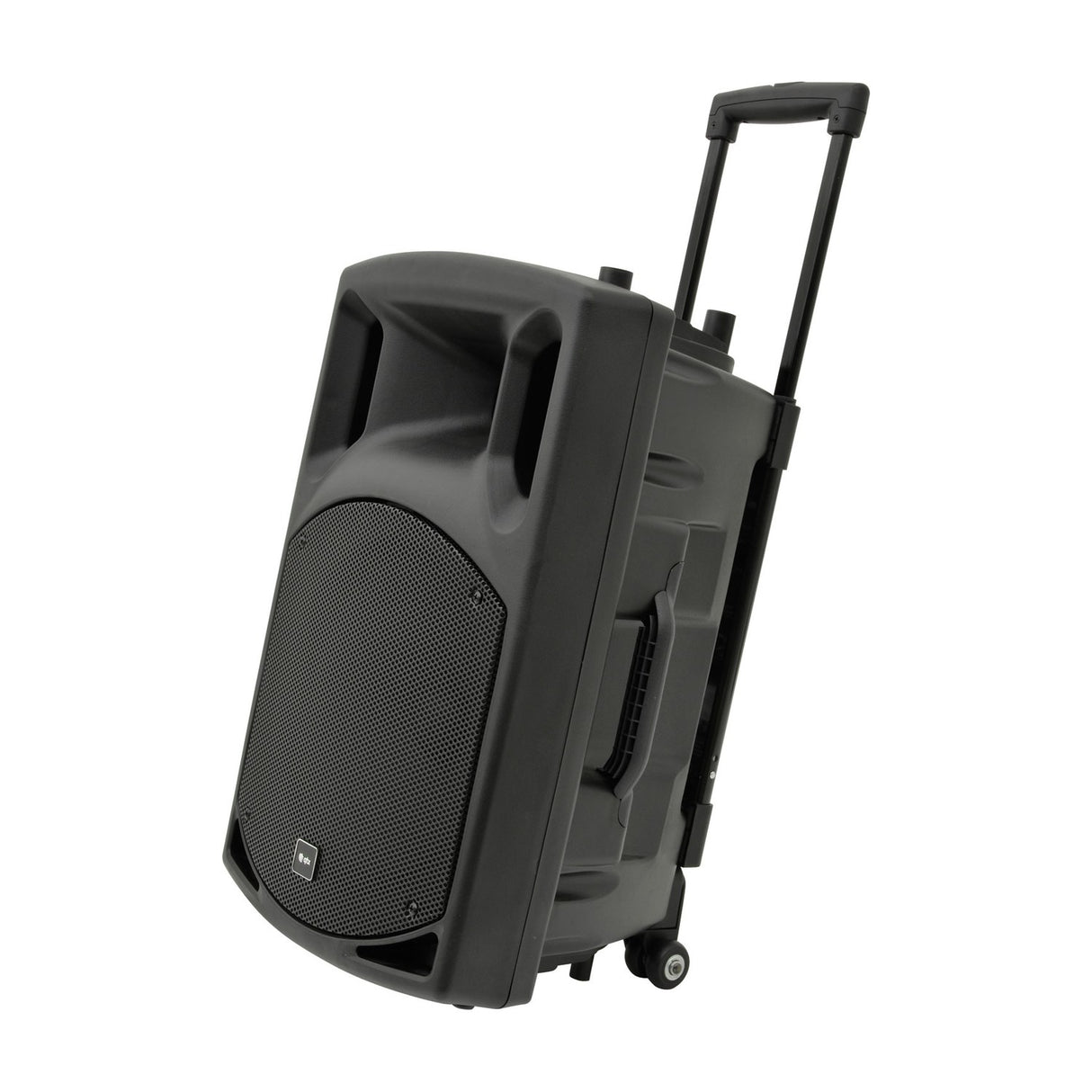

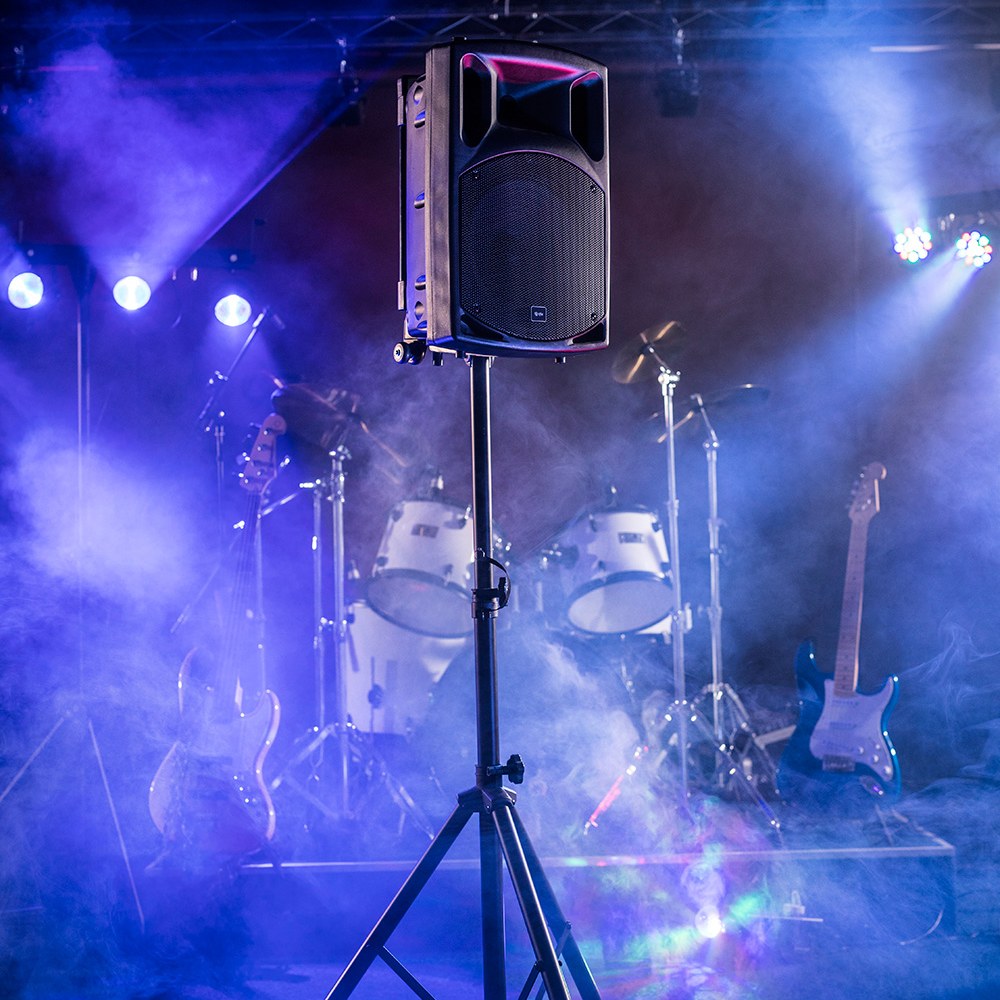

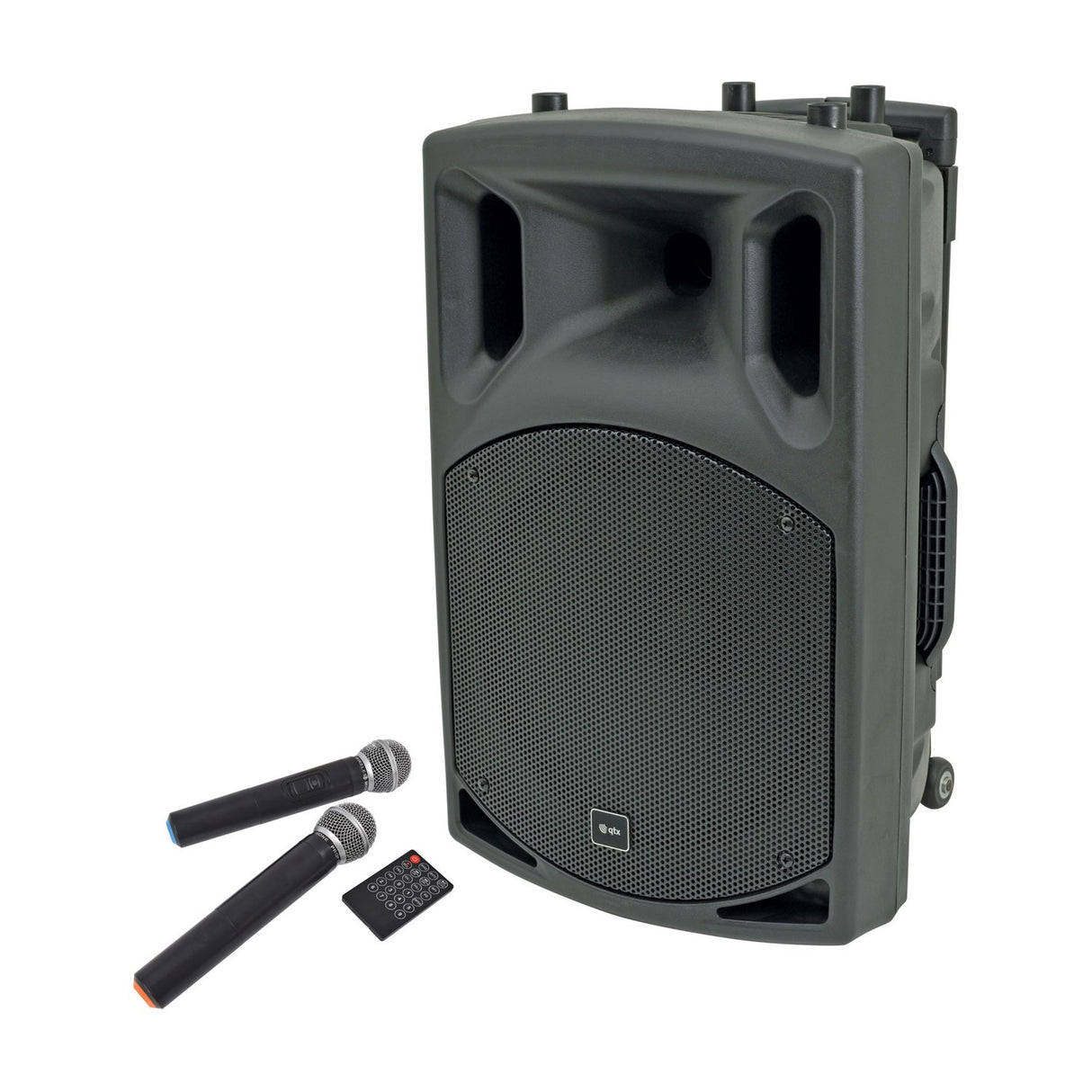

The QTX QX12PA is a self-contained PA system built for easy portability. It has pull and carry handles plus wheels, so you can move it between rooms or venues without help. Power comes from the mains or the internal rechargeable battery, which runs for up to 8 hours, so you can use it away from a socket. A 35mm socket lets you mount it on a stand or pole (a tripod stand in UK terms) when you need more height.

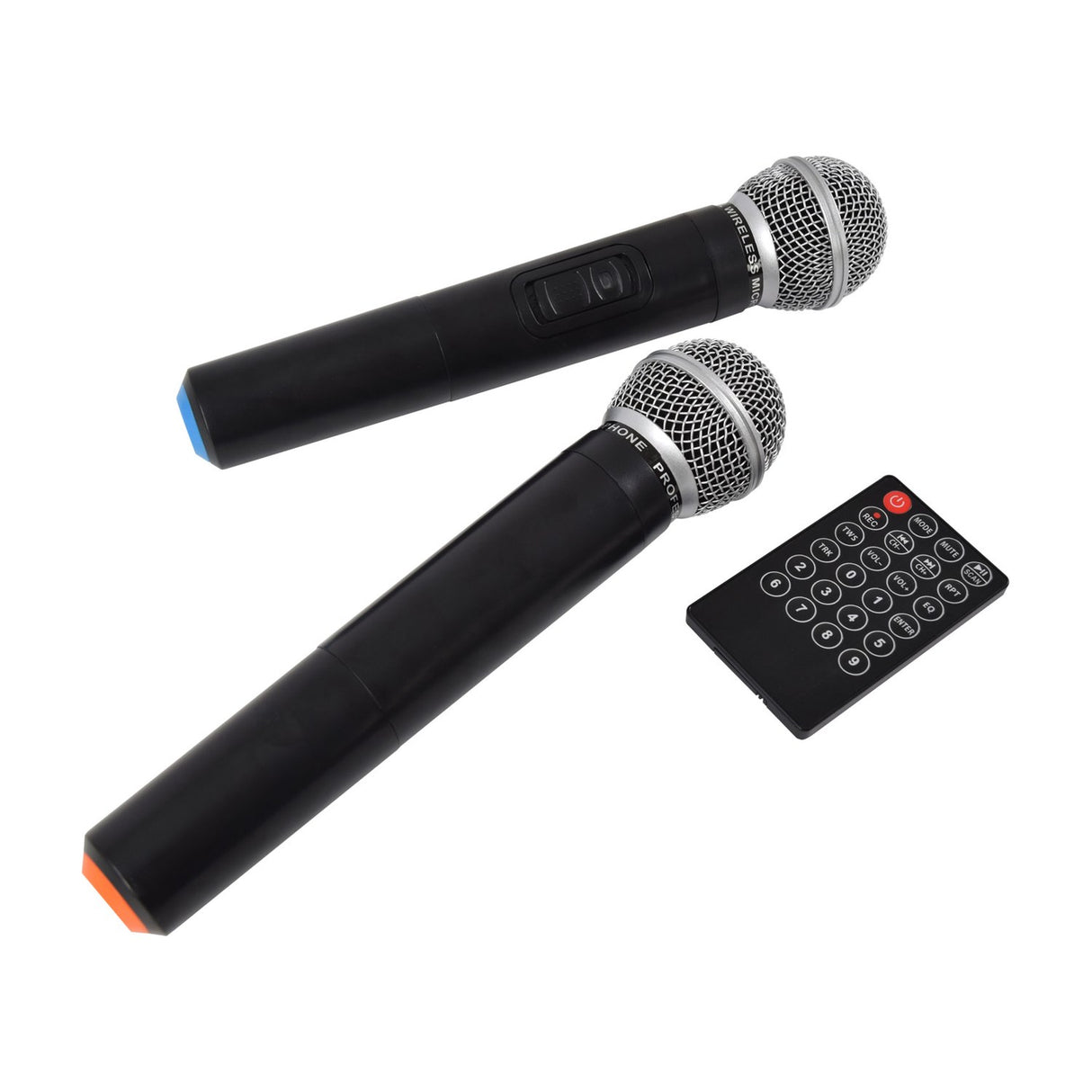

You get two VHF wireless microphones (radio mics) in the box, working on 174.1MHz and 175.0MHz, with an echo effect available to add depth to vocals. There are two further mic inputs on 6.3mm jack, one of which doubles as a guitar input. A 3.5mm stereo aux input suits phones, tablets, laptops and mp3 players, while the L+R RCA in and out adds DJ connectivity and options for expansion or recording. The active inbuilt amplifier gives 50 + 50W RMS through a 25mm (1") titanium compression driver, with 90° x 60° dispersion.

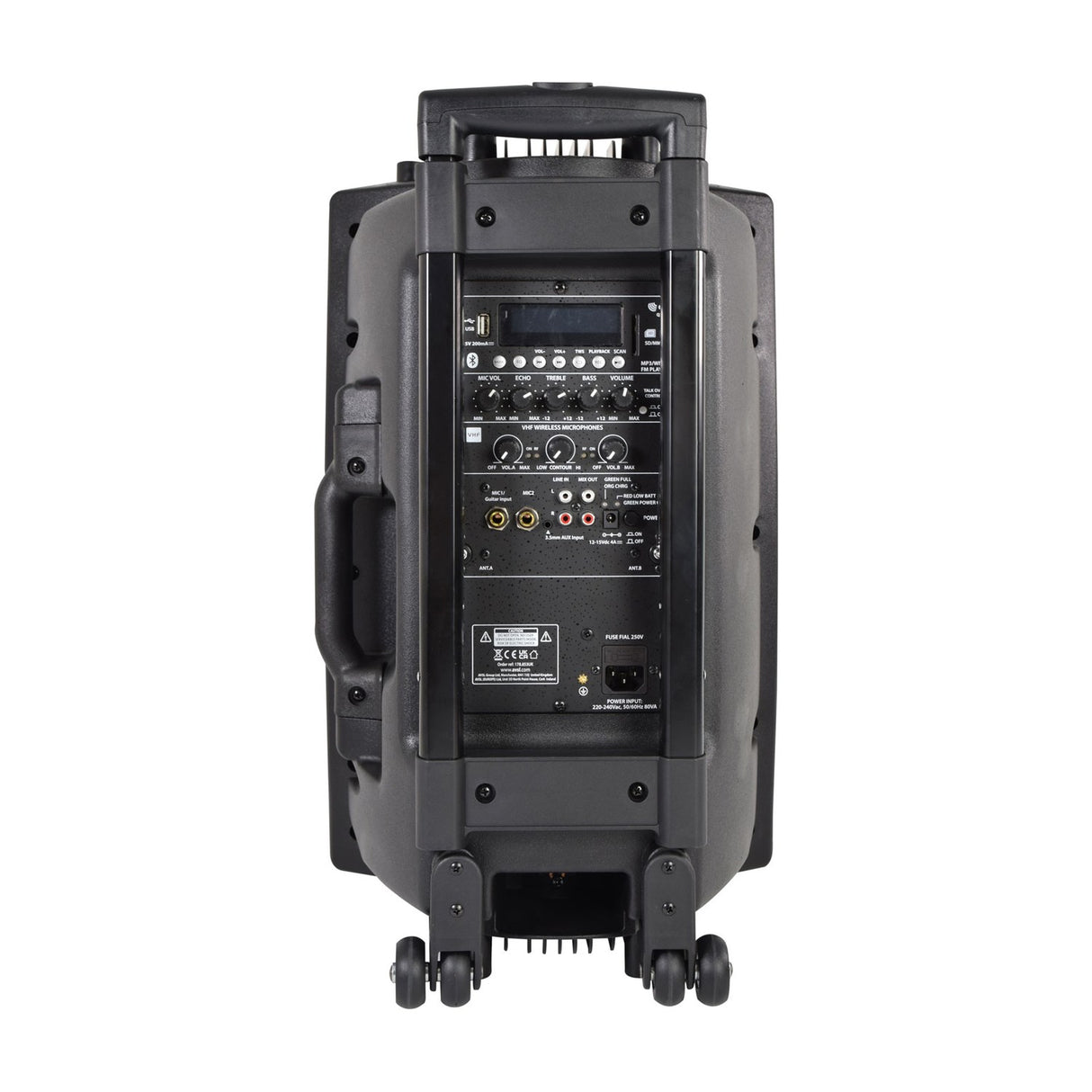

The internal media player handles SD and USB media, an FM radio tuner and paired Bluetooth 4.2 devices, all controllable with the supplied IR remote control. A switchable VCV 'voiceover' function lowers the background music automatically when a mic signal comes in, which is handy for announcements. Front controls cover volume, bass, treble, echo, mic volume, VHF volume, contour, VCV and Bluetooth. Optional neck-worn transmitters are available on 174.1MHz and 175.0MHz for hands-free use.
Specification
| Power supply |
220-240Vac, 50/60Hz (IEC) / external 12Vdc / internal battery |
| HF driver |
25mm (1'') Titanium compression driver |
| Battery life |
Up to 8 hours |
| Controls |
Volume, Bass, Treble, Echo, Mic vol, VHF vol, Contour, VCV, Bluetooth |
| Wireless microphone frequencies |
174.1MHz + 175.0MHz |
| Amplifier : output |
50 + 50Wrms |
| Bluetooth version |
4.2 |
| Dispersion |
90° x 60° (H x V) |
| Inputs |
MIC.1/guitar, MIC.2 (6.3mm jack), Line In (L+R RCA), AUX (3.5mm stereo jack) |
Downloads
Product Manual
Frequently Asked
How long does the battery last?
The internal rechargeable battery runs for up to 8 hours. You can also power the unit from the mains (220-240Vac) or an external 12Vdc supply.
Does it come with wireless microphones?
Yes, two VHF wireless microphones are included, working on 174.1MHz and 175.0MHz. There are also two wired mic inputs on the unit.
Can I connect my phone or laptop?
Yes. You can use the 3.5mm stereo aux input for phones, tablets, laptops and mp3 players, or pair a device over Bluetooth 4.2. There are also RCA and USB/SD options.
What does the VCV feature do?
VCV is a 'voiceover' function that automatically lowers the volume of background music when a mic signal is received, so speech comes through clearly. It is switchable if you would rather leave it off.
Can I mount it on a stand?
Yes. It has a 35mm socket for pole or stand mounting, so you can raise it on a tripod stand for better coverage.
What is the amplifier output?
The inbuilt active amplifier delivers 50 + 50W RMS through a 25mm (1") titanium compression driver, with 90° x 60° dispersion.
