Luxeon Dimmable Main Power Connector - White

£4199
RRP £6000
The RRP is the manufacturer's recommended retail price of the item.
279 In Stock - Ready to Ship
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

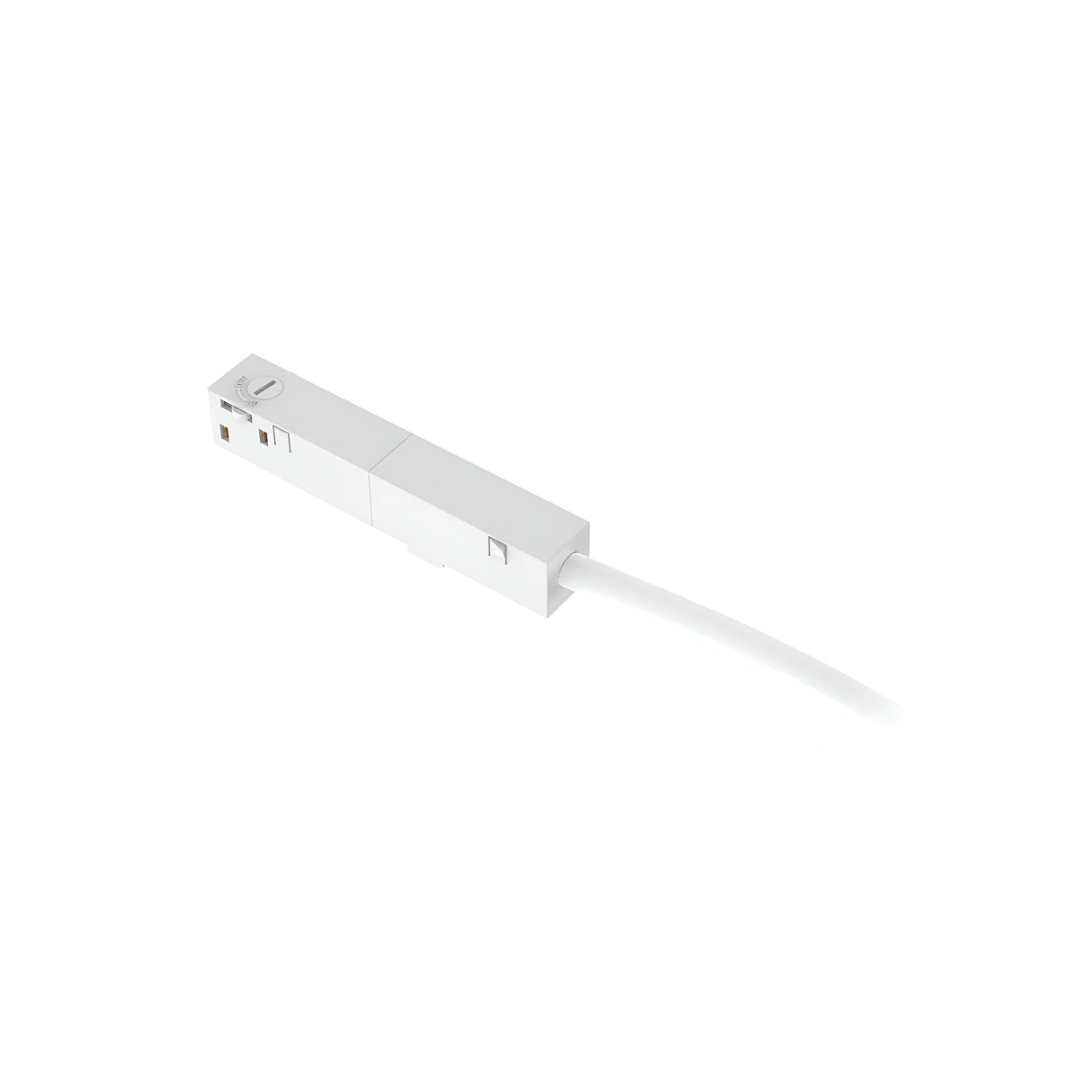

The Luxeon Dimmable Main Power Connector is a white polycarbonate hardwired feed unit for Luxeon magnetic track lighting systems, measuring 95mm long with an 18mm projection from the ceiling or wall surface. It connects to mains power via standard UK ceiling wiring and provides the electrical feed to a run of magnetic track, allowing spotlights and pendants to be clipped anywhere along the track length.

Designed for residential, retail and hospitality installations where adjustable lighting positions are needed, the connector eliminates the need for multiple fixed ceiling points. Once the main connector is wired to the ceiling rose or junction box, individual spotlights and pendants simply magnetically attach to the track wherever light is required. The dimmable rating means the connector passes dimmed power to all lights on the track when paired with a compatible mains dimmer switch upstream.

The white polycarbonate body blends cleanly with white or light-coloured ceilings and matches the finish of white Luxeon track. The IP20 rating restricts use to dry indoor areas such as living rooms, kitchens, bedrooms, offices and retail floors. The connector carries a 5-year warranty from Ideal Lux and forms part of their modular magnetic track system, which allows tracks to be joined, turned and extended using additional connectors and joiners.

Specification
Length (mm) 95
Projection (mm) 18
Dimmable Yes
IP Rating IP20
Warranty 5 Years
Frequently Asked

What does this connector do?

The main power connector provides the hardwired mains feed to a Luxeon magnetic track system. It connects to the ceiling wiring (live, neutral, earth) at one end and clips into the magnetic track at the other, supplying power to all spotlights and pendants attached to that track run.

Is it compatible with dimmer switches?

Yes, the connector is rated as dimmable. When the mains circuit feeding the connector is controlled by a compatible trailing-edge or leading-edge dimmer, all lights on the track can be dimmed together. Check that the dimmer is rated for the total wattage of all lights on the track.

Can it be installed on a wall?

Yes. The connector can be mounted on a ceiling or wall surface, provided the mounting surface has access to mains wiring via a ceiling rose, junction box or suitable electrical outlet. The 18mm projection applies equally to wall or ceiling mounting.

What is the maximum track length it can power?

The maximum track length depends on the total wattage of the lights attached to the track and the rating of the mains circuit feeding the connector. Consult the Luxeon track system documentation for load limits, or contact us for guidance on planning longer runs or multiple track sections.
