Description

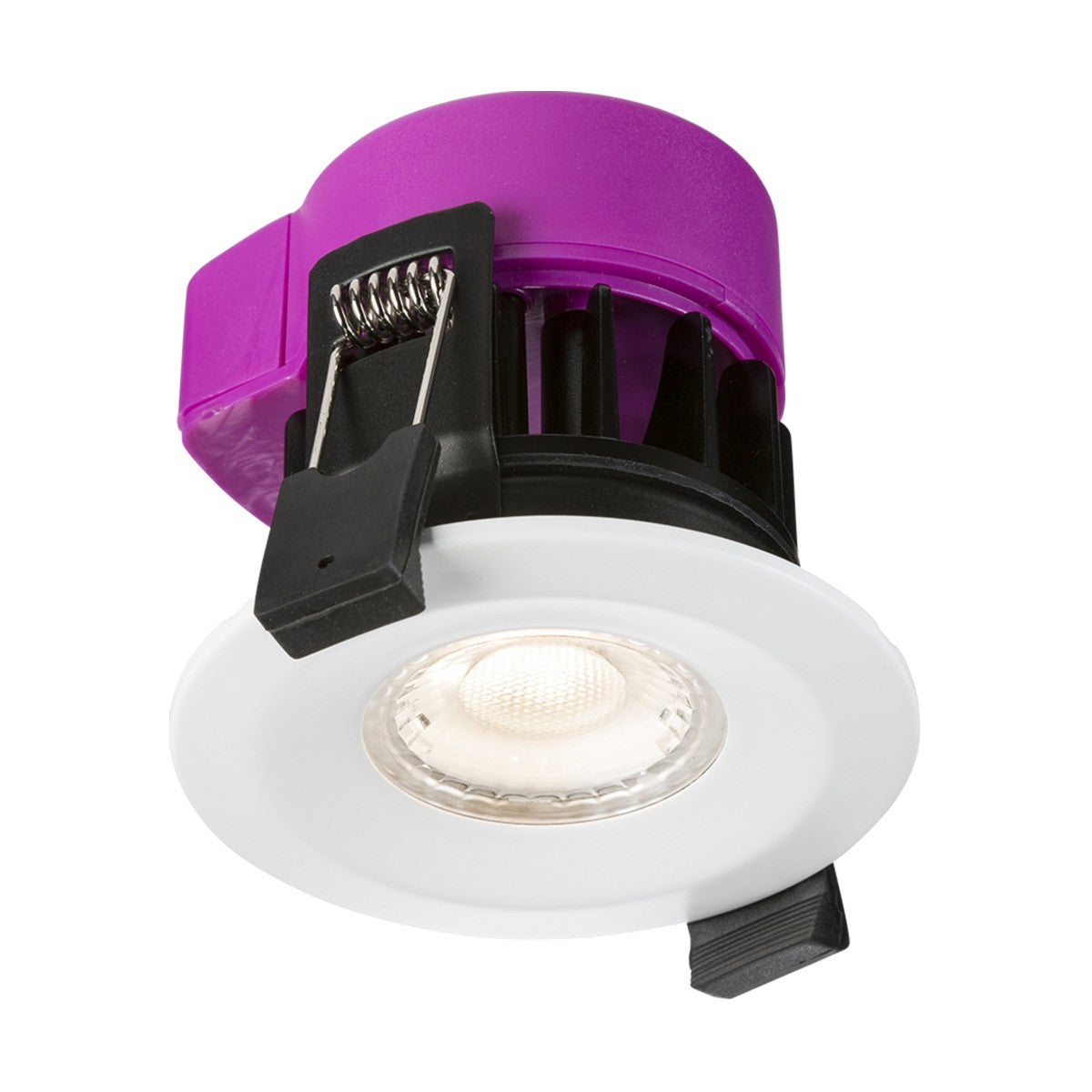

The Knightsbridge RW6CW is a 6W fire-rated LED downlight with an integrated driver, delivering 690 lumens of 4000K cool white light through a 40° beam angle. The white aluminium and polycarbonate construction carries an IP65 rating on the front face (IP20 from above), making it suitable for bathrooms, kitchens and zones requiring moisture protection. Fire testing to 30/60/90 minutes with solid wood joists meets Building Regulations for ceiling penetrations.
Designed for recessed installation in ceilings with a minimum 120mm void depth, the downlight requires a 72mm cut-out and projects just 7mm below the ceiling line once fitted. The integrated driver sits in the purple thermally-rated housing above the ceiling, with loop-in/loop-out terminal blocks allowing daisy-chain wiring across multiple fittings. Push-fit terminals speed installation and the interchangeable white bezel can be swapped for alternative finishes if required.
The 4000K colour temperature produces a neutral cool white light suited to task lighting in kitchens, utility rooms, hallways and commercial spaces where clarity matters more than warmth. The downlight is dimmable with compatible leading-edge and trailing-edge dimmers — check dimmer compatibility before pairing. The L70B50 rating of 54,000 hours indicates the point at which 50% of tested units maintain 70% of initial output, translating to approximately 24 years at 6 hours per day use.
Specification
| Diameter |
85mm |
| Projection |
7mm |
| Recessed Depth |
67mm |
| Minimum Void |
120mm |
| Cut-out Diameter |
72mm |
| Construction |
Aluminium & polycarbonate |
| Finish |
White |
| IP Rating |
IP65 (IP20 from above) |
| Class |
I |
| Primary Voltage |
230V 50Hz |
| Diffuser |
Clear |
| Lamp Technology |
LED |
| Lamp Included |
Yes |
| Dimmable |
Yes* |
| L70B50 |
54000 |
| Energy Rating (Class) post 2021 SLR |
B |
| Beam Angle |
40 |
| CCT |
4000K |
| Light Colour |
Cool White |
| Lumens |
690lm |
| Lumens (Light source only) |
990lm |
| Wattage |
6W |
| Efficacy (Light source) |
164.88lm/W |
| CRI |
>80 |
| Warranty |
5 Year Guarantee |
Downloads
Product Specification Sheet
Frequently Asked
What ceiling void depth is required?
A minimum 120mm void depth is needed above the ceiling to accommodate the 67mm recessed depth of the fitting plus the driver housing. The 72mm cut-out diameter determines the hole size in the plasterboard or ceiling material.
Is this suitable for bathroom zones?
Yes. The IP65 rating on the front face meets requirements for bathroom zones 1 and 2 (above the bath/shower). Note the IP20 rating from above means the void space above the ceiling must not be subject to water ingress.
What is the fire rating?
The downlight is tested and rated for 30, 60 and 90 minute fire resistance when installed in ceilings with solid wood joists, meeting Part B Building Regulations for fire-rated ceiling penetrations in UK residential and commercial buildings.
Can multiple downlights be wired together?
Yes. The integrated driver includes loop-in/loop-out terminal blocks with push-fit connectors, allowing multiple downlights to be daisy-chained from a single feed circuit without needing junction boxes at each fitting.
