Description

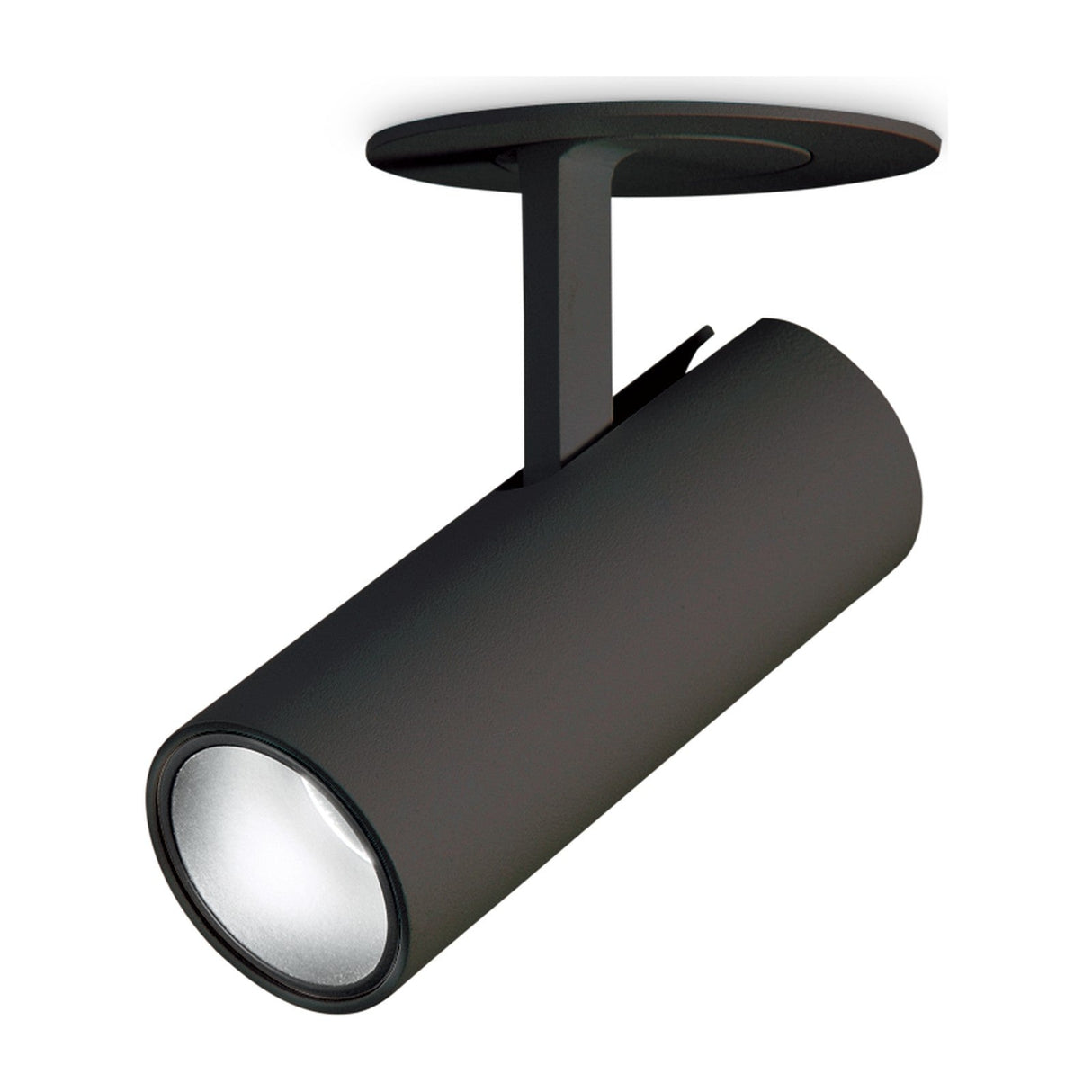

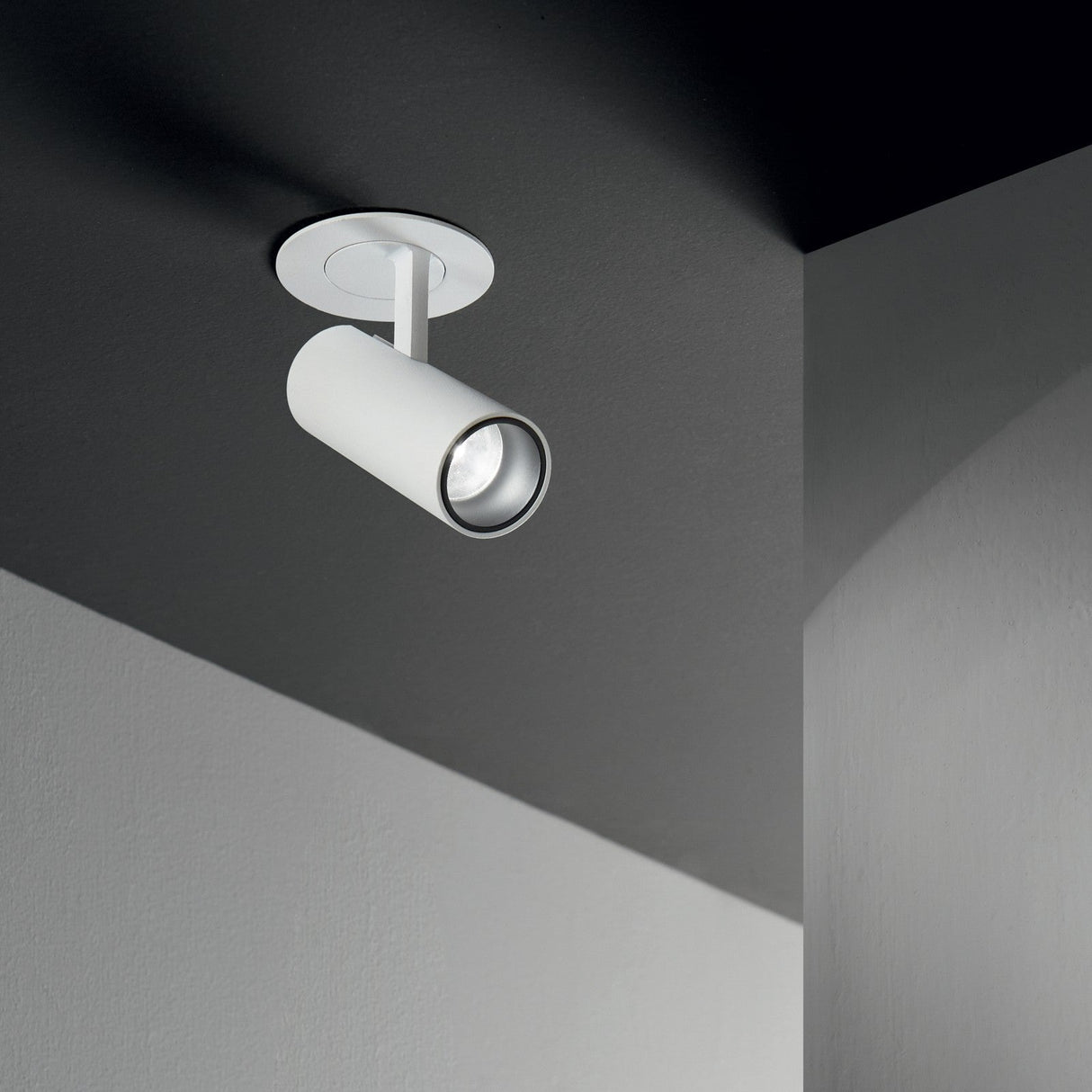

The Play is a recessed downlight whose head sits proud of the ceiling and tilts to aim a focused circle of light exactly where you want it. The barrel swivels on its base so the beam can follow a picture, a shelf or a run of artwork, while the trim itself stays flush in the plaster. Lit, it reads as a clean pool of cool white 4000K light; unlit, the compact black head sits neatly in the ceiling.
This is the 7W head in black, drawing 560 lumens through a 16 degree beam, with a colour rendering index above 90 so tone stays true on whatever it lights. The body, base and swivel joint are die-cast aluminium finished in black, and the orientable barrel points the beam without moving the recessed frame. The head measures 60mm across and the fitting stands 125mm deep behind the ceiling, so it needs a void to sit in; the useful output on the working plane is 460 lumens.
The source is a built-in LED COB module rated to 50,000 hours, so there is no bulb to fit or replace, and the driver comes supplied with the fitting. The head runs at a fixed 4000K output and is not dimmable, carrying an IP20 rating for dry indoor rooms. We would set it into a ceiling with clearance above, aimed at the wall or shelf you want to pick out.
Specification
| Number of lights |
1 |
| Light source |
Integrated LED, 7W total (LED COB, 560lm beam flux, 460lm useful, 4000K, CRI>90, 50,000h, included) |
| Colour temperature |
4000K (cool white) |
| Lumen output |
560lm beam flux (460lm useful) |
| Colour rendering (CRI) |
> 90 |
| Beam angle |
16 degrees |
| Head diameter |
60mm |
| Barrel diameter |
34mm |
| Recessed depth / Height |
125mm |
| IP rating |
IP20 |
| Dimmable |
No (on-off) |
| Insulation class |
Class II |
| Mounting |
Recessed, ceiling void required |
| Adjustment |
Orientable head, tilts and swivels |
| Frame / Structure finish |
Black powder-coated die-cast aluminium |
| Materials |
Die-cast aluminium body |
Downloads
Datasheet
Assembly Instructions
3D Model
Frequently Asked
What kind of light does the Play downlight give?
One focused beam of cool white 4000K light with a colour rendering index above 90, so colours stay true. This head runs a 16 degree spread and draws 560 lumens at 7W, placing a pool of light onto a picture or a shelf. The barrel tilts and swivels to aim the beam.
Does it use a bulb?
No. The LED module is built in and supplied, rated to 50,000 hours, so there is nothing to source or replace. The driver comes with it, ready to wire and recess into the ceiling.
Can it be dimmed?
No. The 7W head runs at a fixed 4000K output on an on-off circuit and is not dimmable. If you need a lower level we can talk through the wider Play recessed and track range before you order.
What does it look like and where does it suit?
It is a compact black head on a slim recessed trim, with the barrel head standing proud so it can tilt. The fitting is 125mm deep, so it needs a ceiling void above. The 16 degree beam suits hallways, living rooms and kitchens wanting adjustable accent light on art or shelving. Rated IP20, it is for dry indoor rooms.
