Description

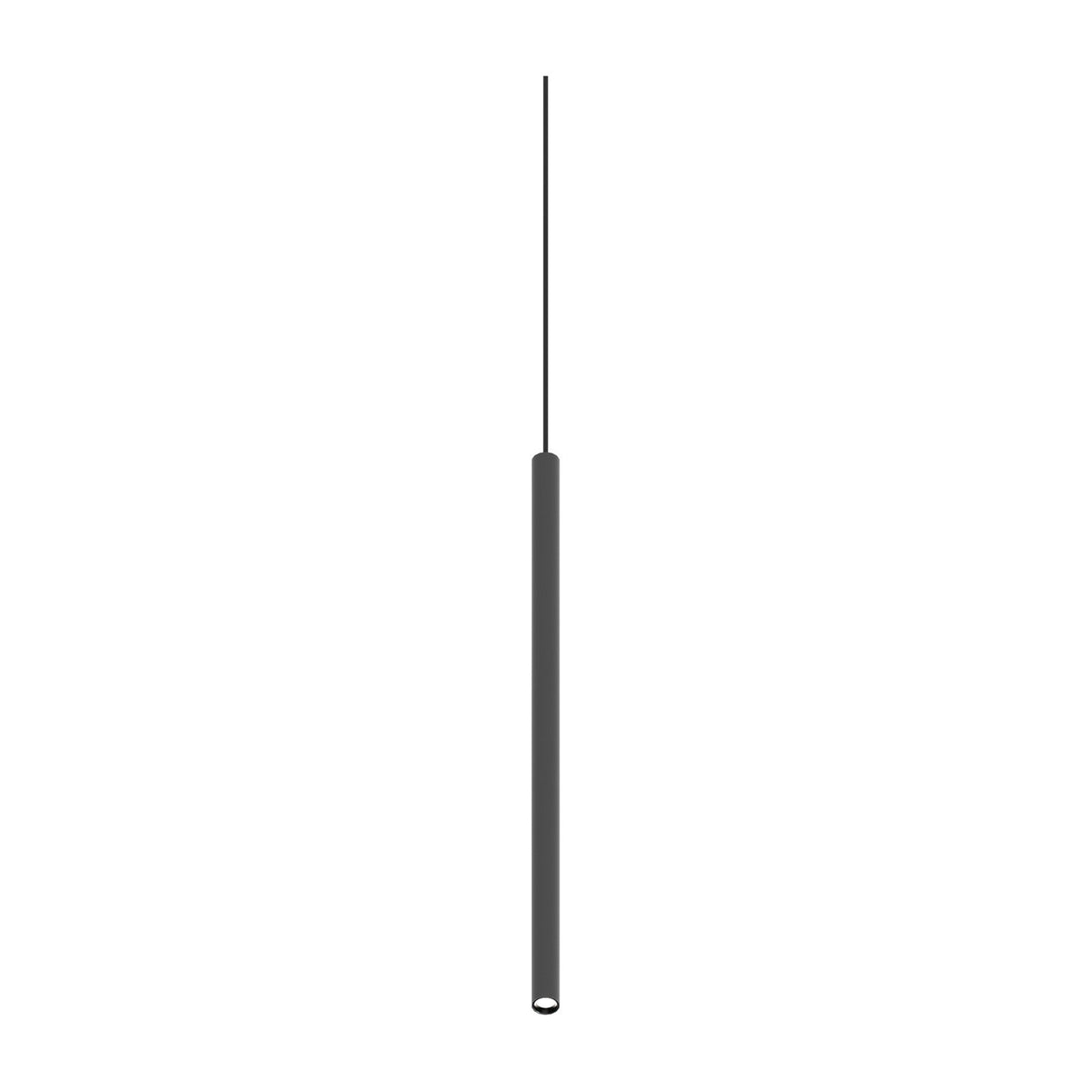

The Ego pendant tube is a slim vertical rod that hangs from the Ego 48V magnetic track, dropping a single integrated-LED beam straight down onto whatever sits below. The tube reads as a thin matt black line rather than a shade, so it marks a point of light over a surface without blocking sight lines across a room. Its 66 degree beam lays a soft warm 3000K pool on the counter beneath; off, the fine 16mm body almost disappears against the ceiling rail.
The built-in LED draws 5.5W for around 520 lumens at a warm 3000K, with a colour rendering above 90 so food, timber and stone keep their true tone in the light below. This is the 1-10V version, dimmed through a 1-10V control wired to the track, so the level over the counter can be turned down without swapping the head. Hung at 2640mm it suits a kitchen island, a bar counter or a console, and because the tube clips to the magnetic track, a row of them can be spaced along a run and moved by hand whenever the layout shifts.
The body is extruded aluminium in matt black to match the black Ego rail, and the fitting is rated IP20 for dry indoor rooms. The LED is integrated and rated to 50,000 hours, so there is no bulb to fit or replace. It needs the Ego 48V track plus a 1-10V dimmable driver, which we can supply alongside.
Specification
| Number of lights |
1 |
| Light source |
Integrated LED, 5.5W total (50,000h) |
| Colour temperature |
3000K (warm white) |
| Lumen output |
520lm |
| Colour rendering (CRI) |
> 90 |
| Beam angle |
66 degrees |
| Width |
223mm |
| Drop |
2640mm |
| Diameter |
16mm (tube) |
| IP rating |
IP20 |
| Dimmable |
Yes, 1-10V |
| Control |
1-10V, via dimmable driver |
| Voltage |
48V DC (driver required) |
| Mounting |
Ego 48V magnetic track (suspended) |
| Frame / Structure finish |
Matt black aluminium |
| Materials |
Extruded aluminium |
Downloads
Datasheet
Assembly Instructions
3D Model
Frequently Asked
What kind of light does the Ego pendant tube give?
A single downward beam of warm 3000K light at around 66 degrees, with a colour rendering above 90. The slim tube drops the light onto a surface below rather than washing the room, which suits a spot over an island or counter.
Does it use a bulb?
No, the LED is built in and rated to 50,000 hours, giving about 520 lumens at 5.5W. There is nothing to fit or replace; the tube hangs from the Ego magnetic track and runs from its 48V supply.
Can it be dimmed?
Yes, this is the 1-10V version. Wired to a 1-10V dimmable driver on the track, its level can be turned down over the counter. The same tube is also made in on-off and DALI versions if a different control is preferred.
How far does it hang and what does it need?
The tube drops to around 2640mm overall, sized to sit above an island, bar or console. It needs the Ego 48V magnetic track and a 1-10V dimmable driver, and its position along the run can be adjusted by hand later.
