Description

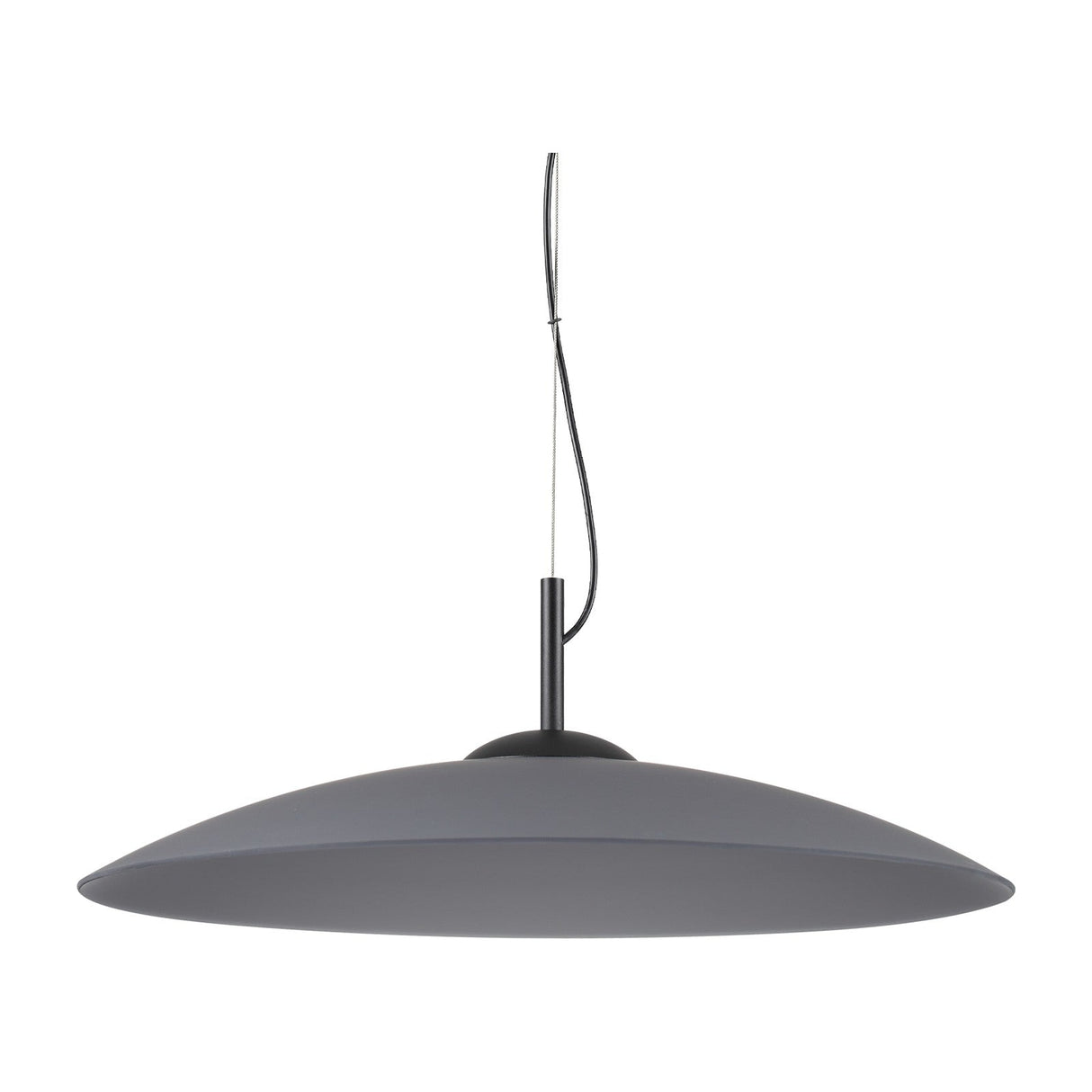

The Eclipse is a wide single pendant built around a shallow domed glass diffuser rather than a hanging globe. A convex lens sits behind a grey sandblasted glass shade, so the light spreads out soft and even across the underside instead of showing as a bright point. The frame and ceiling cap are powder-painted black metal, and at 600mm across the glass reads as a broad grey disc, quiet and flat against the ceiling when it is off and a low sheet of light when it is on.

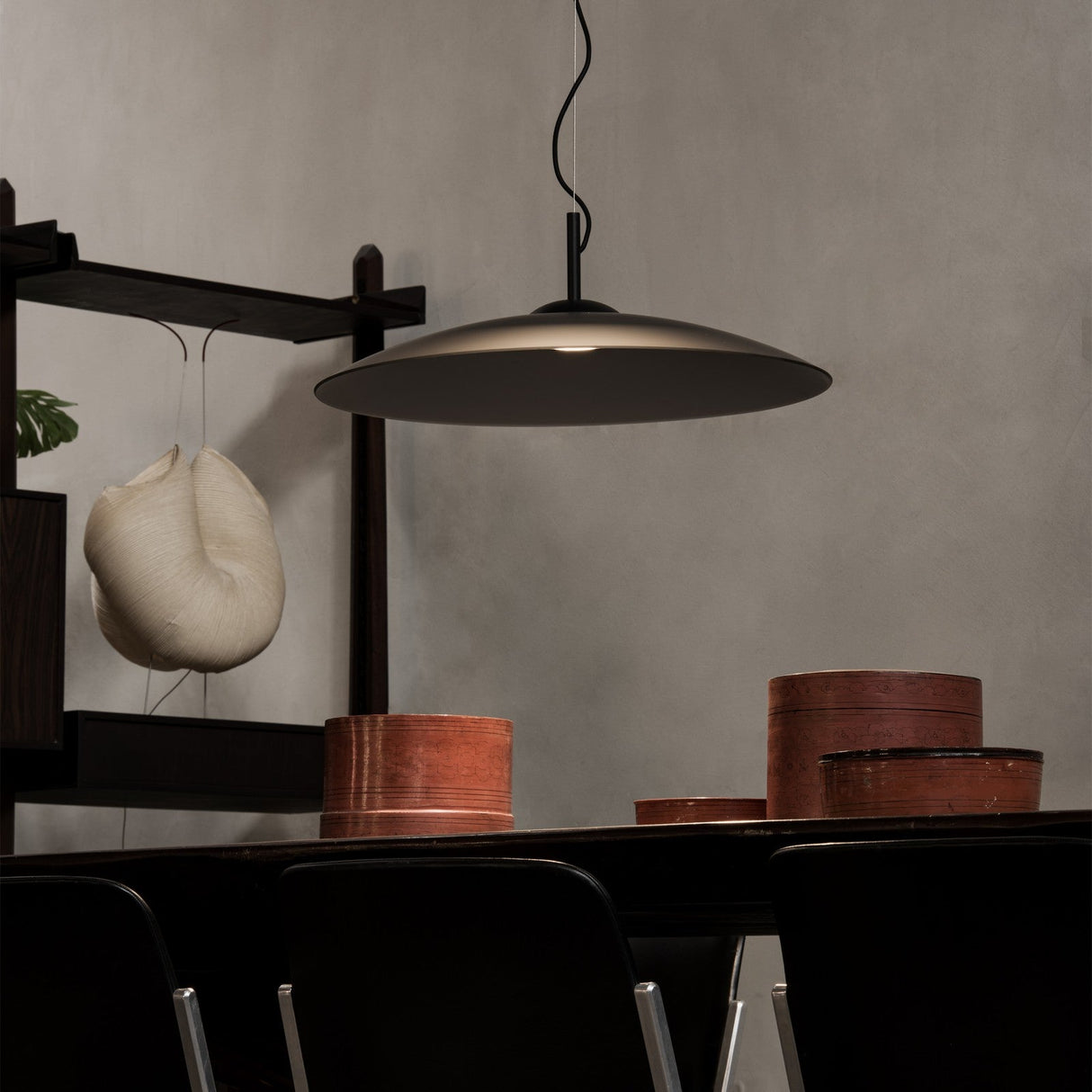

The sandblasted grey glass takes the edge off the source, giving a diffused wash that falls straight down over the surface below. At this width it is made to sit over a dining table, a kitchen island or a low lounge setting, where a single broad disc gives more spread than a small pendant and holds the centre of the room. Lit, it glows evenly across the whole face; unlit, it keeps its shape as a smoked grey lens on a slim black drop.
We supply it ready to use with the GX53 lamp included, wired on a PVC cable. The lamp that comes fitted is a warm 3000K, and because it is a standard GX53 socket rather than a sealed LED, the bulb can be swapped later. The drop adjusts from 320mm down to a long 2300mm, so it can hang low over a table or high in a room with tall ceilings. It is rated IP20 for dry indoor rooms, so we would have an electrician make the connection.
Specification
| Number of lights |
1 |
| Light source |
1 x GX53 (max 9W each, bulb included) |
| Colour temperature |
Depends on bulb fitted (supplied lamp 3000K, warm white) |
| Diameter |
600mm |
| Height / Drop |
320mm to 2300mm (adjustable) |
| IP rating |
IP20 (indoor) |
| Dimmable |
Depends on bulb fitted |
| Frame / Structure finish |
Matt black powder-painted metal |
| Diffuser / Glass |
Grey sandblasted glass shade with convex lens |
| Materials |
Powder-painted metal ceiling cap and frame, grey sandblasted glass diffuser, PVC cable |
Downloads
Datasheet
Assembly Instructions
3D Model
Frequently Asked
What kind of light does the Eclipse give?
A soft, even downward wash. The grey sandblasted glass sits over a convex lens, so the source is spread across a wide 600mm face rather than shown as a bright point. It reads as a broad, diffused sheet of light rather than a directional beam.
Does it come with a bulb?
Yes. A GX53 lamp is included and comes fitted, so the pendant arrives ready to wire and light on its PVC cable. The supplied lamp is a warm 3000K.
Is it dimmable?
Dimming depends on the GX53 lamp fitted. Because it uses a standard replaceable GX53 socket rather than a sealed LED, it can be dimmed by fitting a dimmable GX53 lamp on a compatible dimmer. We can advise on suitable lamps.
How big is it and where does it suit?
The glass disc is 600mm across, with a drop adjustable from 320mm to 2300mm. At this width it suits a dining table, a kitchen island or a lounge, where a single broad pendant gives an even spread of light over the surface below.
