Description

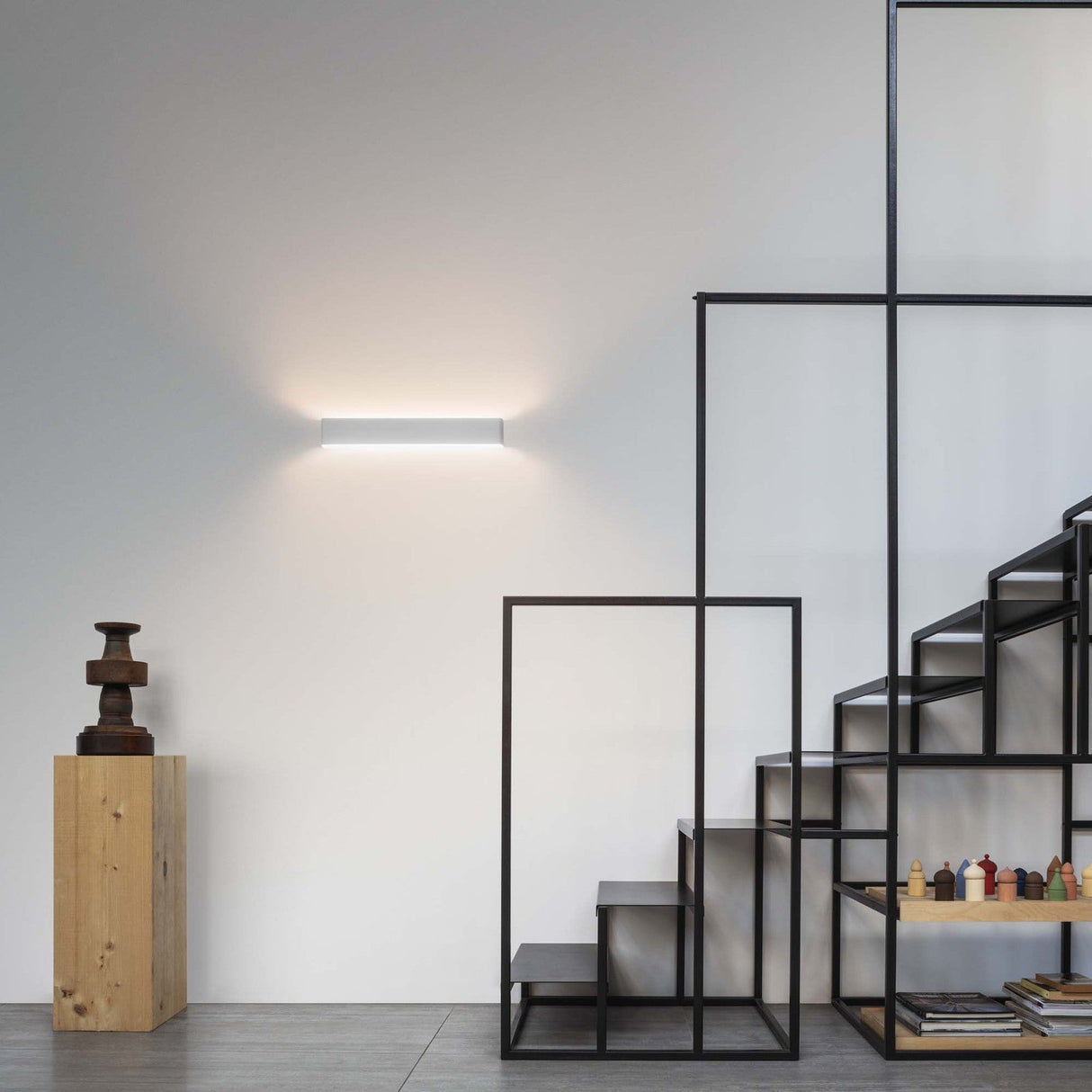

The Delta is a slim wall bar that sits flat against the wall and throws light both up and over it, so the glow washes the surface above and below rather than pointing into the room. The light comes from an integrated LED behind shiny opal polycarbonate diffusers along the top and bottom edges, which spread the output into two soft bands and keep the source itself hidden. Lit, it draws two warm lines up and down the wall; unlit, it reads as a plain concrete-grey block, a quiet horizontal mark on the surface.
This is the 610mm size in a cement finish, a raw, matt concrete grey that suits plaster, brick and stone as much as painted walls. It projects 45mm from the wall on a body 90mm tall, so it holds a stronger horizontal line than the smaller Delta sizes and gives more light to match. At 3000K it stays warm, which works over a console, along a hallway or as a run up a stairwell.
The body is powder-coated aluminium in a cement finish with opal polycarbonate diffusers. The integrated LED gives 2200 lumens at 3000K with a CRI above 90 for honest colour, and is rated to 50,000 hours, so there is no bulb to fit and it lights as soon as it is wired. It is rated IP20 for dry indoor rooms.
Specification
| Number of lights |
1 |
| Light source |
Integrated LED, 19.5W total (2200lm, 50,000h, included) |
| Colour temperature |
3000K (warm white) |
| Colour rendering |
CRI >90 |
| Length |
610mm |
| Height |
90mm |
| Projection |
45mm |
| Light emission |
Up and down (bi-emission) |
| IP rating |
IP20 (indoor) |
| Dimmable |
No |
| Frame / Structure finish |
Cement powder-coated aluminium |
| Diffuser / Glass |
Shiny opal polycarbonate diffusers |
| Materials |
Powder-coated aluminium body, opal polycarbonate diffusers |
Downloads
Datasheet
Assembly Instructions
3D Model
Frequently Asked
What kind of light does the Delta give?
A soft two-way wash. The integrated LED sits behind opal diffusers at the top and bottom, so light leaves in two bands, up and down the wall, at 2200 lumens and a warm 3000K white rather than as a beam into the room.
Do I need to buy a bulb?
No. The LED is integrated and included, giving warm 3000K white at a CRI above 90. There is no separate lamp to fit, so it arrives ready to wire and light.
Is it dimmable?
Dimming is not stated for this fitting, so we would treat it as fixed output unless a compatible dimming driver is confirmed. We can check before you order.
How big is it and where does it suit?
It is 610mm long, 90mm tall and projects 45mm from the wall. The concrete-grey finish and warm up-and-down throw suit a hallway, a console or a stairwell, on plaster, brick or stone.
