Description

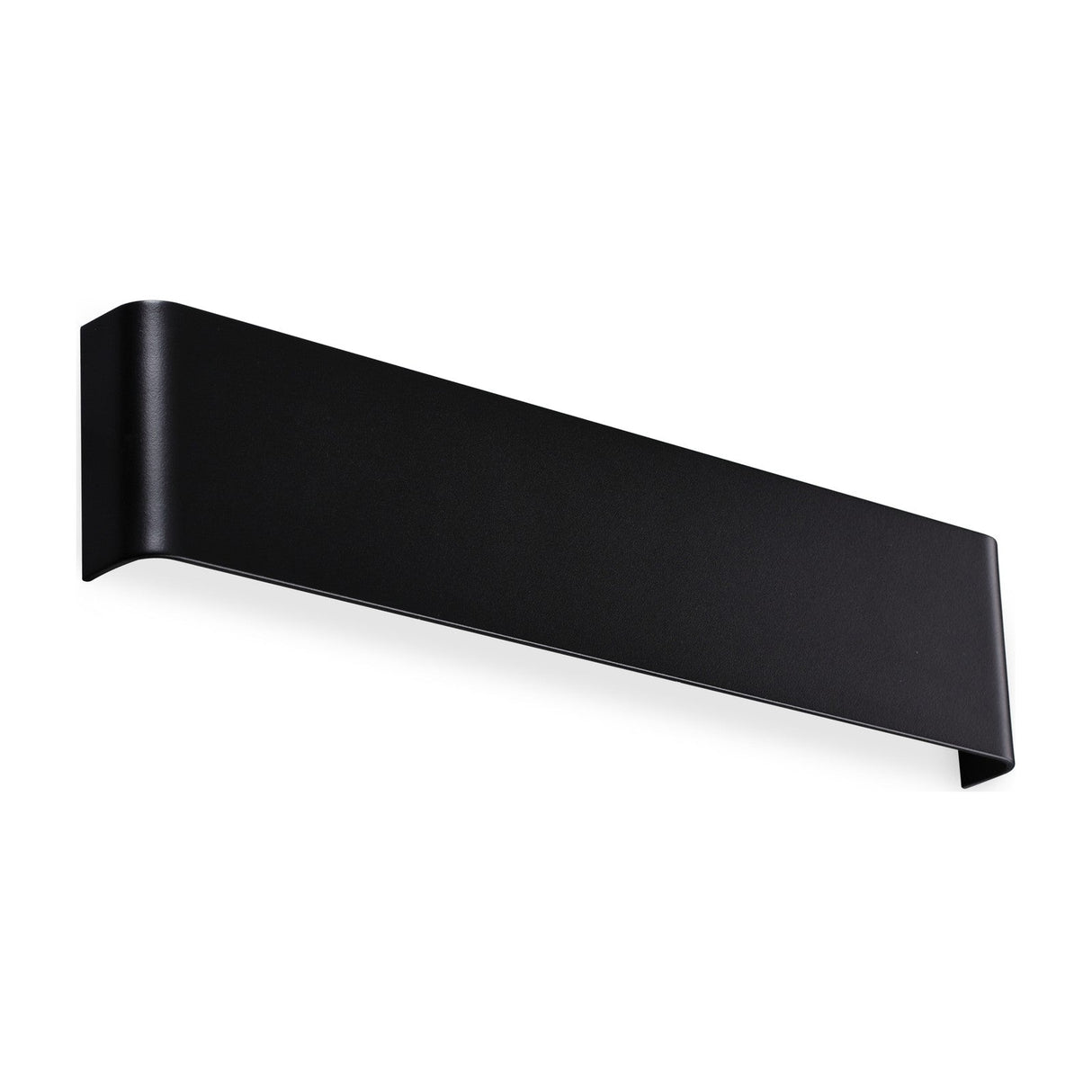

The Delta is a slim wall bar that sits flat against the wall and throws light both up and over it, so the glow washes the surface above and below rather than pointing into the room. The light comes from an integrated LED behind shiny opal polycarbonate diffusers at the top and bottom edges, which spread the output into two soft bands and keep the source itself hidden. Lit, it reads as two clean lines climbing and falling across the wall while the black body stays dark; unlit, it is a low matt bar that projects only a little way out.
This is the 410mm size in black at a neutral 4000K, a little longer than the compact model, projecting 90mm from the wall on a body just 35mm tall. The horizontal form and up-and-down throw suit it over a console, along a hallway or above a headboard, singly or repeated in a run. The 4000K white keeps corridors, landings and workspaces looking bright and clean, and the dark body reads well against a pale wall.
The body is powder-coated aluminium in black with opal polycarbonate diffusers. The integrated LED gives 1650 lumens at 4000K with a CRI above 90 for honest colour, and is rated to 35,000 hours, so there is no bulb to fit and it lights as soon as it is wired. It is rated IP20 for dry indoor rooms.
Specification
| Number of lights |
1 |
| Light source |
Integrated LED, 14W total (1650lm, 35,000h, included) |
| Colour temperature |
4000K (neutral white) |
| Colour rendering |
CRI >90 |
| Length |
410mm |
| Height |
35mm |
| Projection |
90mm |
| Light emission |
Up and down (bi-emission) |
| IP rating |
IP20 (indoor) |
| Dimmable |
No |
| Frame / Structure finish |
Black powder-coated aluminium |
| Diffuser / Glass |
Shiny opal polycarbonate diffusers |
| Materials |
Powder-coated aluminium body, opal polycarbonate diffusers |
Downloads
Datasheet
Assembly Instructions
3D Model
Frequently Asked
What kind of light does the Delta give?
A soft two-way wash. The integrated LED sits behind opal diffusers at the top and bottom, so light leaves in two bands, up and down the wall, at 1650 lumens and a neutral 4000K white rather than as a beam into the room.
Do I need to buy a bulb?
No. The LED is integrated and included, giving 4000K white at a CRI above 90. There is no separate lamp to fit, so it arrives ready to wire and light.
Is it dimmable?
Dimming is not stated for this fitting, so we would treat it as fixed output unless a compatible dimming driver is confirmed. We can check before you order.
How big is it and where does it suit?
It is 410mm long, 35mm tall and projects 90mm from the wall, the middle Delta size. The neutral up-and-down throw suits a hallway, a console or above a headboard, singly or in a run.
