Description

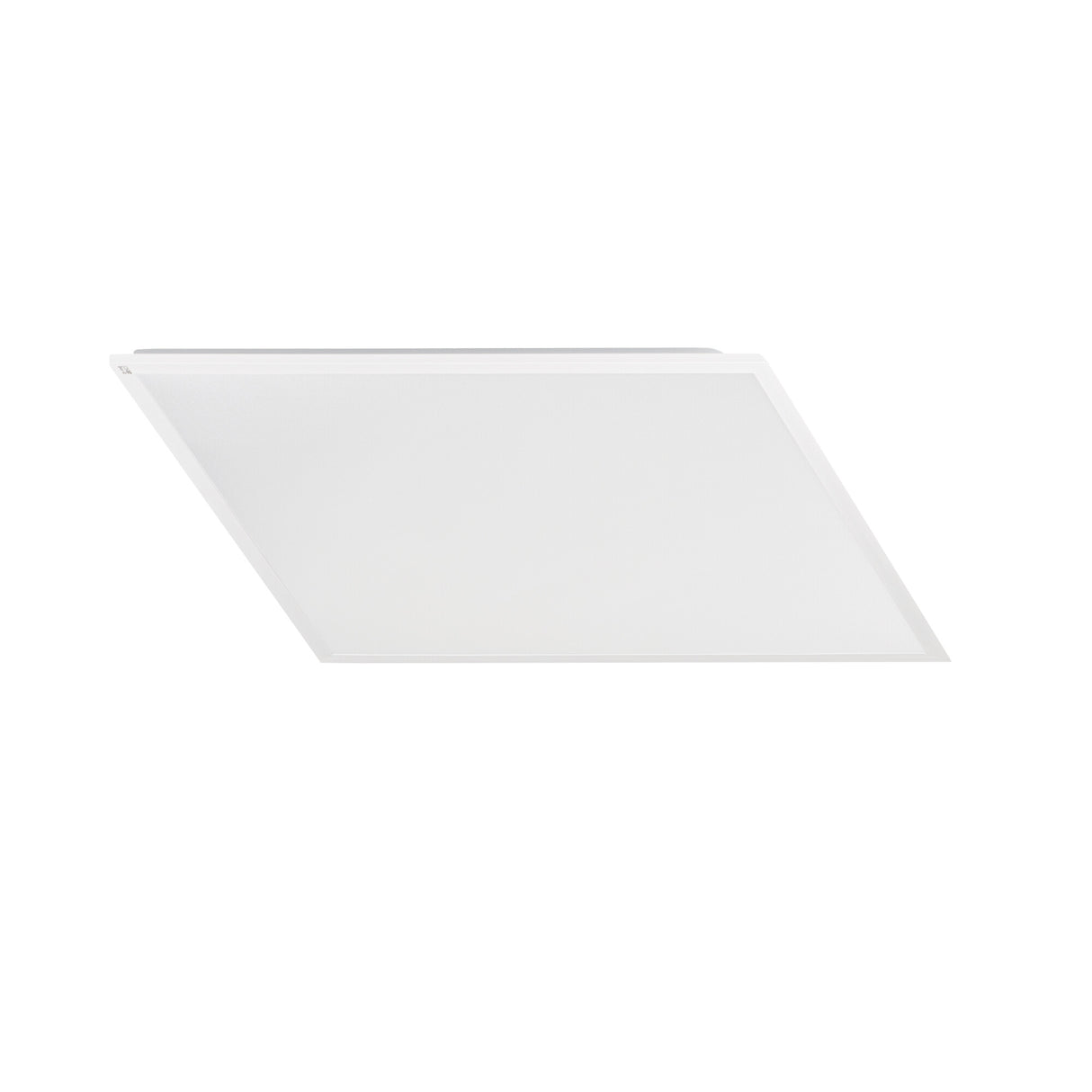

The Blingo Uhra is a square recessed LED panel light measuring 595 x 595 mm, sized to drop into a standard 600x600 ceiling grid. American buyers will recognise this as a 2x2 troffer, the foot-size that suits a suspended drop ceiling. It draws up to 40W and pushes out 2280, 3040 or 3800 lumens depending on the variant specified, all at a fixed 4000K cool white tone. The 90 degree beam spreads light evenly across the panel face, while the high Ra 97 colour rendering keeps colours looking true. At 95 lm/W it works hard for every watt drawn.

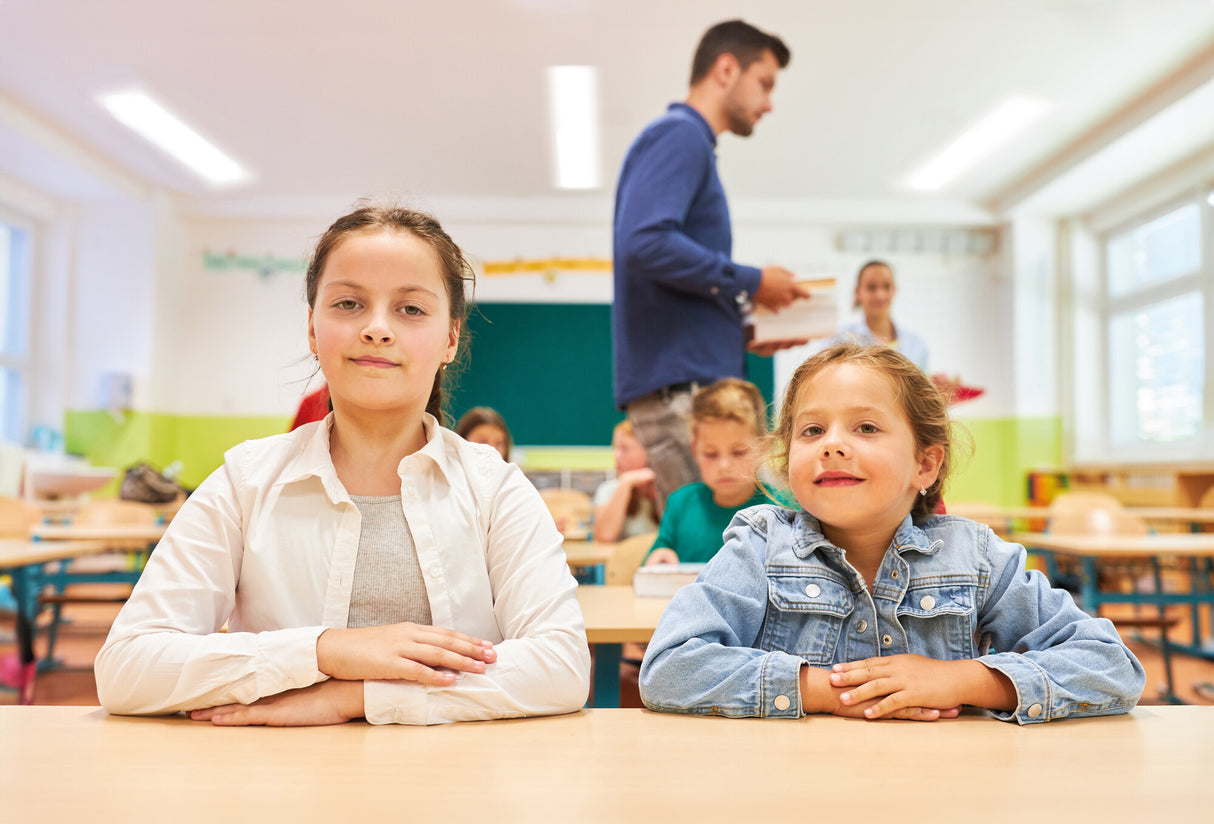

At its brightest output the Uhra covers around 8 to 13 m² at general lighting levels, which makes it a sensible choice for offices, meeting rooms, retail floors, classrooms, clinics and similar indoor working spaces. The crisp 4000K tone suits task-led environments where clarity matters more than warmth. Because it is a recessed fitting it needs clearance in the ceiling void above, so check there is room behind the grid before installation. Group several panels across a larger ceiling to lift the whole room to a consistent level.
The body is steel finished in white, giving a clean flush face once seated in the grid. It carries an IP20 rating, so keep it to dry indoor locations and away from damp or wet areas. This is a non-dimmable fixture and runs from a remote driver, which is not included, so the correct driver should be specified to match the chosen wattage and luminous flux. Rated for 50,000 hours and weighing 1.45 kg, it is built to sit reliably in place for years. The Blingo Uhra range also includes other panel sizes and outputs to match different ceiling layouts.
Specification
| Power |
max 40W |
| Luminous flux |
2280 / 3040 / 3800 lm |
| Efficiency |
95 lm/W |
| Colour temperature |
4000K |
| Colour rendering (CRI) |
Ra 97 |
| Beam angle |
90° |
| IP rating |
IP20 |
| Dimmable |
No |
| Driver included |
No |
| Mounting |
Recessed Mount In The Ceiling (Coffered Ceiling) |
| Lifespan |
50,000 hours |
| Shape |
Square |
| Dimensions |
595 × 595 × 28 mm |
| Weight |
1.45 kg |
| Material |
Steel |
| Finish |
White |
Downloads
Frequently Asked
Is this panel dimmable?
No, the Blingo Uhra is a non-dimmable panel. It runs at a fixed output through its remote driver, so it is best paired with a standard on/off circuit rather than a dimmer.
Does it fit a standard suspended ceiling grid?
Yes. At 595 x 595 mm it drops neatly into a standard 600x600 modular ceiling grid, the format known in the US as a 2x2 troffer. As a recessed fitting it needs clearance in the void above the grid.
How many lumens does it give and what room size does it suit?
Depending on the variant it delivers 2280, 3040 or 3800 lumens at 4000K. At its brightest that lights around 8 to 13 m² at general lighting levels, suiting offices, classrooms and retail areas. Larger rooms benefit from several panels grouped together.
How do I clean the diffuser?
Switch off and let the panel cool, then wipe the diffuser face with a soft, slightly damp cloth and dry it gently. Avoid abrasive pads or solvents, which can mark the surface and dull the light output over time.
