Description

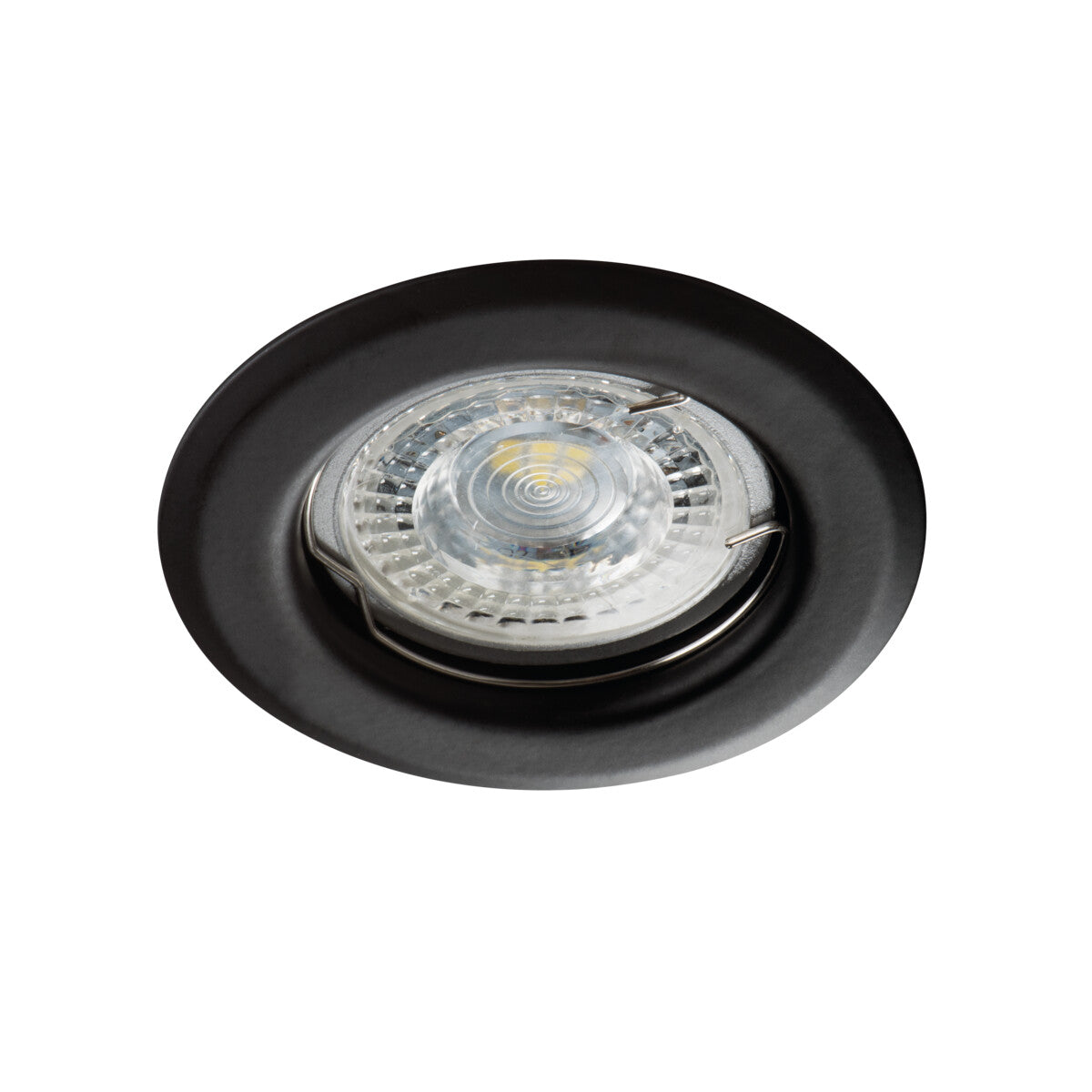

The Alor DSO-B is a round recessed LED spotlight built around a Gx5.3/GU10 cap, taking an MR16 or PAR16 lamp rated up to 10W. It runs on 12V AC, 12V DC or mains 220-240V AC, so it pairs with low-voltage transformer setups or direct GU10 mains wiring depending on the lamp you fit. The fitting itself is a compact Ø83mm round trim that sits flush once recessed. Buyers in the US will recognise this format as a small recessed downlight or trim ring that holds a standard reflector lamp, and the beam spread depends on the MR16/PAR16 you choose rather than being fixed by the housing.
Because the lamp is not supplied, the throw and colour temperature are set by your chosen MR16 or PAR16, which makes this a flexible fitting for accent and feature lighting. It suits picture walls, alcoves, shelving and kitchen task zones where a tight, directional pool of light works better than broad ambient coverage. Fit a narrow-beam lamp to graze a wall or pick out an object, or a wider beam to wash a small area. The fitting is rated IP20, so it is for dry indoor rooms only and should be kept clear of bathrooms, porches and any damp or exposed location.
The body is steel finished in black matt, giving a low-profile recessed trim that reads cleanly against a ceiling. At Ø83 x 33mm and just 66g it drops into a standard round cut-out and recesses into the ceiling void. The Gx5.3/GU10 dual cap means you can run a 12V MR16 through a transformer or a 240V GU10 lamp direct, so dimmability and colour temperature follow the lamp specification you select. The Alor range includes further spotlights in this base for matching multiple positions across a scheme.
Specification
| Power |
max 10W |
| Voltage |
12 AC; 12 DC; 220-240 AC |
| IP rating |
IP20 |
| Mounting |
Recessed Mount In The Ceiling |
| Cap / base |
Gx5.3/GU10 |
| Light source |
MR16/PAR16 |
| Shape |
Round |
| Dimensions |
Ø83 × 33 mm |
| Weight |
66 g |
| Material |
Steel |
| Finish |
Black Matt |
Downloads
Frequently Asked
Is a bulb included with this spotlight?
No, the lamp is supplied separately. The fitting takes a Gx5.3 or GU10 capped MR16/PAR16 lamp rated up to 10W, so you can choose the beam angle, colour temperature and dimmable specification to suit the room.
Can this spotlight be used outdoors or in a bathroom?
No, it is rated IP20 for dry indoor use only. Keep it out of bathrooms, porches and any damp or exposed location, and use it in living rooms, hallways and similar dry interior spaces instead.
What beam angle does it give?
The beam is set by the MR16 or PAR16 lamp you fit rather than by the housing. A narrow-beam lamp gives a tight accent pool for picking out objects, while a wider beam spreads light across a small area such as a shelf or worktop.
How do I clean it?
Switch off and let the lamp cool, then wipe the black matt steel trim with a soft dry or slightly damp cloth. Avoid abrasive cleaners and solvents so the matt finish is not marked.
