Description

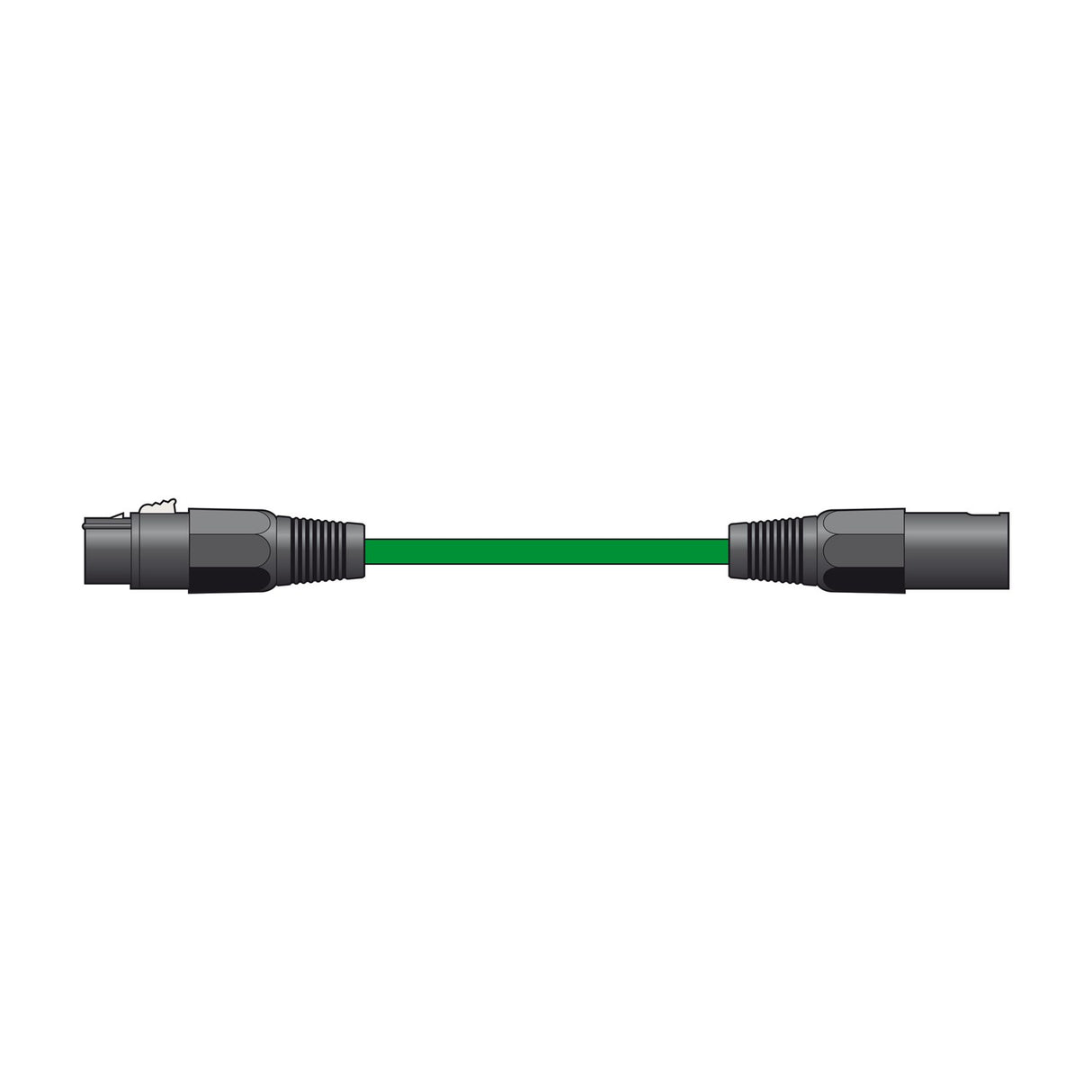

The Citronic XF-XM150GN is a 1.5 metre microphone and audio lead built to carry balanced signals with clean, reliable sound. It runs from a female XLR to a male XLR, so you can connect microphones, mixers and other balanced gear without picking up unwanted noise along the way. The green outer jacket makes it easy to colour-code your setup and keep leads (or cables, in US terms) organised on stage or in the studio.
Inside, the lead uses pure copper conductors with cotton reinforcement for strength and a long working life. The 6mm rubberised jacket is soft to the touch, anti-tangle and comfortable to coil down after a gig. Connections are machine-soldered for consistency, and the die-cast XLR connectors lock in place so they stay put once plugged in. Full shielding keeps interference out of the signal path, which matters most on quieter mic sources.
The pin-out follows the standard balanced wiring of pin 1 ground, pin 2 hot and pin 3 cold, so it works with any standard balanced input or output. At 1.5 metres it suits short runs between nearby equipment, patching into a rack, or linking a stage box to a floor unit. If you need a dependable everyday lead that holds up to regular use, this one covers the basics well and comes in a length that keeps clutter down where cabling is tight.
Specification
| Length |
1.5m |
| Colour |
Green |
| Cable : diameter |
6mmØ |
| Conductors |
20 x 0.08mmØ |
| Connectors |
Male XLR, Female XLR |
| Pin-out |
Balanced: 1-Ground, 2-Hot, 3-Cold |
Frequently Asked
What length is this lead?
It is 1.5 metres long, which suits short runs between nearby equipment or patching within a rack.
What connectors does it use?

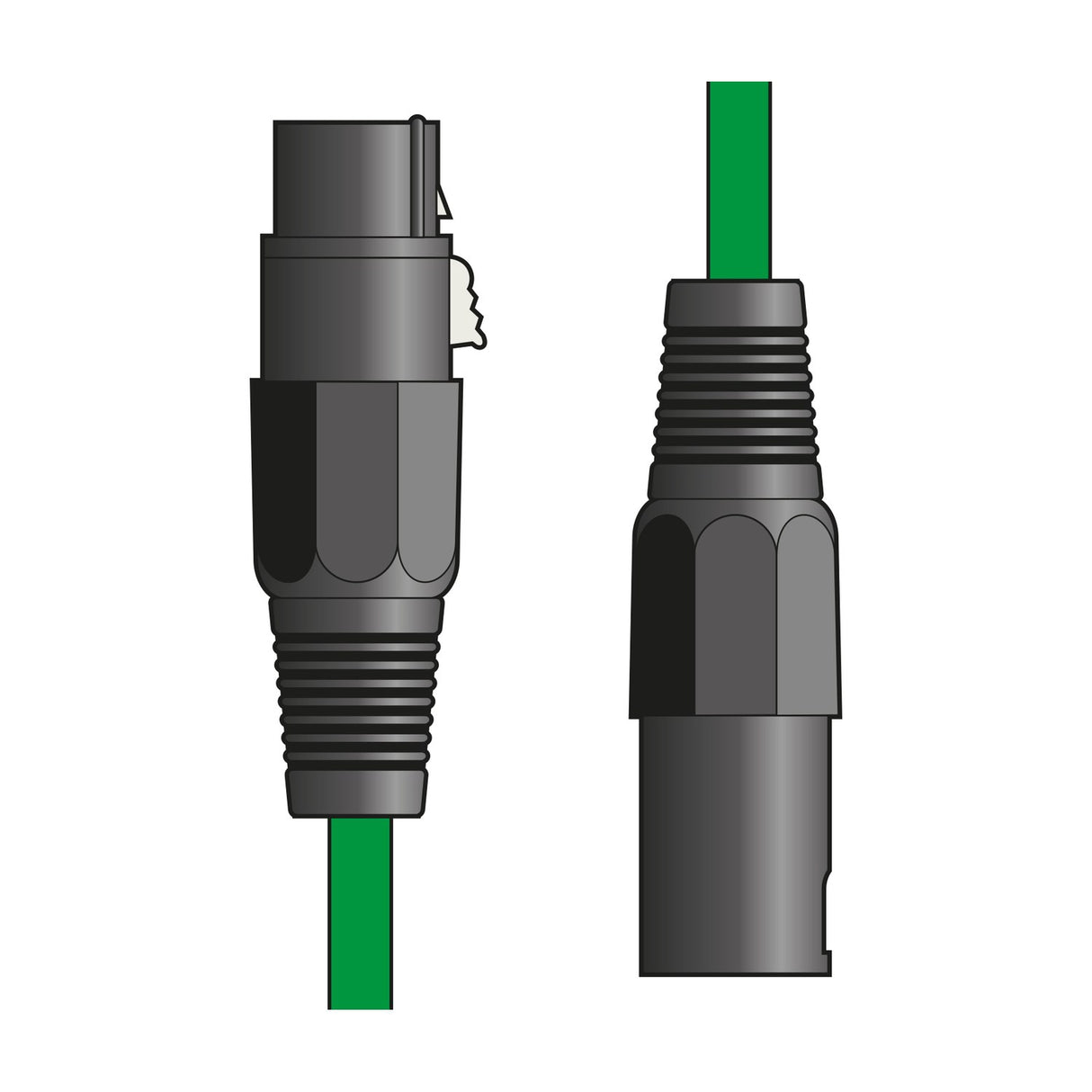

A female XLR at one end and a male XLR at the other, both die-cast with locking connectors.
Is it a balanced cable?
Yes. It carries balanced signals with the standard pin-out of 1-ground, 2-hot and 3-cold.
What is the cable made from?
Pure copper conductors with cotton reinforcement, inside a fully shielded 6mm rubberised jacket.
Will it help reduce noise?
The full shielding and balanced wiring help keep interference out of the signal, which is useful on microphones and other quiet sources.
What is the cable diameter?
The outer diameter is 6mm, with conductors made from 20 x 0.08mm strands.
