Description

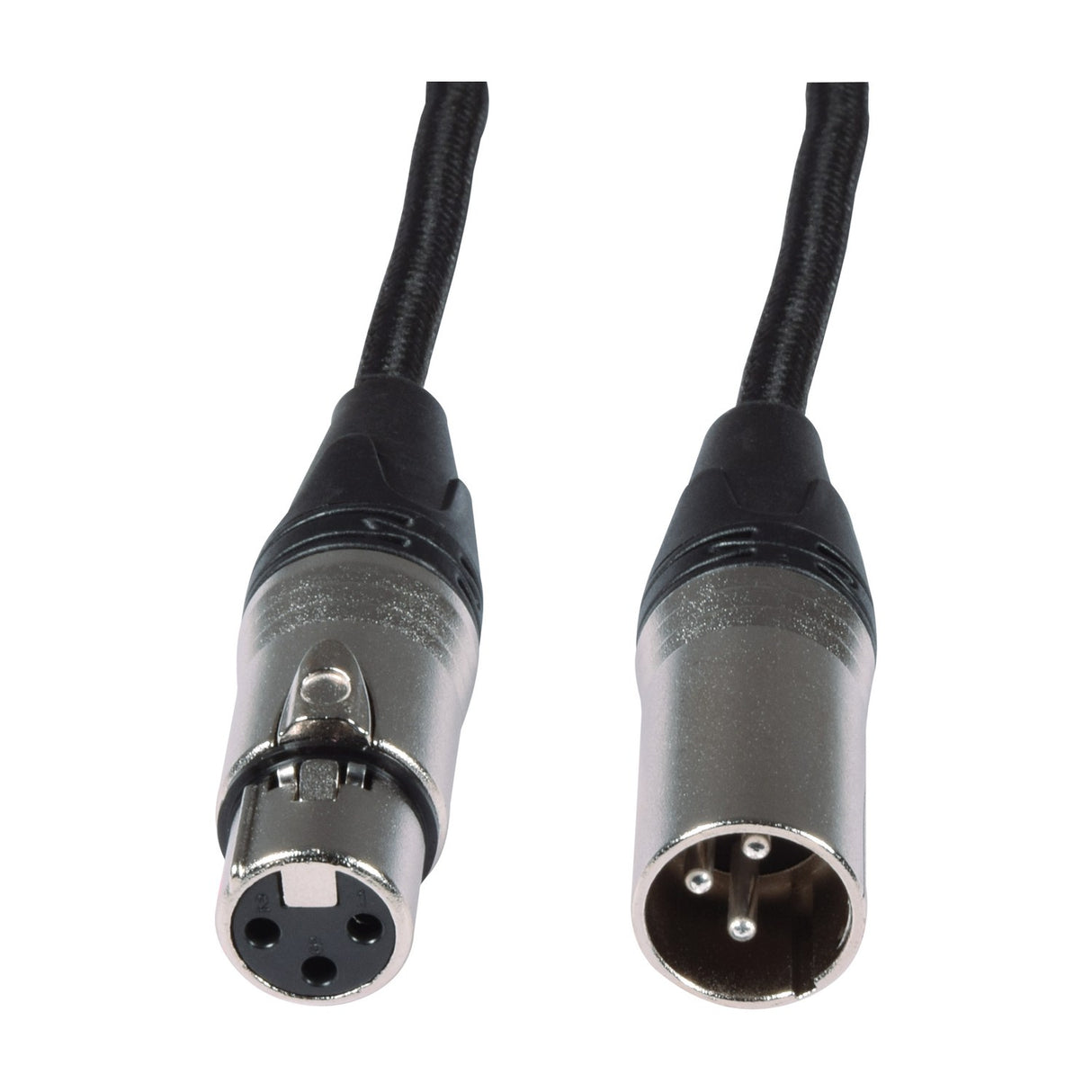

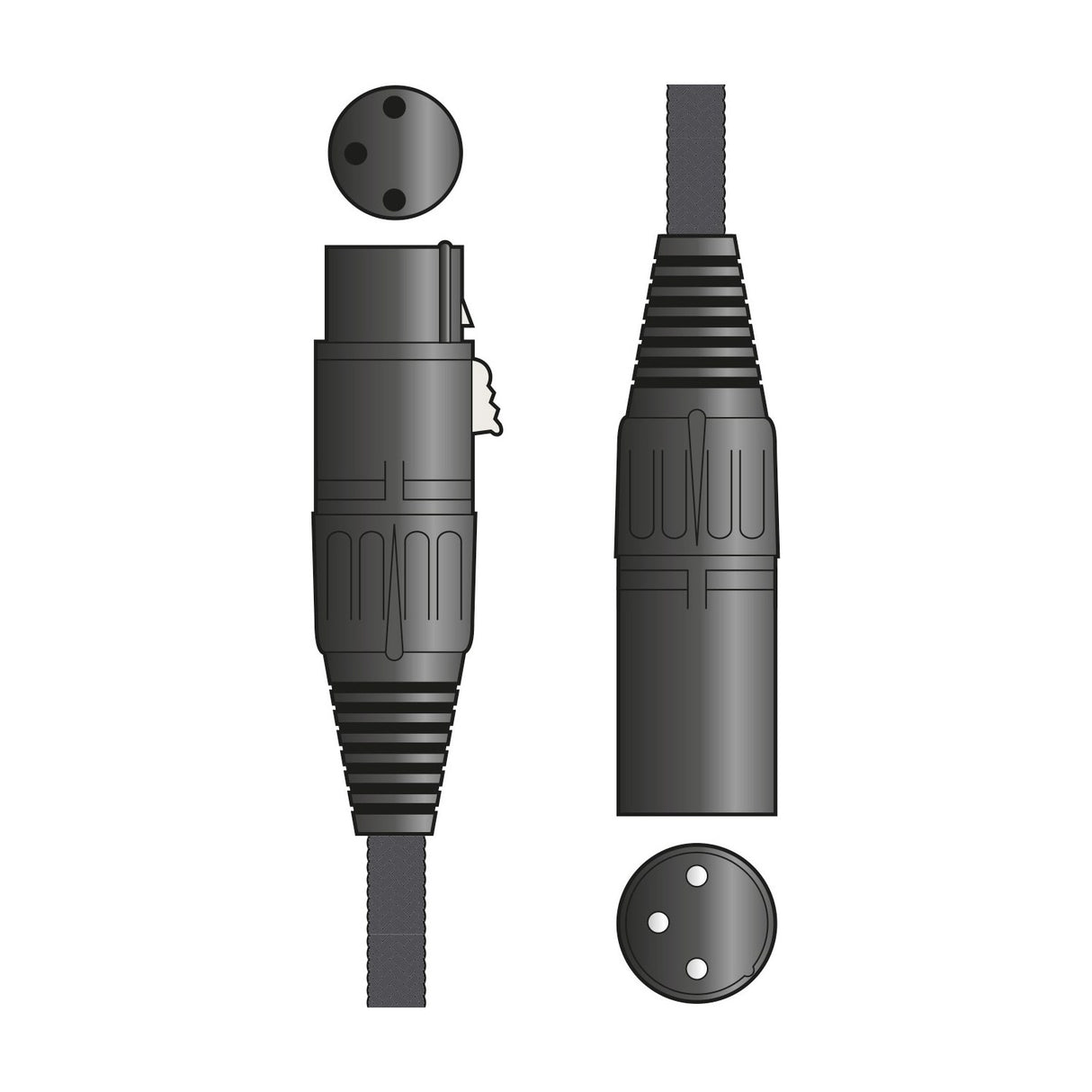

This retro braided XLRF-XLRM microphone lead is made to give a reliable connection for any performance, whether that's home recording or live music on stage. The female XLR to male XLR fitting is the standard set-up for connecting a microphone to a mixer, PA system or interface, so it slots straight into most rigs without any fuss.
The braided outer sleeve isn't just about looks. It keeps the cable flexible and helps stop tangles, which makes for easy storage after a gig and gives the lead long lasting protection against the knocks of regular use. Inside, pure copper wire conductors help reduce interference so your signal stays clean, and the high quality 3 pin connectors are built to hold up over time.
The cable measures 6.6mm in diameter with two conductors of 18 x 0.12mm, and it follows the standard balanced pin-out: 1-Ground, 2-Hot, 3-Cold. This lead comes in a 0.5m length, with 1.5m, 3m and 6m options also available in the range, so you can pick the reach that suits your set-up. Balanced XLR cabling like this is worth having on hand whether you run a single mic at home or a full stage.
In the US you'll see this called a mic cable or cord rather than a microphone lead, but it's the same thing. It's a straightforward, hard-wearing choice for anyone who wants a black braided cable that stands up to being coiled, moved and used night after night.
Specification
| Length |
0.5m |
| Connectors |
Male XLR, Female XLR |
| Cable : diameter |
6.6mmØ |
| Conductors |
2 x 18 x 0.12mmØ |
| Pin-out |
1-Ground, 2-Hot, 3-Cold |
Frequently Asked
What does XLRF-XLRM mean?
It means the lead has a female XLR connector at one end and a male XLR at the other. This is the standard arrangement for connecting a microphone to a mixer, PA or audio interface.
What lengths are available?
This listing is the 0.5m lead. The same braided cable is also offered in 1.5m, 3m and 6m lengths within the range.
Is this a balanced cable?
Yes. It uses a balanced 3 pin pin-out (1-Ground, 2-Hot, 3-Cold) with two conductors, which helps reject interference over the cable run.
What are the conductors made from?
The lead uses pure copper wire conductors, arranged as 2 x 18 x 0.12mm, to help keep the signal clean and reduce interference.
Does the braiding really help with storage?
Yes. The braided outer keeps the cable flexible and resists tangling, so it coils up neatly and packs away easily after use.
Will this work with my microphone and mixer?
If your mic has a male XLR output and your mixer or interface has a female XLR input, this lead connects the two directly.
