Description
This retro braided XLRF-XLRM microphone lead from Citronic gives you a reliable connection for any performance, whether that's home recording or live music on stage. The braided outer has a flexible, anti-tangle feel that makes coiling and storing the cable straightforward once you've finished. The braiding also adds a layer of protection, so the lead holds up well through regular use and transport.

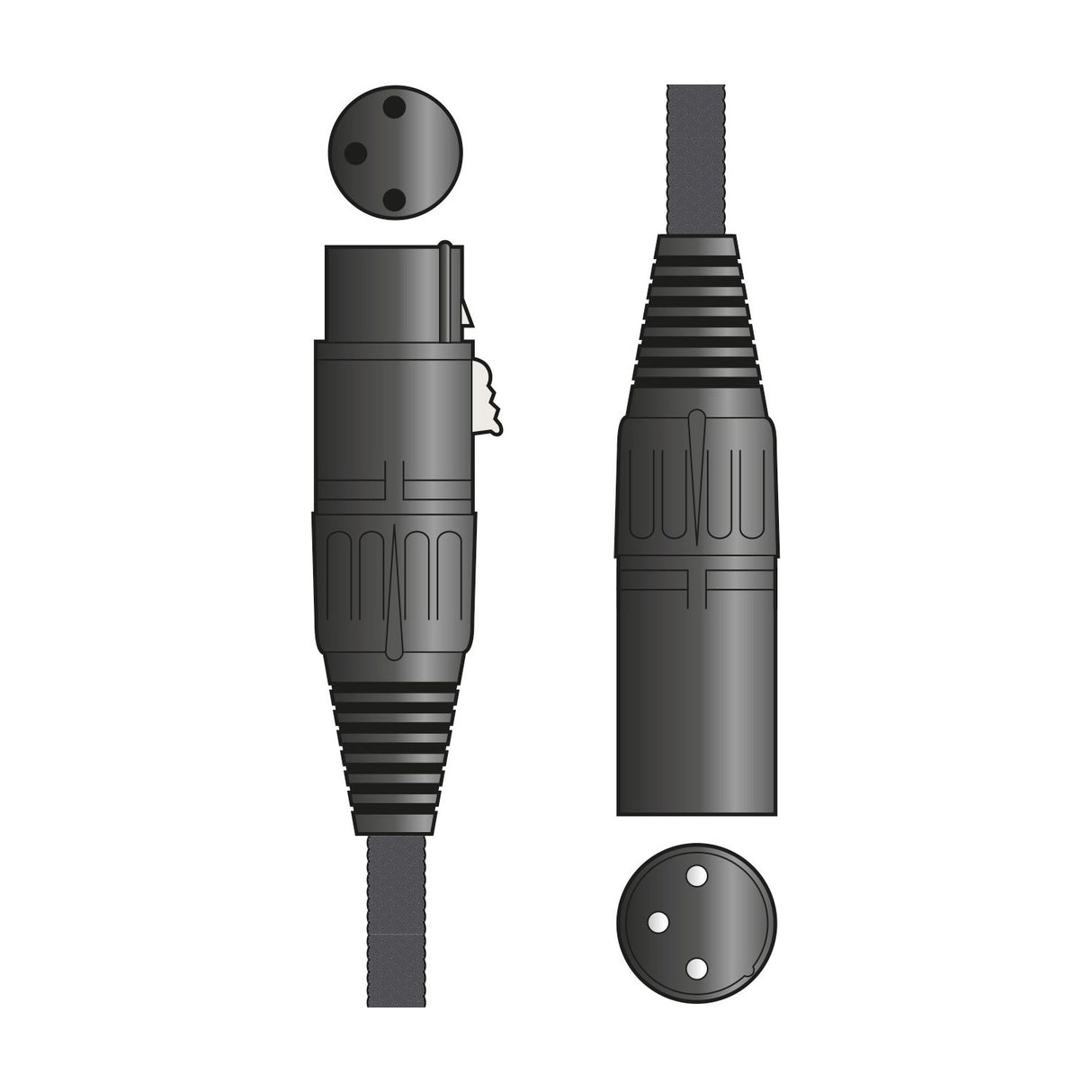

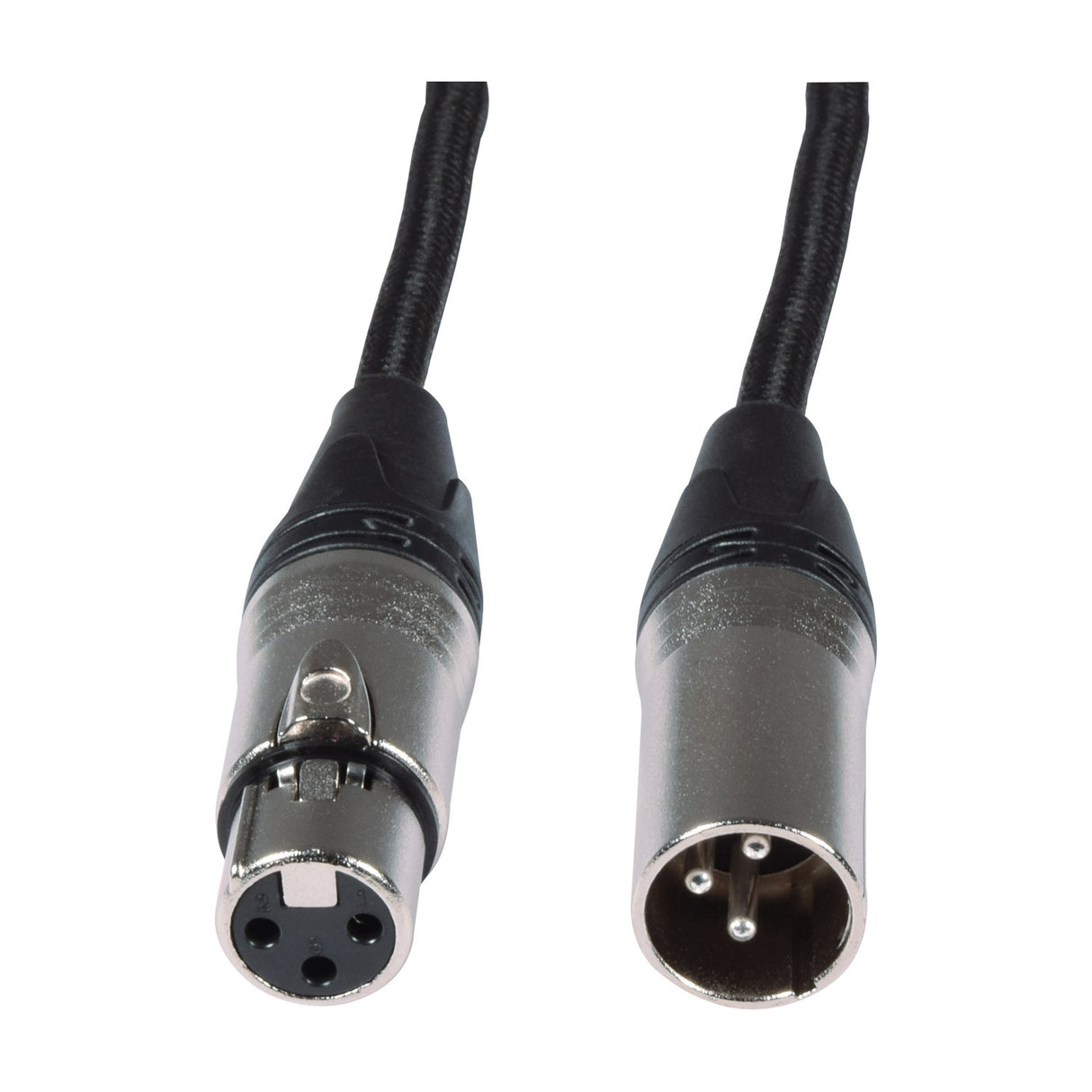

Inside, the cable uses pure copper wire conductors to help keep signal interference down and pass a clean audio signal through your setup. It's fitted with three-pin XLR connectors at both ends, one male and one female, so you can link microphones to mixers, or extend an existing run. The pin-out follows the standard layout of 1-ground, 2-hot and 3-cold, which keeps it compatible with balanced audio gear. In the US this cable is often called a mic cord, but the connector and wiring are the same either way.
The cable measures 6.6mm in diameter and runs two conductors of 18 x 0.12mm strands each. It's available in four lengths, so you can pick the run that suits your stage or studio: 0.5m for short patching, 1.5m and 3m for most setups, and 6m when you need extra reach. The black braided finish keeps things low-key and blends in with the rest of your kit. Whether you're setting up a small home rig or a full live sound stage, this lead does a solid, dependable job.
Specification
| Length |
3m |
| Connectors |
Male XLR, Female XLR |
| Cable : diameter |
6.6mmØ |
| Conductors |
2 x 18 x 0.12mmØ |
| Pin-out |
1-Ground, 2-Hot, 3-Cold |
Frequently Asked
What connectors does this lead have?
It has a three-pin male XLR at one end and a three-pin female XLR at the other, which is the standard fitting for microphones and balanced audio.
What lengths are available?
You can choose from 0.5m, 1.5m, 3m and 6m, so there's an option for short patching right through to longer stage runs.
What is the pin-out?
The lead follows the standard XLR wiring: pin 1 is ground, pin 2 is hot, and pin 3 is cold. This keeps it compatible with balanced audio equipment.
What are the conductors made from?
The cable uses pure copper wire conductors, which help reduce interference and pass a clean signal.
Is the cable easy to store?
Yes. The braided outer is flexible and anti-tangle, so it coils up neatly and is quick to pack away after use.
What is the cable diameter?
The cable measures 6.6mm in diameter, with each conductor made up of 18 strands of 0.12mm wire.
