Description

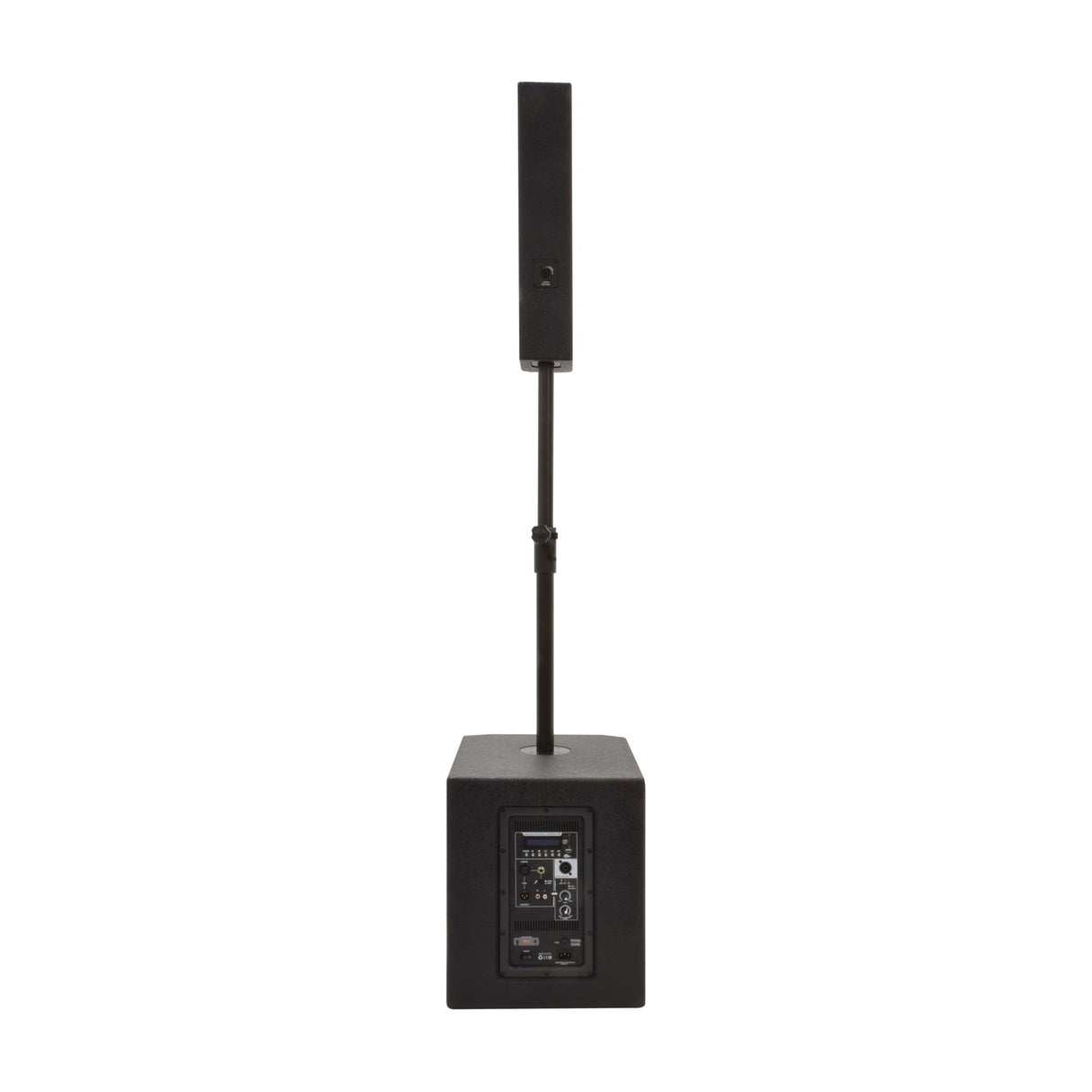

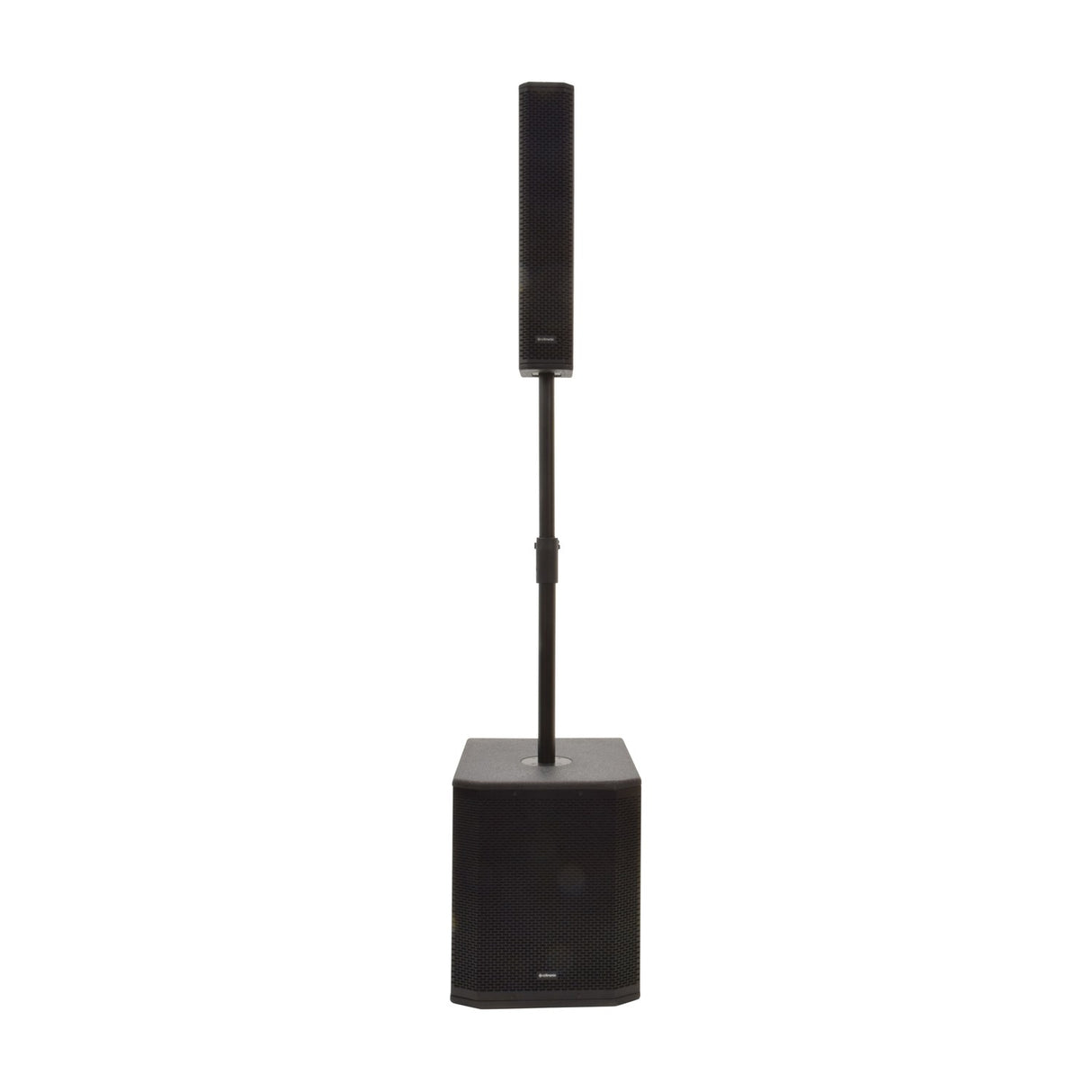

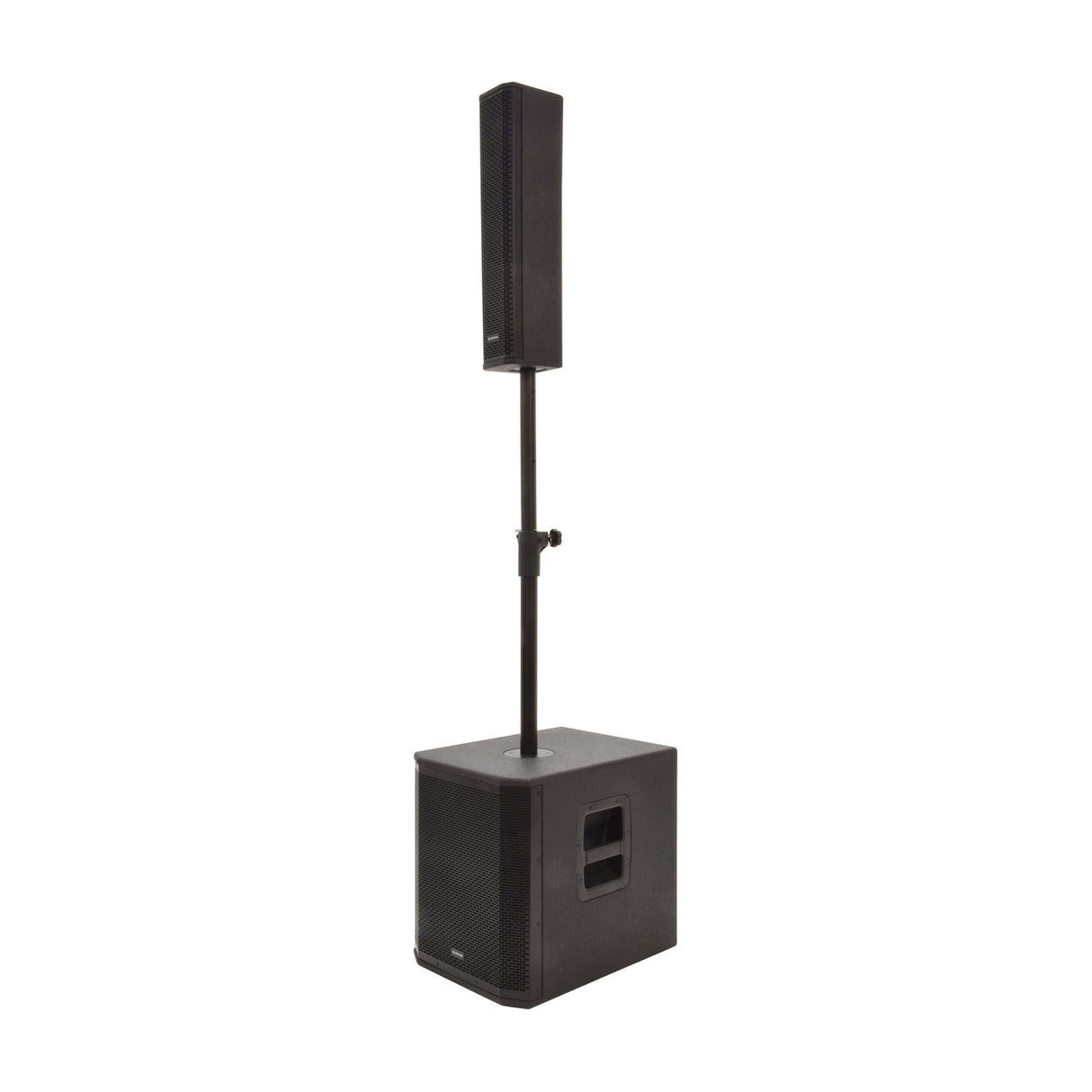

The Citronic Monolith mk3 is an active subwoofer paired with a pole-mounted satellite column, giving you a full-range PA set in one package. It runs from an efficient 400+100Wrms class-D bi-amplifier with bespoke DSP control, so you get solid sub frequencies, punchy mids and clear highs across a 35Hz to 20kHz response. This third generation of the Monolith carries the same idea forward with a familiar layout and a few refinements.
Audio comes from the built-in USB/SD player and Bluetooth, or you can plug in through the switchable Mic (XLR/Jack) or Line (Jack/RCA) inputs. Controls cover gain, subwoofer level, a sub boost switch and a Mic/Line switch, and there's a line out (XLR) alongside the speaker out that feeds the column. The 12" (300mm) sub handles the low end, while the column runs four 4" (100mm) ferrite drivers and a 1" (25mm) neodymium tweeter for the mids and highs.
Each set is supplied with a height adjustable 35mm pole and an SPK link lead, so you can run it on its own as a mono stack or pair up multiples for stereo or bigger setups. The cabinets are made from 15mm MDF with a textured polyurea coating for durability on the road. It suits solo performers, DJ setups and conferences. The sub cabinet weighs 20.0kg and the column 5.6kg, and the system arrives packed in two boxes. Max output is rated at 1000W with an SPL max of 127dB.
Specification
| Power supply |
230Vac, 50Hz |
| Fuse |
T3.15AL 250V (5 x 20mm) |
| Construction |
15mm MDF with texture polyurea coating |
| Output power : rms |
400W + 100W |
| Output power : max. |
1000W |
| Audio source |
Internal USB/SD/BT player |
| Inputs |
Switchable Mic (XLR/Jack) or Line (Jack/RCA) |
| Controls |
Gain, Sub-woofer level, Sub Boost switch, Mic/Line switch |
| Outputs |
Speaker out (SPK) to column, Line out (XLR) |
| Sub driver |
1 x 300mmØ (12") |
| Column drivers |
4 x 100mmØ (4") Ferrite, 1 x 25mmØ (1") Neodymium |
| Sensitivity |
103dB |
| SPL max. |
127dB |
| Frequency response |
35Hz - 20kHz |
| Dimensions : sub cabinet |
480mm x 450mm x 380mm |
| Weight : sub cabinet |
20.00KG |
| Dimensions : column |
580mm x 140mm x 115mm |
| Weight : column |
5.60KG |
Downloads
Product Manual
Frequently Asked
How much power does the Monolith mk3 produce?
It runs a 500W class-D bi-amplifier, rated at 400W + 100W rms with a 1000W maximum. The class-D design keeps things efficient while driving both the sub and the column.
Can I play music without an external source?
Yes. The Monolith mk3 has a built-in USB/SD player plus Bluetooth, so you can play audio directly. You can also connect through the switchable Mic or Line inputs.
Can I use two of these together?
Yes. Each set works on its own as a mono stack, or you can pair or run multiples for stereo and larger PA setups thanks to the modular design.
What comes in the box?
Each set is supplied with the active subwoofer, the satellite column, a height adjustable 35mm pole and an SPK link lead. It ships packed in two boxes.
What inputs and outputs does it have?
Inputs are switchable between Mic (XLR/Jack) and Line (Jack/RCA). Outputs include a speaker out (SPK) to the column and a line out (XLR) for linking further gear.
How heavy is the system?
The sub cabinet weighs 20.0kg and the column weighs 5.6kg, so it stays manageable for solo transport and setup.
