Citronic CMC-18 Live Mixing Console with DSP & USB/BT

£32999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

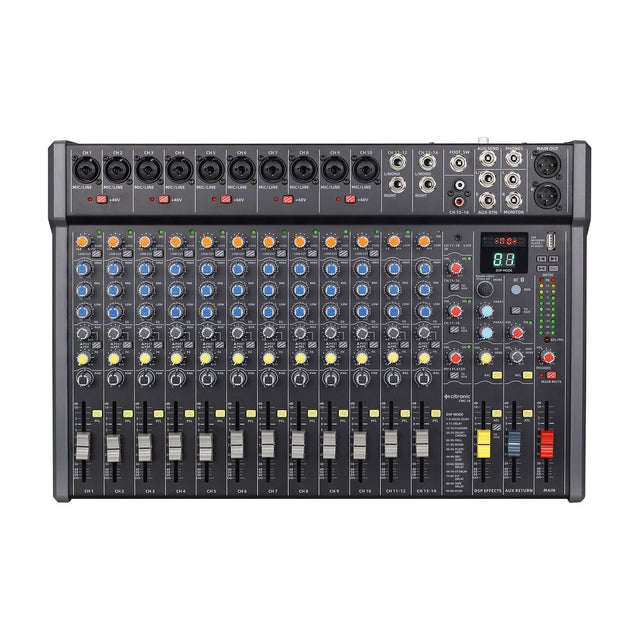

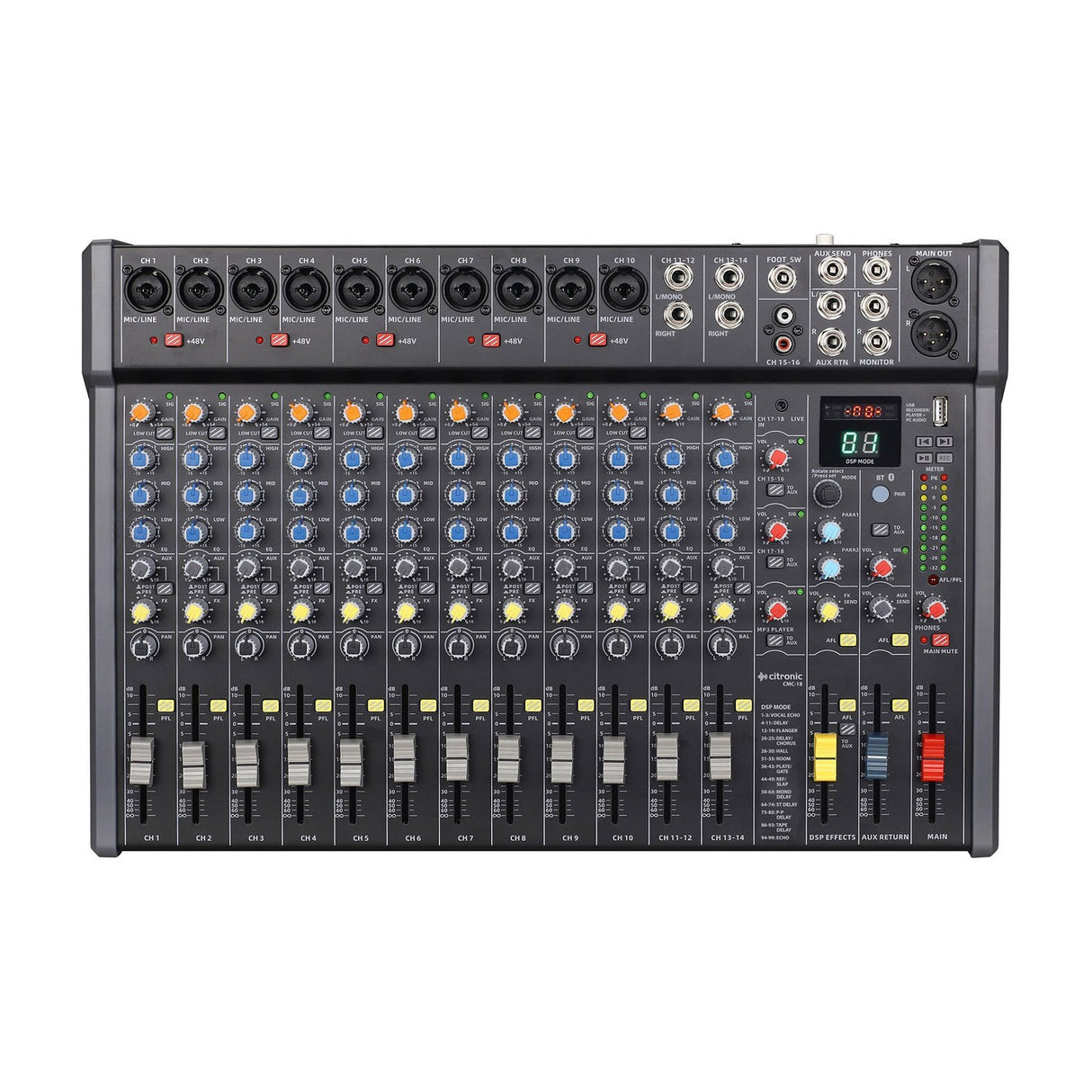

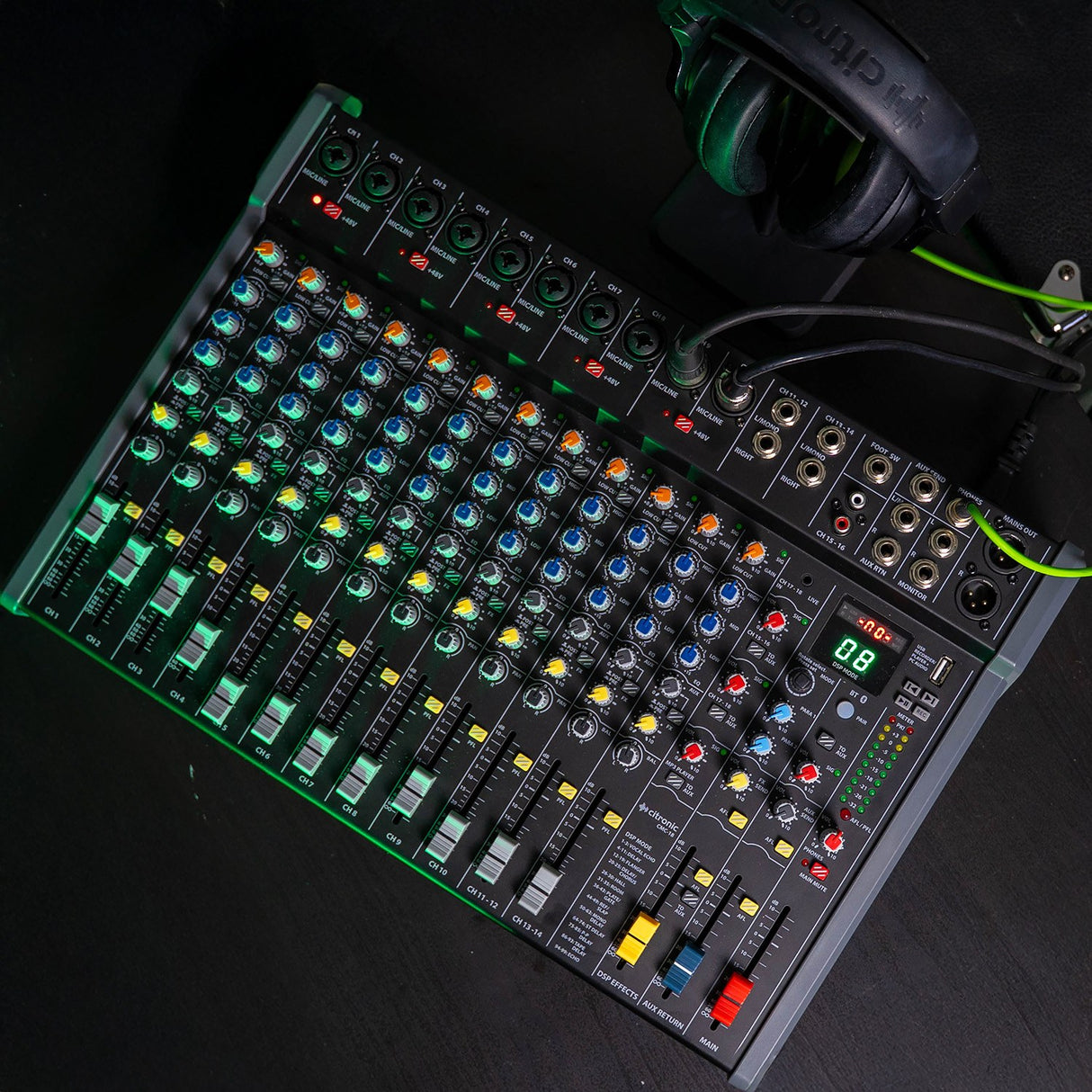

The Citronic CMC-18 is a fully featured audio mixer with mono input channels, two stereo line inputs, a stereo Aux input and a further minijack stereo input. Each mono mic/line channel has a combo XLR/jack input with +48V phantom power that switches in pairs for the XLR inputs. Each channel gives you a Gain control for matching the input source and a low-cut switch to filter out rumble or handling noise from microphones.

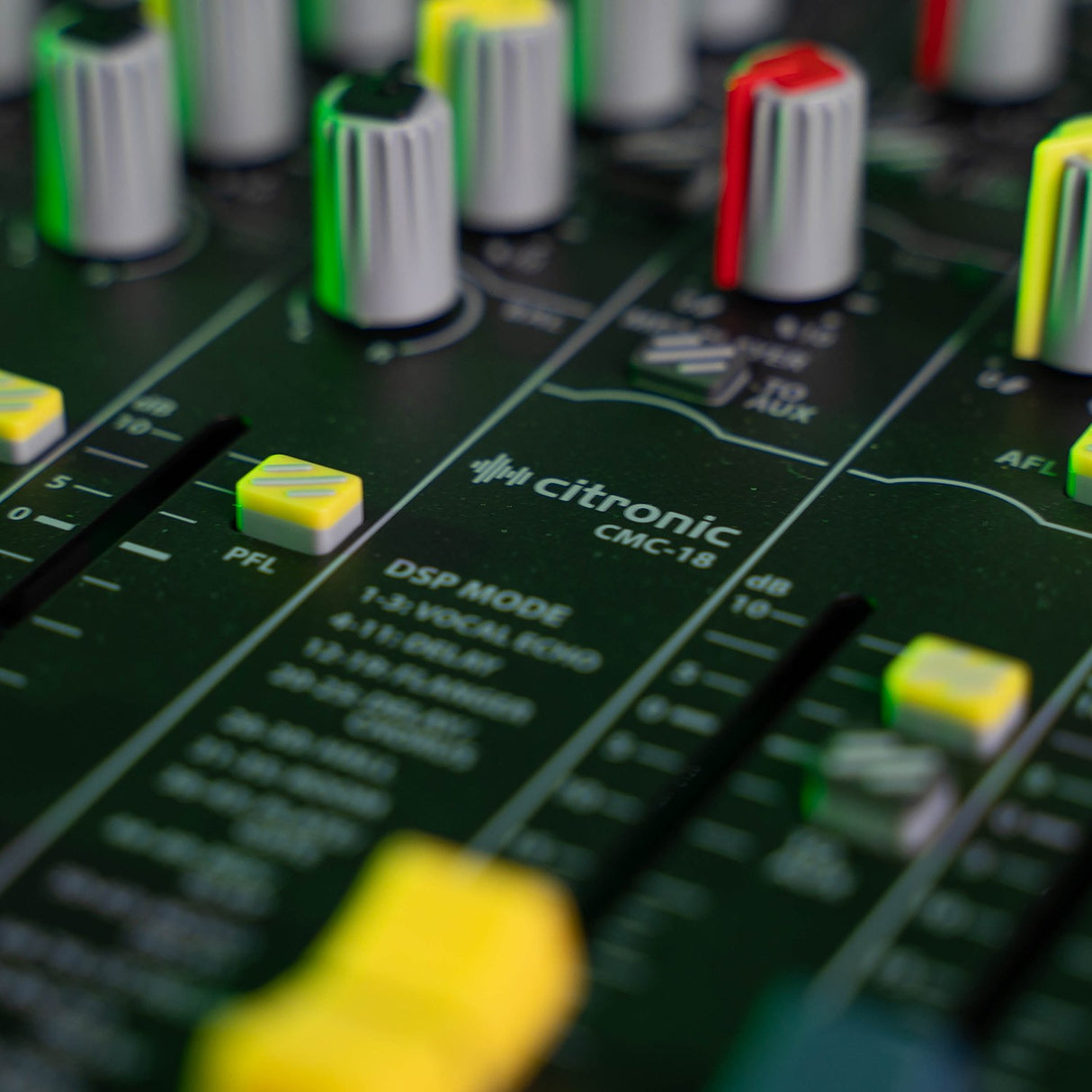

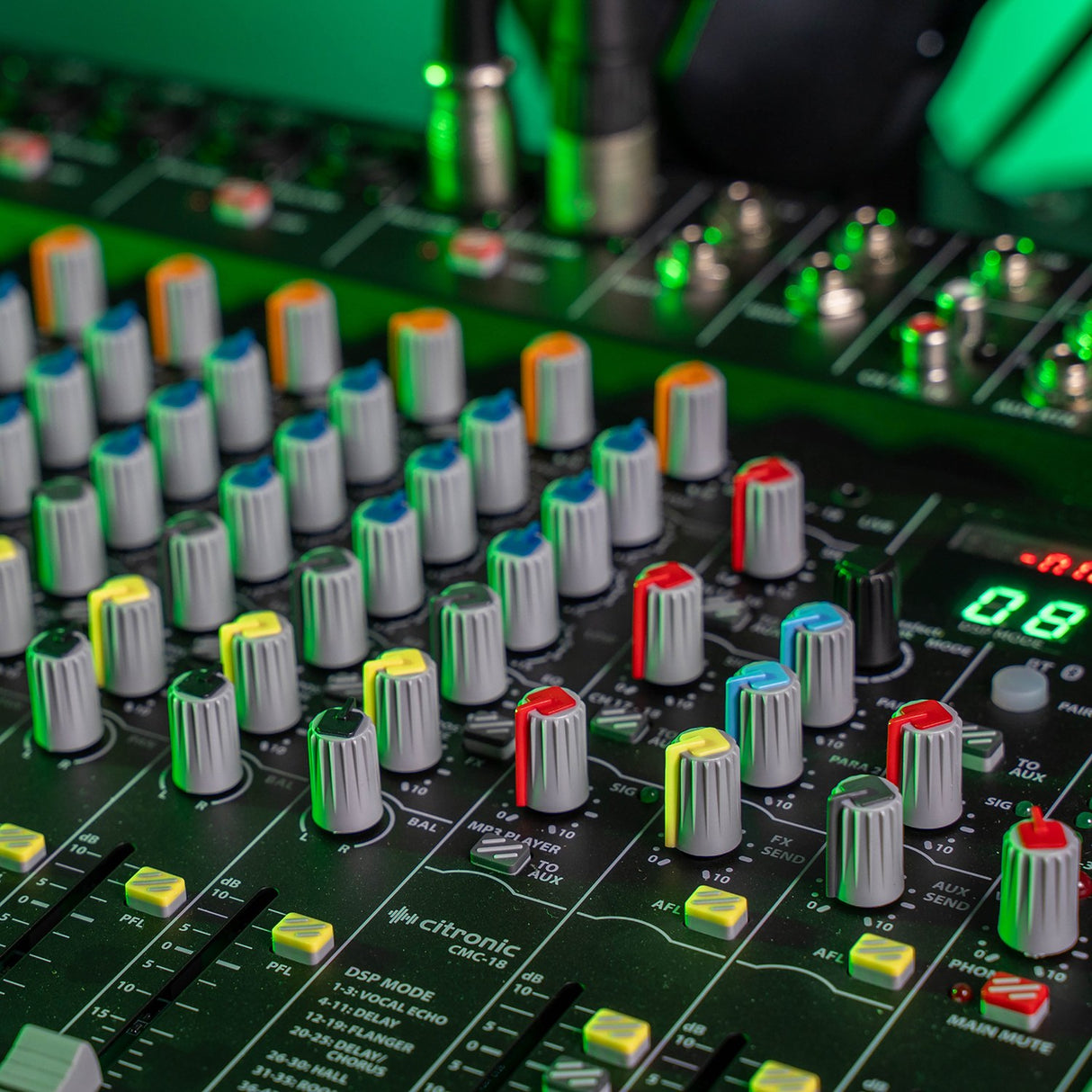

Every mono channel carries High/Mid/Low EQ controls, an Aux out level, an FX level, a Pan control and a 60mm channel fader. The onboard foot-switchable DSP effects engine holds 99 presets for delay, reverb and modulation, each adjustable using two parameter controls. A built-in Bluetooth receiver has an illuminated pairing button and its own independent volume control, so you can bring in wireless audio without upsetting your channel levels.

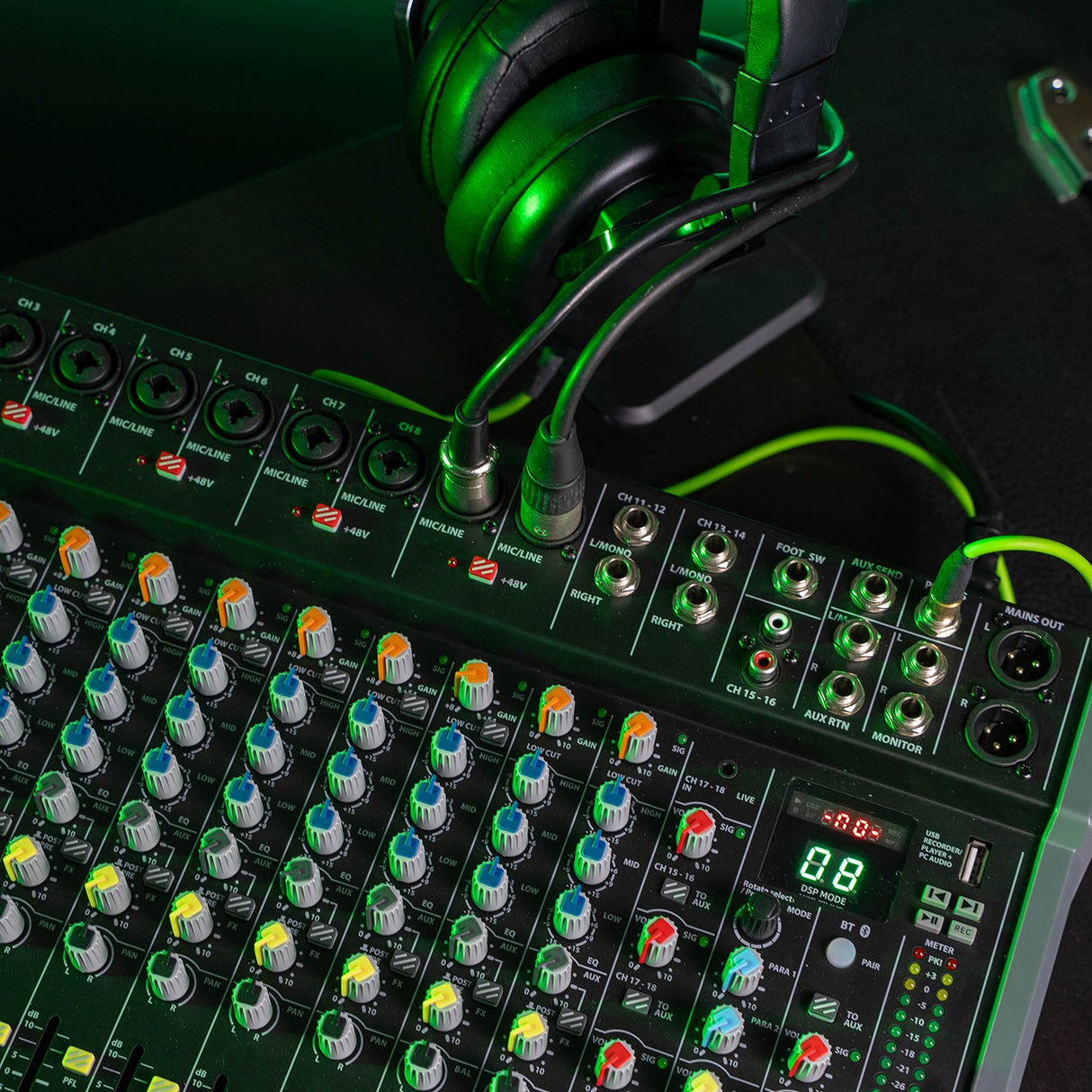

The USB type-A port on the top panel plays audio files, records the main outputs to a USB storage device, or works as an external audio device (soundcard) when connected to a laptop. Main output runs through left and right XLR, alongside 6.3mm monitor and headphone outputs plus the Aux send and stereo return loop. It suits live sound engineers, project studios and entertainment venue installations. Note that fader (US: slider) terminology is common across mixing desks.

Specification

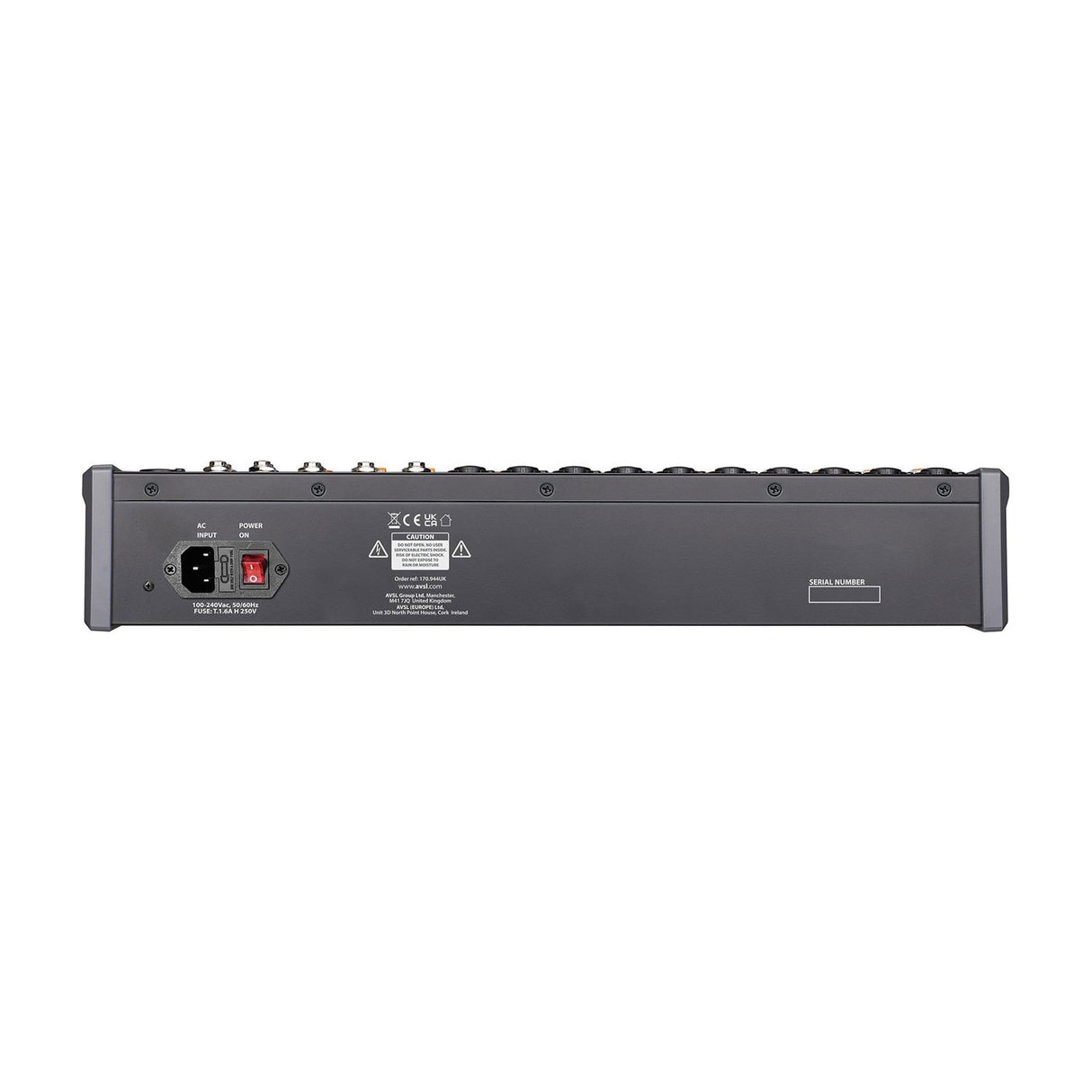

Power supply 100-240Vac, 50/60Hz (IEC)
Fuse T1.6AH
Effects 99 program DSP (2 parameter controls)
Inputs : Line 2 x stereo L+R 6.3mm, stereo RCA + stereo 3.5mm
Audio source Bluetooth receiver, USB mp3 player/recorder
Bluetooth version v5.1 (+BR+EDR+BLE)
EQ: low ±15dB @ 80Hz
EQ: mid ±15dB @ 2.5kHz
EQ: high ±15dB @ 12kHz
Phantom power +48V switchable in pairs (XLR inputs only)
Frequency response 20Hz - 22kHz (±1dB)
Input level Mic +10dBu max. / Line +22dBu max.
Input impedance Balanced XLR 2k Ohm, Balanced TRS jack 10k Ohm (unbal 20k Ohm)
THD +N <0.05% @ 1kHz
Noise EIN -122dBu (22Hz - 22kHz)
CMRR >75dB (Mic 1kHz)
Sensitivity XLR -60 to +10dBu, TRS jack -20 to +20dBu, Stereo -20 to +14dBu
Crosstalk >80dB (1kHz fader shutoff)
Outputs Main L+R XLR, L+R Monitor 6.3mm, Headphones 6.3mm
Max. output level XLR +22dBu, TRS +20dBu
Sends : returns 1 Aux send, L+R return
Downloads

Product Manual

Frequently Asked

How many channels does the CMC-18 have?

The CMC range comes in 6, 8 or 10 mono input channel versions, plus two stereo line inputs, a stereo Aux input and a further minijack stereo input.

Does it have phantom power?

Yes. It provides +48V phantom power, switchable in pairs on the XLR inputs, for condenser microphones that need it.

Can I record directly from the mixer?

Yes. The USB type-A port records the main outputs to a USB storage device, plays back audio files, and works as an external audio device when connected to a laptop.

What Bluetooth version does it use?

It has a Bluetooth v5.1 receiver (+BR+EDR+BLE) with an illuminated pairing button and independent volume control.

What effects are on board?

The DSP engine offers 99 presets covering delay, reverb and modulation, each adjustable with two parameter controls, and it is foot-switchable.

What outputs are provided?

Main left and right XLR, left and right 6.3mm monitor outputs, a 6.3mm headphone output, plus the Aux send and stereo return loop.
