Chord XU4-B Quad Bodypack UHF Wireless Microphone System

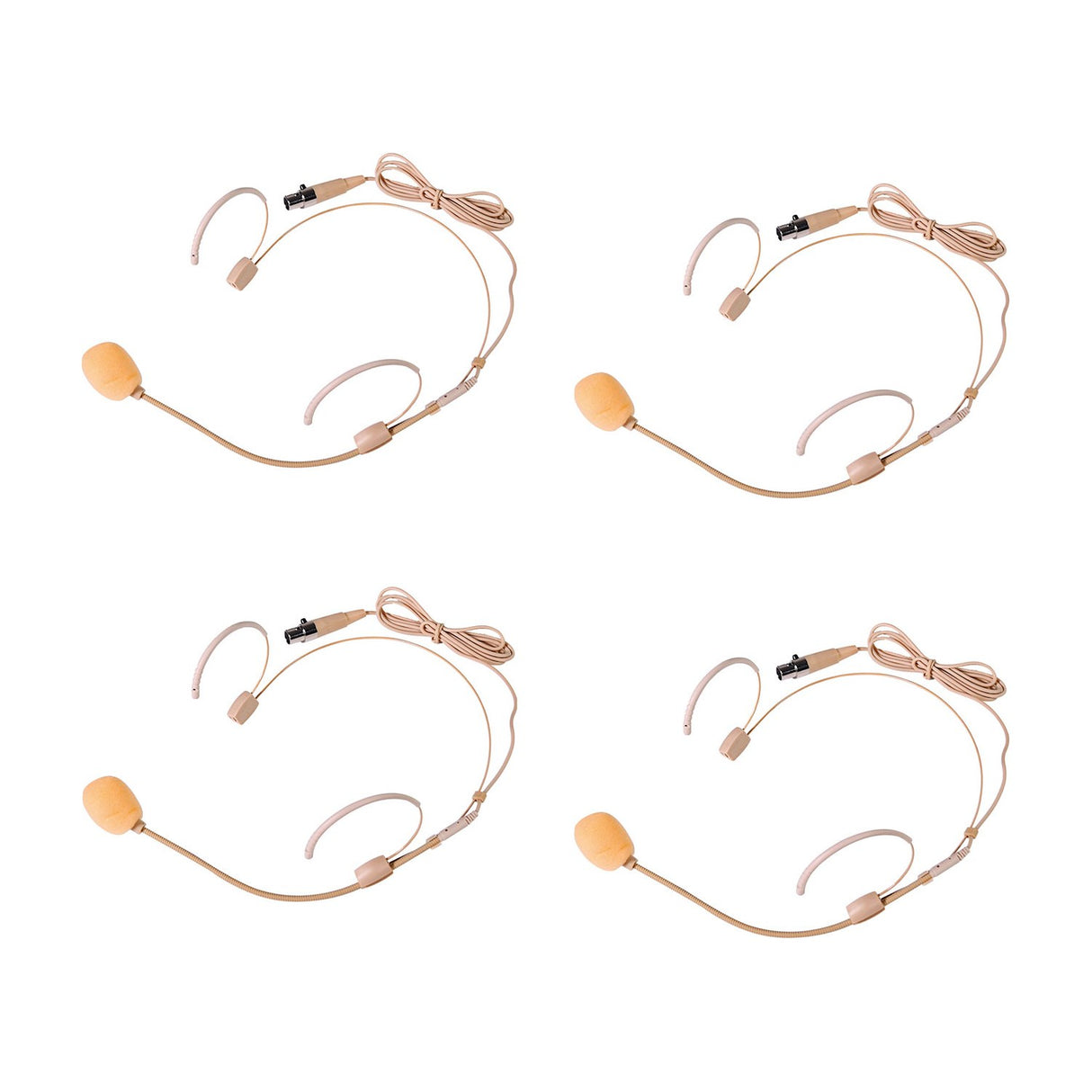

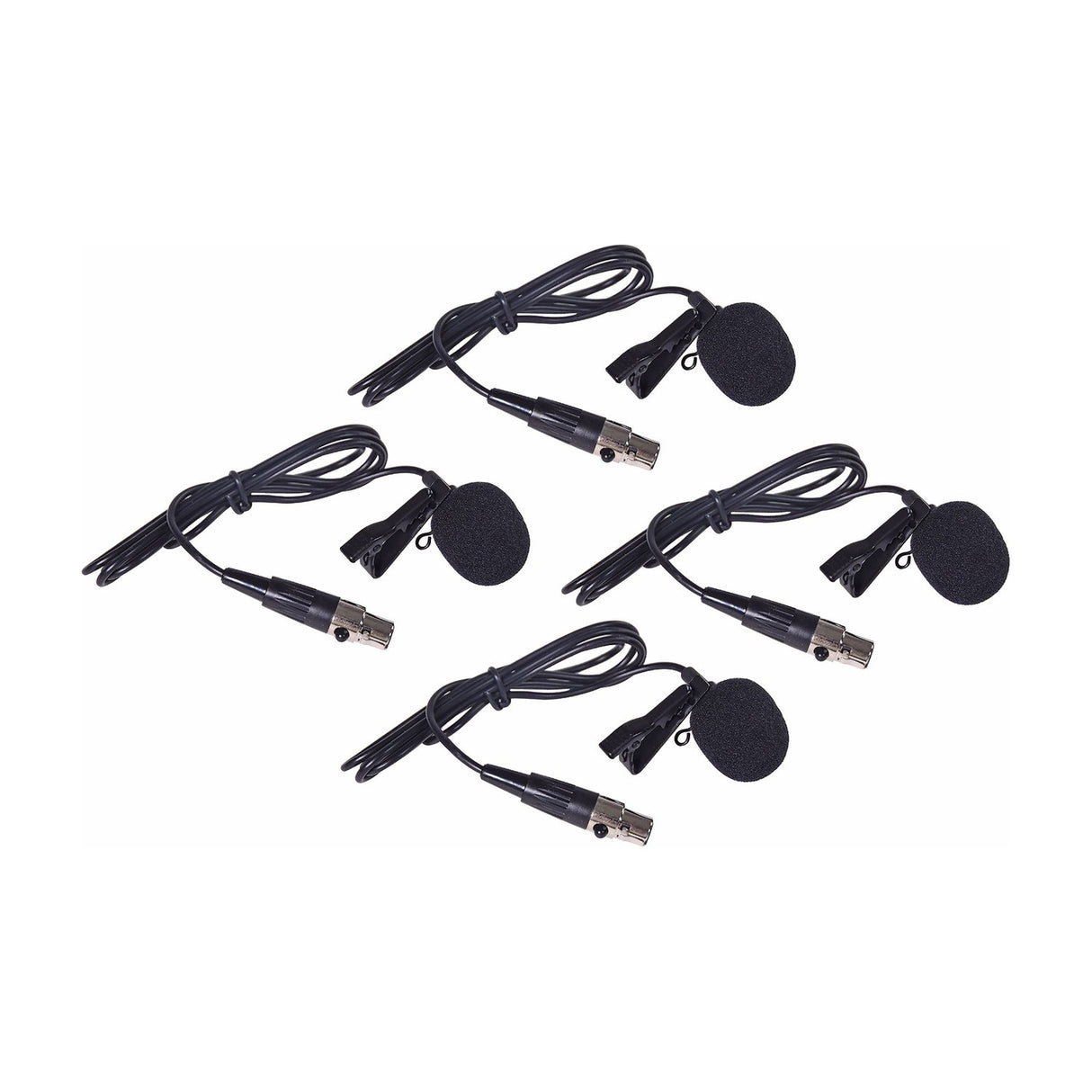

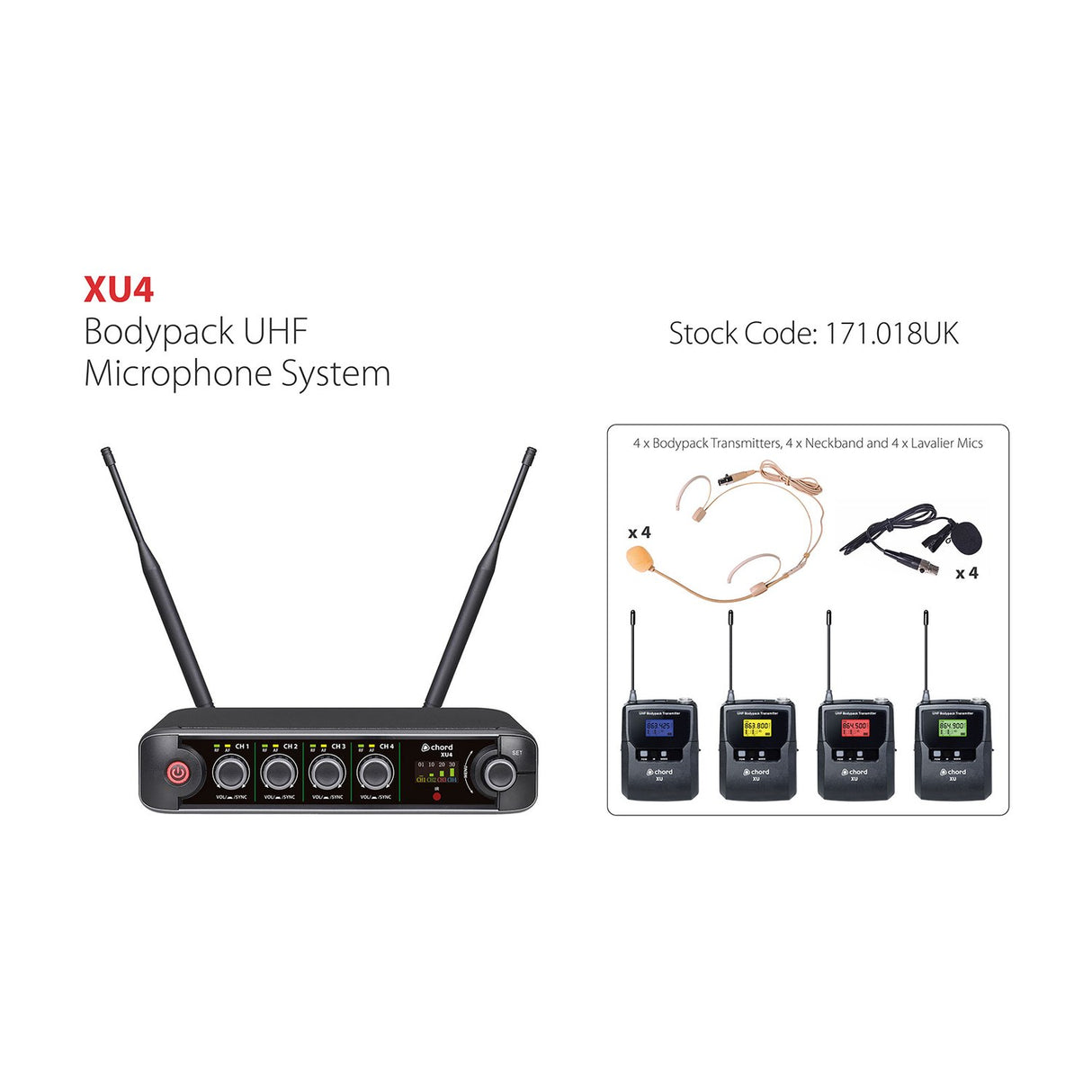

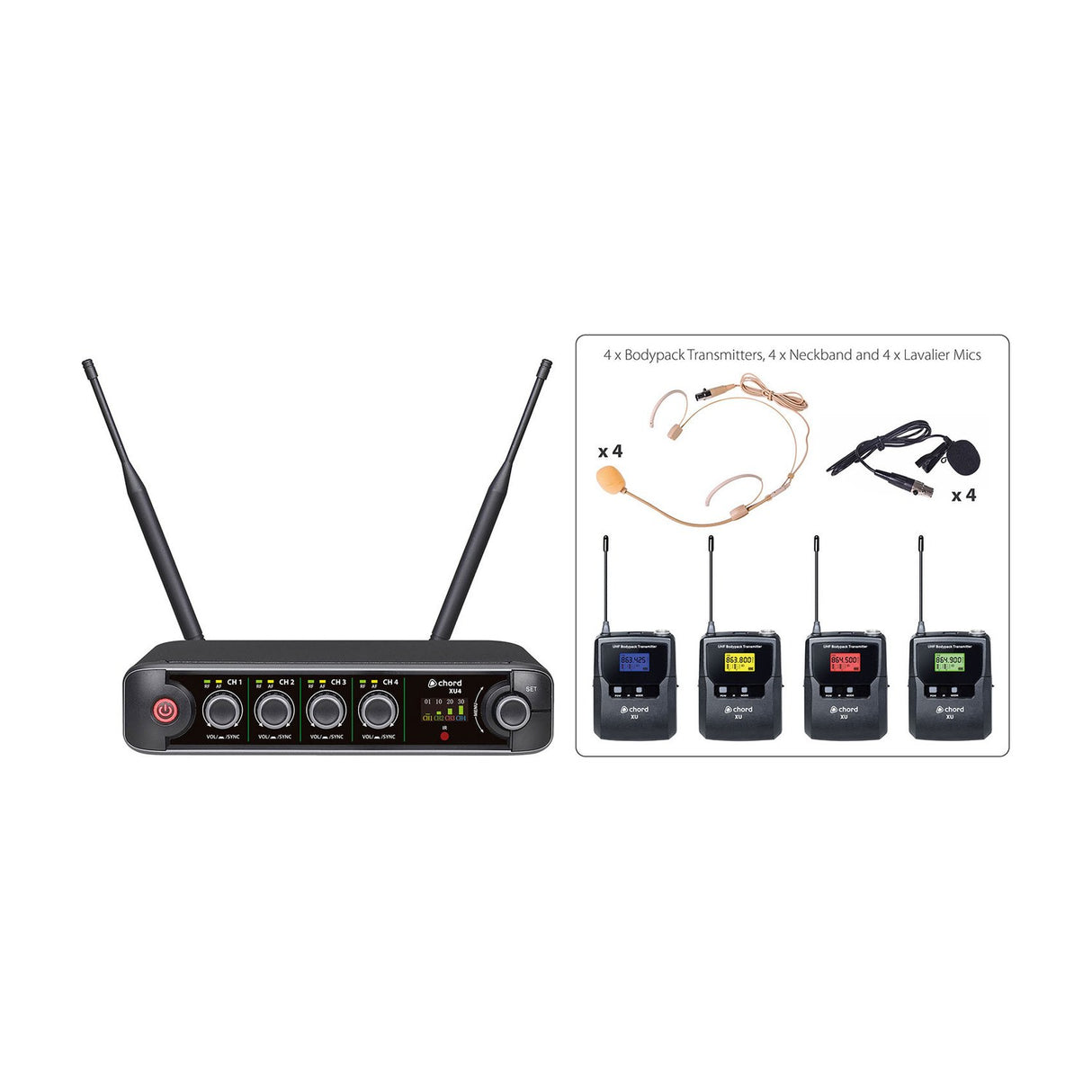

The Chord XU4-B gives you four channels of UHF wireless microphones in a compact half-width 1U rack receiver. Each channel comes with a bodypack transmitter, a neckband and a lavalier (lapel) mic, so it suits presenters, instructors and vocalists who need to keep their hands free. The receiver uses a true diversity design with dual antennas (aerials) and internal distribution, which helps keep reception steady and cuts down on dropouts across the room.

You get 10 groups of 9 selectable UHF carrier frequencies, covering the UK/EU license-free band and the PMSE licensed duplex gap. That range of options makes it easier to find clear channels when other kit is running nearby. Setup is quick because you can sync settings by infrared from the receiver straight to each transmitter, so there's no fiddling with matching frequencies by hand. A colour TFT display handles the settings menu, and you can set a backlight colour per channel to tell them apart at a glance.

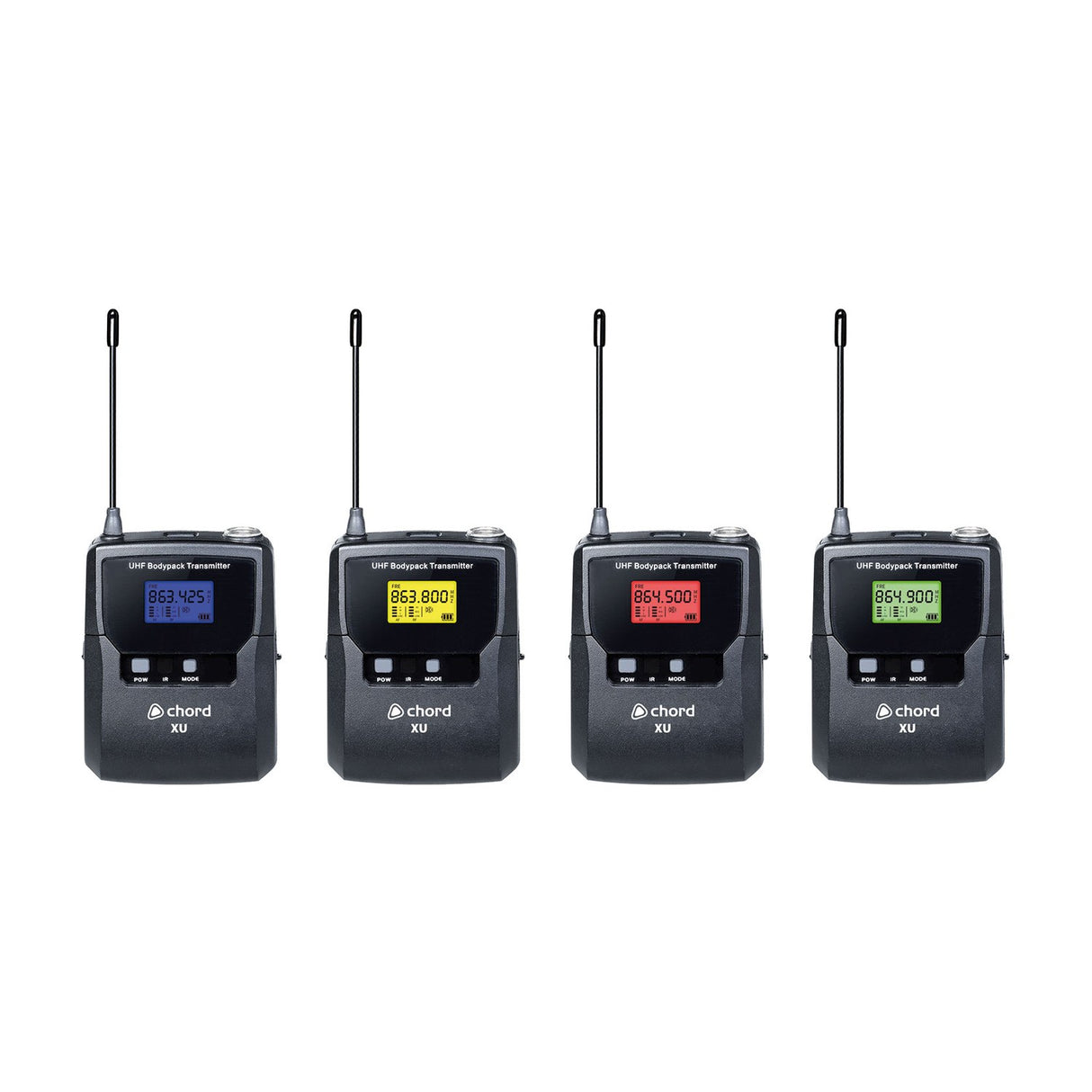

The front panel holds a volume control and indicator LEDs for each channel, plus level metering on the display. Every transmitter has its own LCD showing frequency and battery status, with a backlight you can set to one of six colours. Outputs cover 1, 2 or 4 XLR connections along with a 6.3mm mix output, so you can feed a mixer channel by channel or run a single combined signal. Each transmitter takes 2 x AA batteries, and wireless range runs up to 60m. The set ships with rack-mounting hardware and extension cables so you can front-mount the antennas.

Product Manual

How many channels does the XU4-B have?

It has four channels, each supplied with a bodypack transmitter, a neckband and a lavalier (lapel) mic. This lets up to four people speak or perform at once.

What outputs are available on the receiver?

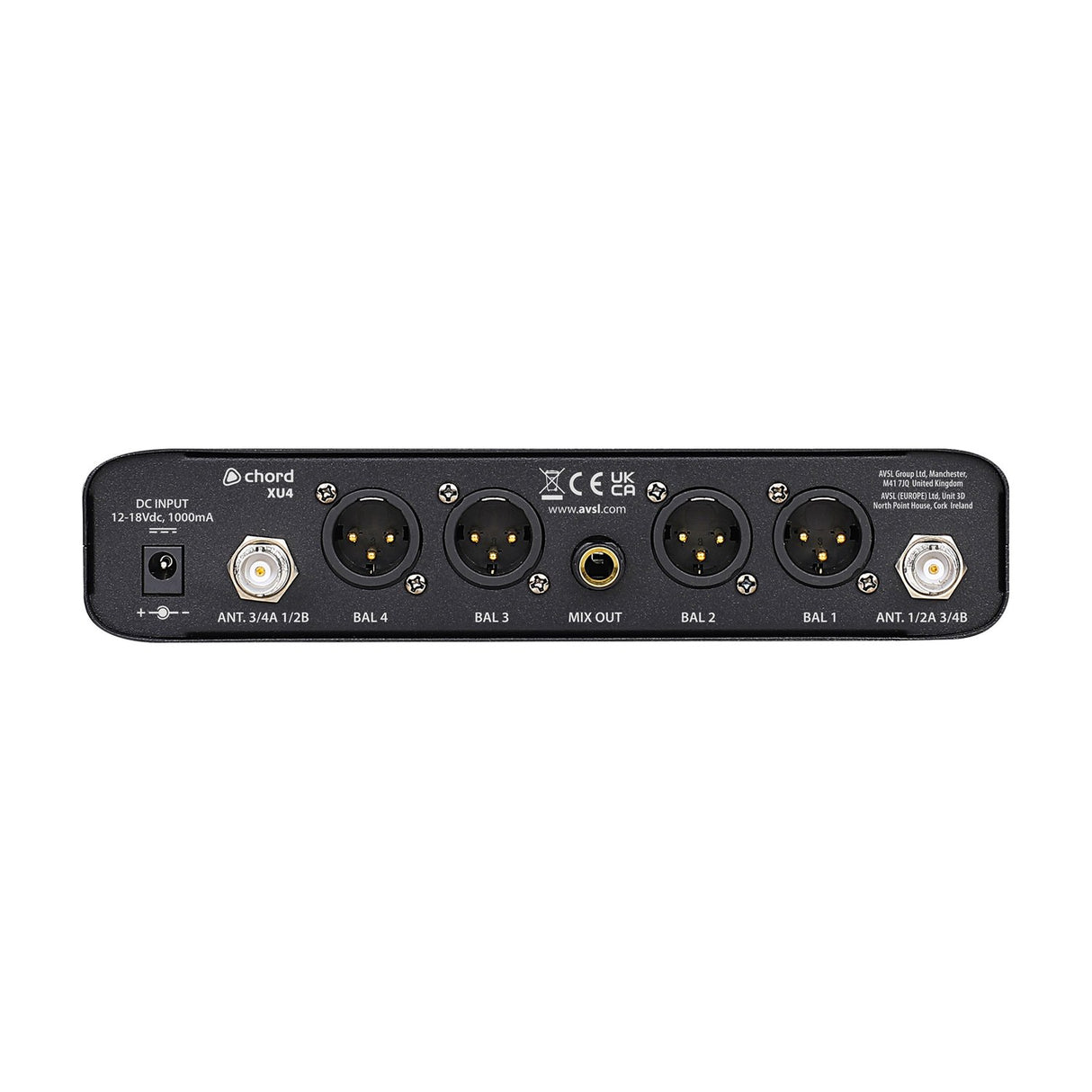

The receiver offers 1, 2 or 4 XLR outputs plus a single 6.3mm mix output. You can send each channel out separately or take one combined signal.

How do I match the transmitters to the receiver?

You sync the settings by infrared from the receiver to each transmitter. This copies the frequency setup across without manual matching.

What is the wireless range?

The system works at up to 60m. Range in practice depends on the room, obstructions and interference from other wireless kit.

What batteries do the transmitters use?

Each transmitter runs on 2 x AA batteries. The transmitter's LCD shows battery status so you can keep an eye on remaining charge.

Can I rack-mount the receiver?

Yes. It's a half-width 1U receiver and ships with rack-mounting hardware plus extension cables so you can front-mount the antennas (aerials).
