Chord XU2-B Dual Bodypack UHF Wireless Microphone System

£27899
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

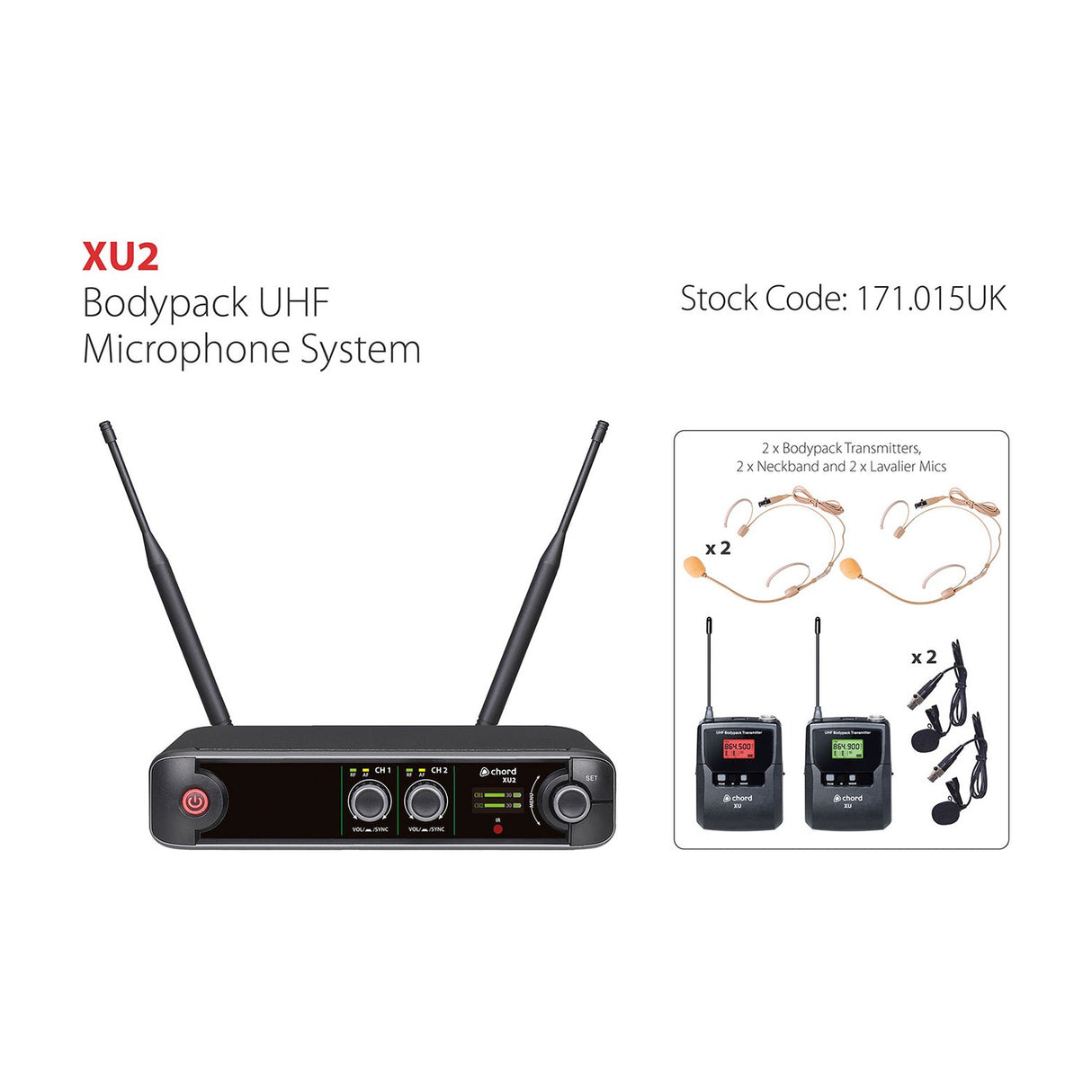

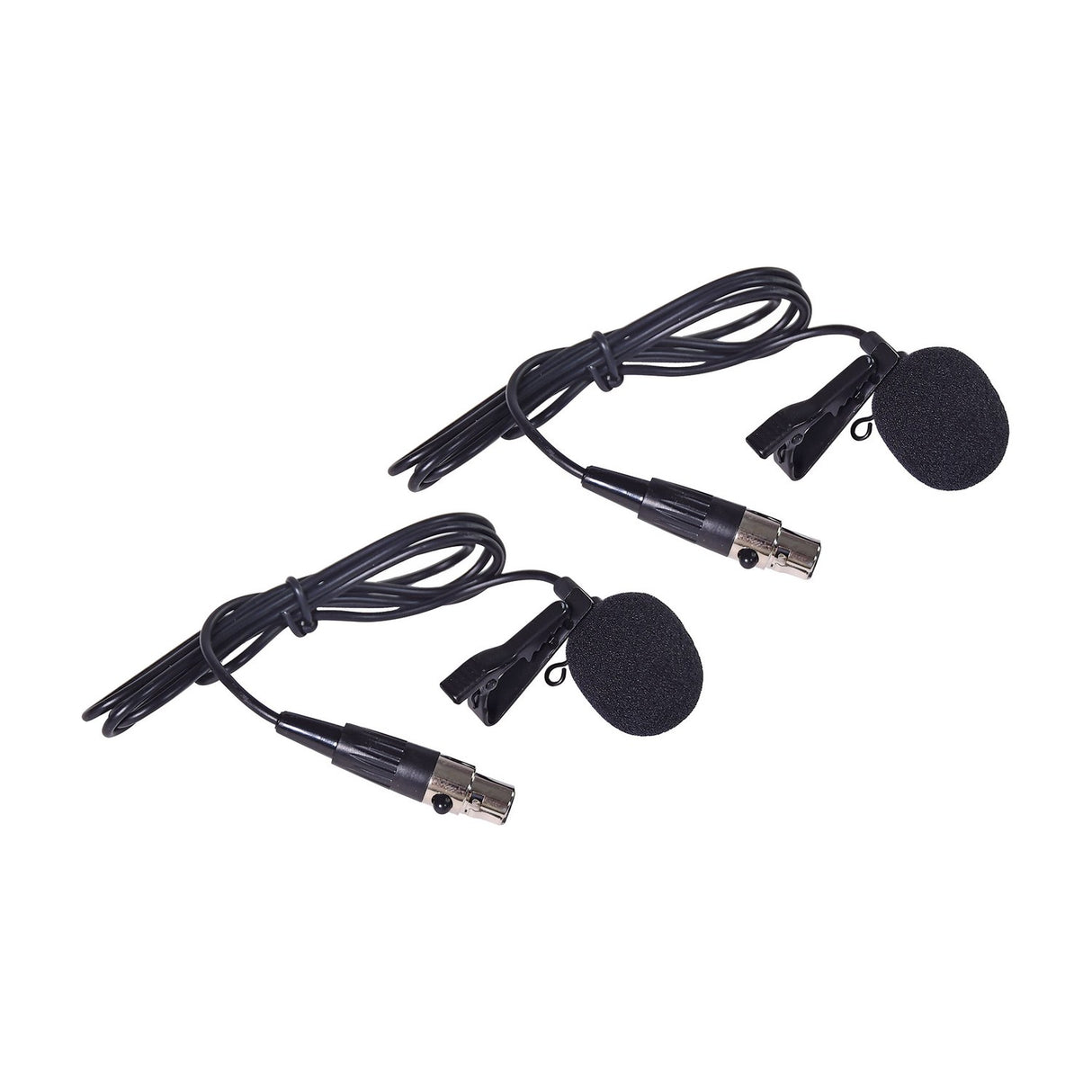

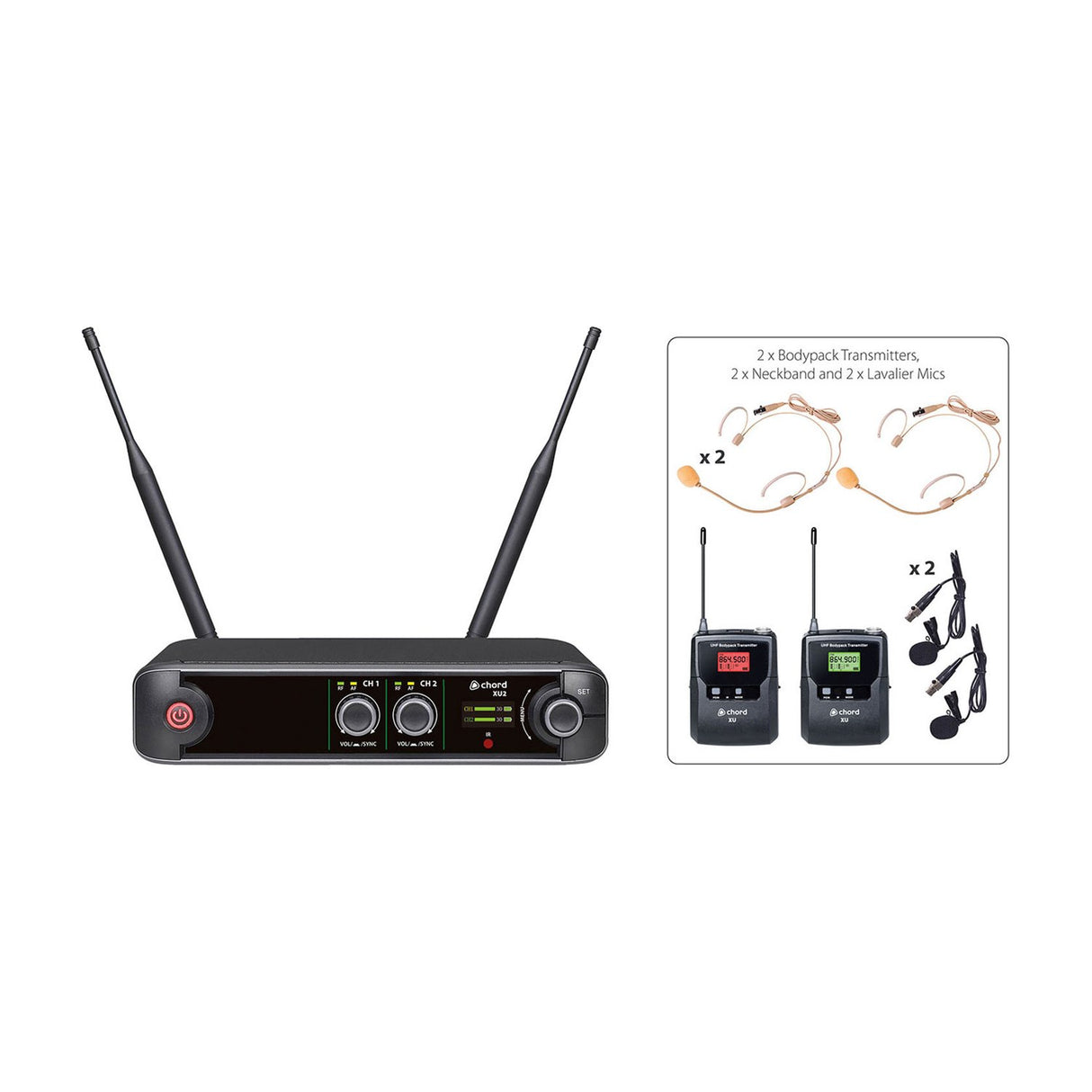

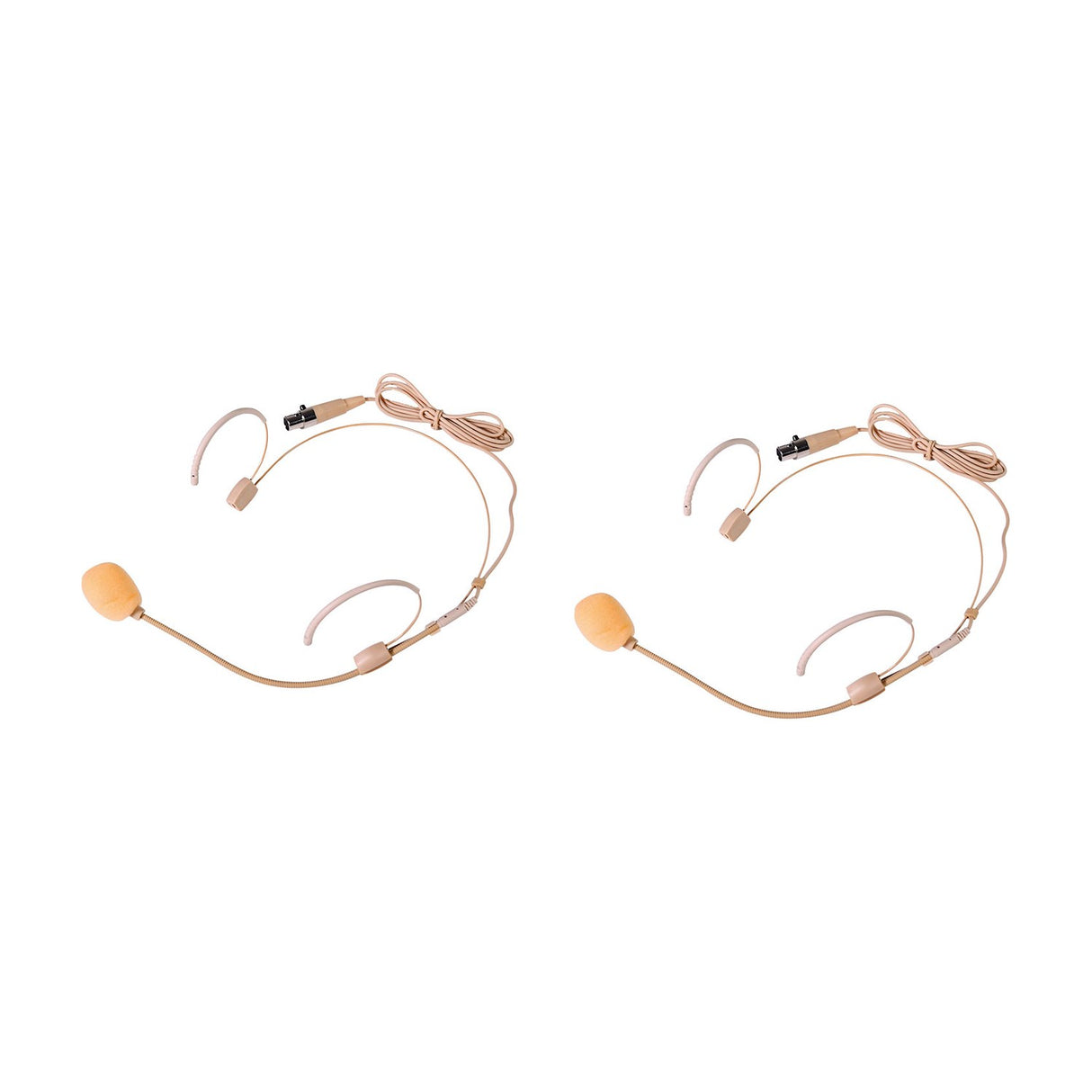

The Chord XU2-B is a dual-channel UHF wireless microphone system built around a compact half-width 1U rack receiver. It comes with two bodypack transmitters, each supplied with a neckband and lavalier mic option, making it suited to presenters, instructors and vocalists who need to move freely. The receiver uses a true diversity design with dual antennas (aerials) and internal distribution to minimise dropouts and keep reception reliable across the working area.

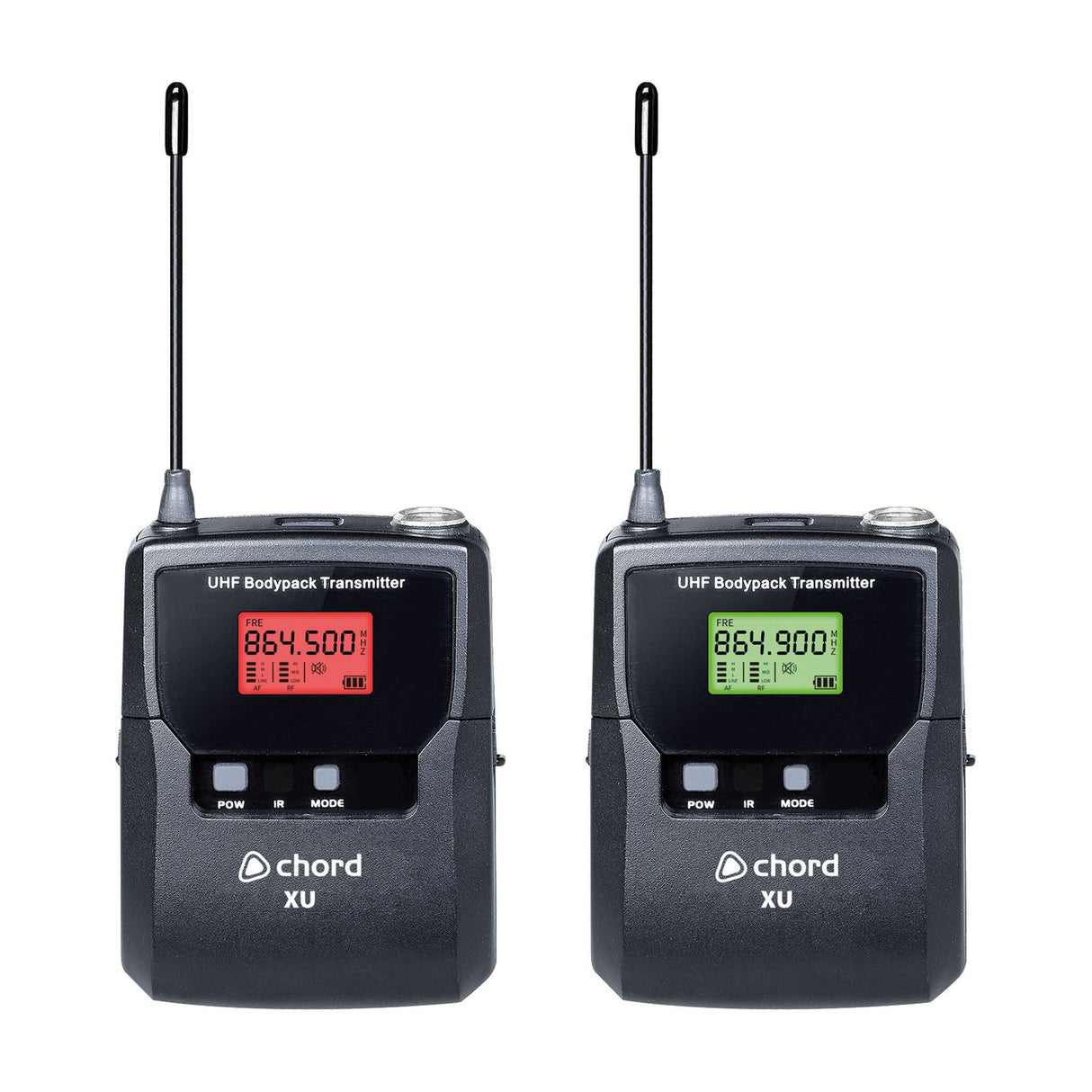

Carrier frequencies are arranged in 10 groups of 9 selectable UHF frequencies, covering both the UK/EU license-free UHF band and the PMSE licensed duplex gap. The front panel has a volume control and indicator LEDs per channel, plus a colour TFT display showing levels and the settings menu for frequencies and colours. Each transmitter has its own LCD display for frequency and battery status, with a backlight that can be set to one of six colours so channels are easy to tell apart. Settings sync via infrared from the receiver to the transmitters, which keeps setup quick.

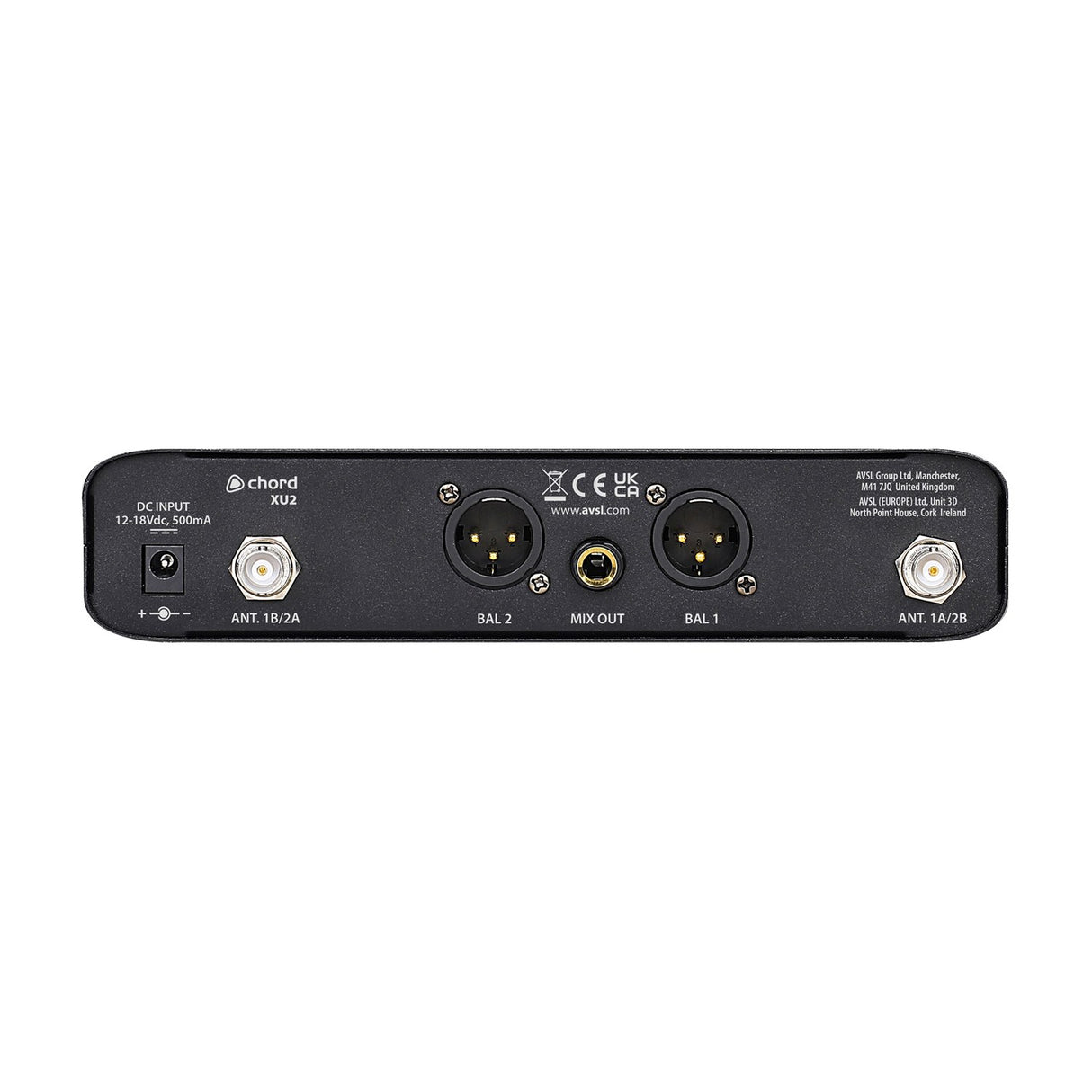

Connectivity covers 1, 2 or 4 XLR outputs depending on the configuration, along with a single 6.3mm mix output. This XU2-B version provides two channels. The set includes hardware for mounting into a 1U rack space, with extension cables so the antennas can be front-mounted if the rear panel is hard to reach. Each transmitter runs on 2 x AA batteries and gives a wireless range of up to 60m. The receiver measures 205 x 205 x 44mm and weighs 755g, so it fits neatly alongside other half-width units in a rack.

Specification
Weight : lavalier microphone 0.02KG
Dimensions : lavalier microphone 27mm x 12mmØ
Weight : neckband microphone 0.03KG
Dimensions : neckband microphone 180mm x 140mm x 60mm
Weight : beltpack transmitter 0.07KG
Dimensions : beltpack transmitter 90mm x 60mm x 25mm
Power supply 12-18Vdc, 500mA (mains adaptor supplied)
Batteries 2 x AA per transmitter
Carrier frequencies 823-832 / 863-865MHz
Wireless range Up to 60m
Antenna connection 2 x BNC
Dimensions : receiver 205mm x 205mm x 44mm
Weight : receiver 0.76KG
Downloads

Product Manual

Frequently Asked

How many channels does the XU2-B have?

The XU2-B is a two-channel system, supplied with two bodypack transmitters. It uses a single half-width receiver that handles both channels.

What comes with each transmitter?

Each bodypack transmitter is supplied with a neckband and a lavalier mic option, so you can choose the setup that suits the application.

What frequency bands does it use?

Carrier frequencies span 823-832MHz and 863-865MHz, covering both the UK/EU license-free UHF band and the PMSE licensed duplex gap.

How does the diversity reception work?

The receiver is a true diversity type with dual antennas and internal distribution, which helps minimise dropouts across the working area.

What outputs are available?

Depending on configuration the system offers 1, 2 or 4 XLR outputs plus a single 6.3mm mix output.

What is the wireless range?

The system gives a wireless range of up to 60m. Actual range depends on the environment and any obstructions between transmitter and receiver.
